Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on our
social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with your order,
please contact the retailer you purchased the item from. We will work with the retailer
to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop
voucher simply post a picture of your
new product on your preferred social
channels tagging Birlea Furniture and
using the hashtag #ShareYourStyle
and #Birlea. One winner will be
selected at random each month.
To view our full terms and conditions please visit www.birlea.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Birlea Berlin King Fabric Bed
Summary of Contents for Birlea Berlin King Fabric Bed
- Page 1 Birlea product. and #Birlea. One winner will be selected at random each month. To view our full terms and conditions please visit www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.

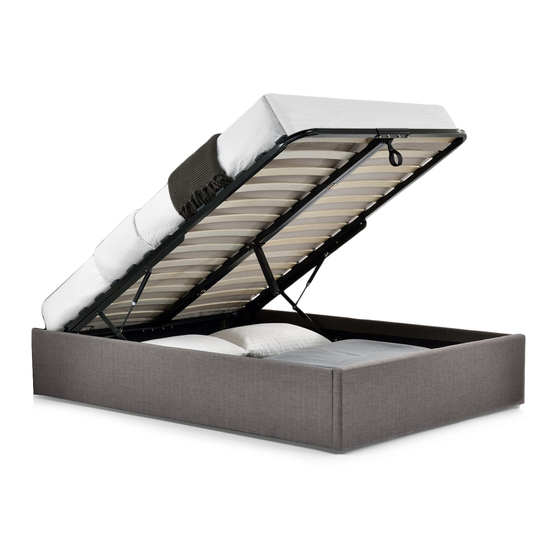

- Page 2 Berlin Fabric Bed - King Assembly Instructions Before you begin... 1. Please check you have received the correct product. 2. Unpack all boxes and lay out each component on the floor. 3. Check your product for any damage that may be immediately obvious. If damage is identified, please contact your retailer.
- Page 3 Box 1 All fittings are stored within the zipped compartment of the headboard. Footboard (x1) Slats (x13) Legs (x4) M8x30mm Bolts (x8) M8x16mm Bolts (x4) M8x65mm Bolts (x4) Headboard (x1) Spring Washer (x8) Flat Washer (x8) Slat Caps (x28) M5 Allen Key (x1) Support Leg (x2) Nuts (x12) Spanner (x1)
- Page 4 Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 and note that some components are stored within the zipped compartment at the rear of the headboard. Should you identify any missing components, please contact the retailer you purchased the bed from.
- Page 5 Step 3 (A1) Attach 2x Side Rails to 1x Headboard and 1x Footboard using 8x M8x30mm Bolt , 8x Spring Washer 8x Flat Washer and 1x M5 Allen Key .Secondly, attach the 1x Wooden Block to the 1x Footboard using 2x M8x45mm Bolts and 1x M5 Allen Key Step 4...
- Page 6 Step 5 (B1) (C1) Attach the Attach the 2x Front and Back Frame Rails to the 1x Left Frame Rail and 1x Right Frame Rail using 4x (D1) (B1) M8x16mm Bolts and 1x M5 Allen Key . Then attach the Cross Support Rail to the 1x Left Frame Rail and 1x Right Frame Rail (...
- Page 7 Step 7 Attach the Metal Frame ( ) to the pre-fixed Gas Lift ( ) on the inside of the side panels using 2x M8x45mm Bolts ( (N). 2x Nuts , M5 Allen Key and 1x Spanner Step 8 Slot each Slat Cap on to the end of each Slat .
- Page 8 Step 9 Turn the bed frame over on to its side and attach the Woven Fabric to the base of the bed frame as shown below. Page 8 of 8...
