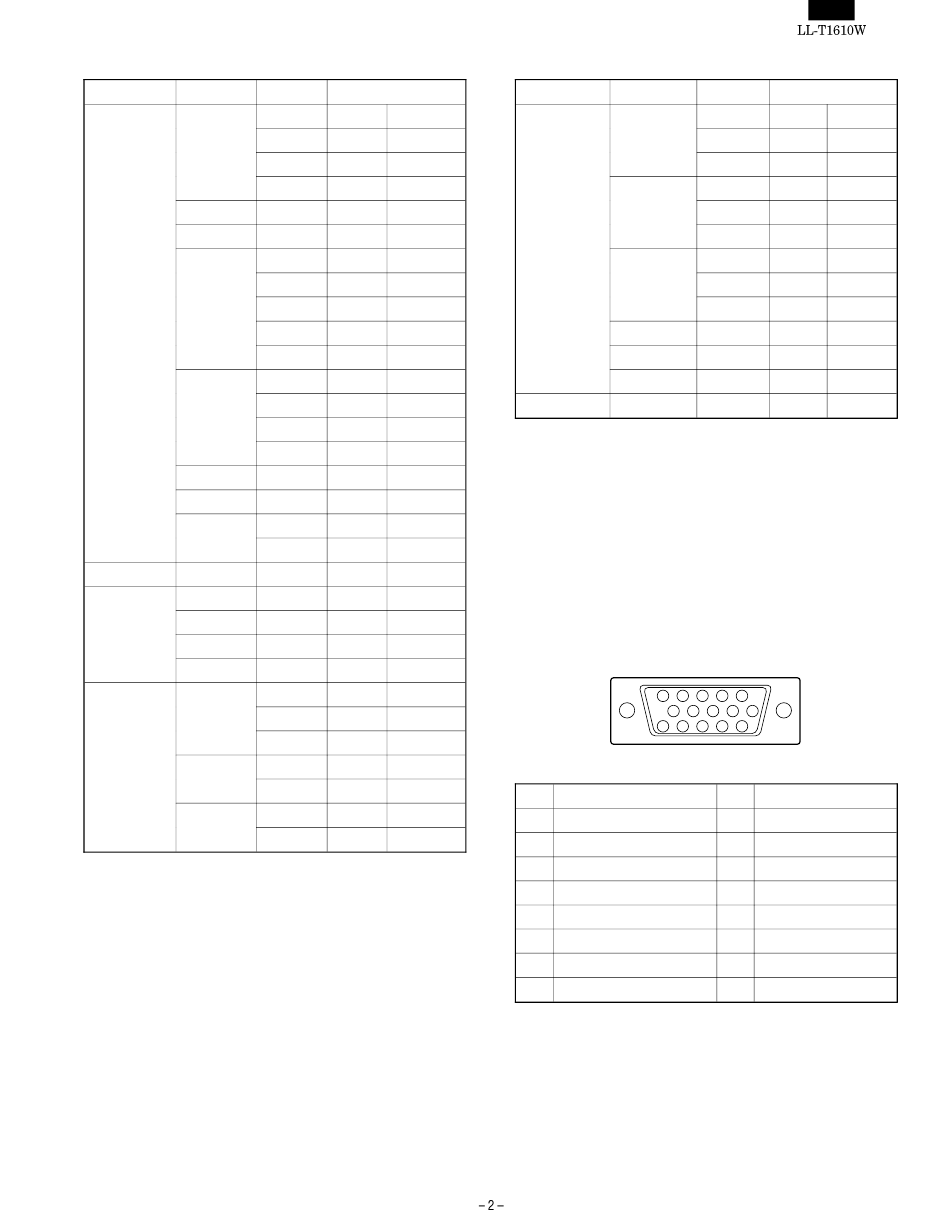

Sharp LL-T1610W Service Manual page 3

Relevant signal timings (analog)
Display mode Hsync (kHz) Vsync (Hz)
VESA 640 x 480
640 x 400
720 x 400
800 x 600
1024 x 768
1152 x 864
1280 x 960
1280 x 1024
US text 720 x 400
Power 640x480
Macintosh
832 x 624
series
1024 x 768
1152 x 870
Sun Ultra 1024 x 768
series
1152 x 900
1280 x 1024
•
All are compliant only with non-interlaced.
•
Frequencies for Power Macintosh and the Sun Ultra series are
reference values. To connect, another adapter (purchased sepa-
rately) may be required.
•
If the monitor is receiving timing signals that are not compatible,
[OUT OF TIMING] will appear. Follow your computer's instruction
manual to set the timing so that it is compatible with the monitor.
•
If the monitor is not receiving any signal (synch signal), [NO SIG-
NAL] will appear.
Dot frequency (MHz)
31.5kHz 60Hz 25.175MHz
37.9kHz 72Hz 31.5MHz
37.5kHz 75Hz 31.5MHz
43.3kHz 85Hz 36.0MHz
37.9kHz 85Hz 31.5MHz
37.9kHz 85Hz 35.5MHz
35.1kHz 56Hz 36.0MHz
37.9kHz 60Hz 40.0MHz
48.1kHz 72Hz 50.0MHz
46.9kHz 75Hz 49.5MHz
53.7kHz 85Hz 56.25MHz
48.4kHz 60Hz 65.0MHz
56.5kHz 70Hz 75.0MHz
60.0kHz 75Hz 78.75MHz
68.7kHz 85Hz 94.5MHz
67.5kHz 75Hz 108.0MHz
60.0kHz 60Hz 108.0MHz
64.0kHz 60Hz 108.0MHz
80.0kHz 75Hz 135.0MHz
31.5kHz 70Hz 28.3MHz
35.0kHz 66.7Hz 30.2MHz
49.7kHz 74.6Hz 57.3MHz
60.2kHz 75Hz 80.0MHz
68.7kHz 75Hz 100.0MHz
48.3kHz 60Hz 64.13MHz
53.6kHz 66Hz 70.4MHz
56.6kHz 70Hz 74.25MHz
61.8kHz 66Hz 108.01MHz
71.8kHz 76.1Hz 117.01MHz
71.7kHz 67.2Hz 117.01MHz
81.1kHz 76Hz 134.99MHz
Relevant signal timings (digital)
Display mode Hsync (kHz)
VESA 640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 960
1280 x 1024
US text 720 x 400
•
All are compliant only with non-interlaced.
•
A computer with an output terminal conforming to DVI (DVI-D24
pin or DVI-I29 pin) and with SXGA output capability can be con-
nected here. Depending on the type of computer to be connected,
the display may not work correctly. In order to connect, it is neces-
sary to purchase a digital signal cable (model name: NL-C01E)
separately.
•
If the monitor is receiving timing signals that are not compatible,
[OUT OF TIMING] will appear. Follow your computer's instruction
manual to set the timing so that it is compatible with the monitor.
•
If the monitor is not receiving any signal (synch signal), [NO SIG-
NAL] will appear.
The analog signal input connector pin
5 4
10 9
15 14
(Mini D-sub connector with 15 pins)
No. Function
1 Red video signal input
2 Green video signal input
3 Blue video signal input
4 GND
5 GND
6 For red video signal GND
7 For green video signal GND
8 For blue video signal GND
Vsync (Hz) Dot frequency(MHz)
31.5kHz 60Hz 25.175MH
37.9kHz 72Hz 31.5MHz
37.5kHz 75Hz 31.5MHz
37.9kHz 60Hz 40.0MHz
48.1kHz 72Hz 50.0MHz
46.9kHz 75Hz 49.5MHz
48.4kHz 60Hz 65.0MHz
56.5kHz 70Hz 75.0MHz
60.0kHz 75Hz 78.75MHz
67.5kHz 75Hz 108.0MHz
60.0kHz 60Hz 108.0MHz
64.0kHz 60Hz 108.0MHz
31.5kHz 70Hz 28.3MHz
3 2 1
8 7 6
13 12 11
No. Function
9 DDC/VCC
10 GND
11 N.C.
12 DDC data
13 For Hsync signal input
14 For Vsync signal input
15 DDC clock
