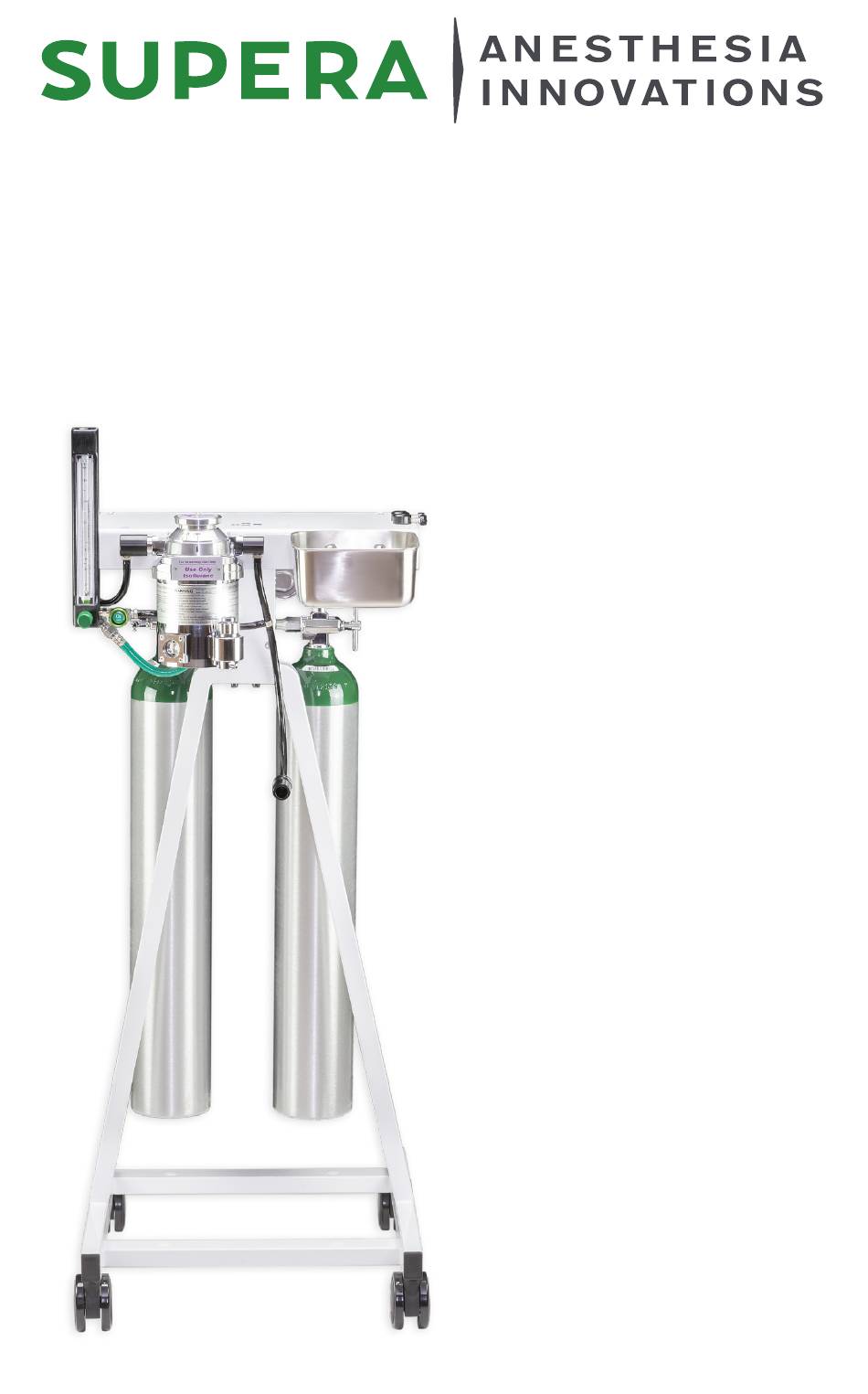

- Page 1 Operators Manual Non-Rebreathing Anesthesia Machine Model M1000 (All shown with optional equipment) For Veterinary Use Only Supera, LLC Copyright 2022...
- Page 3 Examination and Preparation for Use Thank you for ordering an Supera Anesthesia Innovations anesthesia machine! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.
- Page 5 TABLE OF CONTENTS Machine Assembly Pages Assembling the stand Attaching the E–tanks (optional) Attaching the O2 supply Circuit Waste Gas Evacuation Technical Information Warranty / Return Information Machine & Service notes...
- Page 7 Machine Assembly * NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEMBLE * 1. Carefully unpack the top assembly and frame from the box 2. Align the top to the frame as shown. 3. Assemble the top portion with the frame by installing the two 1/4-20 X 1 3/4”...
- Page 9 Optional E-Tank Manifold Installation 1st Step Hand tighten 1/4-20 cap screws (4 each) 2nd Step Using 3/16” hex wrench provided, tighten 1/4-20 cap screws (4 each)
- Page 10 3rd Step Attache green oxygen line to flow meter. Lightley tighten with wrench. NOTE: The fittings have an o-ring to seal the joint * DO NOT OVER TIGHTEN * Finished assembly...
- Page 11 Sample of a non-rebreathing anesthesia machine includes a storage basket and I.V. Pole standard.
- Page 12 Optional Features & Accessories I.V. Pole (included) Shown with optional universal control arm for use with Bain circuits P/N MA2013 With safety pop off valve...
- Page 13 Circuit CIR518 - Non-Rebreathing Modified Jackson-Rees The Non–rebreathing system connects to the common gas outlet of the anesthesia machine. 1. Disconnect the common gas outlet from the rebreathing head. (quick disconnect fit- tings) 2. Plug the 15mm male connector from the non–rebreathing system into the common gas outlet of the anesthesia machine.
- Page 14 Waste Gas Evacuation EVC630 WGI (optional equipment) The Waste gas interface device is a non–adjustable valve that balances the negative pressure from the suction device to the positive pressure of the anesthesia machine. EVC629 for vacuum pump systems also available. Waste Gas Interface Device Features A.
- Page 15 Waste Gas Evacuation F-AIR Charcoal Canister Kit (optional equipment) P/N EVC555 The F-AIR canister will remove the waste gas from the anesthesia machine for approximately 8-12 hours. After that time, the canister is replaced. F–Air Canister Bracket - Optional Install in the lower part of “A” frame using the screw and washer provided.
- Page 16 Supera Anesthesia Innovations product. Supera Anesthesia Innovations shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the product or other- wise, if, prior to such damage, injury or loss, the product was (1) damaged,misused, or misapplied;...
- Page 17 7. Note: unless the following procedures are followed correctly and we are notified within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER.
- Page 18 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Vaporizer serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
