- Page 1 OXYGEN CONCENTRATORS OC6000 Operators Manual For Veterinary Use Only Supera , LLC Copyright 2019...
- Page 3 Examination and Preparation for Use We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected. Should anything not be exactly right or if anything was damaged in shipping, please contact your sales representative right away for help.
-
Page 5: Machine Assembly

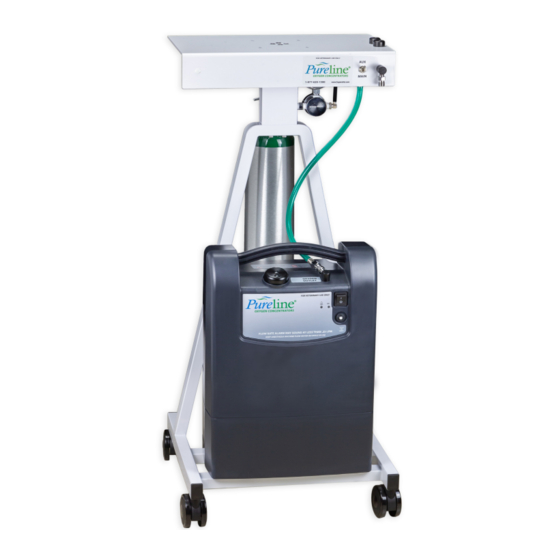

Machine Assembly * NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEMBLY * 1. Carefully unpack the top assembly and frame from the box 2. Align the top to the frame as shown. NOTE: The frame base has two cross bars with holes in them for mounting the concentrator. - Page 6 1. Remove the oxygen concentrator from the box and guide the 4 threaded post into the frame 2. Install and tighten the nuts. DO NOT OVER TIGHTEN THE NUTS, SNUG FIT IS ALL THAT IS NEEDED...
- Page 7 Oxygen Setup Attach the green hose from your anesthesia machine to the DISS fitting. Attach the green hose from the OC6000 top to the threaded fitting. * DO NOT OVER TIGHTEN*...
- Page 8 Auxiliary & Main Oxygen Switch MAIN Switch Position With the switch in the “MAIN” position the supply of oxygen to the anesthesia machine comes directly from the oxygen concentrator. NOTE: It does not fill the “E” tank. AUXILARY Switch Position With the switch in the “AUX”...
- Page 9 OXYGEN CONCENTRATORS USER'S GUIDE OC4000 OXYGEN CONCENTRATOR FOR VETERINARY USE ONLY GLOSSARY OF SYMBOLS : ON (power switched on) : Do not use oil or grease : OFF (power switched off) : Technical information : Consult the accompanying documents : Keep in the vertical position : Class II protection : Fragile - handle with care : Do not expose to open flames...
-
Page 10: General Safety Guidelines
GENERAL SAFETY GUIDELINES Only persons who have read and understood this entire manual should be allowed to operate the O2 concentr The CAUTIONS below indicate a potentially The WARNINGS below indicate a potential hazardous situation. If conditions are not hazardous situation. If conditions are not avoided a situation could occur that results avoided a situation could occur that results in property damage or minor injury or both. -
Page 11: Method For Waste Disposal
CONFORMITY WITH IEC60601-1 (2nd 1.1 METHOD FOR WASTE DISPOSAL Edition) All waste from the device (Patient Circut, "The manufacturer, assembler, installer or Filters, Etc.) must be disposed of using methods distributor are not considered to be responsible appropriate to the civil authority of the location themselves for the consequences on the safety, where disposed. - Page 12 2.1. Front panel (Fig. 2.1) I/O (ON/OFF) switch 2 - Indicator lights 3 - Oxygen product outlet 4 - Circuit breaker 5 - Pre-set flow meter (non-adjustable)
-
Page 13: Cleaning & Maintenance
4. CLEANING - MAINTENANCE 3.1 Turning on device Only the outside of the concentrator is to be a. Plug the power cable into a power outlet (Fig. cleaned. Use a damp sponge or cloth with 3.3) of the correct voltage and frequency as water only. -
Page 14: Useful Information
5.2. Materials in direct or indirect contact with the product output 4.3. Maintenance NO INTERNAL MAINTENANCE Concentrator casing ........ABS Power Cord ........... PVC IS REQUIRED OR SHOULD BE Cabinet Air Filter ......Polyester I/0 (On/Off) switch........Nylon PERFORMED. Casters............Nylon Oxygen product outlet ....Aluminum Printed labels......Polycarbonate OPENING THE CASE WILL Pipe/Tubing......Aluminium,PVC,... - Page 15 Process fault 5.4.3 Indicators (continued) • In the case of a process fault, a visible and au- • The red indicator warns of a process fault. dible alarm is activated (continuous red light or One event that can cause the red indicator lighted alarm and audible alarm).
- Page 16 5.5.4 Maintenance of the Device Alarms 5. 5. OCSI (oxygen concentration status indication module) function No special maintenance is required. The alarm set-point is factory set and the setting cannot be 5.5.1. Operating principle adjusted. All models are set at 84%. The oxygen monitor (Item 2 Fig 2.1) is an The equipment supplier verifies that the device electronic module capable of checking the...
-
Page 17: Air Circulation
Air circulation Use original parts only A tubeaxial fan cools the compressor compart- ment. Contact Supera Anesthesia Innovations for additiional information Environmental limit conditions The performances of the device (especially the 877-620-1500 oxygen concentration) are quoted at 21 C (70 and one atmosphere. -
Page 18: Troubleshooting
5.8. Troubleshooting. Observations Possible Causes Solutions The I/O (ON/OFF) button is in the "I" Power cord is not correctly (ON) position but the device does not plugged into the wall outlet. Check the cable connection. operate. Check the circuit breaker (5) on the The audible alarm sounds intermit- Power failure. -
Page 21: Maintenance
P/N 8400-1180 Fine inlet filter (square black plastic filter) - List Price $14.95 The fine particle filter goes under the course filter. This is a replacement only filter every 2000 hours. Failure to monitor the condition of the filters will void the warranty. Contact Supera for replacement 877-620-1500... -
Page 23: Warranty / Return Policy
The Supera LLC Limited Warranty covers parts and construction of all products manufactured by Supera LLC in its USA manufacturing facility. If we find that a Supera machine does not operate as stated in the instructions and specifications that come with the product due to defects in design, materials, or workmanship, Supera will repair the unit or replace it with one of equal or greater value at no charge to the customer for up to three years from the date of purchase. - Page 24 CS@superavet.com 7. Note: unless the following procedures are followed correctly and we are notified within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER.
- Page 25 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
- Page 28 OXYGEN CONCENTRATORS (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 12330 S.E. Highway 212, Clackamas, OR 97015 www.SuperaVet.com...
