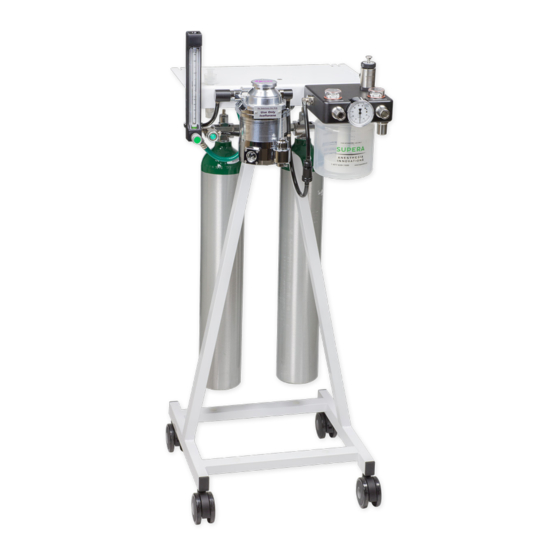

- Page 1 Operators Manual Anesthesia Machine Model M1200 (All shown with optional equipment) For Veterinary Use Only Supera, LLC Copyright 2022...
- Page 3 Examination and Preparation for Use Thank you for ordering an Supera Anesthesia Innovations anesthesia machine! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.
-
Page 5: Technical Information
TABLE OF CONTENTS Machine Assembly Pages Assembling the stand Attaching the E–tanks (optional) Attaching the O2 supply Circuit Waste Gas Evacuation Technical Information Warranty / Return Information Machine & Service notes... - Page 6 M1200 Assembly * NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEMBLE * 1. Carefully unpack the top assembly and frame from the box 2. Align the top to the frame as shown. 3. Assemble the top assembly with the frame by installing the two 1/4-20 X 1 3/4”...
-
Page 7: Oxygen Supply
Oxygen Supply Optional E-Tank Manifold P/N MA2100 1st Step Hand tighten 1/4-20 cap screws (4 each) 2nd Step Using 3/16” hex wrench provided, tighten 1/4-20 cap screws (4 each) - Page 8 3rd Step Attach green oxygen line to flow meter. Lightly tighten with wrench. NOTE: The fittings have an O-ring to seal the joint * DO NOT OVER TIGHTEN *...
-
Page 9: Finished Assembly
Finished assembly... -
Page 11: Optional Accessories
Anesthesia Machine Operation & Optional Accessories... - Page 12 Safety Pop Off Valve Normal Operation Screw-down pop-off valve open with push-button valve up In this position the breathing circuit is fully open. The manometer should read "0" with slight fluctuations during respiration. Squeezing the rebreathing bag should not create pressure in the breathing circuit.
- Page 13 Machine Leak Test 1. Close pop off valve (turn knob clockwise) 2. Depress plunger valve in the center and hold 3. Plug the end of the rebreathing hose 4. Add pressure to the system until the manometer reads 30cmH20 Hold the pressure for ten seconds. If it doesn’t drop faster than 1 cm H2O per second, the machine is sealed enough for use.
-
Page 14: Optional Features & Accessories
Optional Features & Accessories I.V. Pole (included) Shown with optional universal control arm for use with Bain circuits P/N MA2013 With safety pop off valve... - Page 15 Optional F-Air evacuation kit P/N EVC555 (Shown on M6000)
- Page 16 Waste Gas Evacuation Optional waste gas interface valve P/N EVC630 for use with fan based evacuation systems like our EVC3000 Optional waste gas interface valve P/N EVC629 for use with vacuum pump based evacuation systems like our EVC3100...
- Page 17 Heavy Duty Rebreathing Bags Part Number ACC520 500cc Rebreathing Bag ACC521 1L Rebreathing Bag ACC522 2L Rebreathing Bag ACC523 3L Rebreathing Bag ACC524 4L Rebreathing Bag ACC525 5L Rebreathing Bag...
- Page 18 Circuits P/N CIR518 - Non-Rebreathing Modified Jackson-Rees Common Gas Outlet The Non–rebreathing system connects to the common gas outlet of the anesthesia machine. 1. Disconnect the common gas outlet from the rebreathing head. (quick disconnect fittings) 2. Plug the 15mm male connector from the non–rebreathing system into the common gas outlet of the anesthesia machine.
- Page 19 Circuits P/N CIR529 & CIR529P Rebreathing Unilimb circuits Unilimb design removes clutter and disorder from the anesthesia field. Patients exhaled breath acts as a thermal wrap to maintain the temperature and humidity of inspired gases. The swivel connector at the patient end eliminates kinking of the tubing.
-
Page 20: Warranty / Return Policy
Supera Anesthesia Innovations product. Supera Anesthesia Innovations shall not be liable for any damage, injury or loss aris- ing out of the use of the product, whether as a result of a defect in the product or oth- erwise, if, prior to such damage, injury or loss, the product was (1) damaged,misused, or misapplied;... -
Page 21: Shipping Policy
7. Note: unless the following procedures are followed correctly and we are notified within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER. -
Page 22: Maintenance
MAINTENANCE Anesthesia Machine The anesthesia machine should be serviced by a certified technician. Only certified service companies will have the factory specifications and access to original replacement parts. Annual Preventative Maintenance Service Service will include: Pre–service low and high pressure test. Inspection and replacement of hos- es, gaskets and seals as needed. - Page 23 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Vaporizer serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
- Page 24 (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 1220 NW Noble Drive, Estacada OR 97023 www.SuperaVet.com MADE IN oREGON, uSA since 1993...
