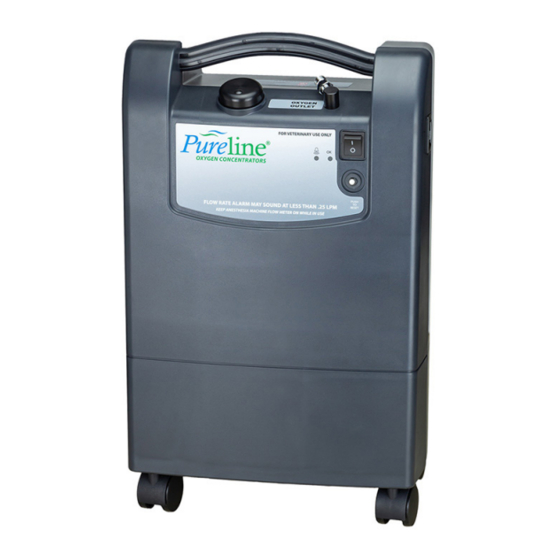

USER'S GUIDE
OC4000
OXYGEN CONCENTRATOR
FOR VETERINARY USE ONLY
I
: ON (power switched on)
O
: OFF (power switched off)
: Class II protection
: Do not expose to open flames
For Veterinary Use Only
OXYGEN CONCENTRATORS
GLOSSARY OF SYMBOLS
: Do not use oil or grease
: Technical information
: Consult the accompanying documents
: Keep in the vertical position
: Fragile - handle with care
: Oxygen concentration warning light
Supera , LLC Copyright 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pureline OC4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supera Pureline OC4000

Summary of Contents for Supera Pureline OC4000

  • Page 1 : Consult the accompanying documents : Keep in the vertical position : Class II protection : Fragile - handle with care : Do not expose to open flames : Oxygen concentration warning light For Veterinary Use Only Supera , LLC Copyright 2019...
  • Page 3 Examination and Preparation for Use Thank you for ordering an Supera Anesthesia Innovations anesthesia machine! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.

  • Page 4: General Safety Guidelines

    GENERAL SAFETY GUIDELINES Only persons who have read and understood this entire manual should be allowed to operate the O2 concentr The CAUTIONS below indicate a potentially The WARNINGS below indicate a potential hazardous situation. If conditions are not hazardous situation. If conditions are not avoided a situation could occur that results in avoided a situation could occur that results property damage or minor injury or both.

  • Page 5: Method For Waste Disposal

    CONFORMITY WITH IEC60601-1 (2nd 1.1 METHOD FOR WASTE DISPOSAL Edition) All waste from the device (Patient Circut, "The manufacturer, assembler, installer or Filters, Etc.) must be disposed of using methods distributor are not considered to be responsible appropriate to the civil authority of the location themselves for the consequences on the safety, where disposed.
  • Page 6 2.1. Front panel (Fig. 2.1) I/O (ON/OFF) switch 2 - Indicator lights 3 - Oxygen product outlet 4 - Circuit breaker 5 - Pre-set flow meter (non-adjustable)

  • Page 7: Cleaning & Maintenance

    4. CLEANING - MAINTENANCE 3.1 Turning on device a. Plug the power cable into a power outlet (Fig. Only the outside of the concentrator is to be 3.3) of the correct voltage and frequency as cleaned. Use a damp sponge or cloth with defined on the manufacturer's technical label (Fig water only.

  • Page 8: Maintenance

    5.2. Materials in direct or indirect contact with the product output 4.3. Maintenance NO INTERNAL MAINTENANCE Concentrator casing ........ABS Power Cord ........... PVC IS REQUIRED OR SHOULD BE Cabinet Air Filter ......Polyester I/0 (On/Off) switch........Nylon PERFORMED. Casters............Nylon Oxygen product outlet ....Aluminum Printed labels......Polycarbonate OPENING THE CASE WILL Pipe/Tubing......Aluminium,PVC,...
  • Page 9 Process fault 5.4.3 Indicators (continued) • In the case of a process fault, a visible and au- • The red indicator warns of a process fault. dible alarm is activated (continuous red light or One event that can cause the red indicator lighted alarm and audible alarm).
  • Page 10 5.5.4 Maintenance of the Device Alarms 5. 5. OCSI (oxygen concentration status indication module) function No special maintenance is required. The alarm set-point is factory set and the setting cannot be 5.5.1. Operating principle adjusted. All models are set at 84%. The oxygen monitor (Item 2 Fig 2.1) is an The equipment supplier verifies that the device electronic module capable of checking the...

  • Page 11: Air Circulation

    At the rear of the device: a cabinet air filter. At the compressor input: an inlet air filter, 5 µm, located behind the cabinet air filter. Use original parts only Air circulation Contact Supera Anesthesia Innovations A tubeaxial fan cools the compressor compart- for additiional information ment. 877-620-1500...

  • Page 13: Troubleshooting

    5.8. Troubleshooting. Observations Possible Causes Solutions The I/O (ON/OFF) button is in the "I" Power cord is not correctly (ON) position but the device does not plugged into the wall outlet. Check the cable connection. operate. Check the circuit breaker (5) on the The audible alarm sounds intermit- Power failure.
  • Page 14 NOTES ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________ ___________________________________________________________________...
  • Page 16 OXYGEN CONCENTRATORS (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 12330 S.E. Highway 212, Clackamas, OR 97015 www.SuperaVet.com...
