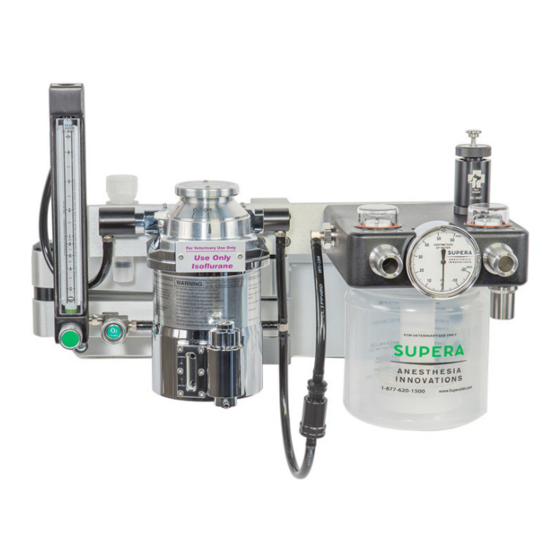

Operators Manual Wall Mount Anesthesia Machine M2300 Stationary Mount M2500 Articulating Arm (Shown With Optional Equipment) For Veterinary Use Only Supera, LLC Copyright 2022...
TABLE OF CONTENTS Machine Assembly Page Dimensions Mounting Attaching the O2 supply Breathing circuits Waste Gas Evacuation Technical Information Diagram and Part Numbers Ordering information Warranty /Return Machine & Service notes...
Page 4
Chapter 1: Mounting IMPORTANT The bracket should be mounted into a solid wall stud or back board The mounting holes are on 16” centers (standard wall stud distance) Use lag screws (5/16” or 3/8”) to mount to the wall...
Page 5
Oxygen Connection Attach your green oxygen hose to the back of the flow meter.
Page 6
Circuits CIR518 - Non-Rebreathing Modified Jackson-Rees Common Gas Outlet The Non–rebreathing system connects to the common gas outlet of the anesthesia machine. 1. Disconnect the common gas outlet from the rebreathing head. (quick dis- connect fittings) 2. Plug the 15mm male connector from the non–rebreathing system into the common gas outlet of the anesthesia machine.
Page 7
Circuits CIR529 & CIR529P Rebreathing Unilimb circuits Unilimb design removes clutter and disorder from the anesthesia field. Patients exhaled breath acts as a thermal wrap to maintain the tempera- ture and humidity of inspired gases. The swivel connector at the patient end eliminates kinking of the tubing.
Page 8
Waste Gas Evacuation Optional waste gas interface valve P/N EVC630 for use with fan based evacuation systems like our EVC3000 Optional waste gas interface valve P/N EVC629 for use with vacuum pump based evacuation systems like our EVC3100...
This warranty shall be void for any product that has been altered, defaced or re- moved from the original Supera Anesthesia Innovations product. Supera Anesthesia Innovations shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the prod- uct or otherwise, if, prior to such damage, injury or loss, the product was (1) damaged,misused, or misapplied;...
CS@superavet.com 7. Note: unless the following procedures are followed correctly and we are notified within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER.
Page 11
DOCUMENTATION Date purchased: Purchased from: Machine serial number: Vaporizer serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
Page 12
(503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 1220 NW Noble Drive, Estacada OR 97023 www.SuperaVet.com MADE IN oREGON, uSA since 1993...
