Summary of Contents for Supera M4000

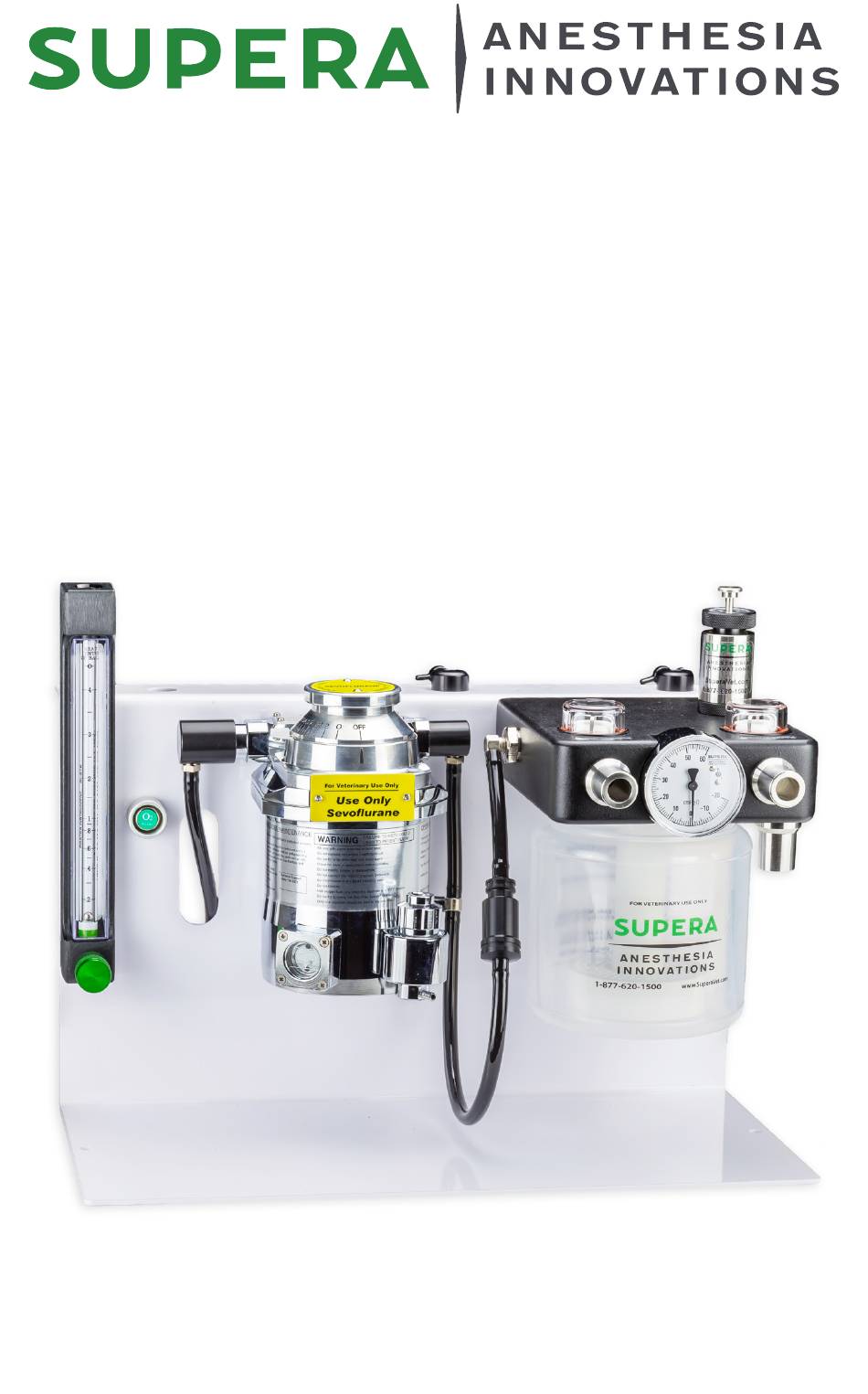

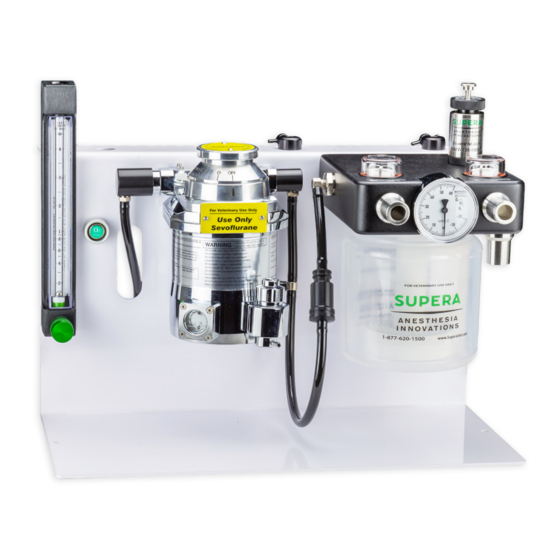

- Page 1 Supera Table Top Anesthesia Machine Model M4000 (Shown With Optional Equipment) For Veterinary Use Only Supera, LLC Copyright 2022...
- Page 3 Thank you for ordering an Supera Anesthesia Innovations anesthesia ma- chine! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected. Should anything not be exactly right or if anything was damaged in shipping, please contact your sales representative right away for help.
-
Page 4: Technical Information
TABLE OF CONTENTS Machine Assembly Page Dimensions Mounting Attaching the O2 supply Breathing circuits Waste Gas Evacuation Technical Information Diagram and Part Numbers Ordering information Warranty /Return Machine & Service notes Dimensions Dimensions: 17.5”W x 9”L x 14”H Shipping box dimensions: 18” x 18” x 27” Shipping weight: 18lbs without vaporizer, 39lbs with vaporizer... - Page 5 Oxygen Connection Attach your green oxygen hose to the back of the flow meter.
- Page 6 Circuits CIR518 - Non-Rebreathing Modified Jackson-Rees Common Gas Outlet The Non–rebreathing system connects to the common gas outlet of the anesthesia machine. 1. Disconnect the common gas outlet from the rebreathing head. (quick dis- connect fittings) 2. Plug the 15mm male connector from the non–rebreathing system into the common gas outlet of the anesthesia machine.
- Page 7 Circuits CIR529 & CIR529P Rebreathing Unilimb circuits Unilimb design removes clutter and disorder from the anesthesia field. Patients exhaled breath acts as a thermal wrap to maintain the tempera- ture and humidity of inspired gases. The swivel connector at the patient end eliminates kinking of the tubing.
- Page 8 Waste Gas Evacuation Optional waste gas interface valve P/N EVC630 for use with fan based evacuation systems like our EVC3000 Optional waste gas interface valve P/N EVC629 for use with vacuum pump based evacuation systems like our EVC3100...
-
Page 9: Warranty / Return Policy
This warranty shall be void for any product that has been altered, defaced or removed from the original Supera Anesthesia Innovations product. Supera Anesthesia Innovations shall not be liable for any damage, injury or loss arising out of the use of the product, whether as a result of a defect in the product or otherwise, if, prior to such damage, injury or loss, the product was (1) damaged,misused, or misapplied;... -
Page 10: Shipping Policy
7. Note: unless the following procedures are followed correctly and we are notified within ten (10) days, SUPERA LLC cannot accept any responsibility for the problems that may ensue. DO NOT RETURN ANY DAMAGED GOODS TO SUPERA LLC WITHOUT PRIOR AUTHORIZATION OF SUPERA LLC AND THE CARRIER. - Page 11 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Vaporizer serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
- Page 12 (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 1220 NW Noble Drive, Estacada OR 97023 www.SuperaVet.com MADE IN oREGON, uSA since 1993...
