D oo r A ct i v a t i o n D e v i c e s

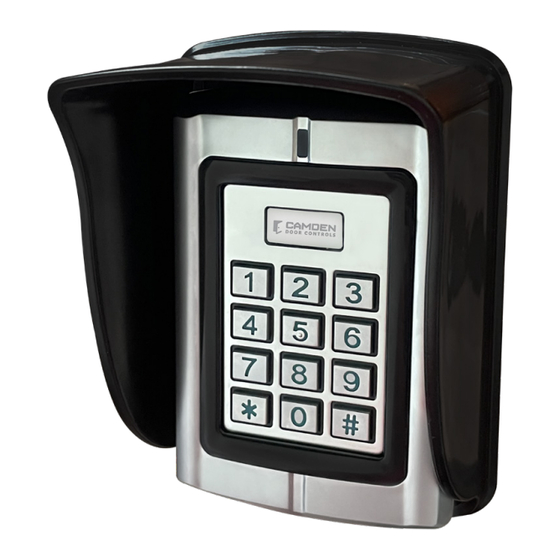

CV-550SPK v3
Reference Manual
Page 1 of 33

Advertisement

Table of Contents
loading

Related Manuals for CAMDEN CV-550SPKV3

Summary of Contents for CAMDEN CV-550SPKV3

  • Page 1 D oo r A ct i v a t i o n D e v i c e s CV-550SPK v3 Reference Manual Page 1 of 33...

  • Page 2: Table Of Contents

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS TABLE OF CONTENTS Page Numbers 1. Overview ..................................- 4 - 1.1 Introduction ................................- 4 - 1.2 Function features ............................... - 4 - 1.3 Keypad exterior features ............................
  • Page 3 CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Page Numbers 4.1.20 Set LED indicator light mode ..........................- 18 - 4.1.21 Adjust the brightness of the normally bright red indicator ................- 18 - 4.1.22 Set key backlit mode ..............................- 19 - 4.1.23 Adjust brightness of key backlit ..........................

  • Page 4: Overview

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 1. OVERVIEW Introduction This version of keypad uses the new 32-bit microcontroller ARM core design with enhanced beneficial functions. It’s a new generation of multi-function access controller with a card reader mode, single-door mode, interlock mode, Demo mode etc. All of them could be widely used in office buildings, homes, schools, condominium, apartments, factories, fenced in yards and other places.

  • Page 5: Technical Parameters

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Technical parameters • Working Voltage: AC/DC10-28V • Standby current: ≤35mA (Input DC12V) • Operating current: ≤100mA (Input DC12V) • Working temperature: -40 °F + 140 °F ( -40 to 60 °C) •...

  • Page 6: Installation, Wiring And Debugging

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 2. INSTALLATION, WIRING AND DEBUGGING 2.1 Installation Using the Torx screwdriver remove the security fastening screw at the bottom of the device. Take off the bottom case and use it to mark the position on the wall for the mounting holes.
  • Page 7 Wiegand signal, D0 input or output (or RS232-TTL signal output: Tx) White Wiegand signal, D1 input or output (or RS232-TTL signal input : Rx) Pink D_IN2(LED_R) External control input of red LED Wiring the CV‐550SPK  to an ACCESS CONTROLLER Must be configured for reader mode Alarm Annunciator Camden Model: CM‐AF142SO (+ve) Connect positive wire  Green (+ve) to colored wire  Blue (+ve) representing the  preferred color of the ...
  • Page 8 CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS Wiring the CV‐550SPK  to an external card reader and door strike Must be configured for single door mode ‐ Power Supply Alarm Annunciator 12 to 24 VDC Camden Model: CM‐AF142SO (+ve) Connect positive wire to  Green (+ve) colored wire  Blue (+ve) 120 VAC representing the  preferred color of the  dome light. Black (‐ve) Stand Alone Keypad Camden Model: CV‐550SPK v Door Strike 12 VDC...
  • Page 9 CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS INTERLOCK APPLICATION : Two keypads wired together Wiring the CV‐550SPK  to an external card reader and door strike Must be configured for INTERLOCK mode Stand Alone Keypad 115  Camden Model: CV‐550SPK Maglock  Camden Model: CX‐90/91  XFMR    ‐BATT+ SW2  position Door Strike  must be Camden Model:  (Can be replaced  OFF.  with a MOV) CX‐ED1079 Alarm Annunciator Camden Model: CX‐LED2...
  • Page 10 CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS Stand Alone Keypad 115  Camden Model: CV‐550SPK  XFMR    ‐BATT+ Normally Open PUSH TO EXIT Push to Exit Switch Camden Model:CM‐30 Normally Closed Door Position Switch SW2  (‐) position must be Door Strike  (Can be replaced  OFF. Camden Model:   with a MOV) CX‐ED1079 Maglock  Camden Model: CX‐90/91 Page 10 of 33...
  • Page 11 CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Wiring for DC Power (AC1 & for AC Power (AC1 & AC2) i r i Camden Model: CV-550SPK V3 Camden Model: CV-550SPK V3 Power Not Used Light Green...

  • Page 12: Commissioning The System

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 2.3 Commissioning the system Once the keypad is powered, conduct the following test, Getting Started, until you can open the door by reading a card, input PIN or exit button.

  • Page 13: Enter Management Menu Operation Mode

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 3.1 Enter management menu operation mode * (Hold on for more than 2 seconds), (Input admin password) # Note: Admin password is a 6 digits number, 888888 is the factory default admin password. The user must change the admin password when they use the keypad.

  • Page 14: Exit Management Menu Operation Mode

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 3.7 Exit Management menu operation mode In Management menu operation mode, press * more than once until the indicator light turns to red and always bright which con- firms you have exited the Management menu operation mode.

  • Page 15: Delete Admin Card

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 4.1.4 Delete admin card 02, 0000#, delete all 21 admin cards. 02, 0#, delete 3 Set-cards. 02, 1#, delete 3 Add-cards. 02, 2#, delete 3 Delete-cards. 02, 3#, delete 3 Super-open-cards. 02, 4#, delete 3 Anti-duress-cards.

  • Page 16: Add User

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 4.1.8 Add User 4.1.8.1 Automatically generates ID numbers to add user card Read card continuously to add user: 10, read card, read card, … {After finishing enrolling the last card, press the * key to exit the add user card status.} Input 8-digit format card number to add user 10, 8# (8-digit format card number) #, 8# (8-digit format card number) #, …...

  • Page 17: Set Open Door Methods

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Delete user by input 10-digit format card number: 21, 10# (10-digit format number) #, 10# (10-digit format number) #, … Delete user by input ID number 22, (ID) #, (ID number) #, … 4.1.10 Set open door methods 30, 0#, open door by card, you can open door by user card, but cannot open door by user PIN.

  • Page 18: Set Alarm-Time

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 4.1.16 Set Alarm-time 40, 0#, default value, if set Alarm-time to 0 means no alarm. 40, (0-99) #, Alarm-time is set from 1 to 99 minutes. 4.1.17 Set tampering alarm function 41, 0#, default value, disable tampering alarm function.

  • Page 19: Set Key Backlit Mode

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 4.1.22 Set key backlit mode 52, 0#, Normal-off mode for key backlit. 52, 1#, default value, Normal-on mode for key backlit. 52, (2-99) #, Automatic mode for key backlit, the keypad will revert to micro lighting over 2 to 99 seconds. 4.1.23 Adjust brightness of key backlit 53, 1, 1, ...

  • Page 20: Set Reader Output Format

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 4.1.28 Set reader output format 4.1.28.1 Set facility code 60, (0-255)#, default value is 0, set facility code. Note: When the key output format is a multi key buffer output, the facility code will be used, See the following sections for specific selections 4.1.28.2 Set D0 &...
  • Page 21 CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 4.1.28.4 Set wiegand output parity format for reading card 63, 0# wiegand output without parity check. 63, 1# default value, wiegand output with parity check (EO format) Note: EO format is standard wiegand format.

  • Page 22: Admin Card Or Pin Operation

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 4.2 Admin card or PIN operation Admin card is divided into zone 1 and zone 2 {only for 2 door keypads}, admin card in different zone operate in different zone, the following description Use admin card operation in the zone 1.

  • Page 23: Authorization-Card Operation

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 4.2.7 Authorization-card operation Read Authorization-card once, two short beeps, limit users. Read Authorization-card again, one long beep, release limit. Note: Authorization-card is also called header card, it authorizes users. By default, users can operate properly, you can use an Authorization-card when you need to restrict user access.

  • Page 24: Other Operations

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 4.4 Other operations 4.4.1 Cancel alarming Read admin or the user card, or (Admin Password) #, 4.4.2 Admin Password initialization When you forget the Admin Password, you can restore it to the initial password by special operation. Operation as follows: Power off, press and hold the # key, and power on.

  • Page 25: Operation Characteristics In Interlock Mode

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 4.5.3 Operation characteristics in Interlock mode Interlock mode is referring to interlocking between two doors, install a Keypad and a Magnetic Door Contact on each door, and then set keypad to Interlocked mode.
  • Page 26 CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Reader mode Single-door mode Interlock mode...

  • Page 27: Single-Door Mode Management Menu Summary Table

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value The doorbell key is invalid. The doorbell key is valid, but without volume.
  • Page 28 CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Delete 3 Add-cards.
  • Page 29 CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Open door way by card Open door way by card and PIN Open door way by card or PIN Set one card to open door...

  • Page 30: Interlock Mode Management Menu Summary Table

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Enable the buzzer 1,1,…,# Decrease the keypad tone...

  • Page 31: Precautions In Use

    CV-550 SPK V3 REFERENCE MANUAL I NSTAL LATIO N INST RUCT IO NS 6. PRECAUTIONS IN USE • Wiring must not be connected wrong, especially the power line, otherwise the Keypad may get permanently damaged and not work properly. • Because the keypad internal relay is used for signal output, it cannot directly drive large power loads.

  • Page 32: Compatible Peripherals

    CV-550 SPK V3 REFERENCE MANUAL INSTA L L AT I O N I NST RU CTI ONS 8. COMPATIBLE PERIPHERALS Camden supports CV-550 access control system with an extensive line of readers, credentials and system peripherals. Card Readers - Proximity CV-7400...
  • Page 33 CV-550 SPK V3 REFERENCE MANUAL INS TA L L AT IO N INS T RU CT IO NS User User PIN# Card # (8 or 10 digit) Name Suite/Office/Ref ID # (4 to 6 digit) 2000 Opening New Doors to Call: 1.877.226.3369 / 905.366.3377 File: CV-550SPK V3 Reference_Manual.indd Innovation, Quality and Support!
