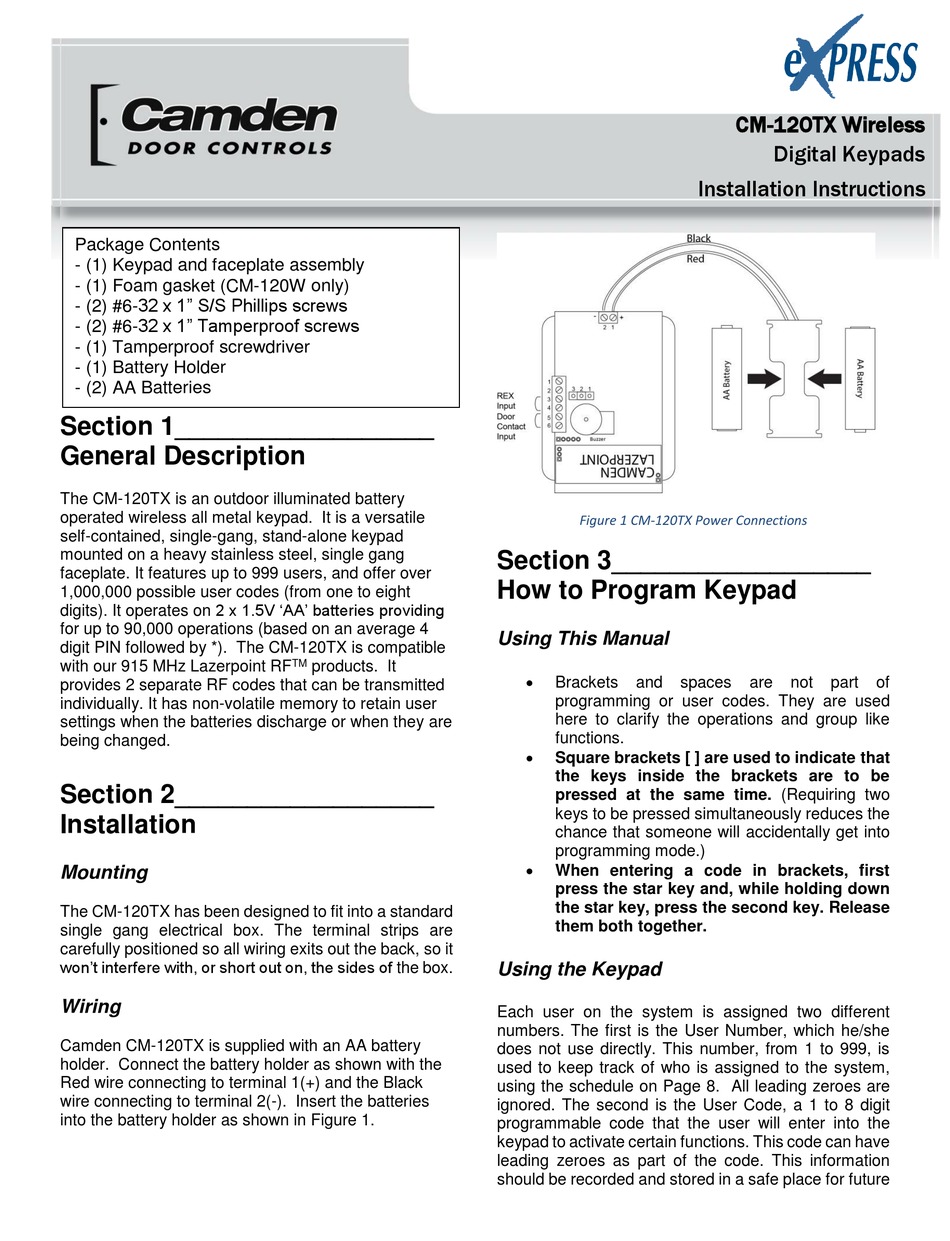

CAMDEN CM-120TX Installation Instructions Manual

Package Contents
- (1) Keypad and faceplate assembly
- (1) Foam gasket (CM-120W only)
- (2) #6-32 x 1" S/S Phillips screws
- (2) #6-32 x 1" Tamperproof screws
- (1) Tamperproof screwdriver
- (1) Battery Holder
- (2) AA Batteries
Section 1__________________

General Description

The CM-120TX is an outdoor illuminated battery
operated wireless all metal keypad. It is a versatile
self-contained, single-gang, stand-alone keypad
mounted on a heavy stainless steel, single gang
faceplate. It features up to 999 users, and offer over
1,000,000 possible user codes (from one to eight
digits). It operates on 2 x 1.5V 'AA' batteries providing
for up to 90,000 operations (based on an average 4
digit PIN followed by *). The CM-120TX is compatible
with our 915 MHz Lazerpoint RF
provides 2 separate RF codes that can be transmitted
individually. It has non-volatile memory to retain user
settings when the batteries discharge or when they are
being changed.
Section 2__________________

Installation

Mounting
The CM-120TX has been designed to fit into a standard
single gang electrical box. The terminal strips are
carefully positioned so all wiring exits out the back, so it
won't interfere with, or short out on, the sides of the box.
Wiring
Camden CM-120TX is supplied with an AA battery
holder. Connect the battery holder as shown with the
Red wire connecting to terminal 1(+) and the Black
wire connecting to terminal 2(-). Insert the batteries
into the battery holder as shown in Figure 1.
TM
products. It

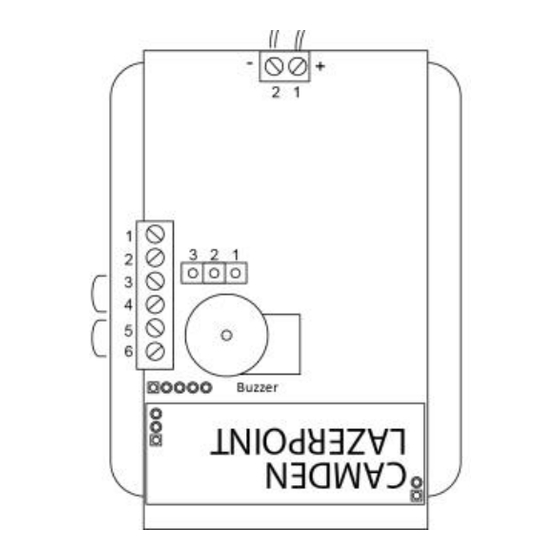

Figure 1 CM-120TX Power Connections
Section 3__________________

How to Program Keypad

Using This Manual


Brackets and
programming or user codes. They are used
here to clarify the operations and group like
functions.

Square brackets [ ] are used to indicate that
the keys inside the brackets are to be
pressed at the same time. (Requiring two
keys to be pressed simultaneously reduces the
chance that someone will accidentally get into
programming mode.)

When entering a code in brackets, first
press the star key and, while holding down
the star key, press the second key. Release
them both together.

Using the Keypad

Each user on the system is assigned two different
numbers. The first is the User Number, which he/she
does not use directly. This number, from 1 to 999, is
used to keep track of who is assigned to the system,
using the schedule on Page 8. All leading zeroes are
ignored. The second is the User Code, a 1 to 8 digit
programmable code that the user will enter into the
keypad to activate certain functions. This code can have
leading zeroes as part of the code. This information
should be recorded and stored in a safe place for future
CM-120TX Wireless
Digital Keypads
Installation Instructions
spaces are not part of
