LabSen electrochemical sensors are premium pH electrode with manufacturing technology and key
components imported from Switzerland. LabSen763 places the tapered glass membrane in a
stainless steel shaft with blade. This probe is suitable for pH measuring of fish, meat and meat
products.
This Electrode has following features:
⚫ Adopts food grade stainless steel blade and sheath, offers strong protection, comply with food
hygiene requirements, suitable for food pH testing.
⚫ Blue gel inner solution, does not flow and will not cause bubble.
⚫ Maintenance-free polymer electrolyte, non-diaphragm structure.
⚫ Long life reference system, has better stability and service life.
Technical Data
1
Measuring Range
Temperature Range
Shaft Material
Membrane Type
Reference
Junction
Usage and Maintenance
2
2.1 When measuring, please unscrew the bottle cap, pull out the electrode and rinse it with
deionized water. After using, please put the electrode back into the bottle and screw tight the
cap.

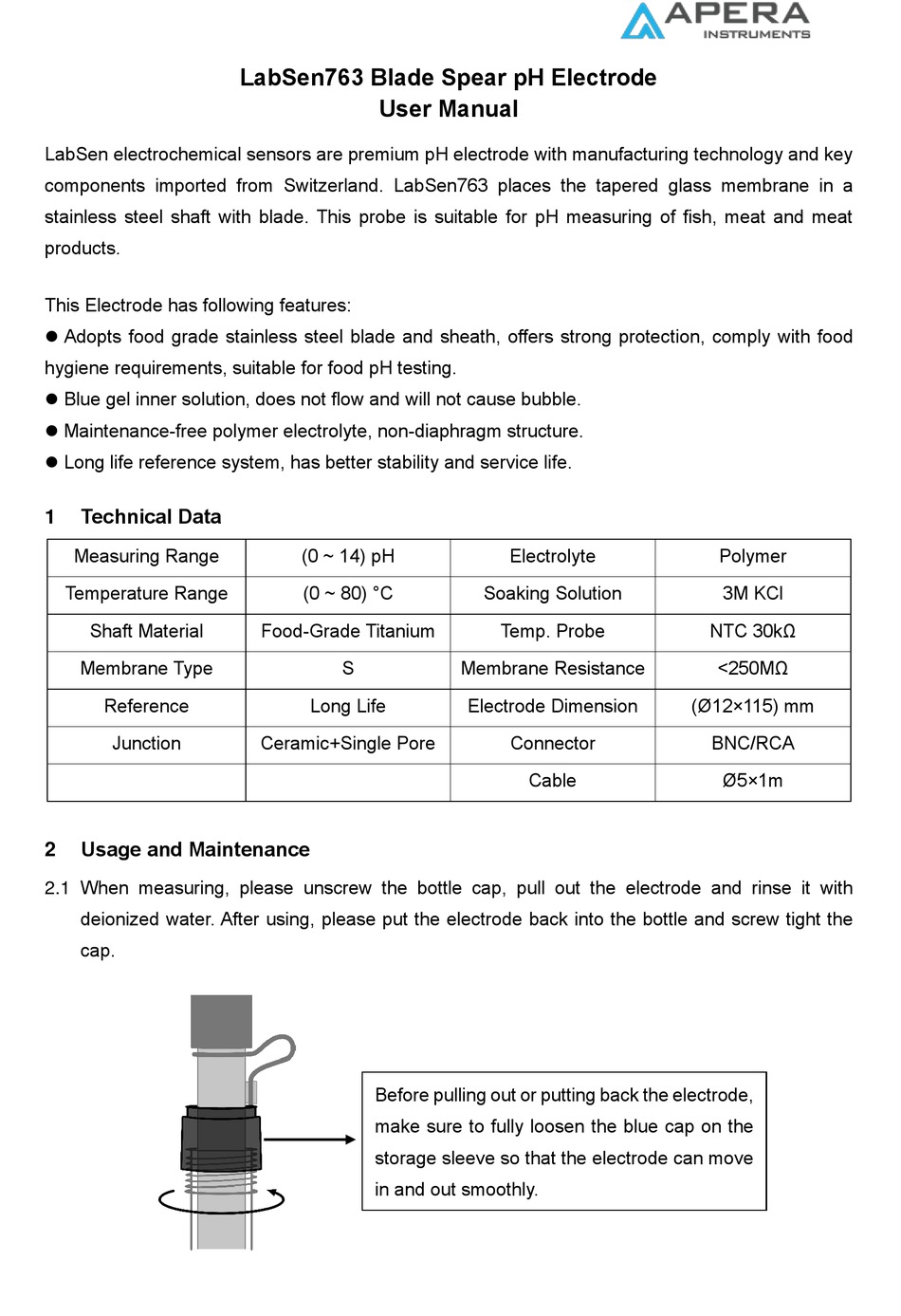

LabSen763 Blade Spear pH Electrode
User Manual
(0 ~ 14) pH
(0 ~ 80) °C
Food-Grade Titanium
S
Long Life
Ceramic+Single Pore
Before pulling out or putting back the electrode,
make sure to fully loosen the blue cap on the
storage sleeve so that the electrode can move
in and out smoothly.
Electrolyte
Soaking Solution
Temp. Probe
Membrane Resistance
Electrode Dimension
Connector
Cable
Polymer
3M KCl
NTC 30kΩ
<250MΩ
(Ø12×115) mm
BNC/RCA
Ø5×1m
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Apera Instruments LabSen763
Summary of Contents for Apera Instruments LabSen763
- Page 1 LabSen electrochemical sensors are premium pH electrode with manufacturing technology and key components imported from Switzerland. LabSen763 places the tapered glass membrane in a stainless steel shaft with blade. This probe is suitable for pH measuring of fish, meat and meat products.
- Page 2 We warrant this electrode free from defects in material and workmanship and agrees to repair or replace free of charge, at option of APERA INSTRUMENTS any malfunctioned or damaged product attributable to responsibility of APERA INSTRUMENTS for a period of six months. Warranty period is the time limit to provide free service for the products purchased by customers, not the service life of the tester or electrodes.
