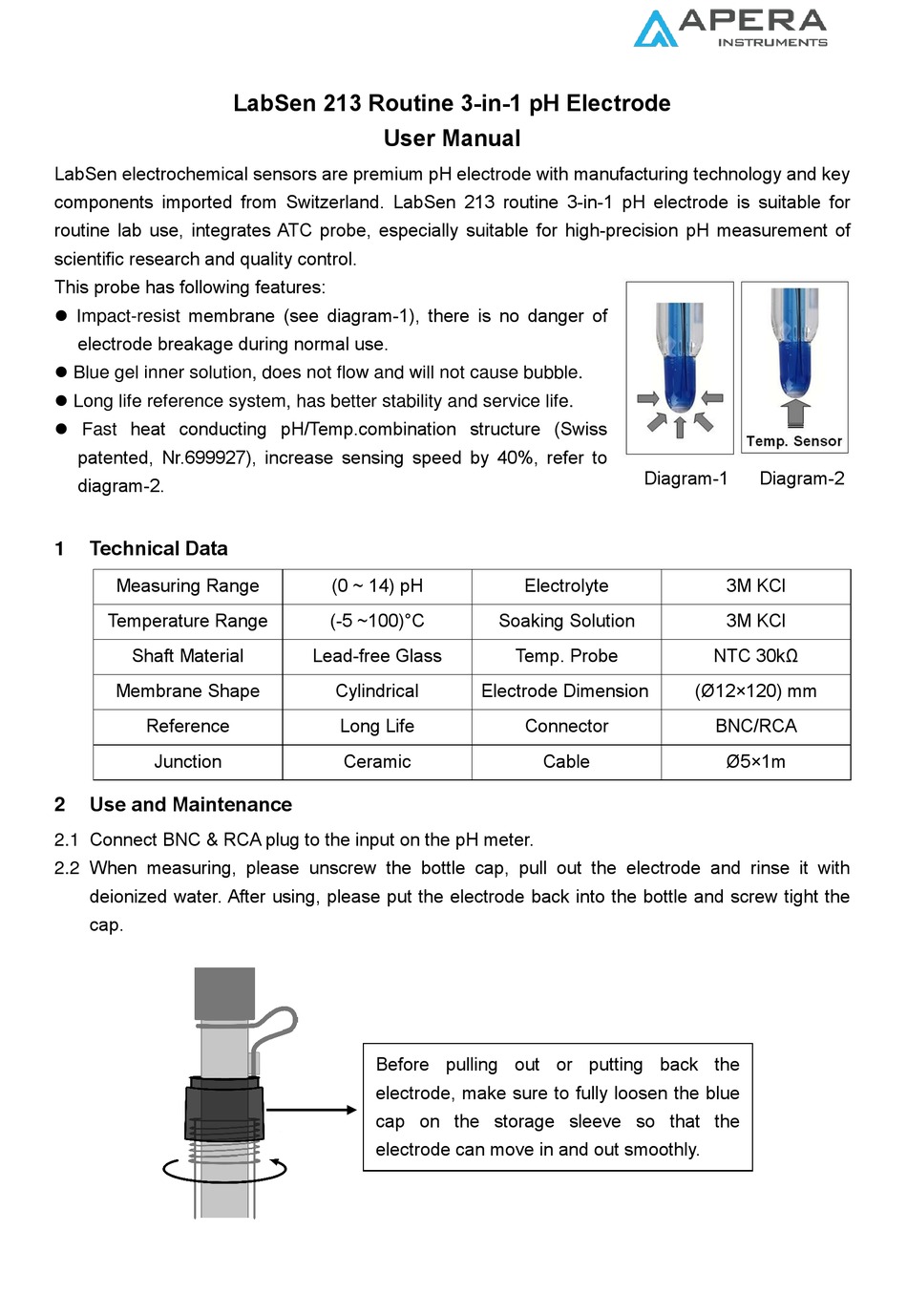

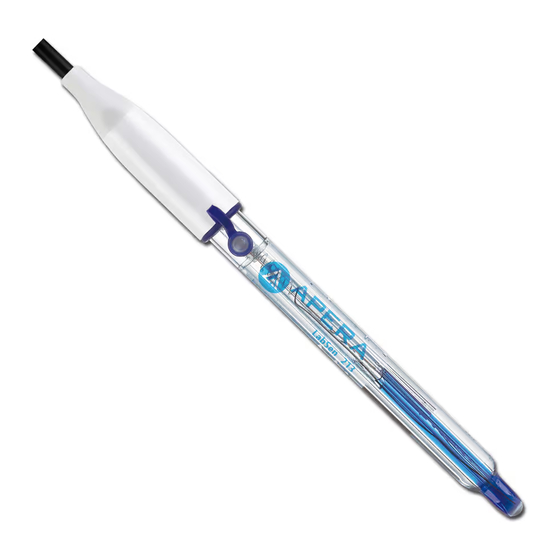

Apera Instruments LabSen 213 Routine User Manual

LabSen electrochemical sensors are premium pH electrode with manufacturing technology and key
components imported from Switzerland. LabSen 213 routine 3-in-1 pH electrode is suitable for
routine lab use, integrates ATC probe, especially suitable for high-precision pH measurement of
scientific research and quality control.
This probe has following features:
 Impact-resist membrane (see diagram-1), there is no danger of
electrode breakage during normal use.
 Blue gel inner solution, does not flow and will not cause bubble.
 Long life reference system, has better stability and service life.
 Fast heat conducting pH/Temp.combination structure (Swiss
patented, Nr.699927), increase sensing speed by 40%, refer to
diagram-2.

Technical Data

1
Measuring Range
Temperature Range
Shaft Material
Membrane Shape
Reference
Junction

Use and Maintenance

2
2.1 Connect BNC & RCA plug to the input on the pH meter.
2.2 When measuring, please unscrew the bottle cap, pull out the electrode and rinse it with
deionized water. After using, please put the electrode back into the bottle and screw tight the
cap.
LabSen 213 Routine 3-in-1 pH Electrode
User Manual
(0 ~ 14) pH
(-5 ~100)°C
Lead-free Glass
Cylindrical
Long Life
Ceramic
Before pulling out or putting back the
electrode, make sure to fully loosen the blue
cap on the storage sleeve so that the
electrode can move in and out smoothly.
Diagram-1
Electrolyte
Soaking Solution
Temp. Probe
Electrode Dimension
Connector
Cable
Diagram-2
3M KCl
3M KCl
NTC 30kΩ
(Ø12×120) mm
BNC/RCA
Ø5×1m
