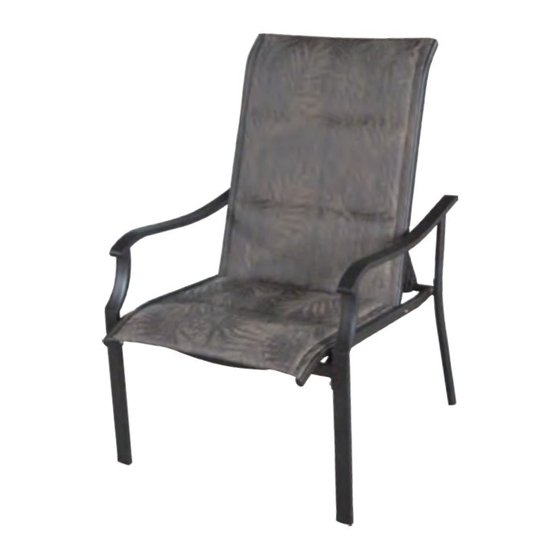

Courtyard Creations KTS889J-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
KTS889J-CS01
2
KTS889J-CS02
3
KTS889J-CS03
4
KTS889J-CS04
5
17C33A0706001Y4
6 17C02A0755131Y4
7
17C33A0717001Y4
Attention:
Make sure that each bolt needed for all steps match
the corresponding figure to ensure proper assembly.
Step 1:
Place the right leg (#1) onto a non-abrasive surface,
such as a carpet, with the bracket facing upwards. At the
rear of the chair, fasten the seat assembly (#3) to the
right leg (#1) by using bolts (#5) and washers (#8). Keep
the bolts loose. See Figure 1.
Note:
The labels marked "L" and "R" on the legs (#1 and #2)
should coincide with Figure 1 - Figure 3 to ensure proper
assembly.
!
Do not discard any of the packaging until you have checked that you have all the parts and pack of fittings.
!
Keep children away during assembly. This item contains small parts which can be swallowed by children.
Children should always be under direct adult supervision while using the product.
!
Retain the assembly instructions for future reference.
!
Please quote following FQC NO. when contacting service center.
INTENDED FOR RESIDENTIAL USE ONLY.
KTS889J
PART Q'TY
RIGHT LEG
LEFT LEG
SEAT
ASSEMBLY
BACK
ASSEMBLY
BOLT M6*16
BOLT M6*14
BOLT M6*50
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 3
-WM
PART
MATERIAL CODE
NO.
1 8
17FA05040301-Y4
1 9
1800C23001
1 10
1800337004
1 11
1800337006
6 12
17KAA0101----Y4
2 13 17KAA0201----Y4
2 14
17KAB1101----Y4
FIGURE 1
3
#5 BOLT M6*16
PART
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP
BOLT CAP M6
HEX.KEY WRENCH 4MM
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
10
5
R
1
COURTYARD CREATIONS INC.
Q'TY
10
2
8
2
1
1
1
10
5
8
8
16
