Courtyard Creations KTS852Z-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

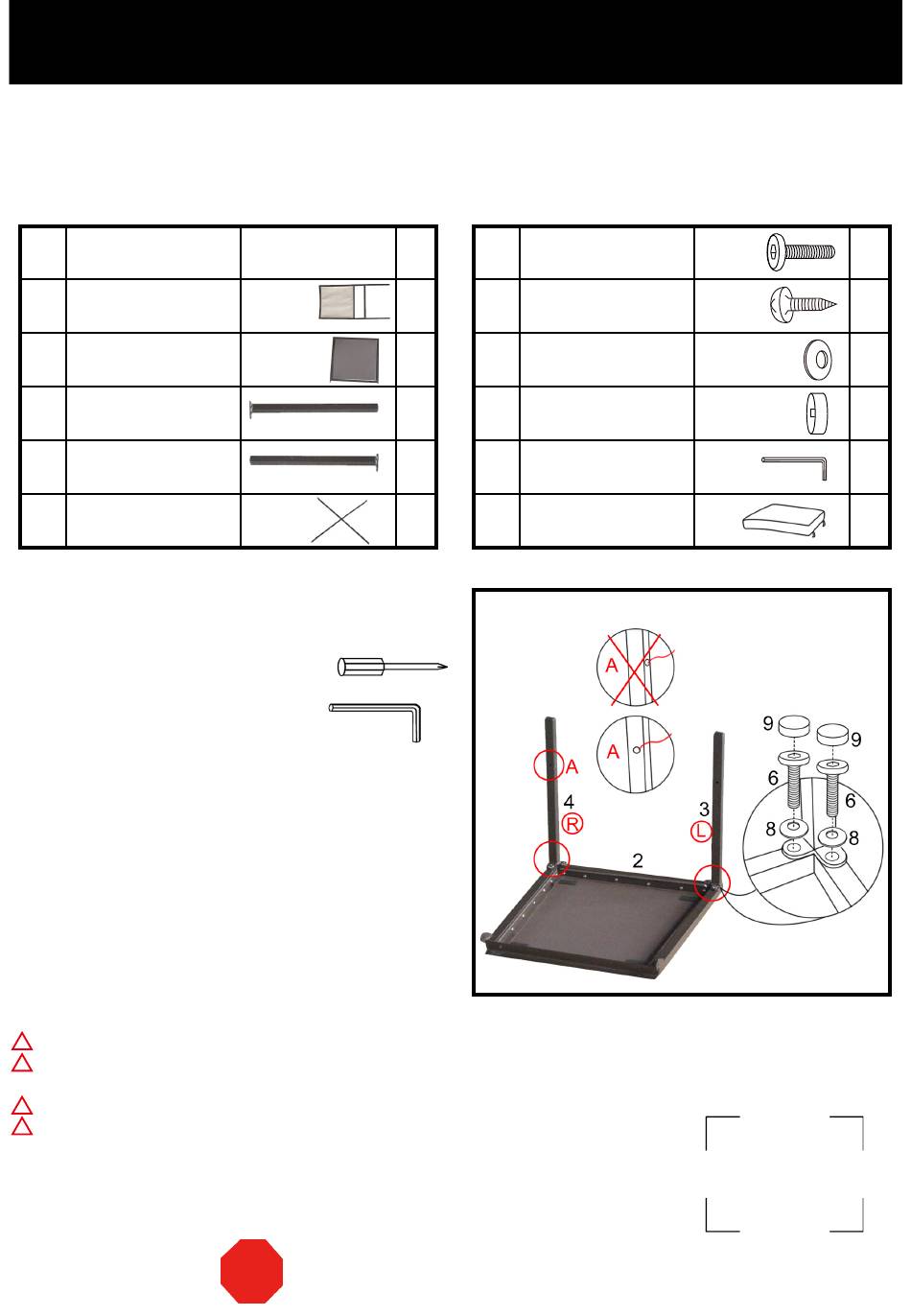

PARTS LIST
PART
MATERIAL CODE
NO.
1
KTS852Z-CS01
2
KTS852Z-CS02
3
KTS852Z-CS03
4
KTS852Z-CS04
5
62KTS852ZQ101
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Parts #10)
Step 1:
Place the seat assembly (#2) onto a non-abrasive
surface, such as a carpet, with its underside facing
up. Fasten the legs (#3 and #4) to the seat assembly
(#2) by using bolts (#6) and washers (#8). Keep the
bolts loose. See Figure 1.
NOTE:
The labels marked "L" and "R" on the legs (#3 and #4)
should coincide with Figure 1 to ensure proper assembly.
Do not discard any of the packaging until you have checked that you have all the parts and pack of fittings.
!
Keep children away during assembly. This item contains small parts which can be swallowed by children.
!
Children should always be under direct adult supervision while using the product.
Retain the assembly instructions for future reference.
!
Please quote following FQC NO. when contacting service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
KTS852Z-
PART
BACK ASSEMBLY
SEAT ASSEMBLY
LEFT LEG
RIGHT LEG
SUPPORT
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
WM
6
17C33A0706001Y4
Q'TY
1
7
17C17A0403001Y4
8
1
17FA05040301-Y4
1 9
18000337004
1 10
17KAA0101----Y4
1
11
61K852ZY00001BA
FIGURE 1
BOLT M6*16
SCREW ST4.2*12
WASHER d6.5*D13*1.0
BOLT CAP
HEX.KEY WRENCH 4MM
CUSHION
Hole
Hole
COURTYARD CREATIONS INC.
8
4
8
8
1
1
