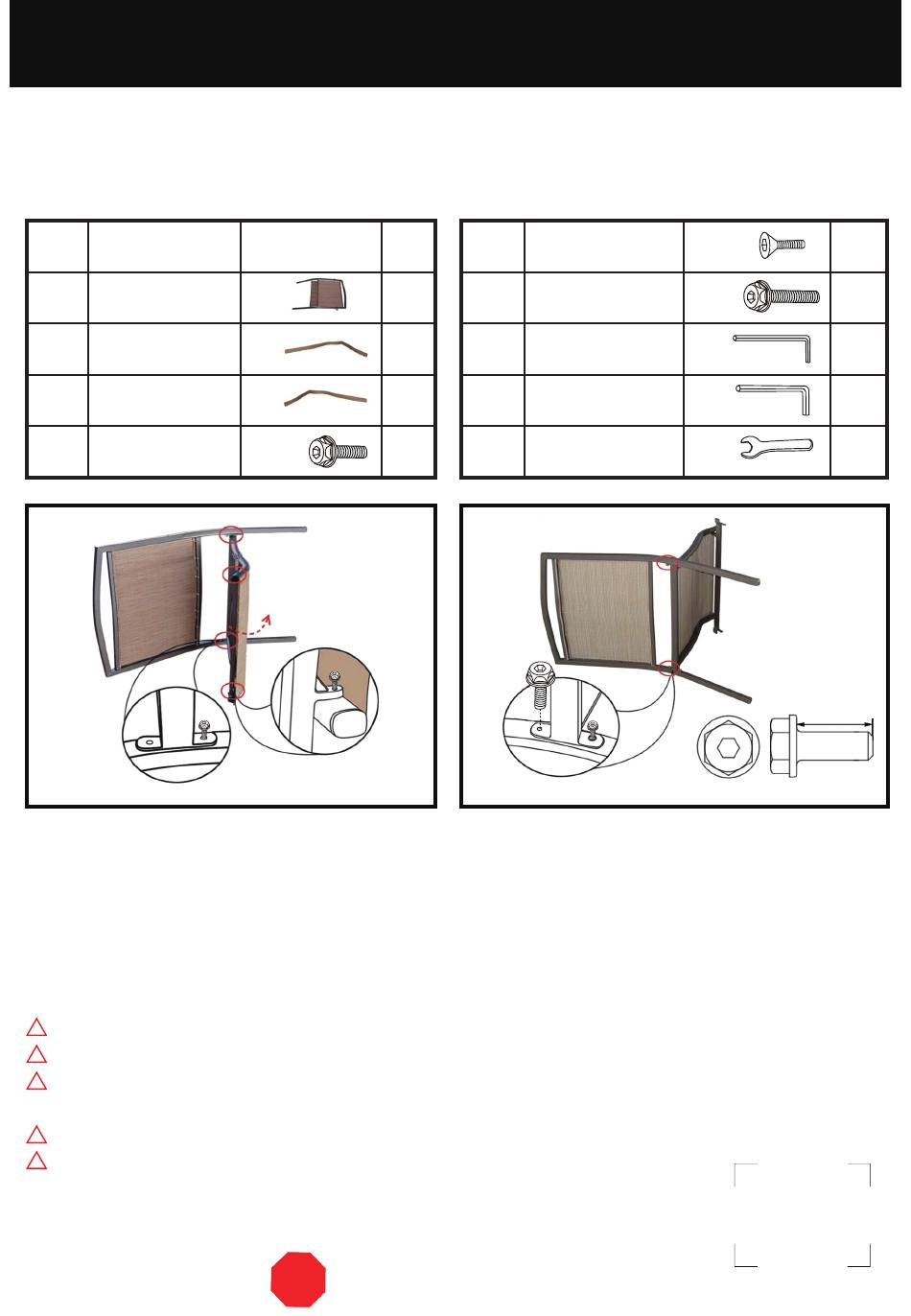

Courtyard Creations KTS816C Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
KTS816C-CS01
2
KTS816C-CS02
3
KTS816C-CS03
4
17C40A0705001YX
FIGURE 1
1
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.

Step 1:

Open the seat/back assembly (#1) and place it onto a
non-abrasive surface, such as a carpet. See Figure 1.
Note:
The bolts on the seat/back assembly (#1) should be
loose before assembling the chair. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children. Children
!
should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
V-3
INTENDED FOR RESIDENTIAL USE ONLY.
KTS816C
PART Q'TY
1
SEAT/BACK ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
4
BOLT M6*15
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
5
17C02A0755131YX
6
17C40A0712001YX
7
17KAA0101----Y4
8
17KAA0201----Y4
9
17KAC3101----Y3
FIGURE 2
1
4

Step 2:

At the rear of the seat/back assembly (#1), fasten the seat and
the back by using bolts (#4). Keep the bolts loose.
See Figure 2.
COURTYARD CREATIONS INC.
2
BOLT M6*14
2
BOLT M6*35
1
HEX.KEY WRENCH 4MM
1
HEX.KEY WRENCH 6MM
1
HEX.KEY WRENCH 10MM
15
#4 BOLT M6*15
