Courtyard Creations KTS816C-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

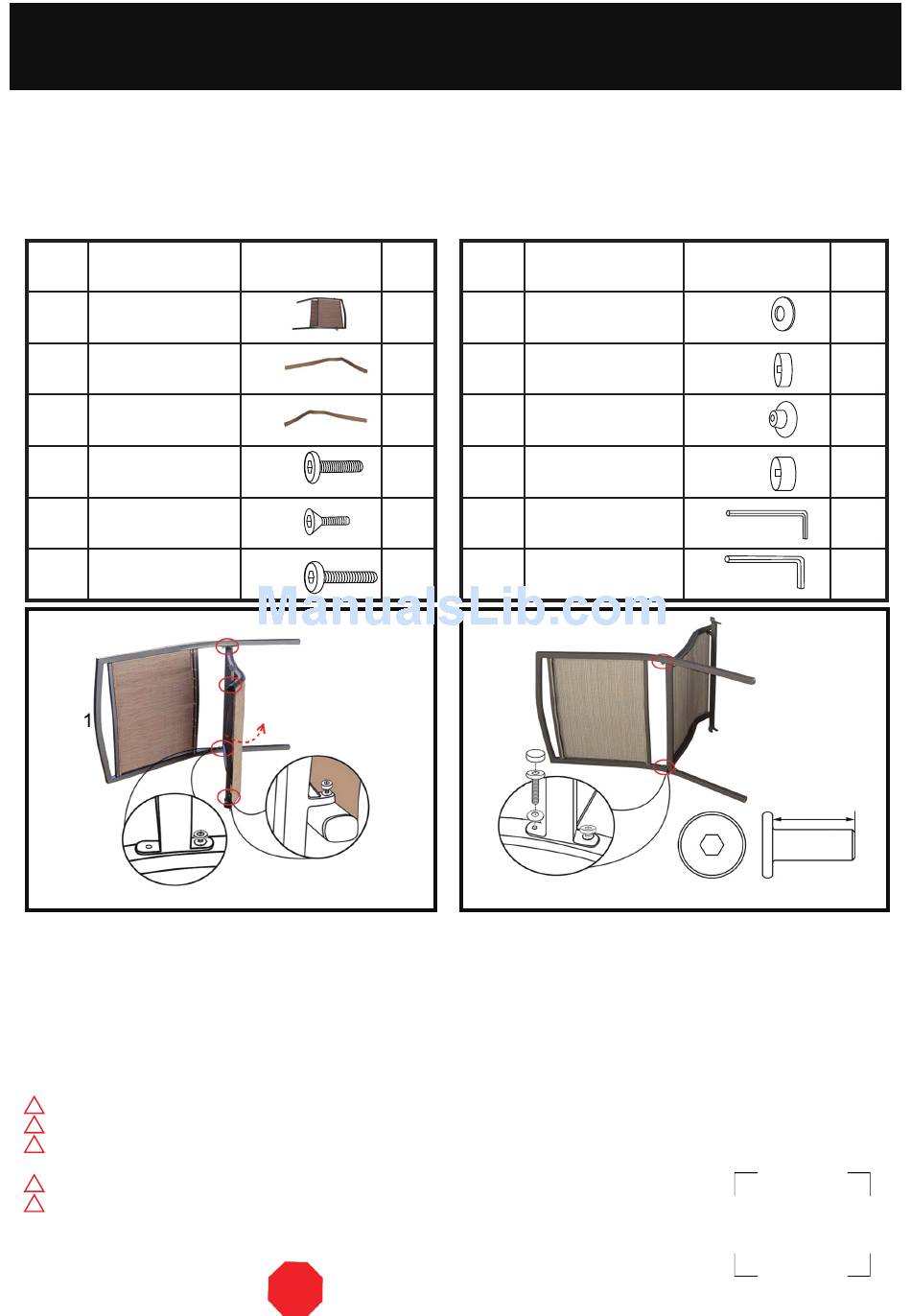

PARTS LIST

PART
MATERIAL CODE
NO.
1
KTS816C-CS01
2
KTS816C-CS02
3
KTS816C-CS03
4
17C33A0706001Y4
5
17C02A0755131Y4
6
17C33A0712001Y4
FIGURE 1
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Step 1:
Open the seat/back assembly (#1) and place it onto a
non-abrasive surface, such as a carpet. See Figure 1.
Note:
The bolts on the seat/back assembly (#1) should be
loose before assembling the chair. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children. Children
!
should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
KTS816C-
Q'TY
PART
1
SEAT/BACK ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
4
BOLT M6*16
2
BOLT M6*14
2
BOLT M6*35
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
WM
PART
MATERIAL CODE
NO.
7
17FA05040301-Y4
8
18000337004
9
18000337006
10
18000337002
11
17KAA0201----Y4
12
17KAA0101----Y4
FIGURE 2
1
8
4
7
Step 2:
At the rear of the seat/back assembly (#1), fasten the seat and
the back by using bolts (#4) and washers (#7). Keep the
bolts loose. See Figure 2.
COURTYARD CREATIONS INC.
PART Q'TY
6
WASHER d6.5*D13*1.0
8
BOLT CAP
2
BOLT CAP M6
2
BOLT CAP M6
1
HEX.KEY WRENCH 6MM
1
HEX.KEY WRENCH 4MM
16
#4 BOLT M6*16
