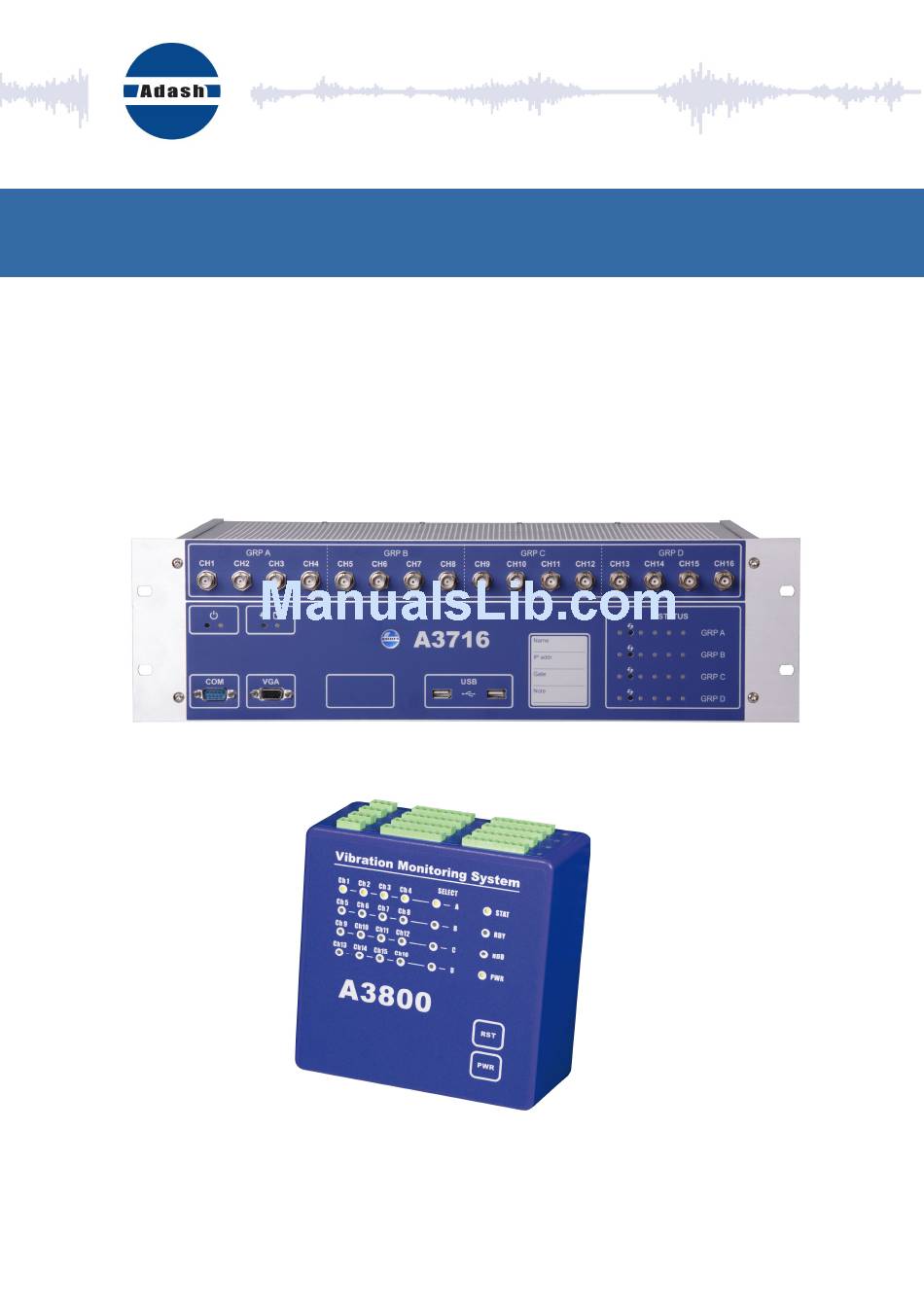

- Page 1 USER MANUAL A3716, A3800 Online Monitoring System Version: March 27, 2018...
-
Page 2: Table Of Contents
A3716 (A3800) lock ......................32 Updating DDS........................32 Adaptive algorithm for readings ................33 How does the algorithm work?..................33 ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... - Page 3 Variable settings of data collection ..............35 Regulator section......................35 Examples.........................36 Time synchronization of A3716 (A3800) ............... 37 A3716 (A3800) Update .................... 38 ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
-
Page 4: Basic Hardware Explanatory Notes
Current loop outputs of actual value are then used in control systems (PLC). The current loops used in the A3716 are isolated from measuring circuits. They must be externally powered (they use passive mode). - Page 5 2mm/s. The relay keeps the switch ON until it is manually switched off ( through the use of REL–RST). ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
-
Page 6: A3716 Unit Description
HDD status LED indicates the operation state of the hard drive. Serial number of the A3716/3U is 6 digits number provided by Adash. If more A3716 unit is used, it helps to recognize them in setting. USB ports allows connecting of mouse and keyboard for control of the A3716 unit in case you use the A3716 as a 16 channel vibration analyzer the USB ports. -
Page 7: A3716 - Rear Panel
LOOP 1-16 outputs (A3716/3U only) contains 4 – 20 mA current outputs clamps. REL 1-16 Relay outputs (A3716/3U only) contains relay clamps (NO,COM,NC). PWR output (A3716/3U only) is the source of +5V/1A and +12V/1A voltage outputs. All GND (grounds) clamps are shorted (connected together). - Page 8 (R1 and R2)? It enables to reset latched relays by two buttons which could be in two places. E.g. one reset button is near of the A3716 and second reset button is in the control room.
-
Page 9: A3716 Sensor And Tacho Connection
Commonly used sensor is the acceleration sensor 100 mV/g with ICP®. Tacho trigger (speed probe) connection Tacho trigger input range is + 10V. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 10: A3800 Unit Description
Red color … r/w operation in progress. Power LED indicates power on of A3800 unit. Green color … A3800 unit is power on. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 11: A3800 - Bottom Panel
USB 2.0: two USB ports. ETHERNET: socked for Ethernet connection. DISPLAY: HDMI display connection POWER: socked for 12 V DC powering ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 12: A3800 Sensor And Tacho Connection
DC input: +/- 24 V or 4 – 20 mA TACHO +10 V In this picture you can see top panel with installed plug-ins. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 13: Acceleration Sensor Connection
Commonly used sensor is the acceleration sensor 100 mV/g with ICP®. Tacho trigger (speed probe) connection Tacho trigger input range is + 10V. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 14: A3764 - 64 Channel Multiplexer
16 synchronous channels. These 4 groups are continuously switched (multiplexed) to AC inputs and then the measurements are taken. The A3716 and A3764 are connected by 16 signal wires and a the USB cable is used for transfer of control signals. -
Page 15: Rear Panel
USB B connector for communication, terminal for powering of external equipments (+24V, +5V) EURO socket with fuse for power supply. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 16: Wiring Scheme
24V/300mA, 5V/100mA, 16x AC signal output ICP powering The A3764 unit contains own ICP power supplying. It means the ICP is not switched from A3716 unit. All sensors are continuously powered and no additional settling time is required. All sensors connected to A3764 inputs are always powered. -
Page 17: A3716 Ip Address Setting (The Same For The A3800)
A3716 IP address setting (the same for the A3800) A3716 rack basically behaves as a local PC and it has its own IP address under which it is recognized in your network. Most common situation is that you will need to change the A3716 rack IP address because of your company’s policy. -
Page 18: Network Remote Access
A3716, A3800 Network remote access Second option how to change the A3716 IP address is to do it through network. Use the LAN cable and connect the A3716 unit with PC (laptop) directly or through network (switch/HUB). IP address (set during production) is written on the A3716 front panel. - Page 19 If you are changing the IP address using remote desktop, then after this change you have to create the new connection ( connection with and old IP address will stop working). ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
-
Page 20: Network For Data Transfer (The Same For The A3800)
If you decide to build your own computer network, then follow the following procedure. We always recommend to create a network with cables, not wireless. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 21: Connection Test
IP address of the other computers are correct. If you still fail, contact the IT department. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 22: Server Software Installation (The Same For The A3800)
It is a software in each A3716 measurement unit. Performs specified measurements and provides readings to Data Manager software. Once you will install the Adash server, you can also install DDS on the server and on remaining user computers. The installation is identical on all components and the installation wizard will guide you through the entire process. -
Page 23: Adash Server Installation
ADASH Ltd. A3716, A3800 Adash Server installation Run the Adash_Server_vx.x.x.exe . This file you can download from Adash website or it is supplied on USB flash drive which came with your A3716. Press Next on the welcome screen. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz... - Page 24 ADASH Ltd. A3716, A3800 Press Install. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
- Page 25 MySQL Workbench is a database manager. It is not necessary to install this software for standard using of DDS. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
-
Page 26: Dds - Online Database And Collecting Of Readings (The Same For The A3800)
See DDS manual about how to create the tree structure. All data cells in the tree will be used for online readings. If you have not installed the MySQL connector odbc (part of Adash server, see previous chapter), then the Online item is not displayed. -
Page 27: Start Of The Data Collection
Properties). Select the first tab (1D, 2D or 3D). Select required Online unit and Channel number. If the data cells are already defined, then the tree structure is ready to be send to A3716 unit and to start the readings collection. -
Page 28: Graph Refresh Time Interval
Remember that graph refresh does not make any new reading. Refresh makes new reading from the database only ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 29: Actual Data Reading
Current loops and relays can be set only for static measurements. Its settings is situated in Online tab, in Porperties of data cell window. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 30: Conditional Measurements
ID. Temporary stop of readings You can simply stop readings for whole A3716 unit or for one point (it means one channel) or for one data cell. Push the A3716 Units button. Select the A 3716 unit. Push Edit button. Uncheck the Enable box and push OK. -
Page 31: Advanced Functions For A3716 (A3800) Units
No. Advanced functions for A3716 (A3800) units There are the set of advanced functions for A3716 unit. Use the right mouse click above selected A3716 unit (in management dialog Online/Units/A3716). ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz... -
Page 32: A3716 (A3800) Lock
A3716 (A3800) lock As the units A3716 are accessible to all users in network, the more users can use the unit at the same time. To avoid this situation we use the functions Lock/Unlock. When you use the Lock function, your computer and database is registered in the A3716 unit as the only one computer which can have access to online data collection. -
Page 33: Adaptive Algorithm For Readings
A3716, A3800 Adaptive algorithm for readings The A3716 can take readings (setting using the DDS) completely different way than other systems. Let's explain it on example. In the past the time interval between readings must have been defined. E.g. if 1 minute was defined, then the reading was triggered every minute. The time length of reading was e.g. - Page 34 ADASH Ltd. A3716, A3800 ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com...
-
Page 35: Variable Settings Of Data Collection
You can modify this file via DDS. In A3716 units list use right-click and Download online.cfg. You save it and you can edit it by Notepad. Use the Upload online.cfg to send it back to A3716 unit. New parameters are applied after the project is restarted ( or A3716 unit is restarted). -
Page 36: Examples
Note: Adaptive algorihm is enabled. Static values, short dynamics and long dynamics are saved every 6 hours if there is no change according to adaptive algorithm. ADASH Ltd., Czech Republic, tel.: +420 596 232 670, fax: +420 596 232 671, email: info@adash.cz Next technical information you find on www.adash.com... -
Page 37: Time Synchronization Of A3716 (A3800)
Time synchronization of A3716 (A3800) It is important to keep internal time of all A3716 units up to date. In the beginning set the correct time zone in A3716. The Data_Manager synchronizes time in all A3716 units with the time on Adash server. -
Page 38: A3716 (A3800) Update
A3716, A3800 A3716 (A3800) Update This chapter is appointed for advanced users only. 1) Connect a keyboard, a mouse and a monitor to your A3716 device (or you can use remote desktop connection). 2) Login as user remote (password remote).
