Summary of Contents for Bartscher Mini

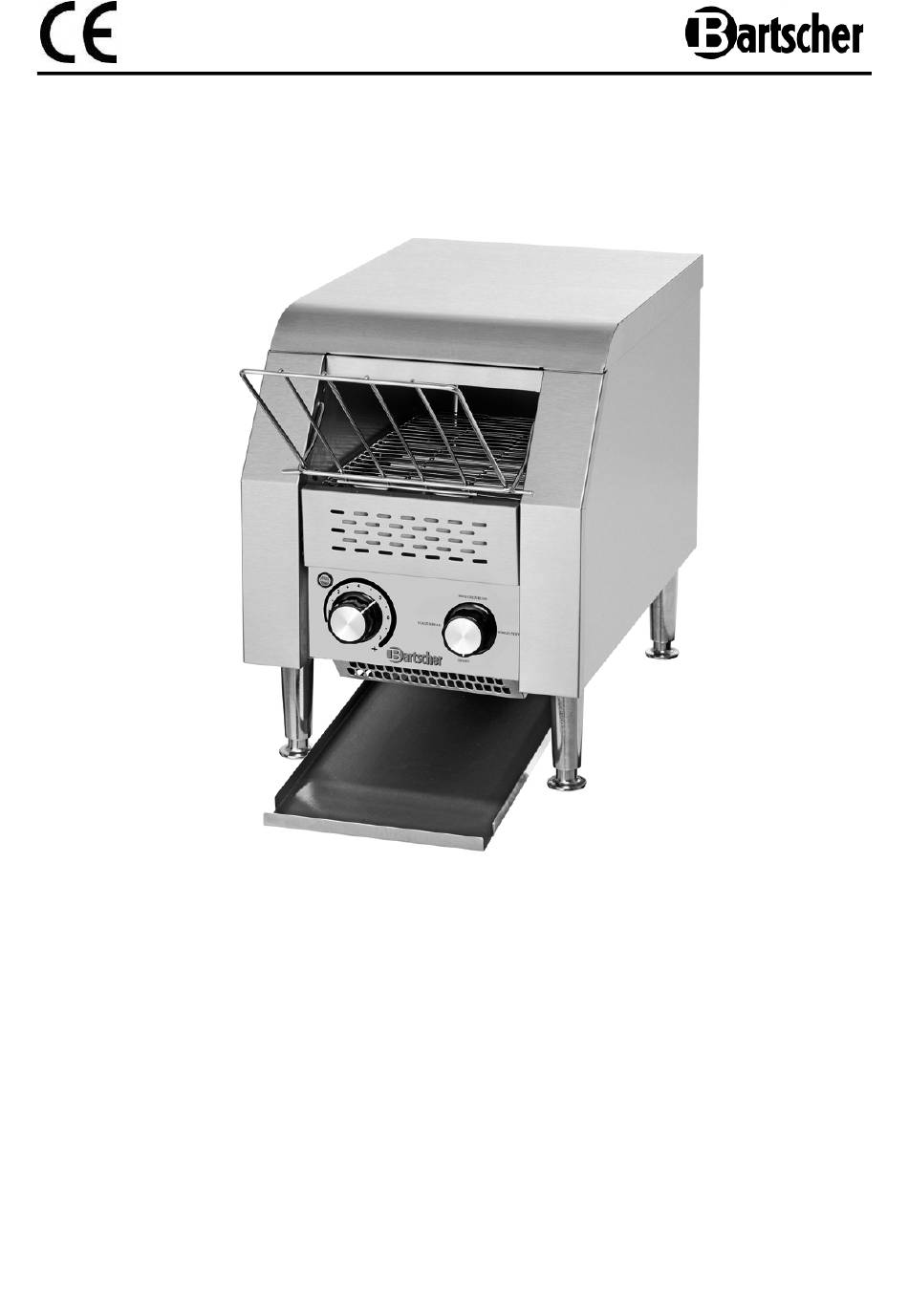

- Page 1 100.211 V1/1009...
-
Page 2: Table Of Contents
5.3 Operating 24-26 6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 6.3 Safety instructions for maintenance 7. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 15 -... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! The unit is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the unit. Children should be observed to ensure that they are not playing with the unit. -
Page 7: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Technical data Name Conveyor toaster „MINI“ 100.211 Art. no.: Construction: Stainless steel Capacity: approx. 75 pieces / hour Power: 230 V ~ 50 Hz 1.34 kW Dimensions: W 290 x D 440 x H 385 mm Weight: 14.5 kg... -
Page 9: Installation And Operation
5. Installation and operation 5.1 Safety instructions WARNING! Electrical hazard! The device must only be connected to a properly installed single socket with protective contact. Never yank cord to disconnect from outlet. Cable must not touch any hot parts. • See that the cable does not touch any heat sources or sharp edges. -
Page 10: Installation And Connection
5.2 Installation and connection • Unpack the unit and remove all packing material. • Mount the adjustable legs and adjust them so that the unit stands in a stable position. • Place the unit on a level, stable surface which can support the weight of the unit and is not heat sensitive. -
Page 11: Operating
5.3 Operating Prior to use • Prior to use, wash the crumb collector, dispensing shelf and toast catcher with a soft cloth and mild cleaning agent, then rinse. Dry thoroughly. • Slide the crumb collector into the appropriate opening under the guide shelf (removed grate) until it ‘clicks’... - Page 12 Dispensing • Depending on the setup, toasted products may be dispensed in two ways: From the front, using the dispensing shelf From the rear, using the toast catcher • If toast is to be dispensed at the front, close the opening in the rear wall of the unit using the hook on the rear metal flap.
- Page 13 Possible settings: Upper and lower heater = BREAD/TOAST, Upper heater = BUNS STBY = standby • Next, to test the unit, place two slices of bread on the guide shelf. Faster belt speed will result in lighter toasting, and slower belt speed will result in darker toasting. •...
-
Page 14: Cleaning And Maintenance
6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. -
Page 15: Safety Instructions For Maintenance
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
