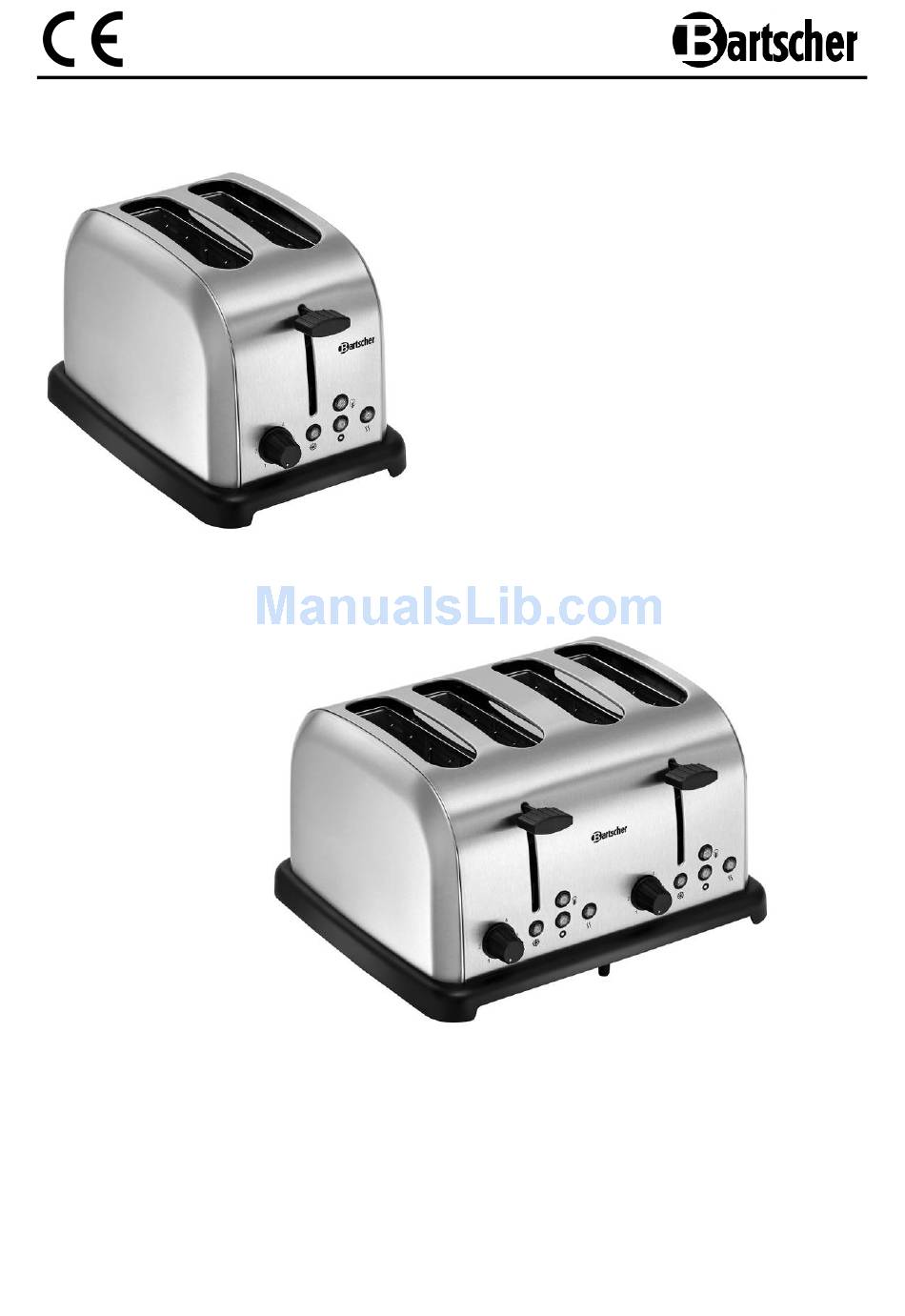

- Page 1 TB20 / 100203 TB40 / 100204 Original-Gebrauchsanleitung V1/1115...
-
Page 2: Table Of Contents
4.2 Technical specification ..................30 5. Installation and operation ..................30 5.1 Installation ......................30 5.2 Operation ......................31 6. Cleaning ........................35 7. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • This device may only be operated in technically proper and safe condition. • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur. • Do not insert tools, cutlery into the device. Contact with metal parts may cause short circuits and electric shocks. In addition, the heating elements and the mechanism may be damaged.
- Page 6 • During operation never approach face, hands or other body parts over the toast slots. • Be very careful when removing the toast slices because the metal parts of the appliance and the bread will be very hot. WARNING! Fire hazard! Follow the safety instructions listed in order to avoid the hazard: •...
-
Page 7: Key To Symbols
• When a fire arises unplug the power cord from the socket before you initiate appropriate measures for fire-fighting. Provide sufficient supply of fresh air. Caution: Never extinguish the fire with water when the power plug is connected to the socket. Electric shock hazard! 1.2 Key to symbols In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. -
Page 8: Proper Use
1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. The device is not designed for continuous operation in the industrial applications. The device is intended for home use or in similar places such as: →... -
Page 9: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 10: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 11: Technical Data
4. Technical data 4.1 Overview of parts 100203 Operating elements Self- adjustable toast guides Extra-wide toast slots (2) Housing Removable crumb drawer Operating lever Button „Cancel“ Button „Reheating“ Button „Bagel“ Button „Thawing“ Browning stage regulator - 28 -... - Page 12 100204 Operating elements Self- adjustable toast guides Button „Cancel“ Extra-wide toast slots (4) Button „Reheating“ Housing Button „Bagel“ Removable crumb drawer Button „Thawing“ Operating lever Browning stage regulator - 29 -...
-
Page 13: Technical Specification
4.2 Technical specification Toaster TB20, Toaster TB40, Name 2 Slices 4 Slices 100203 100204 Code-No.: Design of Housing: Brushed stainless steel Connection values: 0,88 kW / 230 V 50 Hz 1,48 kW / 230 V 50 Hz Browning levels: 1 - 6 Dimensions: W 195 x D 300 x H 200 mm W 330 x D 300 x H 200 mm... -
Page 14: Operation
Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal. - Page 15 Important tips for optimal toast result • The toast result depends in case of the same setting of the browning level on the different characteristics of bread (moisture content, type of bread, the size and thickness of the slices). • Set a lower browning level for dry bread, smaller and thinner slices, in case of toasting of only one slice of bread.
- Page 16 4. Press the operating lever down until it clicks. The toasting process begins. During the toasting process it lights the control lamp of the button „Cancel“ 5. When the toasting process is finished, the operating lever will automatically jump upward. The control lamp of the button „Cancel“ turns off and the toast slices can be removed.
- Page 17 Bagel toasting 1. Cut the bagel with a sharp knife and Insert the two halves in the toast slots with the cut side to the middle. 2. Insert the power plug into a grounded single socket. 3. Turn the browning regulator to the desired level of browning in the range of 1 -.
-
Page 18: Cleaning
NOTE! In case of selecting this function the toasting process lasts longer than in case of simple toasting. In order to finish the toasting process prematurely, press the button „Cancel“ The operating lever jumps upward and the toast slices can be taken out. WARNING! Hazards of burns! Remove carefully the toast slices from the toaster because the metal parts of the appliance and the bread can be very hot. -
Page 19: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
