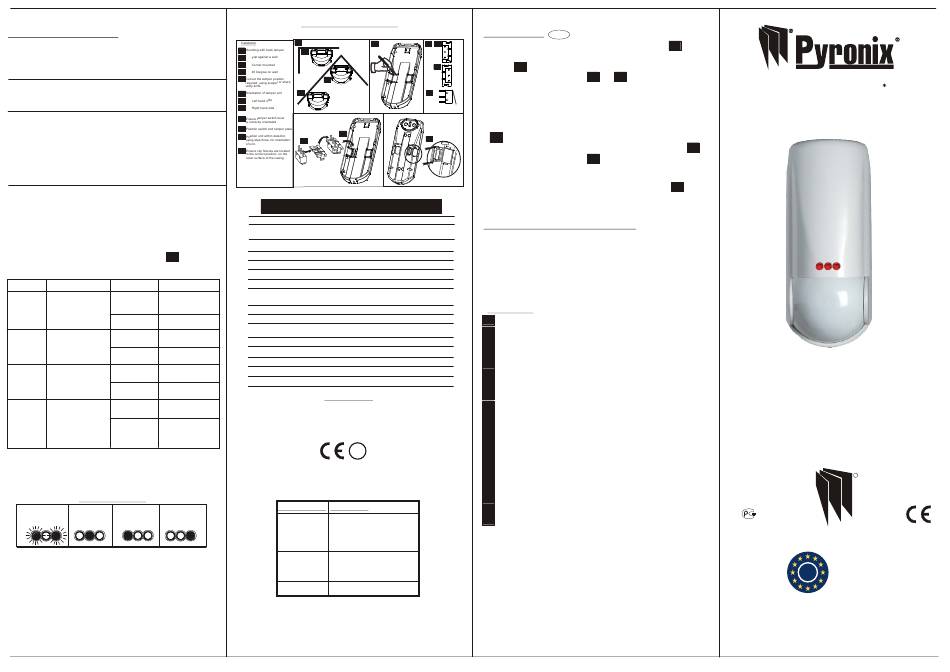

Pyronix Kudos DT Quick Start Manual

OPERATION OF FEATURES
1. LED Enable / Disable (Switch A)
ON = LED Enable
OFF = LED Disable
2. 50/60 Hz (Switch B)
Factory set
3. And /Or (Switch C)
AND = Conventional dual tech, both technologies need to be
triggered simultaneously to generate an alarm.
OR = If either single technology detects prolonged intruder activity
an alarm will be generated independently.
Immunity testing carried out in AND mode.
4. Digital signal processing settings (Switch D)
SPP+ = Two opposing detection zones must be crossed.
SPP+1 = Two opposing detection zones and any other zone must be
crossed.
DIP switches (see diagram )
C
Note: As Factory Default all switches are ON
SWITCH FEATURE POSITION MEANING
A LED Enable ON LED Enable
OFF LED Disable
B 50/60 Hz ON 50Hz
OFF 60Hz
C And/Or ON And
OFF Or
D Digital signal ON SPP+
Processing
OFF SPP+1
LED INDICATIONS
H1 H2 H3 H4
Power up Normal alarm Micowave PIR
OPTIONAL TAMPER UNIT
Note: The Kudos detector may be fitted with an optional back tamper, which is sold separately.
1
2
1
1A
1A
1B
1C
2
1B
C
1C
3
3A
3B
4
5
6
6
5
7
SPECIFICATIONS (QUICK REFERENCE)

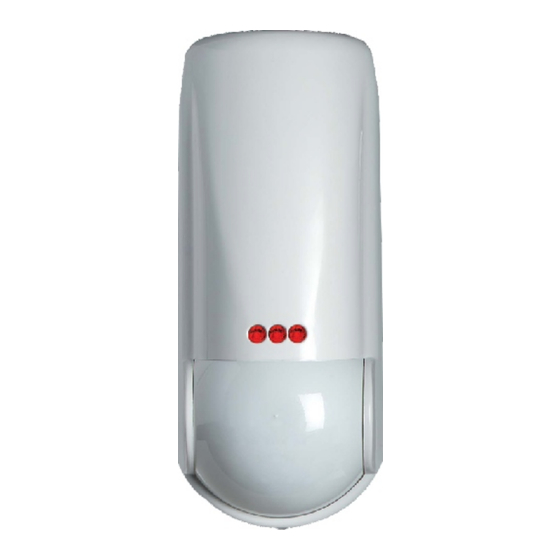

Model: Kudos DT
Casing: White3mm ABS Back / Front cover
White 3mm HDPE lens cover, 0.7mm in faceted area
Lens: Volumetric: 15m, 74 zones, 7 planes, 2.4m mounting height
.
Detection method: Low noise dual element pyroelectric sensor + microwave
Digital signal processing: SPP+ , SPP+1, .
Detection speed: 0.3 - 3.0 m/s
Operating Voltage: 9-16 VDC
Current consumption: 40mA Quiescent
@13.8V 35mA Alarm
Relay Output: 60Vdc, 50mA (42.4Vac peak)
Mounting Height: 1.8 - 2.4m
Tamper Switch: Normally closed voltage free contacts
(12V 50mA max rating)
0 0 0 0
Storage Temp: -40 C / 80 C (-40 F / 176 F )
Operating Temp: -30 C / 70 C (22 F / 158 F ) 0 0 0 0
Emissions: EN55022 Class B
Immunity: To new European Standard EN50130-4
Accessories: Optional back tamper
WARRANTY
This product is sold subject to our standard warranty conditions and is warranted against
defects in workmanship for a period of two years. In the interest of continuing improvement
of quality, customer care and design, Pyronix Ltd reserve the right to amend specifications
without giving prior notice
!
D
This product operates is a
European non-harmonised
frequency band
Frequencies Countries
9.9Ghz
AT, BE, CH, CY, CZ,
DK, FI, FR, GR, HU, IE,
IS, IT, LT, MT, NL, PL,
SI, TR
10.5Ghz
BE, CH, CY, DK, HU,
IE, IS, IT, MT, NL, NO,
SE, SI
10.6Ghz
GB
Hereby, Pyronix, declares that this Kudos DT
is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at
www.pyronix.com/DoC
INSTALLATION
GB
3 3A
1. Remove case lid by unscrewing fixings screw as illustrated in
and unclip the PCB, taking care not to touch the Pyro sensor
labeled .
C1
3B
2. Choose wall fixing holes, labeled D2 and
3. Mark wall for fixing positions (Do not route wires near mains cabling,
4
avoid vibrating surfaces and mount only on a solid wall).
4. Drill fixing holes.
5. Fix case to wall.
6. Replace PCB again taking care not to touch the pyro sensor (labeled
C1
on diagram).
7
7. Select and fit the appropriate lens for your application (See diagram
8. Using dip switches (See diagram ) select required features and modes of
C2
operation.
9. Carry out walk test.
10. Re fit detector front cover using fixing provided (See diagram
POTENTIAL FALSE ALARM HAZARDS.
1. Direct sunlight on detector may cause false alarms.
2. Pets and animals may cause false alarms.
3. Mounting detector near heaters may cause false alarms.
4. Draughts from open windows may cause false alarms.
DIAGRAMS
A
Coverage patterns.
A1
PIR coverage pattern and plan view.
A2 Microwave coverage pattern.
B Dimensions and weight.
Board layout.
C
Pyro sensor.
C1
DIP Switches.
C2
Optional rear tamper.
C3
Mounting and cable entry knockouts.
D
Cable entry knockouts.
D1
D2 Wall fixing knockouts.
Wall fixing knockouts.
D3
Detection methods.
E
Detailed connections.
F
Control panel connections.
F1
Tamper operation.
F2
Alarm relay operation (N/C)
F3
Removal and replacement of front cover and lenses.
G
Front cover fixing screw.
G1
Removing and replacing the lens.
G2
G1
D3 on diagram.
K
udos DT
G2
).
G1
).
Pyronix Limited
Pyronix House
Braithwell Way
Hellaby, Rotherham
S66 8QY, ENGLAND
Customer Support:
+44(0)845 6434 999 (local rate)
or +44(0)1709 535225
Hours: Mon to Fri, 8:00am till 6:30pm
Email: customer.support@pyronix.com
Website: www.pyronix.com
PYRONIX LTD
0C03
This product is approved for use in the
Residential, Commercial and Light Industrial Environment.
This product complies with TS50131-2-4. at security grade 2,
UK = Suitable for use with systems installed to PD6662:2004 (AMD)
EXPORT = Suitable for use with systems installed to EN50131-1
R
TS50131-2-4
EN50131-1
2
PD6662:2004
Security Grade 2
Environmental Class 2
environmental class 2.
RINS 451-5
