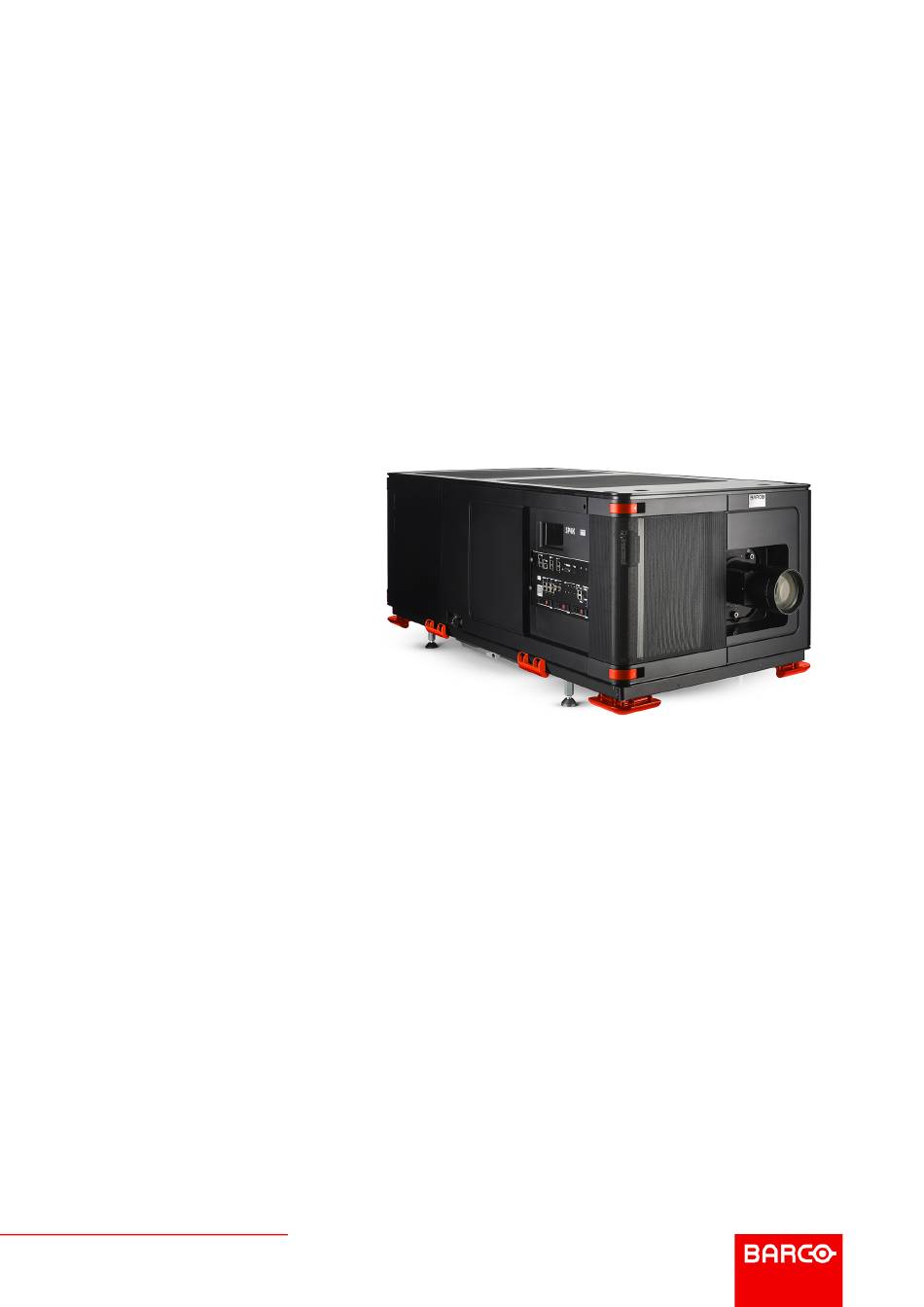

- Page 1 SP4K-B Safety Manual ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: General Considerations
Read this chapter attentively. It contains important information to prevent personal injury while installing and using your SP4K-B projector. Furthermore, it includes several cautions to prevent damage to your SP4K-B projector. Ensure that you understand and follow all safety guidelines, safety instructions and warnings mentioned in this chapter before installing and using the SP4K-B projector. After this chapter, additional “warnings”... -
Page 4: Important Safety Instructions
Do not underestimate the weight of the projector. The projector weighs ±155 kg ( ±342 lbs), for SP4K-55B weight is 175 kg (±385 lbs). To prevent personal injury a hoisting tool should be used to lift the projector. R5912127 /03 SP4K-B... -
Page 5: To Prevent Fire Hazard
Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire. - Page 6 If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
-
Page 7: Product Safety Labels
DISTANCE DE SECURITE : CONSULTER LE MANUEL DE SECURITE 警告！勿观看光束 眼睛勿直接接触可允许暴露的光束 RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 危害距离：请参考安全手册 警告！請勿注視光源。禁止眼睛曝露在光源照射範圍。雷射危險等級 RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 安全危害距離：請參考安全手冊。 Hazard RG3: optical radiation warning symbol Hazard RG3: not for household use symbol R5912127 /03 SP4K-B... - Page 8 3.0 meter to prevent potential exposure, for example by an individual sitting on another individual's shoulders, within the HD. These values are minimum values and are based on the guidance provided in IEC 62471-5:2015 section 6.6.3.5. R5912127 /03 SP4K-B...
- Page 9 0 meter if the height of the hazard zone is minimum 2.5 meter. • 0.1 meter if the height of the hazard zone is minimum 2.4 meter. • 0.6 meter if the height of the hazard zone is minimum 2.2 meter. R5912127 /03 SP4K-B...
-
Page 10: Hd For Fully Enclosed Projection Systems
The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP. -
Page 11: Hd In Function Of Modifying Optics
SP4K-40B SP4K-35B SP4K-27BHC Throw Ra o Image 1–4 1.7 Compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom R5912127 /03 SP4K-B... - Page 12 Safety R5912127 /03 SP4K-B...
- Page 14 R5912127 /03 | 2021-09-01 www.barco.com...
