Page 1: User Guide
SIM 7QP series User guide R92112121 - R92112122 R92112123 - R92112181 R92112182 - R92112183 R9211223 - R9211225 R59770330/10 08/12/2014...
Page 2 Factory: Barco nv Advanced Visualization Systems Noordlaan 5, B-8520 Kuurne Phone: +32 56.36.82.11 Fax: +32 56.36.84.86 Support: www.barco.com/esupport Visit us at the web: www.barco.com Printed in Belgium...
Page 3: Software License Agreement
The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justiﬁed notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.
Page 4 GNU-GPL code If you would like a copy of the GPL source code contained in this product shipped to you on CD, please contact Barco. The cost of preparing and mailing a CD will be charged.
Page 5: Table Of Contents
Table of contents TABLE OF CONTENTS 1. Introduction ......................5 About the projector .
Page 6 Table of contents 7.4.3 Edit ﬁle ........................63 7.4.4 Save as (create a custom ﬁle) .
Page 7 Table of contents 7.8.10.5 CLO-TOD color tracking ....................143 7.8.11 Gray Level Deﬁnition.
Page 8 Table of contents R59770330 SIM 7QP SERIES 08/12/2014...
Page 9: Introduction
For the latest version of the product manuals, see http://www.barco.com. Clariﬁcation of the term “SIM 7QP series” used in this document When referring in this document to the term “SIM 7QP series” it is meant that the content is applicable for the following Barco products: •...
Page 10: Racu Hand Held Control Unit
1. Introduction Image 1-2 RACU hand held control unit Symbol overview The following icons are used in the manual : Caution Warning Info, term deﬁnition. General info about the term. Note, gives extra information about the described subject. Tip, gives extra advice about the described subject. Font overview •...
Page 11: Osd In Portrait Mode
1. Introduction Image 1-4 OSD in portrait mode Image 1-3 OSD in portrait mode Movements indicated on the OSD will be inverted on the image, i.e. the X-axis and Y-axis are rotated 90° CCW. This means that when the vertical lens shift in the lens shift menu is activated, the image will move horizon- tally, whereas horizontal lens shift leads to a vertical movement of the image (projector in table conﬁguration).
Page 12 1. Introduction R59770330 SIM 7QP SERIES 08/12/2014...
Page 13: Packaging
2. Packaging 2. PACKAGING Overview • Unpacking Unpacking CEE7/7 European power plug to connect the power cord to the wall outlet. NEMA5 American power plug to connect the power cord to the wall outlet. Content Description Quantity SIM 7 projector Remote Control Unit (RCU) + batteries Power cord CEE7 Power cord NEMA5...
Page 14 Always remove the lens before transporting the projector. AUTION Make sure that the projection lens has the one-to-one match with the projector and please contact Barco in case of replacement of the projection lens. How to unpack the projector ? 1. Release the cord straps.
Page 15: Installation Guidelines
3. Installation guidelines 3. INSTALLATION GUIDELINES Overview • Safety warnings • Installation guidelines Safety warnings ARNING Before installing the projector, ﬁrst read the safety instructions in the safety manual (R5975258) delivered with the projector. Insure that the room can be easily evacuated in case of a lamp explosion. Mercury vapor warnings Keep the following warnings in mind when using the projector.
Page 16: What About Ambient Light
ﬁlters as this will dramatically reduce the lifetime of the consumables. It is advised to replace the air ﬁlters at any lamp change. Barco reserves itself the right to refuse warranty replacement of consumables if they have been used in a projector with dirty air ﬁlters.
Page 17: Installation
4. Installation 4. INSTALLATION Overview • Dimensions • Fixation points • Projector tilt • RCU battery installation • Lens installation • Projector conﬁguration • Connections Dimensions Dimensions: projector without frame The dimensions are stated in mm (1 inch = 25.4 mm). Image 4-1 SIM 7QP series dimensions: front view and right view R59770330 SIM 7QP SERIES 08/12/2014...
Page 18: Fixation Points
4. Installation Dimensions: projector with frame Image 4-2 SIM 7QP series dimensions: front view and right view Image 4-3 SIM 7QP series dimensions: top view Projector weight Part weight Projector (no lens, no frame) 30.5 kg Frame 4.5 kg Projection lens 0.8:1 2.3 kg Projection lens 1.0–1.4:1 2.2 kg...
Page 19: Projector Tilt
4. Installation Image 4-4 SIM 7QP series: ﬁxation points Fixation points of the projector without frame If the standard projector frame is not used, three bolts can be screwed into the threaded holes at the bottom of the projector to ﬁx it to a custom frame.
Page 20: Rcu Battery Installation
4. Installation +20° -20° Image 4-6 Projector tilt range 360° Image 4-7 Projector tilt range RCU battery installation Where to ﬁnd the batteries for the remote control ? The batteries are not placed in the remote control unit to avoid control operation in its package, resulting in a shorter battery life time.
Page 21: Lens Installation
4. Installation Image 4-8 2. Insert the two AA size batteries, making sure the polarities match the + and - marks inside the battery compartment. Image 4-9 3. Insert (1) the lower tab of the battery cover in the gap at the bottom of the remote control, and press (2) the cover until it clicks in place.
Page 22: Portrait Mode Projector
4. Installation 4.5.1 Portrait mode projector Important remark As this is a portrait mode projector, the remarks below must be taken into account: • Lens formulas: SW indicates the longest side of the screen • Shift capabilities: the table and the diagram below indicate the lens shift ranges as if the projector was in landscape mode. The ranges for this projector in portrait mode are rotated 90°CCW compared to what is mentioned.
Page 23: Shift Capabilities
4. Installation 4.5.4 Shift capabilities Overview Lens Vertical shift Horizontal shift Horizontal shift (if vertical shift is 0%) (if vertical shift is 100%) QSD (0.8:1) up/down : 12.8% QSD (1.0–1.4:1) up/down : 100% left/right : 70% left/right : 20% QSD (1.4–2.0:1) up/down : 100% left/right : 70% left/right : 20% -70%...
Page 24: Lens Shift: Range
4. Installation -20% +20% +100% -70% +70% -100% -20% +20% Image 4-14 Lens shift: range The best image quality is obtained in nominal lens position (i.e. 0% shift). Shifting the image to the limit of its range starts introducing some falloff. The exact range in the area indicated by the red dashed line depends on lens type and application. Horizontal shift in nominal position Horizontal shift : -70% Projector...
Page 25: Installing The Lens And Adjusting The Scheimpﬂug
4. Installation 4.5.5 Installing the lens and adjusting the Scheimpﬂug ARNING In case of a projector with NVG option, do not insert your ﬁngers in the lens holder if the lens is removed. They could get hit by the smearing reduction wheel! Image 4-17 AUTION Make sure that the projection lens and the interpolation lens are a matched set.
Page 26: Screws To Lock The Lens Scheimpﬂug Settings (Left Side)
4. Installation Image 4-18 Image 4-19 Screws to lock the lens scheimpﬂug settings (left side) Screws to lock the lens scheimpﬂug settings (right side) How to mount the lens on the projector and adjust the Scheimpﬂug? 1. Remove the top lens cover (6 screws) Image 4-20 Top lens cover: ﬁxing screws 2.
Page 27: Lens: Scheimpﬂug Springs
4. Installation Image 4-22 Lens: scheimpﬂug springs 4. Slide the lens over the 3 studs Image 4-23 Lens positioned 5. Put a washer and a lock nut on each stud Image 4-24 Lens ﬁxation nuts 6. Fix the lock nuts until the lens ﬂange touches the lens holder plate at the 3 ﬁxation points (nominal position). 7.
Page 28: Connecting The Lens
4. Installation Image 4-25 Lens: Scheimpﬂug securing bolts and nuts 9. Secure the smaller Allen bolts M4 by tightening the nuts (see “2” on image 4-25) to the lens ﬂange. 10.Install the bottom lens cover 11. Install the top lens cover 4.5.6 Connecting the lens What must be done ?
Page 29: Lens Data
4. Installation Image 4-27 Projector lens connector 2. Secure the connection by turning and fastening the locking ring 4.5.7 Lens Data Extended Contrast ratio allows to increase the contrast of the image while the light output decreases. ECR (Extended Contrast Ratio ) The lenses used in the projector are ﬁtted with a non volatile memory holding the lens serial number and dynamic aperture look up tables.
Page 30: Projector Conﬁguration
4. Installation Also see the lens connection procedure. Projector conﬁguration The different conﬁgurations Depending on the installation the projector can be mounted in different ways, the 4 different conﬁgurations are: Rear/Ceiling Rear/Table Front/Ceiling Front/Table Image 4-29 Projector conﬁgurations Connections Overview •...
Page 31: Connectors: Mains Power
4. Installation Image 4-30 Connectors: mains power 3. Secure the connection with the locking spring. OPEN CLOSED Image 4-31 AUTION To prevent damage to the projector always ensure that the locking spring is well engaged ! R59770330 SIM 7QP SERIES 08/12/2014...
Page 32: Signal Connections
4. Installation 4.7.2 Signal connections Overview • Input section • Input speciﬁcations • Connecting a DVI source • Connecting an RGB source 4.7.2.1 Input section Overview The input section consists of 2 input layers and a communication layer: • input layer 1: twin dual link DVI input •...
Page 33: Connecting An Rgb Source
4. Installation IG 2 IG 1 Channel 1 Image 4-35 Connections : connecting 2 DVI sources How to connect a dual channel DVI source ? 1. Connect the dual channel image generator source to the projector by connecting the DVI male connector of channel 1 into the projector’s DVI 1 female input connector and the DVI male connector of channel 2 in the DVI 2 female input connector Channel 1 Channel 2...
Page 34: Communication
4. Installation 4.7.3 Communication Overview • Network connections • Network settings 4.7.3.1 Network connections What can be done ? The projector can be connected to a network allowing it to be accessed from any connected network device. The Ethernet connection can be used to upload/download projector software and/or to set up communication (TCP-packets) with the projector.
Page 35: Network Settings
4. Installation Image 4-39 Network connection through a HUB See Network settings to set the communication port. 4.7.3.2 Network settings AUTION Make sure that a DHCP server is available in the network and works ﬁne. In normal conditions, the network detection takes few seconds. This means that the total time needed to go from power ON to Standby mode is only a few seconds.
Page 36 4. Installation 2. Push the cursor key ← or → to highlight Installation in the menu bar. 3. Push the ↓ key to pull down the Installation menu. 4. Push the cursor key ↑ or ↓ to highlight Network settings and press ENTER to select. Image 4-40 A dialog box will be displayed.
Page 37 4. Installation A dialog box is shown. The different executed operations are shown with a checkbox. The last operation Restarting network takes a few seconds more. Image 4-42 R59770330 SIM 7QP SERIES 08/12/2014...
Page 38 4. Installation R59770330 SIM 7QP SERIES 08/12/2014...
Page 39: Setup
5. Setup 5. SETUP Overview • Warranty: continuous mode / automatic shutdown mode • Powering the SIM 7 projector • Setting the RCU address • Starting the projector • Setting the projector address (only if necessary) • Setting the orientation •...
Page 40: Setting The Rcu Address
5. Setup Image 5-1 Barco SIM7 : Power switch L3 and L1 light up red. After the initialization period L1 turns off. Image 5-3 Standby state : L3 is red Image 5-2 Setting the RCU address What has to be done ? To allow the communication between the RCU and the projector the RCU has to be programmed with the same address as the projector.
Page 41: Starting The Projector
5. Setup M E N T E R U SE O G O Image 5-4 All the LED’s (3) on the top cover of the projector go out. Then LED1 starts blinking green the number of hundreds. After that LED2 starts blinking the number of tens. Finally LED3 starts blinking green the number of units.
Page 42: Setting The Projector Address (Only If Necessary)
5. Setup If the address setting is wrong the projector will not respond to the RCU, see the next step to set the address. Setting the projector address (only if necessary) What can be done ? The projector is shipped with projector address set to ”0” In some cases the projector address must be changed, for example if an unique RCU is used to control 2 or more projectors (inde- pendently).
Page 43: Setting The Orientation
5. Setup Setting the orientation What must be done ? Depending on the mechanical orientation of the projector (see Projector conﬁguration in the Installation section), the projector’s internal settings have to be adapted. The projector is shipped (default) with a table/front orientation. How to set the orientation ? 1.
Page 44: Lens Top Cover: Fixing Screws
5. Setup Necessary tools • Torx screwdriver T10 • Allen key 2 mm (hexadecimal key) • Allen key 3 mm (hexadecimal key) How to lock the lens holder? 1. Make sure the lens is in the correct position 2. Remove the top lens cover Image 5-9 Lens top cover: ﬁxing screws 3.
Page 45: Locking / Unlocking The Zoom Ring And The Focus Ring Of The Lens
5. Setup 5. Block the vertical shift by tightening the bolt which can be reached through the small slot at the left side of the projector (seen from the rear of it) Image 5-13 Fixation screw for vertical lens shift locking system 6.
Page 46: Back Focal Length Adjustment
5. Setup Image 5-14 Engaging the zoom/focus locking system How to unlock the zoom ring and the focus ring of the lens? Both zoom ring and focus ring are unlocked at the same time. 1. Release (i.e. counterclockwise) the zoom/focus locking knob until no resistance is felt anymore Image 5-15 Unlocking the zoom/focus locking system 2.
Page 47: Back Focal Length Adjustment
5. Setup Image 5-16 Back Focal length adjustment. Locking screws Adjustment hole Image 5-17 A wrong back focal length adjustment will not allow optimal focus throughout the full zoom range. Necessary tools • BFL adjustment tool • Allen key 2.5 mm (hexagonal key) How to adjust ? 1.
Page 48: Back Focal Length: Fixation Screws
5. Setup Image 5-18 Back focal length: ﬁxation screws Note: The fourth screw is located underneath the lens 2. Put the BFL tool in the adjustment hole Image 5-19 Back focal length adjustment tool 3. Zoom the lens to wide position 4.
Page 49: Adjusting The Lens
5. Setup 7. Repeat step 3 to step 6 until the image stays in focus regardless to the zoom position 8. Fix the 4 screws 5.7.4 Adjusting the lens Description The shift adjustment is done during the Installation phase. The other adjustments possible on the lenses are: •...
Page 50 5. Setup Image 5-22 5. Press ENTER A text box appears on the screen, follow the instructions. Image 5-24 Image 5-23 6. Use the keys on the RCU to perform the desired action M E N T E R U SE O G O Image 5-25 How to adjust the zoom / focus using the OSD?
Page 51 5. Setup Image 5-26 5. Press ENTER A text box appears on the screen, follow the instructions. Image 5-27 6. Use the keys on the RCU to perform the desired action M E N T E R U SE O G O Image 5-28 The use of a sheet of paper held in front of the screen can be useful to determine the focus plane (position for best focus)
Page 52 5. Setup R59770330 SIM 7QP SERIES 08/12/2014...
Page 53: Getting Started
6. Getting started 6. GETTING STARTED Overview • Starting up the projector • Selecting a source • Adjusting the image • Switching the projector to standby Starting up the projector How to start up the projectors via the RCU ? 1.
Page 54: Adjusting The Image
In case of SIM 7QP HB or SIM 7QP HB&C, the projector cannot be switched from active state to standby state within the ﬁrst two minutes after it has been activated. Trying to do so pops up an alert message and the command is only executed after the two minutes period has expired.
Page 55: Advanced
7. Advanced 7. ADVANCED Overview • Using the Dialog boxes • Source selection • Image • Image ﬁles • Geometry • Lamp • General • Display setup • Installation Using the Dialog boxes How to use the dialog boxes ? Some parameters are modiﬁed by means of a dialog box, where selections can be made and/or values can be entered.
Page 56: Source Selection
7. Advanced In some cases an alphanumeric value (ﬁle name, ...) has to be entered. Use ↑ or ↓ to scroll through the char- acter values once the input ﬁeld is activated. Following characters can be browsed in this particular order: Decimal scroll list: 0123456789 Signed decimal scroll list: 0123456789- ASCII scrolllist:ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789+-*/&@#.;.abcdefghijklmnopqrstuvwxyz...
Page 57: Image
7. Advanced Image 7-4 5. Press ENTER to conﬁrm your choice A bullet indicates the selected source which now appears on the screen. Adjustments on an RGB signal The projector allows different adjustments on an RGB signal : • Contrast •...
Page 58: Image Settings
7. Advanced 7.3.2 Image settings Overview • Setting the Contrast • Setting the Brightness • Gamma • Phase (RGB signals only) 7.3.2.1 Setting the Contrast Contrast adjustments Adjust the contrast to “brighten” the white parts of the image. It is recommended to adjust the brightness before adjusting the contrast. How to change the Contrast 1.
Page 59: Gamma
7. Advanced On the screen appears now a slider box Image 7-7 8. Use ←or → , the numeric keys on the remote, or the keypad to change the brightness 7.3.2.3 Gamma Gamma adjustment The gamma parameter determines the way your encoded (luminance) signal is transformed into brightness at the output of the pro- jector.
Page 60: Scaling
7. Advanced On the screen appears now a slider box Image 7-9 8. Use ←or → , the numeric keys on the remote, or the keypad to change the Phase 7.3.3 Scaling What can be done? The scaling of the source image can be chosen from three presets. Depending on the setting, the source signal will be displayed in a different size and will possibly be stretched in one way or another.
Page 61: Input Balance (Rgb Signals Only)
7. Advanced In a ﬁrst phase, the dimming will be (mainly) done by the ECR (Enhanced Contrast Ratio) When the ECR is at its minimum value, the CCD (Constant Contrast Dimmer) starts further dimming the light output until it is 0 For the High Contrast (HC) versions, the minimum ECR value is calibrated in the projector to coincide with a lens aperture of approximately f/6.4, which leaves a light transmission of around 25%.
Page 62 7. Advanced 0.7V Black level Image 7-13 Δ G ΔΒ Δ R Black level Image 7-14 The objective of input balancing The objective in input balancing is to “set” the same black level and the same white level for the three colors of a particular input source.
Page 63: Performing Black Input Balance
7. Advanced An alternative to a full screen white/black pattern is a black-and-white checkerboard pattern where the white blocks will be used for white balance and the black blocks for black balance. Image 7-16 How to set Automatic Black level ? 1.
Page 64 7. Advanced Image 7-18 8. Press ENTER A dialog box is displayed 9. Adjust the red black level on a minimal value Image 7-19 10.Adjust the blue black level to a minimal value Note: this minimal value is not necessary , provided that the 2 other colors are not inﬂuencing too much the color to be adjusted, in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the transition (bright spots) due to the contribution of these two other colors signals.
Page 65: Image Files
7. Advanced Image 7-20 8. Press ENTER A dialog box is displayed 9. Adjust the red white level (gain) on a minimal value Image 7-21 10.Adjust the blue white level (gain) to a minimal value Note: this minimal value is not necessary , provided that the 2 other colors are not inﬂuencing too much the color to be adjusted, in fact the aim is to minimize the effect of the two other colors since there is a risk of reaching too soon the transition (bright spots) due to the contribution of these two other colors signals.
Page 66: Load File
7. Advanced 7.4.1 Load ﬁle When to load a ﬁle ? In some cases the user wants a particular ﬁle to be used for the display of a particular source. In this case the user should load the desired ﬁle from the image ﬁles menu. The load ﬁle option will allow the user to choose between several ﬁles corresponding more or less to the active source speciﬁcations.
Page 67: Auto Image
7. Advanced 7.4.2 Auto Image What can be done ? Auto Image creates the best suited image ﬁle for the connected source. It calculates/measures several source parameters : • Total pixels per line • Start pixel • Phase • Contrast/Brightness levels Auto Image only works for data images.
Page 68 7. Advanced In this case a DVI source is used. A DVI source does not need any image ﬁle setting. All the ﬁelds are therefore greyed out. See the dialog box below. How to edit a ﬁle ? 1. Press MENU to activate the Tool bar 2.
Page 69: Save As (Create A Custom File)
7. Advanced Image 7-27 • Color space : allows to select between 5 different color spaces ITU_BT_709 SMPTE_240M ITU_BT_601 • Clamp position : allows to set the clamp pulse position in the clamping circuit • Clamp width : allows to set the width of clamp pulse in the clamping circuit It is recommended to use the default values.
Page 70: Rename File
7. Advanced Image 7-30 5. Press ENTER A dialog box is displayed Use ←or →, ↓ or ↑ the numeric keys on the remote, or the keypad to edit and change the ﬁle name, conﬁrm with ENTER. Image 7-31 7.4.5 Rename ﬁle How to rename a ﬁle ? 1.
Page 71: Copy
7. Advanced Image 7-33 7.4.6 Copy Copy a ﬁle The copy function allows to copy a ﬁle (standard or custom) to a custom ﬁle (to the custom directory). How to copy a ﬁle ? 1. Press MENU to activate the Tool bar 2.
Page 72: Delete
7. Advanced 6. Use ↑ or ↓ to select the ﬁle to be copied 7. Press ENTER The ﬁle name is copied in the edit ﬁeld 8. Use the keys on the remote to change the name of the destination ﬁle 7.4.7 Delete How to delete a ﬁle ?
Page 73: Geometry
7. Advanced 5. Press → to open the menu 6. Use ↑ or ↓ to select the desired layer (for example Layer 1) 7. Use ↑ or ↓ to select the desired input (for example Data on BNC) Image 7-38 Note: Inputs that are not hardware compatible with this layer are greyed out.
Page 74: Geometry Files
7. Advanced 7.5.2 Geometry ﬁles Description A geometry ﬁle contains the geometry corrections. The projector’s memory contains a list of ﬁles created for demo purposes e.g. to demonstrate the warping capabilities of the projector. These ﬁles are called standard ﬁles. The active ﬁle can always be edited in order to ﬁt exactly the screen shape.
Page 75: The Screen Is Divided In 33X33 Regions
7. Advanced 11 12 13 14 15 16 17 18 19 20 21 22 Image 7-41 The screen is divided in 33x33 regions Modes and Levels The geometry adjustment is divided in 6 groups or modes : • • • •...
Page 76: Geometry Levels
7. Advanced Image 7-42 Geometry levels Level Hierarchy The fact that the adjustment affects other points means that a certain hierarchy must be respected when adjusting the geometry. The hierarchy or levels are indicated in the following image R59770330 SIM 7QP SERIES 08/12/2014...
Page 77: Load
7. Advanced Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9 Level 10 Level 11 Level 12 Level 13 17x17 Level 14 Level 15 Level 16 Level 17 Level 18 33x33 Level 19 Level 20 Level 21...
Page 78: Edit
7. Advanced 5. Press ENTER A dialog box is displayed Image 7-44 6. Use the cursor key ↑ and ↓ to select the desired geometry ﬁle 7. Press ENTER Tip: When starting a new geometry setup it is advised to select the “No_Distortion” ﬁle. The ﬁle is loaded and the geometry settings are adapted.
Page 79: Geometry Edit Wizard
7. Advanced Image 7-45 7.5.6.2 Geometry Edit wizard The geometry wizard When entering the Edit mode, the Edit dialog box is displayed. When selecting a point in a certain adjustment, a yellow box shows the selection and a blue dotted box is placed around the selected grid point, indicating the interaction zone. Image 7-46 R59770330 SIM 7QP SERIES 08/12/2014...
Page 80 7. Advanced Image 7-47 Note that the dialog box is transparent so as to allow the preview of the adjustment over the whole screen during the adjustment (the image to be adjusted is not hidden by the dialog box) Description of the Edit dialog box An intuitive user interface is used to perform all the geometry corrections.
Page 81: Geometry Edit Modes
7. Advanced Field Description Notes /adjustment Colom column corresponding to the selected point in a 2x2 adjustment column will be between 0 and 32 (steps of 32) row corresponding to the selected point in a 2x2 adjustment row will be between 0 and 32 (steps of 32) PixelX this slider box adjusts the new position of the point along...
Page 82 7. Advanced Image 7-50 Image 7-51 Image 7-52 R59770330 SIM 7QP SERIES 08/12/2014...
Page 83: Editing A Geometry File
7. Advanced How to select an Edit Mode ? 1. When the Edit dialog box is displayed, the Select mode is selected by default. 2. To go to the next mode (go to the right) press ENTER. 3. To return to a previous mode (go to the left) use BACK 7.5.6.4 Editing a geometry ﬁle Introduction...
Page 84 7. Advanced Image 7-54 A 5x5 mode adjustment gives the following new points to be adjusted. Note that in this mode 3 levels are involved, level 4, 5 and level 6 (previous adjusted points are left out). R59770330 SIM 7QP SERIES 08/12/2014...
Page 85 7. Advanced Image 7-55 How to start up the geometry edit ? 1. Start up the Geometry Edit menu 2. Press ↓ to select 2x2... 3. Press ENTER A dialog box is displayed. The Select mode is enabled and the top/left (row = 0 ; colom = 0) corner is selected R59770330 SIM 7QP SERIES 08/12/2014...
Page 86 7. Advanced Image 7-56 Image 7-57 How to select another point ? 1. Press → to select the next adjustment point R59770330 SIM 7QP SERIES 08/12/2014...
Page 87 7. Advanced The column is adapted to 32 Image 7-58 Image 7-59 2. Press ↓ to select the next adjustment point R59770330 SIM 7QP SERIES 08/12/2014...
Page 88 7. Advanced The row is adapted to 32 Image 7-60 Image 7-61 3. Press ← to select the next adjustment point R59770330 SIM 7QP SERIES 08/12/2014...
Page 89 7. Advanced Image 7-62 Image 7-63 How to adjust using the Adjust mode ? Adjusting point (row =0 ; column =0) by 100 (pixels) along the x axis in the 2x2 mode 1. Press ENTER to go to the Adjust Mode R59770330 SIM 7QP SERIES 08/12/2014...
Page 90 7. Advanced The Adjust mode is selected Image 7-64 2. Use ← and → to adapt the value of PixelsX Tip: Use ↑ and ↓ to adapt the value of PixelsY The image is distorted along the X axis. Notice the unaffected regions. Image 7-65 The adjustment is done in small steps.
Page 91: Axis Link
7. Advanced How to adjust using the Edit and Change mode ? Adjusting point (row =0 ; column =0) by 100 (pixels) along the x axis in the 2x2 mode 1. Press 2 times ENTER to go to the Edit Mode The Edit mode is selected Image 7-66 2.
Page 92 7. Advanced Following example will show a basic 2x2 adjustment with AxisLink set On and Off. Start with a non distorted image, assume the left top corner is selected. Image 7-68 Shift the left top corner +300 pixels to the left. Image 7-69 R59770330 SIM 7QP SERIES 08/12/2014...
Page 93 7. Advanced Shift the left corner +300 pixels downwards. AxisLink = ON The coordinate system used for the adjustment will coincide with the edges of the distorted image, this will result in a quick adjustment when dealing with complex setups. AxisLink = The coordinate system used for the adjustment is absolute.
Page 94: Shift Adjustment
7. Advanced Image 7-71 3. Use ↑ and ↓ to select the AxisLink radio buttons Image 7-72 4. Use ← and → to select the ON or OFF radio buttons 5. Press ENTER to enable/disable the selected radio button 6. Press BACK to return to the Geometry Edit menu. 7.5.6.6 Shift Adjustment What can be done with the Shift adjustment ?
Page 95 7. Advanced The Edit mode is selected Image 7-73 5. Use ↑ and ↓ to select the PixelsX edit box The PixelsX edit box is focused Image 7-74 6. Press ENTER R59770330 SIM 7QP SERIES 08/12/2014...
Page 96 7. Advanced The PixelsX edit box is put in edit mode Image 7-75 7. Use ← and → to select the digit and use ↑ and ↓ to increment/decrement the digit Tip: One can also use the numeric digits to ﬁll in the desired value ? The image is shifted along the X axis.
Page 97: Transport Delay
7. Advanced 7.5.6.7 Transport Delay What is Transport Delay ? The Transport Delay is the interval between the time at which an image frame is received from the ﬁrst FPGA of the PMP and the time at which the processing of this frame starts in the second FPGA of the PMP. signal coming frame B frame C...
Page 98: Sharpness
7. Advanced Image 7-79 The Transport Delay dialog box will be displayed. Image 7-80 3. Push the cursor key ↑ or ↓ to select the radio buttons 4. Press ENTER to check the desired radio button 5. Press BACK to return to the Geometry Edit menu. How to adjust the Transport Delay manually? 1.
Page 99: Geometry Reset
7. Advanced How to adjust the geometry Sharpness ? 1. Start up the Geometry Edit menu 2. Push the cursor key ↑ or ↓ to highlight Sharpness... and press ENTER to select. Image 7-82 The Sharpness dialog box will be displayed. Image 7-83 3.
Page 100: Restore To A Level
7. Advanced Image 7-84 All the levels are reset. If these levels contained geometry corrections, this will be noticed in the image by a jump. 5. Press BACK to return to the Geometry Edit menu. 7.5.6.9.2 Restore to a level What can be done ? Restore to a level means that all the higher level geometry corrections are reset (all geometry correction values are set to 0).
Page 101: Geometry Restore Example : Restoring To A 9X9 Level
7. Advanced Image 7-85 Geometry Restore example : restoring to a 9x9 level How to restore to a level ? 1. Start the Geometry Edit menu 2. Push ↓ or ↑ to select Reset 3. Push the → key to pull down the menu. 4.
Page 102: Rename A Geometry File
7. Advanced Image 7-86 The higher levels are reset. If these levels contained geometry corrections, this will be noticed in the image by a more or less accentuated jump. 5. Press BACK to return to the Geometry Edit menu. 7.5.7 Rename a Geometry File How to rename a geometry ﬁle ? 1.
Page 103: Copy A Geometry File
7. Advanced A dialog box is displayed Image 7-88 4. Use the cursor key ← or → to go to the next or previous characters and use ↓ or ↑ to browse through the characters 5. Press ENTER The ﬁle is renamed. 6.
Page 104: Delete A Geometry File
7. Advanced Image 7-90 4. Use the cursor key ↑ and ↓ to select the desired geometry ﬁle 5. Press ENTER to select. 6. Use the cursor key ← or → , the numeric keys on the RCU, or the local keypad, to edit and change the values, conﬁrm with ENTER.
Page 105: Lamp
7. Advanced 4. Use the cursor key ↑ and ↓ to select the desired geometry ﬁle and press ENTER to select. A message will be displayed. Image 7-93 5. Press ENTER to conﬁrm. The selected ﬁle is deleted and removed from the list. 6.
Page 106: Lamp Runtime Warning
7. Advanced A text box is displayed Image 7-95 7.6.2 Lamp runtime warning What can be done ? When the lamp has reached a predetermined runtime , a warning message will be displayed on the screen. The lamp runtime warning can be set in a range from 30 to 200 hours. The runtime warning is displayed by default at 30 hours before end of lamp lifetime.
Page 107: Reset Lamp Runtime
When to reset the lamp runtime ? Reset the lamp runtime whenever you replace a lamp ARNING Lamp runtime reset as well as the lamp replacement can only be done by a Barco authorized technician. How to reset the lamp runtime ? 1.
Page 108: Lamp Power Mode (Only For Sim 7Qp & Sim 7Qp Hc)
Economic: the lamp power is reduced to 250W (generation 2 lamp) and the light output is decreasing accordingly. SIM 7QP HB & SIM 7QP HB&C only run in Normal lamp power mode and have no Economic lamp power mode available.
Page 109: Clo Mode
7. Advanced A dialog box appears: Image 7-103 3. Conﬁrm by selecting Yes . A drop or rise in light output is noticed. 7.6.6 CLO Mode The adjustment and calibration of the CLO is done via the hand held control unit RACU. For more information, see the dedicated system manual.
Page 110: Clo Target
The CLO target can be set in the range 200 .. 30000 for SIM 7QP & SIM 7QP HC. This range is extended to 200 .. 40000 for SIM 7QP HB & SIM 7QP HB&C. How to set the CLO target ? 1.
Page 111: Freeze
7. Advanced How to pause the image display ? 1. Press MENU to activate the Tool bar 2. Press → to select General 3. Press ↓ to Pull down the General menu 4. Use ↑ or ↓ to select Pause Image 7-107 5.
Page 112: Display Setup
7. Advanced Image 7-109 5. Press ENTER On the screen appears a text box. Image 7-110 6. Press MENU or BACK to exit or to go back to the previous menu Display setup Overview • Textbox • Menu bar position •...
Page 113: Menu Bar Position
7. Advanced Image 7-111 7. Press ENTER A white bullet shows the active setting 7.8.2 Menu bar position What can be done ? The menu tool bar can be centered vertically , the range being from top of the screen to the middle of the screen. This can be useful in applications where the top image content is not displayed (soft edge region).
Page 114: Sync Variance Limit
7. Advanced How to reposition the slider box? 1. Press MENU to activate the Tool bar 2. Press → to select the Display setup item 3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select Slider box position Image 7-113 5.
Page 115: Sync Variance Limit
7. Advanced incoming signal frame B frame C frame D signal processing frame B frame B frame D in PMP (1st step) x (= sync variance limit) is critical incoming signal frame B frame C frame D signal processing frame A frame B frame C in PMP (1st step)
Page 116: Soft Edge
7. Advanced 7.8.5 Soft edge Overview • Introduction • Accessing the Soft edge menu • Soft edge edit • Black level • Blanking The soft edge adjustment can be done on the hand held remote control unit RACU as well. 7.8.5.1 Introduction What can be done?
Page 117: Accessing The Soft Edge Menu
7. Advanced Internal soft edges : the contour and shape can be adjusted in the projector using the soft edge edit wizard External Alpha planes : An external ﬁle is sent to the projector and is memorized. This ﬁle contains data corresponding to the shape contour of the soft edge Soft Edge Preparations To ensure proper soft edge adjustment, be sure that the following adjustments are done perfectly on all projectors:...
Page 118: The Soft Edge Edit Wizard
7. Advanced 7.8.5.3.1 The soft edge edit wizard The geometry wizard When entering the Edit mode, the Edit dialog box is displayed. Description of the Edit dialog box An intuitive user interface is used to perform all the Soft edge adjustments. Image 7-120 Field Description...
Page 119 7. Advanced Image 7-121 Image 7-122 Image 7-123 Image 7-124 R59770330 SIM 7QP SERIES 08/12/2014...
Page 120: Creating/Editing A Soft Edge
7. Advanced How to select an Edit Mode ? 1. When the Edit dialog box is displayed, the Select mode is selected by default. 2. To go to the next mode press ENTER. 3. To return to a previous mode use BACK 7.8.5.3.3 Creating/editing a soft edge Description...
Page 121 7. Advanced The item is focused Image 7-126 2. Press ENTER The internal soft edge is selected Image 7-127 How to enable the soft edges ? 1. Push ↓or ↑ to select the desired Edges check box R59770330 SIM 7QP SERIES 08/12/2014...
Page 122 7. Advanced The item is focused Image 7-128 2. Press ENTER The selected check boxes are checked Image 7-129 3. Do the same for the other desired edges The default soft edge is applied on the selected edges How to select the source (background) ? 1.
Page 123 7. Advanced The item is focused Image 7-130 2. Press ENTER The selected check box is checked and a full white image is displayed with the soft edges on the 4 sides Image 7-131 How to enable the adjustment guide ? 1.
Page 124 7. Advanced The item is focused Image 7-132 2. Press ENTER The selected check box is checked and the guide is displayed (vertical and horizontal grey scale bars) Image 7-133 How to set the hierarchy level ? 1. Push ↓or ↑ to select the hierarchy level slider box R59770330 SIM 7QP SERIES 08/12/2014...
Page 125: Alpha Planes
7. Advanced The item is focused Image 7-134 2. Use the ← and → to select the level (from 1 to 6) How to adjust the soft edge ? 1. Press Adjust An Edit dialog box is displayed and the left side soft edge zone is selected. The default level is level 1. 2.
Page 126 7. Advanced The alpha plane will only be applied if it has been activated in the Edit... menu’s dialog box (see procedure above) How to activate an alpha plane ? 1. Press the MENU key to activate the Tool bar. 2.
Page 127: Black Level
7. Advanced 7.8.5.4 Black level Overview • Introduction • Internal black level • Beta planes 7.8.5.4.1 Introduction Brightness uniformity In a multi channel system the brightness can vary over the different channels/projectors. The brightness level can be matched using CLO: in this case the light power is matched over the different projectors, see CLO in the Lamps section Black level : this will act on the brightness of the “black”...
Page 128: Internal Black Level
7. Advanced The Black level adjustment has to be done for all the channels (projectors) 7.8.5.4.2 Internal black level What can be done ? Internal black level can be adjusted via the projector’s software using a dialog box. The dialog box allows to add an offset to the black level of the image in the zones outside the soft edge zones.
Page 129: Blanking
7. Advanced Uploading a Beta plane ﬁle Beta planes must be uploaded in the following projector directory (accessible via FTP) : /D/display/Softedge The ﬁle must be named as follows : beta.tiff The free storage capacity on the D-drive is about 8 MB. it is needed to store the image ﬁles, geometry ﬁles, factory backup, Alpha planes and Beta planes.
Page 130: Auto Image Setup
7. Advanced The adjustment of hard edges is done in the same menu as the soft edge with the Edges disabled (unchecked). How to setup a hard edge shape ? 1. Press the MENU key to activate the Tool bar. 2.
Page 131: Smearing Reduction (Optional)
7. Advanced 2. Press → to select the Display setup item 3. Press ↓ to Pull down the Display setup menu 4. Use ↑ or ↓ to select Auto Image setup Image 7-143 5. Press ENTER A dialog box is displayed. Image 7-144 6.
Page 132: Enabling Smearing Reduction
7. Advanced Image 7-145 Image 7-146 With smearing (Smearing reduction off) Without smearing (Smearing reduction on) ARNING During the switch off of the smearing reduction system the image will present a ﬂicker. Some people may have seizures or blackouts triggered by light ﬂashes or patterns. Anyone who has had a seizure, loss of awareness, or other symptom linked to an epileptic condition should consult a doctor before using the projector with the smearing system enabled! Stop looking to the image and consult a doctor if you have any of the following symptoms:...
Page 133: Adjusting The Phase
7. Advanced When disabling (OFF) the Smearing reduction the ﬂicker will be noticeable (frequency will decrease notice- ably). See warning above. When disabling the Smearing reduction, the projector will try to get the full image displayed. This can take up to one minute! 7.8.7.3 Adjusting the phase...
Page 134: True Motion Reproduction
7. Advanced 7.8.8 True motion reproduction What can be done? Some visible artefacts on moving images can be avoided by switching on True motion reproduction. How to enable/disable True motion reproduction? 1. Press MENU to activate the Tool bar 2. Press → to select the Display setup item 3.
Page 135: Dynacolor
7. Advanced How to select a preset color temperature ? 1. Press MENU to activate the tool bar 2. Press → to select the Display setup item 3. Press ↓ to pull down the Display setup menu 4. Use ↑ or ↓ to select Color temperature 5.
Page 136: The Cie Chromaticity Diagram
7. Advanced Image 7-152 The CIE chromaticity diagram A projector can only reproduce a certain color gamut within this diagram. This color gamut is deﬁned by the triangle formed by the x, y coordinates of Red Green and Blue. These parameters are used by the DynaColor™ adjustment in the projector. Image 7-153 The projector color gamut is deﬁned by the triangle formed by the x, y coordinates of Red Green and Blue Due to the tolerance on optical components the x, y values of this color gamut of each projector will differ.
Page 137: Common Color Gamut
7. Advanced Image 7-155 Common Color Gamut The Common Color Gamut In a basic setup with 2 projectors, the perimeter of the Common Color Gamut is described by the 3 points of intersection of the 2 separate color gamuts. Image 7-156 Red projector 1 Red projector 2 Green Projector 1...
Page 138 Uses the Measured parameters to calculate and ﬁll out the Desired values. In case of SIM 7QP HB or SIM 7QP HB&C, this command also sets the white point to the default white point (x = 0.306, y = 0.382) to avoid the greenish perception of the projector’s native white point.
Page 139 7. Advanced Image 7-157 R59770330 SIM 7QP SERIES 08/12/2014...
Page 140: Dynacolor Sets
7. Advanced Image 7-158 Dynacolor sets Depending on the projection mode, projector type, software version and availability of options, different Dynacolor sets can and will be used (if the Dynacolor feature is enabled): • Standard Dynacolor set • Dynacolor set with advanced color tracking through CLO •...
Page 141: Enabling Dynacolor
7. Advanced 7.8.10.2 Enabling DynaColor Enabling DynaColor can be done by the operator. What can be done ? Enabling DynaColor changes the projector’s native color range to the color range as speciﬁed in the active DynaColor set. Disabling DynaColor will keep the original colors determined by the source and the projector’s optical path. How to enable Dynacolor? 1.
Page 142 7. Advanced Dynacolor adjustment versus Dynacolor calibration • Single channel setup: each projector is color calibrated during production. This means that projectors in single channel setup do not need to be calibrated anymore. Only speciﬁc color requests from the user may require some DynaColor adjustment. This can be easily done by SLIGHTLY changing the desired values.
Page 143: Calibration (For Multiple Projectors)
(PR655, LMT, …) and at a ﬁxed position during the entire measurement. In the procedure below we consider a system of 2 projectors. AUTION Only to be done by Barco trained and qualiﬁed engineers ! Never change the values if not needed. Altered color values will not guarantee optimal image reproduction. How to calibrate Dynacolor for projector 1 ? 1.
Page 144 7. Advanced A dialog box is displayed for the Red color Image 7-162 10.Fill in the measured x and y and coordinates and the Y value Note: the Y value will be transformed in a L value by the projector 11.
Page 145: Common Color Values
7. Advanced Image 7-163 How to calibrate Dynacolor for projector 2 1. Proceed in the same way as for projector 1 The values will slightly differ form the ones of the ﬁrst projector. 7.8.10.3.3 Common color values What can be done ? The common color values can be determined manually.
Page 146: Factory Preset
7. Advanced 7.8.10.3.4 Factory preset Description During factory calibration of the projector, the projector’s native colors are measured in ideal conditions and entered as measured values in the projector. If at any time the Dynacolor parameters are changed and a bad color reproduction is observed, you can easily return to the factory settings by clicking Factory preset in the Dynacolor dialog.
Page 147: Clo-Tod Color Tracking
7. Advanced Image 7-165 7. Press ENTER A dialog box is displayed Image 7-166 8. Use ←or →, the numeric keys on the remote, or the keypad to change the settings. 7.8.10.5 CLO-TOD color tracking Description CLO-TOD color tracking is used to compensate for color variation caused by changing the dimmer transmission. By default CLO- TOD color tracking is enabled.
Page 148: Gray Level Deﬁnition
7. Advanced Image 7-167 Enabling CLO-TOD color tracking 1. In the OSD, browse to Display setup > Dynacolor > CLO-TOD color tracking > On. 2. Press Enter to conﬁrm. 7.8.11 Gray Level Deﬁnition Gray Level Deﬁnition Gray Level Correction The GLD alignment can be used to optimize the black to white tracking. If there are no issues with the color setup of a multi channel display system, it is not necessary to perform this procedure.
Page 149: Illustrating The Inﬂuence Of Gld Correction
7. Advanced Applying a correction in a certain zone also inﬂuences the adjacent zones. The hierarchical levels are selected in a way that the ﬁrst hierarchy level inﬂuences the entire transition from black to white (0% to 100%) with the main correction done at 25%. Below you can ﬁnd the table of the hierarchy levels and their inﬂuence zone. Hierarchy level (value 1–4) Hierarchy level (%) Gray level range...
Page 150: Gld Correction On Level 1
7. Advanced GLD correction on Hierarchy level 1 When a correction is applied to Hierarchy level 1 (blue line), its main inﬂuence is visible on 25% level. The sum of the adjustment and the linear transition results in a transition as it is presented by the dash-dotted red line in the graph below. Adj.
Page 151: Gld Correction
7. Advanced Adj. value Intensity 1024 Linear response Adjustment 100% Signal Image 7-171 GLD correction on Level 1 and 3 It is very important to perform the GLD alignment starting from Hierarchical level 1 and going up to Hierarchy level 4. 7.8.11.3 GLD correction Overview •...
Page 152: Performing Gld Correction
7. Advanced 7.8.11.3.2 Performing GLD correction Enabling Gray Level Deﬁnition 1. In the OSD menu of the projector, browse to Display setup > Gray Level Deﬁnition > Mode > On Image 7-172 Press ENTER to enable GLD Setting the GLD user interface 1.
Page 153 7. Advanced Image 7-174 How to perform the GLD correction? 1. Use the arrows to select the Hierarchy level and conﬁrm by pressing ENTER Image 7-175 Warning: To perform GLD correction, you must start at Hierarchy level 1, then go to level 2, then level 3 to end at level 4. 2.
Page 154: Convergence
7. Advanced 5. In case of external patterns, make sure that the correct test pattern is active Warning: This external pattern must meet the selected gray range (see the edit box in the Level section) and it must take into account the correct gamma setting.
Page 155: Installation
7. Advanced Image 7-178 5. Press ENTER A dialog box is displayed Image 7-179 6. Use ←or → , the numeric keys on the remote, or the keypad to change the values Note: The range of the vertical adjustment for green is only -4 to +4 (in pixels), whereas all other adjustment ranges are from -8 to +8 pixels.
Page 156: Lens Adjustments
7. Advanced • Scaled Patterns • Combiner Patterns • Driver Patterns • Change password 7.9.1 Lens adjustments How to adjust the lens ? 1. See the Setup section. 7.9.2 Projector address How to change the projector address ? 1. See the Setup section. 7.9.3 Orientation How to set up the orientation ?
Page 157: Internal Patterns
7. Advanced In case Off has been selected, a warning will be displayed to make sure that the operator is fully aware of the fact that the lamp warranty will expire when the projector stays in active mode for over 24 hours continuously. A conﬁrmation is asked for. The operator can then choose to agree (Yes) or to go back to Automatic Shutdown mode (No) Image 7-181 7.9.6...
Page 158: Internal Hatch Pattern
7. Advanced • Hatch Image 7-183 Internal Hatch pattern • Color Bars Image 7-184 Internal Color Bars pattern • Checkerboard Image 7-185 Internal Checkerboard pattern R59770330 SIM 7QP SERIES 08/12/2014...
Page 159: Internal Full White Pattern
7. Advanced • Full White Image 7-186 Internal Full White pattern • HGBWS Image 7-187 Internal HGBWS pattern • Character Set Image 7-188 Internal Character Set pattern R59770330 SIM 7QP SERIES 08/12/2014...
Page 160: Internal H-Pattern
7. Advanced • H-pattern Image 7-189 Internal H-pattern • Convergence Image 7-190 Image 7-191 Convergence pattern Convergence pattern Image 7-192 Image 7-193 Convergence pattern Convergence pattern R59770330 SIM 7QP SERIES 08/12/2014...
Page 161: Ansi Pattern
7. Advanced • ANSI: which indicated the exact measure positions to do a ANSI lumen measurement Image 7-194 ANSI pattern • Focus Image 7-195 Internal focus pattern • Fine Res H Layout Image 7-196 Internal Fine Res H Layout pattern •...
Page 162: Internal Purity Dialog Box
7. Advanced Following dialog box is displayed when the internal purity pattern is selected, use the buttons to change the transition level: Level -1 Level +1 Level -16 Level +16 Min Level: 0 Max Level: 255 Gray Levels Red Levels Green Levels Blue Levels Image 7-197...
Page 163: Scaled Patterns
7. Advanced 7.9.7 Scaled Patterns What can be done? These Scaled Patterns can be used for measurement purposes, unlike the Internal Pattern, the Scaled Patterns will be distorted according to the active Geometry File. Available Scaled Patterns Following pictures show the available Scaled Patterns with an active zenith geometry ﬁle. For all scaled patterns, the contribution of each of the primary colors can be set.
Page 164: Combiner Patterns
7. Advanced Image 7-201 7. Press ENTER to conﬁrm. The selected Scaled Pattern is displayed. 8. Use the dialog box to adapt the colors Red, Green and Blue. 9. Press BACK to return to the Installation menu. 7.9.8 Combiner Patterns What can be done? The projector is equipped with different combiner patterns which can be used for adjustment purposes.
Page 165: Driver Patterns
7. Advanced Image 7-202 7. Press ENTER to conﬁrm The Internal Pattern will be displayed. 8. Press BACK to return to the Installation menu. 7.9.9 Driver Patterns What can be done? The projector is equipped with different driver patterns which can be used for adjustment purposes. Geometry adjustments can not be used on these driver patterns.
Page 166: Change Password
7. Advanced Image 7-203 7. Press ENTER to conﬁrm The Internal Pattern will be displayed. 8. Press BACK to return to the Installation menu. 7.9.10 Change password What can be done ? The OSD advanced items under More ...can be protected by a password. The items are by default protected by the password ’0000’. This password can reprogrammed.
Page 167 Each character is displayed as an asterisk. The new password is accepted if the new password and the conﬁrmed password are a 100% match. If the password is forgotten contact a Barco authorized technician. R59770330 SIM 7QP SERIES 08/12/2014...
Page 168 7. Advanced R59770330 SIM 7QP SERIES 08/12/2014...
Page 169: Maintenance
This chapter contains the lamp replacement procedure, which can be done by a trained operator. Next to that, some information about air ﬁlter replacement is available. The air ﬁlter replacement itself can only be performed by Barco qualiﬁed service technicians, since a ’hidden’...
Page 170: Air Filters Replacement
8. Maintenance 2. Clean the housing of the projector with a damp cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Air ﬁlters replacement AUTION Extreme care must be taken to avoid dust intrusion in or dust infection of the projector. ARNING The air ﬁlters must always be present and mounted in a correct way! Description...
Page 171: Installing The Air Filters
8. Maintenance Image 8-3 Air ﬁlters: removing 8.3.2 Installing the air ﬁlters Necessary tools Torx screwdriver T10 How to install the air ﬁlters? 1. Insert the new ﬁlters, the seals pointing towards the projector R59770330 SIM 7QP SERIES 08/12/2014...
Page 172: Lamp Replacement
8. Maintenance Image 8-4 Air ﬁlters: inserting 2. Place the ﬁlter cover in its correct position 3. Tighten the ﬁxing screws to ﬁx the ﬁlter cover FILTER COVER Image 8-5 Air ﬁlter cover: ﬁxing screws Lamp replacement Description The projector lamp must be replaced at the end of its lifetime. When the end of lifetime comes near, a warning dialog is displayed. The time when it pops up for the ﬁrst time can be set.
Page 173: Lamp Removal
Necessary tools Torx screwdriver T10 Removing the lamp 1. Release the four ﬁxing screws of the lamp cover (1). In case of SIM 7QP HB & SIM 7QP HB&C, drive out screws (2) about one full turn. Image 8-6 Lamp cover removal (SIM 7QP & SIM 7QP HC)
Page 174: Lamp Cover Removal (Sim 7Qp Hb & Sim 7Qp Hb&C)
SIM 7QP & SIM 7QP HC: see (5) in image 8-6; SIM 7QP HB & SIM 7QP HB&C: ﬁrst tilt it a bit (3), then slide it up (4), and ﬁnally remove it (5). See image 8-7. 3. In case of SIM 7QP & SIM 7QP HC, disconnect the lamp power connector.
Page 175: Lamp Door Removal (Sim 7Qp Hb & Sim 7Qp Hb&C)
Warning: Make sure the lamp power wire does not get stuck between the lamp door and the projector frame. 5. In case of SIM 7QP HB & SIM 7QP HB&C, disconnect the lamp power connector. Image 8-11 Lamp power connector (SIM 7QP HB & SIM 7QP HB&C) 6.
Page 176: Lamp Installation
8. Maintenance Image 8-13 Unlocking the lamp (SIM 7QP HB & SIM 7QP HB&C) 7. Slide out the lamp in a straight way. Image 8-14 Lamp removal (SIM 7QP & SIM 7QP HC) Image 8-15 Lamp removal (SIM 7QP HB & SIM 7QP HB&C) 8.4.2...
Page 177: Lift Lamp Locking Handle (Sim 7Qp & Sim 7Qp Hc)
Lift lamp locking handle (SIM 7QP & SIM 7QP HC) Image 8-17 Lift lamp locking handle (SIM 7QP HB & SIM 7QP HB&C) 2. Slide the lamp in the projector in the correct orientation: the connector towards the projector’s front side.
Page 178: Lamp Power Connector (Sim 7Qp Hb & Sim 7Qp Hb&C)
5. Check the ﬁxation of the lamp by trying to move it left-right and up-down: it should not move! 6. In case of SIM 7QP HB & SIM 7QP HB&C, plug in the lamp power connector. See image 8-19. 7. Install the lamp door (1) and tighten the three screws (2).
Page 179: Lamp Door Installation (Sim 7Qp & Sim 7Qp Hc)
SIM 7QP & SIM 7QP HC: place the lamp cover in the correct position (1). See image 8-25; SIM 7QP HB & SIM 7QP HB&C: slide the joggle of the lamp cover slightly tilted under the projector’s cover (1)+(2), then tilt it back (3).
Page 180: Resetting The Lamp Runtime
Lamp cover installation (SIM 7QP HB & SIM 7QP HB&C) 10.Tighten the four ﬁxing screws (4). See image 8-26. 11. In case of SIM 7QP HB & SIM 7QP HB&C, tighten screws (5). See image 8-26. 8.4.3 Resetting the lamp runtime Necessary tools No tools.
Page 181 8. Maintenance Image 8-27 2. Press ENTER to conﬁrm. A dialog box is displayed Image 8-28 3. Enter the serial number of the new lamp. 4. Press ACCEPT to conﬁrm the serial number. The lamp runtime is now set to zero. 5.
Page 182 8. Maintenance R59770330 SIM 7QP SERIES 08/12/2014...
Page 183: Troubleshooting
9. Troubleshooting 9. TROUBLESHOOTING Overview • Diagnostic LEDs • Basic troubleshooting guide Diagnostic LEDs Position of the diagnostic LEDs The diagnostic LEDs can be found near the local keypad of the projector. LED 1 LED 2 LED 3 BACKLIGHT Image 9-1 SIM 7: LEDs Description of the diagnostic LEDs Technically each LED consists of a red LED and a green LED.
Page 184 9. Troubleshooting Check external power supply POWER CORD NOT HOT Replace the power cord Plug in power cord NO POWER POWER CORD NOT PLUGGED Switch ON MAINS SWITCH OFF Clean/replace air filter INTERNAL TEMP. TEMPERATURE OUT OF RANGE Cool down the room EXTERNAL TEMP.
Page 185: Environmental Information
According to the “China Administration on Control of Pollution Caused by Electronic Information Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
Page 186 Pollution Control Labeling Standard” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “Standard of Electronic Information Products Environmental Friendly Use Period” of Chinese Mainland.
Page 187: Hazards
The month and year of production is indicated on the product ID label on the product itself. 10.5 Importers contact information Contact To ﬁnd your local importer, contact Barco directly or one of Barco’s regional ofﬁces via the contact information given on Barco’s web site, www.barco.com. 10.6 Technical Regulations Certiﬁcates...
Page 188 10. Environmental information R59770330 SIM 7QP SERIES 08/12/2014...
Page 189: Nvg Option (For Sim 7Qp)
A. NVG option (for SIM 7QP) A. NVG OPTION (FOR SIM 7QP) Overview • Description • Description of a full dimming cycle A.1 Description NVG option modes The NVG (Night Vision Goggles) is an option at order time, that can be implemented during production on a SIM 7 to ensure a realistic night vision simulation, fully compatible with night vision goggles.
Page 190 A. NVG option (for SIM 7QP) First phase (TOD value is increased from 100 on): CCD is moving to higher transmission until is has reached full transmission Second phase (TOD value is increased until 1000): ECR is moving to full transmission Third phase (TOD is set to 1001): NVG ﬁlter moves out of the light path ECR returns to its minimum, being 40%...
Page 191: Nvg Option (For Sim 7Qp Hc)
B. NVG option (for SIM 7QP HC) B. NVG OPTION (FOR SIM 7QP HC) Overview • Description • Description of a full dimming cycle B.1 Description NVG option modes The NVG (Night Vision Goggles) is an option at order time, that can be implemented during production on a SIM 7 to ensure a realistic night vision simulation, fully compatible with night vision goggles.
Page 192 B. NVG option (for SIM 7QP HC) First phase (TOD value is increased from 100 till 1000): CCD is moving to higher transmission until is has reached ± full trans- mission Second phase (TOD is set to 1001): NVG ﬁlter moves out of the light path ECR is still at its minimum, being 25% CCD closes to the position of around 40% (to meet the TOD value of 1001) CLO-TOD tracking Dynacolor set is enabled...
Page 193: Gld Alignment
C. GLD alignment C. GLD ALIGNMENT Overview • Gamma values C.1 Gamma values Description This is the reference value to be used for the gray pattern in a scale from black (0) to white (255) depending on the gamma you select to use on the system.
Page 194 C. GLD alignment R59770330 SIM 7QP SERIES 08/12/2014...
Page 195: Image Files
D. Image files D. IMAGE FILES Overview • Image ﬁles D.1 Image ﬁles Overview of the image ﬁles The standard image ﬁles mentioned in the table below are pre-programmed in the projector. Only the 60Hz sources will be shown synchronous on the projector. Sources with other vertical refresh rates are not displayed synchronous and will show artefacts on moving images.
Page 196 D. Image files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact XGA_2@70.xml 1024x768 57.05 78.044 1368 1024 EXGA@60.xml 1152x864 53.7 81.624 1520 1152 EXGA@85.xml 1152x864 77.095 121.502 1576 1152 EXGA1@70.xml 1152x864 63.84 97.483 1480 1152 MXGA@100.xml 1152x864 145.824 1568 1152 1600@60.xml 1600x900...
Page 197 D. Image files Name Resolution Fvert FHor Fpix Ptot Pact Ltot Lact UXGAP1@59.xml 1200x1600 95.58 119.666 1252 1200 1620 1600 UXGAP2@60.xml 1200x1600 99.36 163.745 1648 1200 1656 1600 WUXGA@50.xml 1920x1200 61.9 158.464 2560 1920 1238 1200 SGI@96.xml 1280x1024 102.048 172.257 1688 1280 1063...
Page 198 D. Image files R59770330 SIM 7QP SERIES 08/12/2014...
Page 199: Glossary
Glossary GLOSSARY Back Focal Length Constant Contrast Dimming CEE7/7 European power plug to connect the power cord to the wall outlet. Extended Contrast Ratio Extended Contrast ratio allows to increase the contrast of the image while the light output decreases. Gray Level Correction Gray Level Deﬁnition NEMA5...
Page 200 Glossary R59770330 SIM 7QP SERIES 08/12/2014...
Page 201: Index
Index INDEX Creating/editing a soft edge Accessing the Soft edge menu address Address 38, 183 delete Projector address geometry adjusting Delete a Geometry File lens diagnostic LEDs Adjusting the lens dimensions advanced display air ﬁlters 166–167 smearing installing reduction removing display setup replacement convergence...
Page 202 Index modes Installation guidelines ﬁles Safety load safety warnings rename installing reset air ﬁlters all levels Installing restore lens (with Scheimpﬂug) sharpness Internal wizard Patterns Geometry 69–70, 90, 93, 99, 125 Internal black level distortions introduction 5, 127 Edit 90, 93, 125 smearing reduction Blanking Introduction...
Page 203 Index Using the dialog boxes Selecting an RGB source menu bar Setting the orientation Menu structure setup 35, 39, 42, 45 Using the dialog boxes lens 39, 42, 45 adjustment Setup Power up Sharpness network Shift (Geometry) Network shift capabilities settings signal network connections...
Page 204 Index R59770330 SIM 7QP SERIES 08/12/2014...
Page 205: List Of Images
Barco SIM7 : Power switch ........
Page 206 Lamp power connector (SIM 7QP HB & SIM 7QP HB&C)....... .

This manual is also suitable for:

Sim 7qp

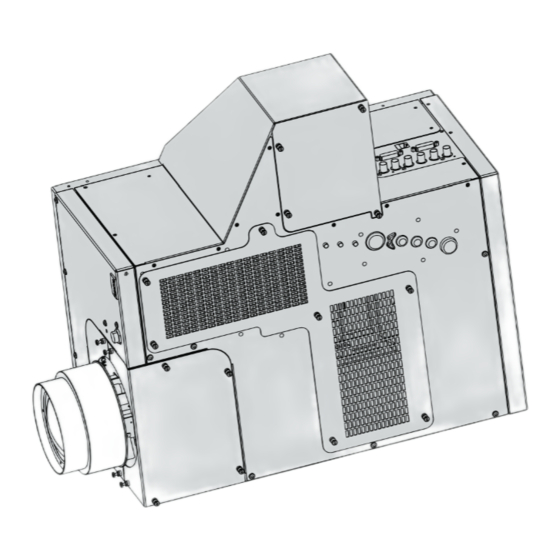

Barco SIM 7QP HB User Manual

Table of Contents

1 Introduction

2 Packaging

3 Installation Guidelines

4 Installation

5 Setup

6 Getting Started

7 Advanced

8 Maintenance

9 Troubleshooting

10 Environmental Information

NVG Option (for SIM 7QP)

NVG Option (for SIM 7QP HC)

GLD Alignment

Image Files

Glossary

Index

Quick Links

User guide

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco SIM 7QP HB

Summary of Contents for Barco SIM 7QP HB
