SP2K-C
Installation manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP2K-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco SP2K-C

Summary of Contents for Barco SP2K-C

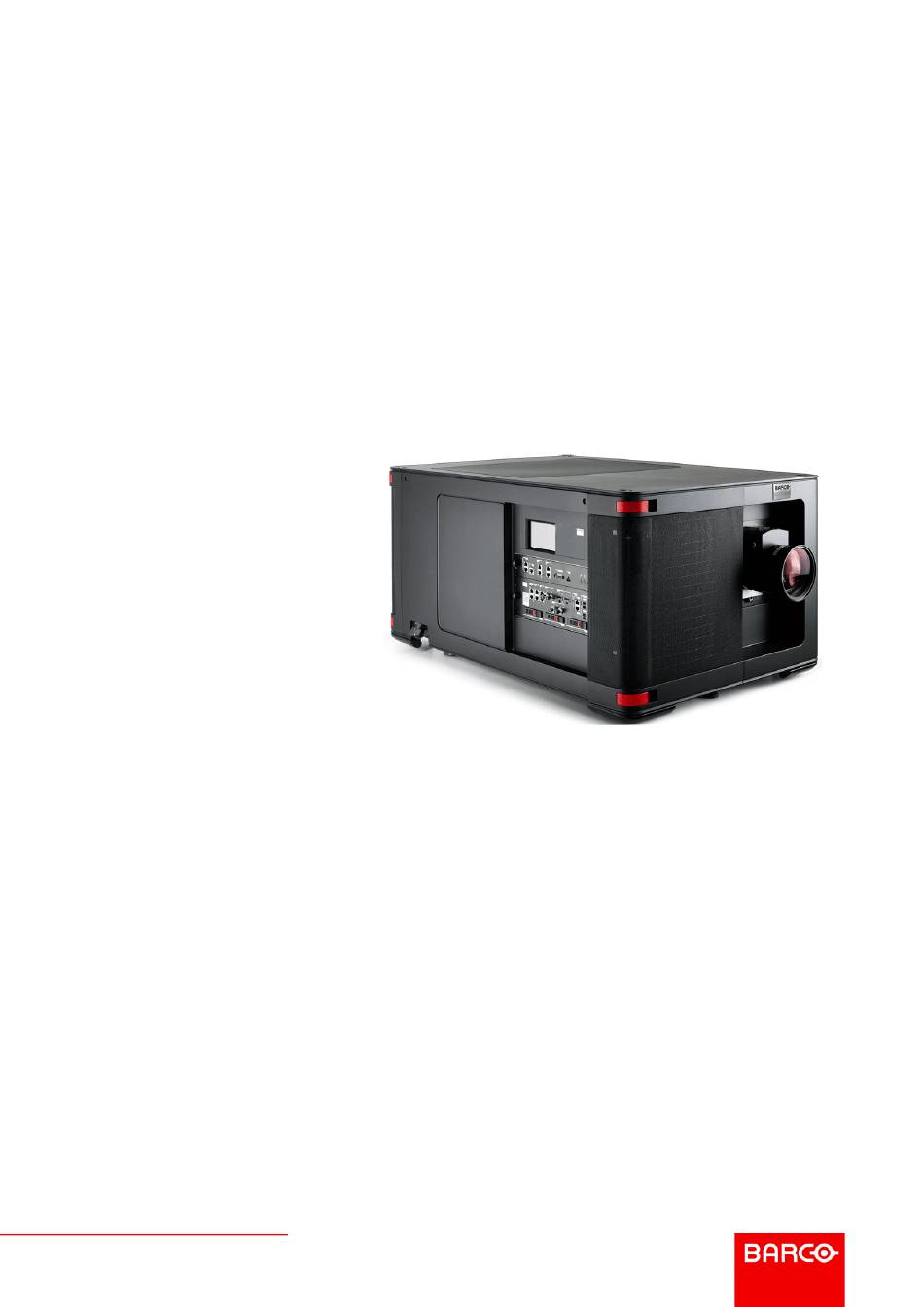

  • Page 1 SP2K-C Installation manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Changes Barco provides this manual 'as is' without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.

  • Page 5: Table Of Contents

    Exhaust adapter (Optional) ...............................34 3 Installation process....................................35 Installation process overview ..............................36 4 Physical installation projector ..............................37 Positioning the SP2K-C................................38 Accessing the power connections............................41 Power input configuration of the projector ........................42 Connecting the projector with the power net ........................44 Connecting a UPS with the projector electronics......................46 5 Lenses &...
  • Page 6 Mounting the light source side cover ..........................130 12.8 Mounting the operator side cover ............................131 12.9 Mounting the rear cover ................................133 12.10 Mounting the front cover ................................134 A Dimensions......................................135 Dimensions of the projector ..............................136 R5914712 /00 SP2K-C...
  • Page 7 B Restriction Zone clarification and use cases ......................141 No Restriction Zone..................................142 Full Restriction Zone .................................. 143 Partial Restriction Zone projector side..........................144 Partial Restriction Zone screen side ..........................145 Glossary ........................................147 List of tools ....................................... 149 Index ..........................................151 R5914712 /00 SP2K-C...
  • Page 8 R5914712 /00 SP2K-C...

  • Page 9: Safety

    “warnings” and “cautions” are given depending on the procedure. Read and follow these “warnings” and “cautions” as well. Clarification of the term “SP2K-C” used in this document When referring in this document to the term “SP2K-C” means that the content is applicable for following Barco products: •...

  • Page 10: General Considerations

    • Before operating this equipment please read this manual thoroughly and retain it for future reference. • Installation and preliminary adjustments should be performed by qualified Barco personnel or by authorized Barco service dealers. • All warnings on the projector and in the documentation manuals should be adhered to.
  • Page 11 The DLP Cinema Systems are intended "FOR PROFESSIONAL USE ONLY" by AUTHORIZED PERSONNEL familiar with potential hazards associated with high voltage, high intensity light beams generated by lasers. Only qualified SERVICE PERSONNEL and TRAINED PROJECTIONISTS, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. R5914712 /00 SP2K-C...

  • Page 12: Important Safety Instructions

    Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, remove all power from the projector. This will prevent damage to the projector due to lightning and AC power-line surges. R5914712 /00 SP2K-C...
  • Page 13 In the event of fire, use sand, CO or dry powder fire extinguishers. Never use water on an electrical fire. Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco replacement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.
  • Page 14 Refer all servicing to qualified service personnel. • Attempts to alter the factory-set internal controls or to change other control settings not specially discussed in this manual can lead to permanent damage to the projector and cancellation of the warranty. R5914712 /00 SP2K-C...
  • Page 15 Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.

  • Page 16: Product Safety Labels

    警告！勿观看光束 眼睛勿直接接触可允许暴露的光束 RG3 IEC EN 62471- 5:2015 CLASS 1 IEC EN 60825-1:2014 危害距离：请参考安全手册 警告！請勿注視光源。禁止眼睛曝露在光源照射範圍。雷射危險等級 RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 安全危害距離：請參考安全 手冊。 Hazard RG3: optical radiation warning symbol Hazard RG3: not for household use symbol R5914712 /00 SP2K-C...
  • Page 17 注意 兩極/中性熔斷 高殘餘電壓. 警告：存在觸電風險 移除此蓋板之前， 請先 關機並拔掉電源插頭 移除SMPS之前，請先閱讀說明. ATTENTION DOUBLE PÔLE / FUSIBLE SUR LE NEUTRE HAUTE TENSION RÉSIDUELLE - ATTENTION : RISQUE DE CHOCS ÉLECTRIQUES. ÉTEINDRE ET DÉCONNECTER AVANT OUVERTURE DU COUVERCLE. LIRE LES INSTRUCTIONS AVANT DE RETIRER LE SMPS. R5914712 /00 SP2K-C...

  • Page 18: High Brightness Precautions: Hazard Distance

    Restriction Zone in the theater Separation Width Based on national requirements, no person is allowed to enter the projected beam within the zone between the projection lens and the related hazard distance (HD). This shall be physically impossible by creating R5914712 /00 SP2K-C...
  • Page 19 The LIP shall be installed by Barco or by a trained and Barco-authorized installer or shall only be transferred to laser light show variance holders. This is applicable for dealers and distributors since they may need to install the LIP (demo install) and/or they transfer (sell, rent, lease) the LIP.

  • Page 20: Hd For Fully Enclosed Projection Systems

    The light emitted from the screen within the observation shall never exceed the RG2 exposure limit, determined at 10 cm. The HD can be neglected if the measured light at the screen surface is below 5000 diffuse cd/m² or 15000 LUX. R5914712 /00 SP2K-C...

  • Page 21: Hd In Function Of Modifying Optics

    Safety 1.6 HD in function of modifying optics Hazard Distance Throw Ra o (TR) Image 1–4 Hazard Distance Throw Ratio R5914712 /00 SP2K-C...

  • Page 22: Compliance

    Safety 1.7 Compliance UK Compliance This product is fit for use in the UK. Authorised Representative: Barco UK Ltd Address: Building 329, Doncastle Road Bracknell RG12 8PE, Berkshire, United Kingdom R5914712 /00 SP2K-C...

  • Page 23: Getting Started

    Barco provides a guarantee relating to perfect manufacturing as part of the legally stipulated terms of guarantee. Observing the specification mentioned in this chapter is critical for projector performance.

  • Page 24: Installation Requirements

    Getting started 2.1 Installation requirements Environmental conditions The table below summarizes the physical environment in which the SP2K-C projector can be operated or stored. Operating Non-Operating Environment Ambient Temperature 10°C (50°F) to 40°C (104°F) -15°C (5°F) to 60°C (140°F) Air cleanliness Clean office environment (equivalent with n.a.
  • Page 25 Getting started Main Power requirements Depending on the available power circuit, all SP2K-C projectors can operate from a single-phase power net or three-phase power net. Power system Power requirements three-phase power net • 200-240V/346-415V, 3W+N+PE, 9A, 50/60Hz (Y) • 200-240V, 3W+PE, 11A, 50/60Hz (Δ)

  • Page 26: Unpacking The Projector

    Neglecting this may result in a failure in the start-up of the Light Processor Unit. How to unpack the SP2K-C projector Remove the strapping bands from the packaging. Use a cutting tool (e.g. side cutter, knife, etc.) to carefully cut the straps.
  • Page 27 Remove the outer cardboard box. Remove the four foam corner pieces (reference 1). Image 2–3 Removing the outer cardbox and the four foam corner pieces Remove the top cardboard plate and the cardboard surrounding the projector by lifting them up. R5914712 /00 SP2K-C...
  • Page 28 The projector is not delivered with a lens by default. If you also ordered a lens, it will be delivered in a separate box. For lens installation, see “Lenses & Lens holder”, page R5914712 /00 SP2K-C...

  • Page 29: Initial Inspection

    This check should confirm that there are no broken knobs or connectors, that the cabinet and panel surfaces are free of dents and scratches, and that the operating panel is not scratched or cracked. The Barco Sales and Service office should be notified as soon as possible if this is not the case.

  • Page 30: Convention Projector Orientation

    Image 2–6 Top of the projector. Right side of the projector (User input side). Left side of the projector (Light source side). Back side of the projector. Front of the projector. R5914712 /00 SP2K-C...

  • Page 31: Air Flow Of The Projector

    2.5 Air flow of the projector Air flow The SP2K-C projector has three air inlets and one air outlet. The air inlets are located on the front, rear and bottom side of the projector. The air outlet is located on the top of the projector.

  • Page 32: Web Communicator

    The Web Communicator application is a uniquely powerful and easy to use built-in web application for the Barco projector. This application provides all the necessary tools necessary to setup and control the connected projector. A comprehensive array of easy to access menu pages provide the projectors digital input, output and screen display via a combination of simple buttons and displays.

  • Page 33: Web Commander

    It is accessible via a web browser and is fully supported on iOS and Android devices. Image 2–9 The Web Commander has its own user guide, of which you can find the latest version on the Barco website. R5914712 /00...

  • Page 34: Exhaust Adapter (Optional)

    Image 2–10 Projector with exhaust adapter mounted For all ordering information about options and accessories see Barco website. R5914712 /00 SP2K-C...

  • Page 35: Installation Process

    This chapter gives an overview of all the different stages in the installation process which you have to follow to get your SP2K-C projector up and running. Each stage is briefly described and refers to more detailed step by step procedures in this manual.

  • Page 36: Installation Process Overview

    Web Communicator and all of its features, please refer to the projector user guide. If you have a projector with ICMP-X and you want a more in-depth explanation on how to control this media player, please refer to the Web Commander user guide. R5914712 /00 SP2K-C...

  • Page 37: Physical Installation Projector

    Physical installation projector Positioning the SP2K-C.........................38 Accessing the power connections ....................41 Power input configuration of the projector ..................42 Connecting the projector with the power net..................44 Connecting a UPS with the projector electronics ................46 R5914712 /00 SP2K-C...

  • Page 38: Positioning The Sp2K-C

    WARNING: The installation of the projector requires at least 4 persons. General guide lines • Use a solid pedestal to put the SP2K-C projector on. Ensure that the pedestal can handle the weight of the projector and that all feet of the projector are captured. •...
  • Page 39 Later, when the projector is up-and-running, adjust precise image geometry and placement. Projector tilting In an ideal installation, the SP2K-C lens surface is centered with and parallel to the screen. This orientation helps to ensure optimized lens performances with minimal offset. If this position is not possible (such as when the projector is significantly higher than the center of the screen), it is better to rely on offset rather than extra tilt.
  • Page 40 CAUTION: The projector may tilt maximum 15° forward and maximum 15° backwards. This includes the tilt created by the projector feet and the tilt created by the pedestal. Barco offers a pedestal for the projector. This pedestal allows you to easily tilt the projector forward up to 6°.

  • Page 41: Accessing The Power Connections

    Slightly loosen the two screws on the bottom of the net input cover (reference 1, Image 4–5). Use a T20 Torx screwdriver. Lift the net input cover up and away from the projector. Image 4–5 Removal of the net input cover R5914712 /00 SP2K-C...

  • Page 42: Power Input Configuration Of The Projector

    Take off the four mounted links (A, B, C and D). Mount the links as illustrated, depending on the configuration: 1. Y configuration: Connect the upper pins with each other. Place two links between each pin (do not remove them). R5914712 /00 SP2K-C...
  • Page 43 3. Mono phase configuration: Spread the four links over the six pins as illustrated. Make sure both the upper and lower pins are connected with each other. Image 4–10 Mono phase configuration Turn a nut on each pin and secure with a torque wrench set to 3.5 Nm. R5914712 /00 SP2K-C...

  • Page 44: Connecting The Projector With The Power Net

    CAUTION: ALL POWER CONNECTIONS to the SP2K-C projector are made to the five-terminal strip located on the mains board behind the operator side cover and mains cover of the projector.
  • Page 45 Secure the AC power cord by fastening the cable gland (reference 3). Use a 30 mm open-end wrench. Place the net input cover back and seal it. Tighten the two screws (reference 1), using a T20 Torx screwdriver. R5914712 /00 SP2K-C...

  • Page 46: Connecting A Ups With The Projector Electronics

    4.5 Connecting a UPS with the projector electronics WARNING: Only use UPS units which are suitable for the SP2K-C series projector. See chapter Installation requirements, for more information about the requirements of the UPS. CAUTION: The electrical connection with the UPS INLET socket of the projector must be done with a certified AC power supply cord (minimum 1.50 mm²...
  • Page 47 Secure the AC power cord by fastening the cable gland (reference 3). Use a 24 mm open-end wrench. Place the net input cover back and seal it. Tighten the two screws (reference 1), using a T20 Torx screwdriver. R5914712 /00 SP2K-C...
  • Page 48 Physical installation projector R5914712 /00 SP2K-C...

  • Page 49: Lenses & Lens Holder

    About this chapter This chapter gives an overview of available lenses for the SP2K-C projector. It also explains how you can select the best suited lens for your specific situation using the lens calculator. Also, it is explained how to install and remove a lens from the projector lens holder and how you can shift, zoom and focus the lens.

  • Page 50: Available Lenses

    This list only takes into account active lenses at the moment of release of this manual. Lenses that have become end-of life or end-of service are not taken into account. Consult the Barco website for the most up-to-date information on active lenses.

  • Page 51: Lens Selection

    Lenses & Lens holder 5.2 Lens selection Which lens do I need? Browse to Barco's website on www.Barco.com. Go to the product page of the desired product. On the product page, go to the Tools section and click Lens calculator.

  • Page 52: Installation Of A Lens

    Lenses & Lens holder 5.3 Installation of a lens Take into account that you can only install a limited range of lenses on an SP2K-C projector. For the full list of available lenses, refer to “Available lenses”, page How to install a lens into the lens holder Place the lens holder in the “unlocked”...
  • Page 53 Ensure the lens touches the front plate of the lens holder. Image 5–5 Lock lens Check if the lens is really secured by trying to pull the lens out of the lens holder. R5914712 /00 SP2K-C...

  • Page 54: Removal Of A Lens

    Gently pull the lens out of the lens holder. Image 5–7 Lens removal It's recommended to place the lens caps of the original lens packaging back on both sides of the removed lens to protect the optics of the lens. R5914712 /00 SP2K-C...
  • Page 55 Lenses & Lens holder It’s recommended to place the dust cover of the original projector packaging back into the lens opening to prevent intrusion of dust. Image 5–8 R5914712 /00 SP2K-C...

  • Page 56: Lens Shift, Zoom & Focus

    Lenses & Lens holder 5.5 Lens shift, zoom & focus Motorized lens adjustment The SP2K-C projector is equipped with a motorized lens shift functionality and a motorized zoom & focus functionality. About the shift range The lens can be shifted with respect to the internal optics of the projector (DMD) which results in a shifted image on the screen (Off-Axis).
  • Page 57 The operation temperature of the lens is reached after approximately 30 minutes projection of average video. If it becomes impossible to focus the image, perform a Scheimpflug adjustment. For more info on this, refer to “Scheimpflug adjustment”, page R5914712 /00 SP2K-C...

  • Page 58: Scheimpflug Introduction

    Image 5–14 Scheimpflug adjustments points on Lens holder - Projector front view. (Shape of the lens may vary with the model) Scheimpflug adjustment screw Lock screw Scheimpflug adjustment screw Lock screw Scheimpflug adjustment screw Projector top side Lock screw Projector Right side R5914712 /00 SP2K-C...

  • Page 59: Scheimpflug Adjustment

    5–16) of the Lens Holder . Use a 8 mm Allen wrench for the lock screws. Optimize the focus of the projected image in the center of the screen (F) using the focus buttons in the “Control – Light, Dowser, Lens menu”. Image 5–16 Center focusing R5914712 /00 SP2K-C...
  • Page 60 Sharpen the image at the top center of the screen by turning the lower Scheimpflug adjustment screw (reference 3 Image 5–19). Image 5–19 Top focusing Optimize the focus of the projected image in the center of the screen using the focus buttons in the “Control – Light, Dowser, Lens menu”. Image 5–20 R5914712 /00 SP2K-C...
  • Page 61 Scheimpflug procedure. This can be fixed by adjusting the adjustment points in such a way the lens holder is returned to its nominal position. In order to do so, consult the service manual. R5914712 /00 SP2K-C...
  • Page 62 Lenses & Lens holder R5914712 /00 SP2K-C...

  • Page 63: Input & Communication

    This chapter describes the functionality of the touch display, as well as the different input and communication ports of your projector. Note that all information about the ICMP-X is gathered into one separate chapter. See “ICMP-X”, page R5914712 /00 SP2K-C...

  • Page 64: Introduction

    General The Input & Communication side of the SP2K-C consists of a touch display and a card cage with three slots. The touch display also functions as the “tail light”, which reflects the status of the projector. Note that all information about the ICMP-X is gathered into one separated chapter called ICMP-X.

  • Page 65: Cinema Controller Of The Projector

    (reference 2 Image 6–2) to connect the network which contains the DHCP server. The SP2K-C can be connected to a WAN (Wide area network) (reference 2 Image 6–2). Once connected to the WAN, users can access the projector from any location, inside or outside (if allowed) their company network using the Web Communicator software.
  • Page 66 If the only file on the USB device is the firmware file (a “*.fw” file), the projector will automatically start one of the following processes. • samba<version nr>.fw: The projector will upgrade or downgrade, depending on the version number. Make sure that any used USB-stick is FAT32 compatible and contains no other files or folders. R5914712 /00 SP2K-C...

  • Page 67: Icp-D (Integrated Cinema Processor - Direct)

    Input & communication 6.3 ICP-D (Integrated Cinema Processor – Direct) In case the projector is equipped with a Barco ICMP-X no ICP-D board is inserted. All ICP-D functionality is integrated in the Barco ICMP-X. Introduction Depending on the projector configuration, the projector card cage is either equipped with an ICP-D or ICMP-X.
  • Page 68 Orange Update done When installing a new ICP board in a SP2K-C projector the Spatial Color Calibration file must be reloaded and activated. CAUTION: Make sure not to short circuit the battery on the board. That will destroy the board...

  • Page 69: Icmp-X

    Furthermore, the status LEDs are described and the importance of the device certificate is illustrated. For the specifications on the “network streaming (Live IP)”, SDI and HDMI ports, please refer to the appendices of the ICMP-X installation manual. Image 7–1 R5914712 /00 SP2K-C...
  • Page 70 ICMP-X R5914712 /00 SP2K-C...

  • Page 71: Icmp-X Introduction

    HDDs for ICMP-X As an integrated component of the projector, installation and maintenance of the ICMP-X requires the same skills and the same precautions as an intervention on the projector itself. For order info see www.barco.com. Front plate of the ICMP-X 0123456789 Image 7–3 Front plate ICMP-X...
  • Page 72 The Card Cage can be different depending the projector type but it generally consists of a button module and several removable units, which include the ICMP-X (reference 1) and the Barco Cinema Controller (reference ICMP-X location in the Card Cage of an SP4K and SP2K series projector.

  • Page 73: Icmp-X Hdd

    The mounting order of the HDDs and the HDD slots do not matter. Of course, when using HDDs from another ICMP-X it is necessary to retrieve from the content distributor the KDMs corresponding to the content and the new ICMP-X. • Exchange of HDD set between two ICMP-Xs with a different storage controller: R5914712 /00 SP2K-C...
  • Page 74 GEN2 storage controller. Software version 1.4.2 or higher is needed. This list only takes into account supported HDD models validated by Barco at the moment this manual was published. The most update list is available in the installation manual of the ICMP-X...

  • Page 75: What Are The Possible Hdd Swaps

    Web Communicator. (Spare part kit provided by • immediately usable after RAID • RAID initialization does not need Barco with a set of 3 hard initialization + restart (content to be performed. disks configured to GEN1 can be ingested). •...
  • Page 76 All content will be lost. RAID initialization needs to be perform with Communicator. 2. Unit has been upgraded with a GEN2 storage controller (+ ICMP software 1.4.2 or higher is installed): Content is preserved but certificates (KDM) need to be re-ingested. R5914712 /00 SP2K-C...

  • Page 77: Icmp-X Communication And Input Ports

    USB 3.0 (2 ports) The ICMP-X can be connected to a USB 3.0 media device to load content. The USB port can be used to load content (DCP), keys (KDM) or software updates. R5914712 /00 SP2K-C...
  • Page 78 HDMI A / B HDMI 2.0 connector to connect a video source. 3G-SDI A / B SDI connector to connect a video source. R5914712 /00 SP2K-C...

  • Page 79: Icmp-X Status Leds

    Security Manager - FPGA self-test Green Blinking Green Starting Applications Green Green Applications started in normal mode Green Orange Applications started in degraded mode Blinking Red FIPS error Green Blinking Orange Update ongoing Orange Orange Update done R5914712 /00 SP2K-C...

  • Page 80: Icmp-X Hdd Status Leds

    See procedure via the (Web) Commander. See user guide of the “Removing a HDD from the ICMP-X”, page (Web) Commander. “Installing a HDD into the ICMP-X”, page Ensure to insert the HDD firmly. 3. Switch on the power. R5914712 /00 SP2K-C...
  • Page 81 (Web) Communicator. Note that all content will be lost! 4. If problem remains contact Service for further instructions. In case the ICMP-X has to be returned to factory (e.g. for repair) the non defective HDDs should be removed and kept. R5914712 /00 SP2K-C...

  • Page 82: Icmp-X Device Certificate

    Purpose of the ICMP-X device certificate The device certificate (*. pem) of the ICMP-X is a digital certificate signed by Barco which is required when ordering the KDM to play a DCP that is ingested on the ICMP-X. The device certificate is stored inside the ICMP-X and on a web server.
  • Page 83 DCI compliance web site. Notably, DCI compliance does not require compliance to the full set of SMPTE DCP standards. A copy of the most recent DCI specification can be downloaded from the DCI website (http://dcimovies.com). R5914712 /00 SP2K-C...

  • Page 84: Icmp-X Configuration Via Web Communicator

    Verify internal clock of the ICMP-X. All installation and maintenance operations on the ICMP-X are performed via Web Communicator, the Barco configuration software. Please refer to the user guide for more information. Factory settings Restoring to factory setting is a feature that removes all settings performed on the ICMP-X and replaces them with the default values set at the factory.

  • Page 85: Icmp-X Reset

    ICMP restarts. Image 7–11 WARNING: Resetting the ICMP-X with the hardware reset button may cause damage to the content on the HDDs. A re-configuration of the whole system may be required! R5914712 /00 SP2K-C...

  • Page 86: Obtaining The Icmp-X Certificate

    Using control software to obtain the ICMP-X certificate Use your control software to download the ICMP-X certificate from the ICMP-X main board. For detailed instructions, refer to the user guide of your control software, or the projector User Guide. R5914712 /00 SP2K-C...

  • Page 87: Removing A Hdd From The Icmp-X

    Moving the latch towards the left. Image 7–13 Push the unlock button to open the handle. Image 7–14 Pull the HDD out of its slot. Image 7–15 To install an HDD, see the following procedure: “Installing a HDD into the ICMP-X”, page R5914712 /00 SP2K-C...

  • Page 88: Installing A Hdd Into The Icmp-X

    “Removing a HDD from the ICMP-X”, page CAUTION: Always use a new empty spare part HDD approved by Barco to replace a malfunction HDD. Do not use a HDD from another ICMP-X HDD set. CAUTION: Always make sure that all HDDs in the ICMP-X HDD set have the same storage capacity.
  • Page 89 200 GB per hour. Once the RAID is completed the red LED turns off. CAUTION: It's strongly recommended to complete the RAID recovery process prior to starting a show. This to ensure that the content integrity is preserved and that the show is not interrupted. R5914712 /00 SP2K-C...
  • Page 90 ICMP-X R5914712 /00 SP2K-C...

  • Page 91: Projector Power Cycle

    About the Projector Power Cycle This chapter contains the Switch ON and Switch OFF procedures for the SP2K-C projector. These procedures highlight all important points to be checked prior to switching the projector ON. This is to ensure a safe startup of the projector.

  • Page 92: Explaining The Power States

    Using the ECO menu on the touch display (if available). • Using the Power menu in Web Communicator. GPI3 works the same way as the power button. Thus take into account that sending a signal for more than 6 seconds will turn the projector OFF instead. R5914712 /00 SP2K-C...
  • Page 93 Projector Power Cycle Image 8–2 Location of the Power button and GPI 1-4 input on the Cinema Controller. Power state diagram FORCE SHUTDOWN START-UP >6sec SHUTDOWN 1 sec READY READY Image on the screen Image 8–3 Power State diagram R5914712 /00 SP2K-C...

  • Page 94: Switching The Projector On

    Remotely, using GPI3 How to switch on locally, using the touch display? Ensure that the SP2K-C projector is installed onto a stable platform. Ensure the projector is correctly connected to the mains power. Ensure that the correct lens is installed for your application.
  • Page 95 Projector Power Cycle How to switch on remotely, using only Web Communicator? Ensure that the SP2K-C projector is installed onto a stable platform. Ensure the projector is correctly connected to the mains power. Ensure that the correct lens is installed for your application.

  • Page 96: Switching The Projector Off

    Image 8–7 Example of the ECO menu on the touch display How to put the projector in ECO mode, using the Web Communicator? In the Communicator, browse to Control >> Power. In the Power menu, press Switch to ECO mode and confirm. R5914712 /00 SP2K-C...
  • Page 97 How to turn the projector OFF? Press the power button for more than six seconds. The projector will go to OFF mode. Send a signal via GPI3 for more than six second. The projector will go to OFF mode. R5914712 /00 SP2K-C...
  • Page 98 Projector Power Cycle R5914712 /00 SP2K-C...

  • Page 99: Connectivity

    Connectivity Connecting to the projector for the first time .................. 100 Software update ......................... 101 R5914712 /00 SP2K-C...

  • Page 100: Connecting To The Projector For The First Time

    IP address is by using a Bonjour program. The Bonjour software will display the SP2K-C projector as a combination of product key and the default hostname. In more detail, this is: •...

  • Page 101: Software Update

    9.2 Software update How to update the software Download the latest firmware from the Barco website. Click on myBarco and login to get access to secured information. Registration is necessary. If you are not yet registered, click on New to myBarco and follow the instructions. With the created login and password, it is possible to login where you can download the software.
  • Page 102 3. Take note: While rebooting, you will lose connection to the projector. 4. Once rebooted, every projector component will be updated to the version included in the software package. Take into account that it might take a while until all components have been updated. R5914712 /00 SP2K-C...
  • Page 103 Connectivity Image 9–6 Example of the components update page. 5. Once every component has been updated, you will be redirected to the Web Communicator login page. R5914712 /00 SP2K-C...
  • Page 104 Connectivity R5914712 /00 SP2K-C...

  • Page 105: Convergence

    Take into account that opening the sealed compartment to perform convergence will automatically trigger one or more tamper warning messages. Do not forget to clear these messages after convergence has been completed. For more info, refer to “”, R5914712 /00 SP2K-C...

  • Page 106: Opening The Sealed Compartment

    Lift the cover up slightly using both lips. Then remove the cover by taking it away from the projector. Image 10–2 Sealed side cover, remove Slightly slide the top cover a bit outwards. Then lift it up and remove it. R5914712 /00 SP2K-C...
  • Page 107 Convergence Image 10–3 Sealed top cover, remove R5914712 /00 SP2K-C...

  • Page 108: Closing The Sealed Compartment

    Hook the cover plate onto the studs. Slide the cover downwards on both lips until it is in its correct position. Image 10–5 Sealed side cover, mount Tighten the four screws of the side cover (reference 1). Use a T20 Torx screwdriver. R5914712 /00 SP2K-C...
  • Page 109 Convergence Image 10–6 Sealed cover fixation R5914712 /00 SP2K-C...

  • Page 110: Convergence Controls

    Blue channel, knob number 6 Convergence test pattern For the manual correction of the DMD convergence a typical convergence test pattern is generated. Select the test pattern labeled Convergence_pattern_SP2K-xxC. Exact position of the knobs can differ slightly R5914712 /00 SP2K-C...
  • Page 111 However, in extreme cases correction of up to five pixels is possible. CAUTION: The system does have an end of travel in either direction, but using excessive force may cause damage. Please handle gently. R5914712 /00 SP2K-C...

  • Page 112: Red On Green Convergence

    Image 10–10 Clockwise turning will move line upwards Slightly turn the red colored control knob number 3 until the red pattern in the upper right of the projected image converges with the green pattern. R5914712 /00 SP2K-C...
  • Page 113 Repeat go to step 2 and go to step 3 until the red pattern in the lower left and upper right of the projected image coincide. Repeat from go to step 1 until the red pattern in the center, the lower left and the upper right of the projected image coincide. R5914712 /00 SP2K-C...

  • Page 114: Blue On Green Convergence

    Image 10–13 Clockwise turning will move the line upwards. Slightly turn the blue colored control knob number 6 until the blue pattern in the upper right of the projected image converges with the green pattern. R5914712 /00 SP2K-C...
  • Page 115 Repeat from go to step 1 until the blue pattern in the center, the lower left and the upper right of the projected image coincide. Close the sealed compartment and reinstall all covers of the projector. R5914712 /00 SP2K-C...
  • Page 116 Convergence R5914712 /00 SP2K-C...

  • Page 117: Color Calibration

    11.3 Color gamut calibration ....................... 121 About this chapter This chapter briefly describes the luminance and color calibration process for the SP2K-C. Several references are made to the projector user guide, where more detailed instructions and menu navigations are available.

  • Page 118: Calibration Process

    1. First activate the INPUT file. 2. then activate the PCF file (PCF already contains plane 1 information), 3. then activate the MCGD and TCGD files. For more details on creating and using macros, see the projector user guide. R5914712 /00 SP2K-C...

  • Page 119: White Point Calibration

    Place a spectroradiometer in the auditorium. Position it in such a way it meets the following requirements. • Perpendicular to the screen. • In the auditorium sweet spot. • In such a way it can measure the reflected light from the center of the screen. R5914712 /00 SP2K-C...
  • Page 120 In the next screen, enter the x & y coordinates for the 2D measurement. Use the spectroradiometer to measure these values. Optionally, you can also click next to enter the x & y coordinates for 3D measurement, while using a 3D file. After white point calibration proceed immediately with color gamut calibration. R5914712 /00 SP2K-C...

  • Page 121: Color Gamut Calibration

    (TCGD) of the film will introduce a color correction so that the film will be projected with the desired color target. Image 11–4 Correction of native color gamut towards desired color gamut (electronic correction) R5914712 /00 SP2K-C...
  • Page 122 In addition you can check if the corrected colors comply. To do so, browse to the Web Communicator and navigate to Configuration > Color calibration > Verify corrected colors. See the projector user guide for detailed instructions. R5914712 /00 SP2K-C...

  • Page 123: Projector Covers

    WARNING: All procedures described in this chapter may only be performed by TRAINED PROJECTIONISTS or qualified SERVICE PERSONNEL. WARNING: Always switch off the projector and unplug the power cord before removing one of the covers, unless otherwise stated. R5914712 /00 SP2K-C...

  • Page 124: Removal Of The

    Slide the front cover to the side of the Input & Communication Unit and remove it. Note: The handles do not click open. They are fixed into the cover. Image 12–1 Sliding the front cover away from the projector R5914712 /00 SP2K-C...

  • Page 125: Removal Of The Rear Cover

    Slide the rear cover to the side of the Input & Communication unit and remove it. Note: The handles do not click open. They are fixed into the cover. Image 12–2 Sliding the rear cover away from the projector R5914712 /00 SP2K-C...

  • Page 126: Removal Of The Operator Side Cover

    Remove the two screws at the top of the side cover. Use a T20 Torx screwdriver. Slightly turn over the top side of the cover. Image 12–3 Removing the screws of the right side cover Lift up the operator side cover and remove it. Image 12–4 Removing the side cover R5914712 /00 SP2K-C...

  • Page 127: Removal Of The Light Source Side Cover

    Remove the two screws at the top of the side cover. Use a T20 Torx screwdriver. Slightly turn over the top side of the cover. Image 12–5 Removing the screws of the side cover Lift up the side cover and remove it. Image 12–6 Removing the side cover R5914712 /00 SP2K-C...

  • Page 128: Removal Of The Top Cover

    12.5 Removal of the top cover Required tools Torx screwdriver T20 How to remove Remove the four screws of the top cover. Use a T20 Torx screwdriver. Lift the top cover up and remove it. Image 12–7 Removing the top cover R5914712 /00 SP2K-C...

  • Page 129: Mounting The Top Cover

    Place the top cover on top of the projector. Tip: The top cover has been designed it can be mounted in only one way. Fasten the top cover with the four screws. Use a T20 Torx screwdriver. Image 12–8 Mounting the top cover R5914712 /00 SP2K-C...

  • Page 130: Mounting The Light Source Side Cover

    Image 12–9 Mounting the side cover Click the cover onto the cover receiver of the top frame (reference 2). Fasten the side cover with the two top screws. Use a T20 Torx screwdriver. Image 12–10 Tightening the screws of the side cover R5914712 /00 SP2K-C...

  • Page 131: Mounting The Operator Side Cover

    Tip: Place the cover in a slightly tilted angle so you can clearly see the hooks while mounting the cover. Image 12–11 Push the upper side of the cover towards the projector to close it. Image 12–12 Mounting the side cover Fasten the side cover with the two top screws. Use a T20 Torx screwdriver. R5914712 /00 SP2K-C...
  • Page 132 Projector covers Image 12–13 Tightening the screws of the side cover R5914712 /00 SP2K-C...

  • Page 133: Mounting The Rear Cover

    Place the cover over the cover hook on the bottom of the projector frame (reference 1). Slide the clips in the rear cover over the cover hooks in the top of the frame (reference 2). Image 12–14 Sliding in the rear cover R5914712 /00 SP2K-C...

  • Page 134: Mounting The

    Place the cover over the cover hook on the bottom of the projector frame (reference 1). Slide the clips in the front cover over the cover hooks in the top of the frame (reference 2). Image 12–15 Sliding in the front cover R5914712 /00 SP2K-C...

  • Page 135: A Dimensions

    Dimensions Dimensions of the projector ......................136 Dimensions of the universal pedestal ................... 137 Dimensions of the flat-packed pedestal ..................138 Dimensions of the projector when equipped with exhaust adapter ..........139 R5914712 /00 SP2K-C...

  • Page 136: Dimensions Of The Projector

    Dimensions A.1 Dimensions of the projector Dimensions of the projector 49 (3x) CENTER OF GRAVITY AIR INLET CENTER OF GRAVITY AIR INLET AIR INLET AIR OUTLET Image A–1 All dimension given in mm R5914712 /00 SP2K-C...

  • Page 137: Dimensions Of The Universal Pedestal

    Dimensions A.2 Dimensions of the universal pedestal Dimensions Image A–2 Dimensions given in millimeters. R5914712 /00 SP2K-C...

  • Page 138: Dimensions Of The Flat-Packed Pedestal

    Dimensions A.3 Dimensions of the flat-packed pedestal Dimensions Image A–3 Dimensions given in millimeters R5914712 /00 SP2K-C...

  • Page 139: Dimensions Of The Projector When Equipped With Exhaust Adapter

    Dimensions A.4 Dimensions of the projector when equipped with exhaust adapter Dimensions Image A–4 R5914712 /00 SP2K-C...
  • Page 140 Dimensions R5914712 /00 SP2K-C...

  • Page 141: B Restriction Zone Clarification And Use Cases

    The type of application (Cinema, Events, Residential ...) and local regulations have also impact on the HD, SH and SW parameters. See the safety chapter to find the correct values for the installed application. The following topics show detailed information on the most common situations. R5914712 /00 SP2K-C...

  • Page 142: No Restriction Zone

    Separation Height (SH) over the complete Hazard Distance (HD) range. No need to fence off a Restriction Zone. The minimum Separation Width (SW) is not applicable. SIDE VIEW (A) TOP VIEW (B) H>SH EXIT Image B–1 R5914712 /00 SP2K-C...

  • Page 143: Full Restriction Zone

    Hazard Distance (HD) range. The Restriction Zone (RZ) must be extended laterally by the minimum Separation Width (SW). The red hatched area in the following illustration indicates the complete Restriction Zone (RZ). SIDE VIEW (A) TOP VIEW (B) H<SH EXIT Image B–2 R5914712 /00 SP2K-C...

  • Page 144: Partial Restriction Zone Projector Side

    The Restriction Zone must be extended laterally by the minimum Separation Width (SW). The red hatched area in the following illustration indicates the partial Restriction Zone (RZ) towards the projector. SIDE VIEW (A) TOP VIEW (B) H<SH H>SH EXIT Image B–3 R5914712 /00 SP2K-C...

  • Page 145: Partial Restriction Zone Screen Side

    The Restriction Zone ends at the end of the HD range. The Restriction Zone must be extended laterally by the minimum Separation Width (SW). The red hatched area in the following illustration indicates the partial Restriction Zone (RZ) towards the screen. SIDE VIEW (A) TOP VIEW (B) H<SH H>SH EXIT Image B–4 R5914712 /00 SP2K-C...
  • Page 146 Restriction Zone clarification and use cases R5914712 /00 SP2K-C...

  • Page 147: Glossary

    To create the correct set of KDMs for a site requires knowledge of the digital certificate in the projection system´s media block. *.pem Privacy-enhanced Electronic Mail. File format used to distribute digital signed certificates. Base64 encoded certificate, enclosed between "———BEGIN CERTIFICATE———" "———END CERTIFICATE———" R5914712 /00 SP2K-C...
  • Page 148 The Goal of the TDL is to maintain timely and accurate information on participating auditoriums so that participating subscribers can obtain information needed to issue KDMs. The TDL has several data sources: Device manufacturers, Exhibitors, Deployment Entities, Integrators, Service Providers (interacting with Exhibitors), regional authorities and Support. R5914712 /00 SP2K-C...

  • Page 149: List Of Tools

    Open-end wrench 30 mm Smartphone (with auto-focus) or control software (e.g. Communicator, Web Communicator, Commander or Web Commander) Spectroradiometer Torque wrench with 10 mm hexagon socket Torque wrench with 8 mm hex socket Torx screwdriver T20 Web Communicator software R5914712 /00 SP2K-C...
