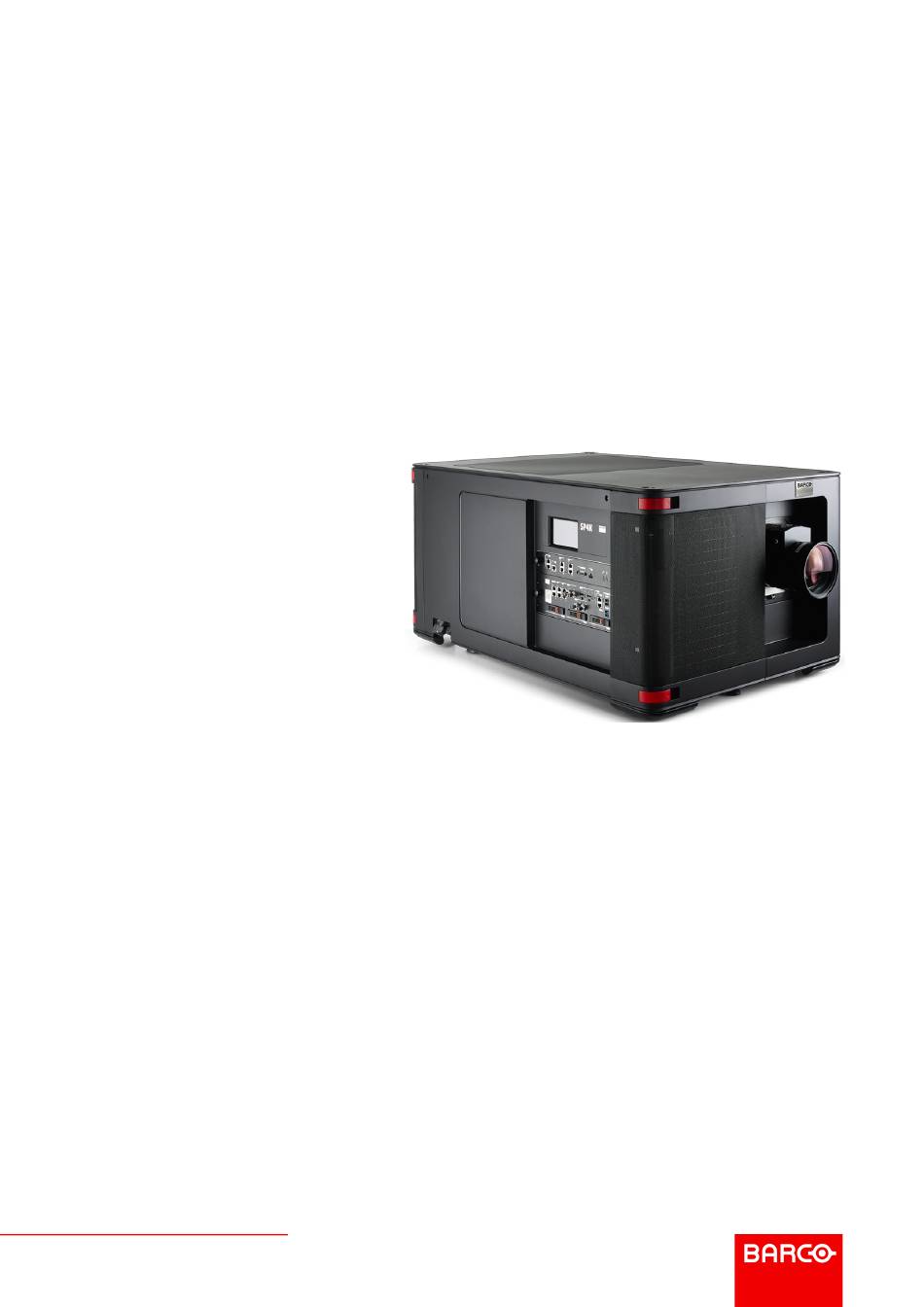

“warnings” and “cautions” are given depending on the procedure. Read and follow these “warnings” and “cautions” as well. Clarification of the term “SP4K-C” used in this document When referring in this document to the term “SP4K-C” means that the content is applicable for following Barco products: •...
Safety limited to HIGH VOLTAGE ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of measures to minimize the potential risk to themselves or other persons. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL or TRAINED PROJECTIONISTS, AUTHORIZED to operate professional projection systems. The TRAINED PROJECTIONISTS may only perform the maintenance task described in the User &...
Do not place flammable or combustible materials near the projector! • Barco large screen projection products are designed and manufactured to meet the most stringent safety regulations. This projector radiates heat on its external surfaces and from ventilation ducts during normal operation, which is both normal and safe. Exposing flammable or combustible materials into close proximity of this projector could result in the spontaneous ignition of that material, resulting in a fire.
If the product exhibits a distinct change in performance, indicating a need for service. • Replacement parts: When replacement parts are required, be sure the service technician has used original Barco replacement parts or authorized replacement parts which have the same characteristics as the Barco original part. Unauthorized substitutions may result in degraded performance and reliability, fire, electric shock or other hazards.
Safety Label image Label description Label location 警告!勿观看光束 眼睛勿直接接触可允许暴露的光束 RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 危害距离:请参考安全手册 瞥告!结勿注祝光源. 禁止眼睛曝露在光源照射鱿坦。雷射危险等级 RG3 IEC EN 62471-5:2015 CLASS 1 IEC EN 60825-1:2014 安全危害距黔:清冬考安全手册. Hazard RG3: optical radiation warning symbol Hazard RG3: not for household use symbol Electric related safety labels Label image Label description...
Page 8
Safety Restriction Zone (RZ) based on the HD The HD depends on the amount of lumens produced by the projector and the type of lens installed. See chapter“HD in function of modifying optics”, page 11. To protect untrained end users (as cinema visitors, spectators) the installation shall comply with the following installation requirements: Operators shall control access to the beam within the hazard distance or install the product at the height that will prevent spectators' eyes from being in the hazard distance.
• This product can only be installed by Barco or sold or leased only to valid laser light show variance holders. In other words our installers are required to have an approved laser light show variance. Such installers may currently hold a valid variance for production of Class IIIb and IV laser light shows and/or for incorporation of the RG3 LIPs into their shows.
Page 10
Safety RESTRICTED AREA DIFFUSE REFLECTION Image 1-3 Restricted Access location (enclosed projection area). Restriction Zone. Projector. Projection Distance. Theater (observation area). Separation Width. Must be minimum 1 meter. For this type of setup 3 different HD shall be considered: • HD as discussed in “High Brightness precautions: Hazard Distance (HD)”, page 7, relevant for intrabeam exposure.
Safety 1.6 HD in function of modifying optics Hazard Distance SP4K-25C SP4K-20C SP4K-15C SP4K-12C Throw Ra o (TR) Image 1-4 Hazard Distance Throw Ratio R5910027 /02 SP4K-C...
