• Raises training efficiency
• Lowers operation costs
• Reduces maintenance costs
• An easy upgrade path for existing maritime, flight,
driving, gunnery, and ATC training simulators

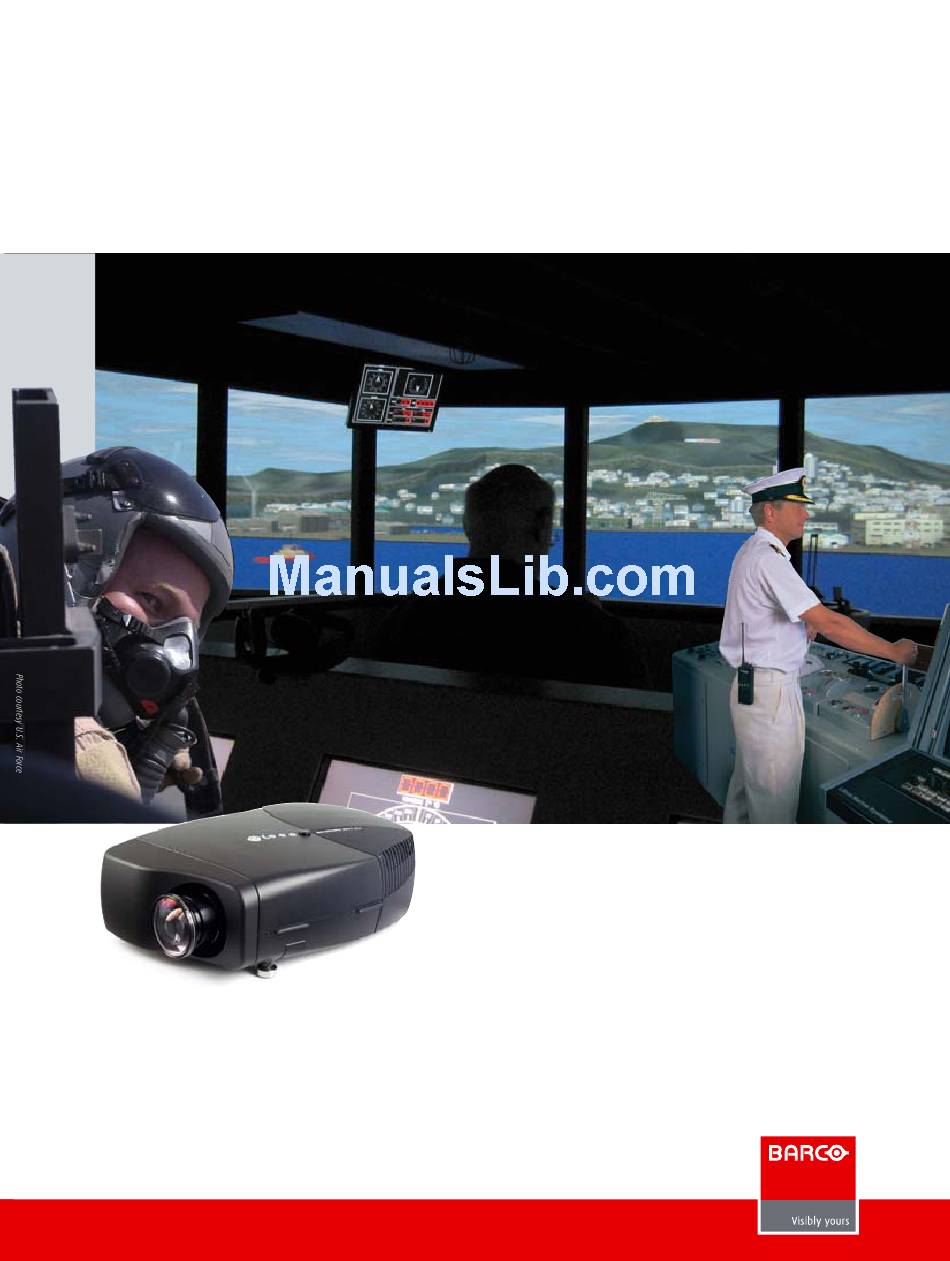

Photo courtesy CSC Defense Mission Engineering and Integration Division
The perfect solution to
multi-channel projection
•
Single chip DLP™ technology
•
SXGA+ resolution (1400 x 1050 pixels)
•
High brightness
•
Extreme bandwidth 16-bit processing
•
Dual lamp redundancy, easy service features
•
Unique multi-channel projection features

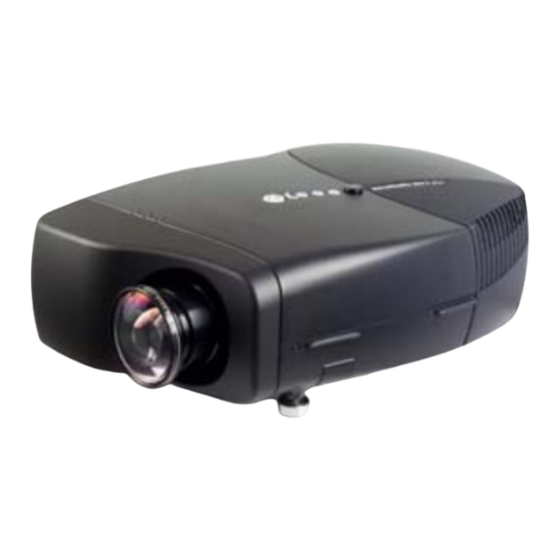

SIM 5R
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco SIM 5R
Summary of Contents for Barco SIM 5R
- Page 1 The perfect solution to multi-channel projection • Single chip DLP™ technology • SXGA+ resolution (1400 x 1050 pixels) • High brightness • Extreme bandwidth 16-bit processing • Dual lamp redundancy, easy service features • Unique multi-channel projection features SIM 5R...
- Page 2 Thanks to the built-in WARP 6™ electronics, the SIM 5R can be used in a wide variety of curved-screen applications, ranging from straightforward cylindrical displays to the most severe distortions.
- Page 3 In multi-channel setups, the non-zero black level of light valve projectors normally leads to brighter overlap zones, especially visible in night scenes. Barco’s flexible ESEM technology adjusts edge blending to a uniform black level. Photo courtesy Lockheed Martin Multi-channel visualization: a challenge in need of a dedicated display solution.
- Page 4 Dark night scenes typically deliver video signals with reduced dynamic range and almost no contrast. By electronically enhancing these video signals and dimming to rescale to full dynamic range, Barco’s ECR greatly improves the contrast ratio and picture quality. Uniform dimming • Increased dynamic range (20:1) •...
- Page 5 Briefing and debriefing applications Single off-the-shelf PC graphics output e.g. 3640 x 1050 pixels Infitec: dual eyepoint viewing For dual eyepoint viewing, two projectors are used - one for each viewpoint. Infitec technology filters the color spectrum of the image into parts: one for the position of the left viewer and another for the position of the right viewer.
- Page 6 The information and data given are typical for the equipment described. However any individual item is subject to change without any notice. The latest version of this product sheet can be found on www.barco.com/simulation WARP 6, DynaColor, O , OSEM, E and ECR are trademarks of Barco.
