- Page 1 MPS-150X E-Drum Set...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 13.06.2022, ID: 407855 (V4)
- Page 3 Table of contents Table of contents Safety instructions.......................................... 5 Scope of delivery..........................................6 Assembly.............................................. 7 Protecting the environment....................................11 MPS-150X E-Drum Set...
- Page 4 MPS-150X E-Drum Set...
-
Page 5: Safety Instructions
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if necessary, i.e. felt pads or similar. MPS-150X E-Drum Set... -
Page 6: Scope Of Delivery

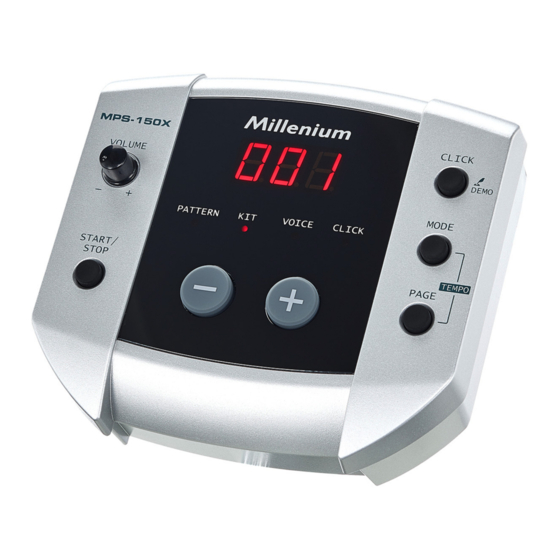

Scope of delivery Scope of delivery Before you assemble your drum set, make sure the contents of package is complete according to the following list. e-drum set Millenium MPS-150X e-drum modul Millenium MPS-150X Rack with pad brackets Hi Hat Controller... -
Page 7: Assembly
Loosen the screws of the clamps before sticking the tubes together. Mount the various elements in the specified sequence. The positions of the pads, cymbals, etc. are shown in the illustration below. ö & Drum module Bass drum Crash cymbal Snare Toms Hi-hat Bass drum pedal Ride cymbal Hi-hat controller MPS-150X E-Drum Set... - Page 8 Insert the crash pad, ride pad and hi-hat pad supports into the respective mounting clamps on the rack. Attach the brackets using the mounting screws at the desired height. Loosen the retaining screws on the bracket joints and turn the brackets into the desired playing positions. Then retighten the locating screws firmly. MPS-150X E-Drum Set...
- Page 9 Attach the connection cable to the module and secure it with the two handscrews supplied. Put the drum module up to the stop into the free clamp of the connecting pipe. Align the module and tighten the wing nut of the clamp. MPS-150X E-Drum Set...
- Page 10 The head tension of the Mesh Heads is quite low in delivery condition to avoid damages during transport. Adjust the head tension to suit your taste for good playing and a better trigger behaviour. MPS-150X E-Drum Set...
-
Page 11: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. MPS-150X E-Drum Set... - Page 12 Notes MPS-150X E-Drum Set...
- Page 13 Notes MPS-150X E-Drum Set...
- Page 14 Notes MPS-150X E-Drum Set...
- Page 16 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
