Summary of Contents for Millenium RT-1

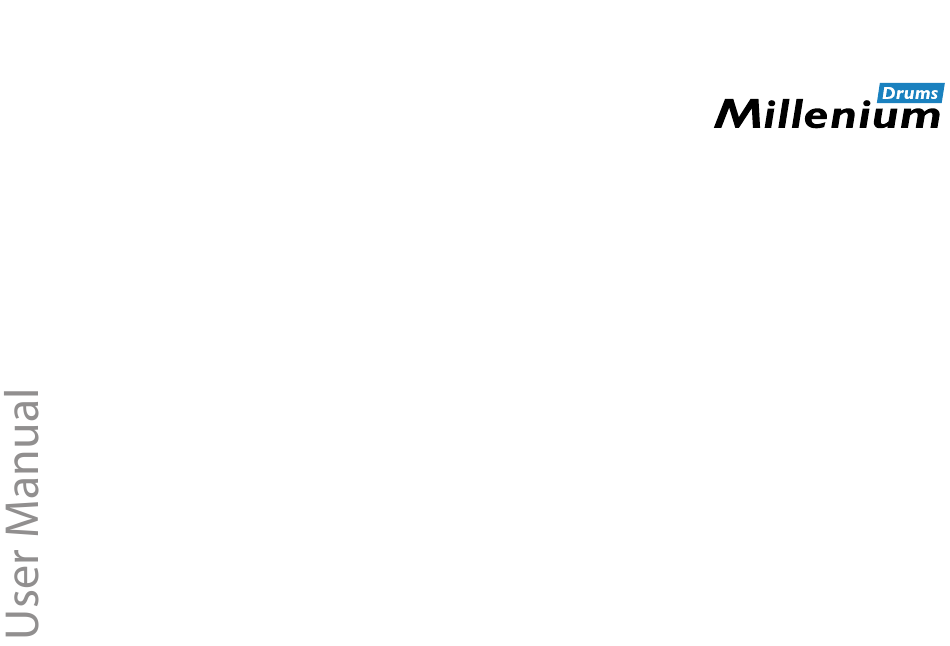

- Page 1 RT-1 8" Practice Pad Drum Pad...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 12.10.2023, ID: 567778...
-
Page 3: Table Of Contents
1.1 Symbols and signal words....................... 4 Safety instructions............................. 6 Features................................9 Installation and starting up........................ 10 Connections and controls........................12 Functions..............................16 Technical specifications........................20 Plug and connection assignment....................22 Cleaning............................... 23 Protecting the environment......................24 RT-1 8" Practice Pad Drum Pad... -
Page 4: General Information
Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. RT-1 8" Practice Pad Drum Pad... - Page 5 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – dangers due to batteries. Warning – danger zone. RT-1 8" Practice Pad Drum Pad...
-
Page 6: Safety Instructions
Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment. RT-1 8" Practice Pad Drum Pad... - Page 7 Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualified specialists at reg‐ ular intervals to prevent damage due to overheating and other malfunctions. RT-1 8" Practice Pad Drum Pad...
- Page 8 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the floor. RT-1 8" Practice Pad Drum Pad...
-
Page 9: Features
Adjustable rhythm (1…9 beats) Speed detection mode – analyses the speed of the beats Built-in speaker 3.5 mm headphone output Built-in lithium-ion battery USB-C charge socket USB cable and tuning key (included in the scope of delivery) RT-1 8" Practice Pad Drum Pad... -
Page 10: Installation And Starting Up
If the device is mounted on an unsuitable stand, there is a risk that the stand will fall over and cause damage. Only use stands whose maximum bearing capacity is at least as high as the weight of the device. Always ensure that the stand is stable. RT-1 8" Practice Pad Drum Pad... - Page 11 Always make your adjustments on all tension screws, for even tension across the mesh. Start with the tension screw on the top left and then move to the next tension screw in anti-clockwise direction. RT-1 8" Practice Pad Drum Pad...
-
Page 12: Connections And Controls
Connections and controls Connections and controls ö & RT-1 8" Practice Pad Drum Pad... - Page 13 3 Speaker that plays the metronome and percussion sounds when no headphones are in use. 4 [USB 5 V] | USB port for connecting an external USB device or USB power supply to charge the device. RT-1 8" Practice Pad Drum Pad...
- Page 14 Display 8 Shows the charge state of the built-in lithium battery. The charge state shows four bars when the battery is fully charged. 9 Shows that the voice is active in metronome mode. RT-1 8" Practice Pad Drum Pad...
- Page 15 14 Shows the set rhythm in metronome mode. 15 Shows the set tempo in bpm in the metronome and speed detection modes, and the counted beats in the beat counter mode. 16 Shows the set beat in metronome mode. RT-1 8" Practice Pad Drum Pad...
-
Page 16: Functions
Metronome mode Beat counter mode Speed detection mode When the device is switched on, it is always in metronome mode. Press and hold the [MODE] button to switch from one mode to the next. RT-1 8" Practice Pad Drum Pad... - Page 17 In the beat counter mode, you can count the individual drum pad hits within an adjustable practise time in order to practise your speed. The achieved beat number is automatically saved as a new best time for the set practise time if it exceeds the default best times. RT-1 8" Practice Pad Drum Pad...
- Page 18 In the speed detection mode, you can measure your average playing speed over an adjustable practise time in order to practise your timing. Your playing speed is averaged over the entire time and then displayed. RT-1 8" Practice Pad Drum Pad...
- Page 19 Press the [VOICE] button to select a percussion sound for the drum pad (1…5). Press the [MODE] button to set the practise time (1, 5, 10, 15, 20, 25, 30 minutes or unlimited). To reset the practise time, press [START]. RT-1 8" Practice Pad Drum Pad...
-
Page 20: Technical Specifications
Charging time in the approx. 2 h device Dimensions (W × H × D) 265 mm × 40 mm × 300 mm Weight 1 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) RT-1 8" Practice Pad Drum Pad... - Page 21 Technical specifications Further information Can be mounted on a stand Snare stand Extras Tuning key and USB-C cable included Size 8” RT-1 8" Practice Pad Drum Pad...
-
Page 22: Plug And Connection Assignment
‘just’ in poor transmission quality! Three-pole 1/8" mini phone jack (stereo, unbalanced) Signal (left) Signal (right) Ground, shielding RT-1 8" Practice Pad Drum Pad... -
Page 23: Cleaning
Stubborn stains may be removed with a slightly damp cloth. Never use cleaners containing alcohol or thinner. Do not place vinyl objects on the device, as vinyl may stick to the surface or cause it to discolour. RT-1 8" Practice Pad Drum Pad... -
Page 24: Protecting The Environment
Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. RT-1 8" Practice Pad Drum Pad... - Page 25 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. RT-1 8" Practice Pad Drum Pad...
- Page 26 Notes RT-1 8" Practice Pad Drum Pad...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
