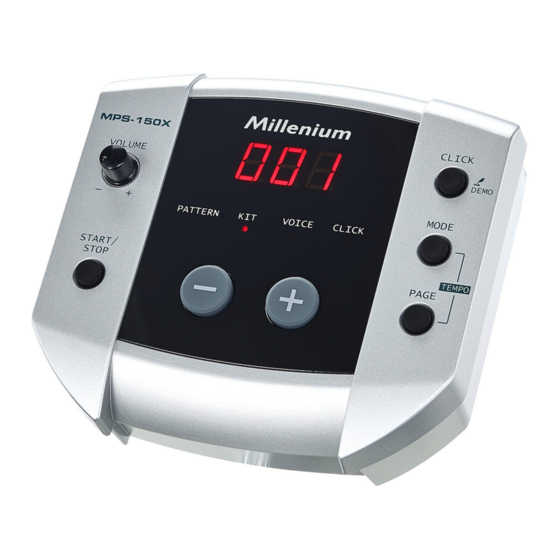

MPS-150X
E-Drum Module

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPS-150X and is the answer not in the manual?

Questions and answers

Вячеслав
May 21, 2025

Меня интересует какие естьнастройки в модуле барабанов Миллениум MPS150

0
1 comments:
Mr. Anderson
May 24, 2025

The Millenium MPS-150X drum module offers the following settings:

1. Drum Volume: Adjustable from 00 to 32 using the [–] and [+] buttons.
2. Playback Speed: Adjustable between 30 and 280 beats per minute.
3. Drum Kits: Ability to select preset kits using the [MODE] and [–]/[+] buttons.
4. Kit Volume: Adjustable through the module interface.
5. Programmable Kits: Users can program and save their own custom drum kits.
6. Pad Voice Assignment: Preprogrammed voices can be assigned to any connected pad.

These settings are stored automatically when changed.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Millenium MPS-150X

Summary of Contents for Millenium MPS-150X

  • Page 1 MPS-150X E-Drum Module...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.06.2022, ID: 407855 (V2)

  • Page 3: Table Of Contents

    6.2 Demo song............................22 6.3 Playing and adjusting patterns....................22 6.4 Selecting and adjusting drum kits..................... 24 6.5 Click (metronome) set up and use..................... 28 6.6 Menu overview..........................31 Technical specifications........................32 Plug and connection assignment....................34 Cleaning............................... 36 MPS-150X E-Drum Module...
  • Page 4 Table of contents Protecting the environment......................37 Appendix..............................38 11.1 Voice list............................38 11.2 Kit list..............................41 11.3 Pattern list............................42 11.4 MIDI implementation........................44 11.5 General MIDI Backing Instrument List..................47 11.6 General MIDI Drum Kit List......................51 MPS-150X E-Drum Module...
  • Page 5 MPS-150X E-Drum Module...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. MPS-150X E-Drum Module...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: MPS-150X E-Drum Module...
  • Page 8 References to other locations in this manual are identified by an arrow and the specified page number. In the electronic version of the manual, you can click the cross-reference to jump to the specified location. Example: See Ä ‘Cross-references’ on page 8. MPS-150X E-Drum Module...

  • Page 9: Symbols And Signal Words

    NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. MPS-150X E-Drum Module...

  • Page 10: Safety Instructions

    Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. MPS-150X E-Drum Module...
  • Page 11 Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. MPS-150X E-Drum Module...
  • Page 12 Failure to do so could result in damage to the device and pos‐ sibly the user. Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. MPS-150X E-Drum Module...

  • Page 13: Features

    Features Features 108 Voices 10 preprogrammed drum kits 40 preprogrammed songs Metronome Flexible assignment of pad voices Reverb effect, voice tuning Individual adjustment of accompaniment and drum track Connections for headphones, AUX, USB and MIDI MPS-150X E-Drum Module...

  • Page 14: Installation

    Connecting the power adapter Connect the included power adapter to the 9V connector of the unit and then plug the power adapter into a wall outlet. Connecting headphones Connect your stereo headphones to the PHONES output of the drum module. MPS-150X E-Drum Module...
  • Page 15 Connect your CD or MP3 player to the input socket AUX IN of the drum module. Connecting MIDI devices Connect external MIDI devices to the MIDI OUT socket of the drum module. Connecting USB devices Connect external MIDI devices or your computer to the USB port of the drum module. MPS-150X E-Drum Module...

  • Page 16: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel & ö MPS-150X E-Drum Module...
  • Page 17 Button to turn the metronome on and off and to play the demo song. [MODE] Button to open the selection menu. [PAGE] Button to scroll through the open menu. [+] / [–] Increases or decreases the currently displayed value. MPS-150X E-Drum Module...
  • Page 18 Connections and operating elements Rear panel ) * + , - ./ [9 V] Connection socket for the power adapter. [ON / OFF] Main switch to turn the device on and off. MPS-150X E-Drum Module...
  • Page 19 Connection socket for an external MIDI device to send MIDI commands. [OUTPUT – R / L/MONO] Output for external audio devices (mono / stereo). [AUX IN] Input for external audio devices like MP3 or CD players. [PHONES] Connection socket for headphones. MPS-150X E-Drum Module...
  • Page 20 Connections and operating elements Bottom Multiple socket for connecting the pads. MPS-150X E-Drum Module...

  • Page 21: Operating

    To disable the automatic shutoff function, press and hold [START/STOP] while turning the unit on. The message ‘PoF’ appears in the display. Adjusting the volume To set the volume, hit a pad while slowly turning the [VOLUME] control clockwise. MPS-150X E-Drum Module...

  • Page 22: Demo Song

    Press [MODE] repeatedly until the [PATTERN] LED lights up. ð The display shows the pattern number. Use [–] and [+] to select the desired pattern (see ). Playing patterns Select the desired pattern as described above. Start and stop playback with [START/STOP]. MPS-150X E-Drum Module...
  • Page 23 ð The display shows the pattern number. Press [PAGE]. ð The drum volume appears in ‘dxx’ format on the display. Use [–] and [+] to adjust the volume in a range between 00 and 32. The setting is automatically stored. MPS-150X E-Drum Module...

  • Page 24: Selecting And Adjusting Drum Kits

    To select a certain drum kit, proceed as follows: Press [MODE] repeatedly until the [KIT] LED lights up. ð The display shows the kit number. Use [–] and [+] to select the desired kit (see ). The setting is automatically stored. MPS-150X E-Drum Module...
  • Page 25 ð The display shows the kit number. Press [PAGE]. ð The current Reverb setting appears in the display ( ‘roN’ : on or ‘roF’ : off). Change the setting using [–] and [+]. The setting is automatically stored. MPS-150X E-Drum Module...
  • Page 26 Press [MODE] repeatedly until the [VOICE] LED lights up. Hit the respective pad to activate it. ð The Voice volume appears in ‘Lxx’ format on the display. Adjust the volume using [–] and [+] (setting range: 0 to 32). The setting is automatically stored. MPS-150X E-Drum Module...
  • Page 27 Adjust the number using [–] and [+] (setting range: 0 to 99). The setting is automatically stored. The following table shows the MIDI mapping in default setting. Name Assigned MIDI note Crash 1 Tom 1 Tom 2 Tom 3 Ride Kick Snare MPS-150X E-Drum Module...

  • Page 28: Click (Metronome) Set Up And Use

    Press [CLICK] again to disable the Click function. Setting the tempo Press [MODE] and [PAGE] simultaneously. ð The tempo appears on the display, for example ‘103’ . Select a value between 30 and 280 using [–] and [+]. The setting is automatically stored. MPS-150X E-Drum Module...
  • Page 29 Press [PAGE]. ð The Click interval appears on the display, for example ‘--4’ . Select the Beat interval using [–] and [+]. Possible values are: 1/4, 1/8, 1/12, 1/16, 1/24, default value: 1/4. The setting is automatically stored. MPS-150X E-Drum Module...
  • Page 30 Press [MODE] repeatedly until the [CLICK] LED lights up. Press [PAGE]. ð The set volume appears on the display, for example ‘L24’ . Use [–] and [+] to adjust the volume in a range between 0 and 32. The setting is automatically stored. MPS-150X E-Drum Module...

  • Page 31: Menu Overview

    Operating 6.6 Menu overview PATTERN VOICE CLICK Number Number Number Tempo Acmp Volume Volume Volume Time Signature Drum Volume Reverb MIDI note Interval Click Instrument Volume MPS-150X E-Drum Module...

  • Page 32: Technical Specifications

    2× DIN panel socket, 5-pin Sounds Effects Reverb Drum kits 10 preset kits Demo and practice songs 40 preprogrammed songs Power supply External power adapter, 100 - 240 V 50/60 Hz Operating voltage / 500 mA, centre positive MPS-150X E-Drum Module...
  • Page 33 260 mm × 185 mm × 130 mm Weight 0.37 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information incl. rack incl. seat incl. pedal incl. headphones Mesh Head Pads Stereo pads Number of direct outputs MPS-150X E-Drum Module...

  • Page 34: Plug And Connection Assignment

    ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. MPS-150X E-Drum Module...
  • Page 35 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground MPS-150X E-Drum Module...

  • Page 36: Cleaning

    Use a dry soft cloth for cleaning. Remove stubborn stains with a slightly damp cloth. Never use cleaners containing alcohol or thinner. Never put any vinyl items on the device, as vinyl can stick to the surface or lead to its disco‐ louration. MPS-150X E-Drum Module...

  • Page 37: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. MPS-150X E-Drum Module...

  • Page 38: Appendix

    HipHop Kick Classic Snare Rim 2 Electronic Snare 2 Funk Kick Room Snare 1 808 Snare Jazz Kick 1 Room Snare 2 House Snare 1 Jazz Kick 2 Acoustic Snare House Snare 2 Electronic Kick Acoustic Snare Rim MPS-150X E-Drum Module...
  • Page 39 Electronic Tom 6 Jazz Hi-hat Open RIDE Camco Tom 6 Electronic Hi-hat Open 808 Tom 1 Classic Ride 808 Hi-hat Open 808 Tom 2 Classic Ride Bell Standard Hi-hat Close 808 Tom 3 Rock Ride Jazz Hi-hat Close MPS-150X E-Drum Module...
  • Page 40 808 Hi-hat Pad Maracas Shaker PERCUSSION Short Whistle Jingle Bell Bongo High Long Whistle Belltree Bongo Low Short Guiro Castanets Mute Conga Hi-hat Long Guiro Mute Surdo Open Conga Hi-hat Claves Open Surdo Conga Low Wood Block High MPS-150X E-Drum Module...

  • Page 41: Kit List

    Appendix 11.2 Kit list Name Acoustic Standard 1 Rock Standard 2 Funk Jazz Brush Electronic House MPS-150X E-Drum Module...

  • Page 42: Pattern List

    Latin Dance Big Band 1 Swing Funk 2 Latin Jazz 2 Pop Funk 1 Big Band 2 Fusion 2 3/4 Jazz Funk 3 Jazz Fusion 3 6/8 Ballad Fusion 4 Pop Ballad Pop Funk 2 Pop Bossa MPS-150X E-Drum Module...
  • Page 43 Appendix Name Tempo Name Tempo 16Beat Pop Country Blues Pop Shuffle Rock Samba Reggae Mambo 60’s Rock Latin Rock Blues Latin Pop Demo Funk Guitar Bossa MPS-150X E-Drum Module...

  • Page 44: Midi Implementation

    Mode Default Messages Altered ******** ******** Note number 0…127 0…127 True voice ******** 0…127 Velocity Note ON Yes (99H, V=1…127) 0…127 Note OFF Yes (99H, V=0) 0…127 Aftertouch Keys Channels Pitch bender Control change Bank select Modulation MPS-150X E-Drum Module...
  • Page 45 Appendix Function Transmitted Recognized Remarks Portamento time Data entry Volume Expression Sustain pedal Portamento ON/OFF Sostenuto pedal Soft pedal Reverb program Chorus program Reverb level Chorus level All Sound Off Reset All Controllers All Notes Off MPS-150X E-Drum Module...
  • Page 46 Appendix Function Transmitted Recognized Remarks Program change System exclusive System common Song Position Song Select Tune System real time Clock START and STOP only Command Aux messages Local ON/OFF All Notes OFF Active Sense System reset MPS-150X E-Drum Module...

  • Page 47: General Midi Backing Instrument List

    Electric Piano 2 Percussive Organ Overdriven Guitar Harpsichord Rock Organ Distortion Guitar Clavi Church Organ Guitar Harmonics Mallet Bass Reed Organ Celesta Accordion Acoustic Bass Glockenspiel Harmonica Finger Bass Music Box Tango Accordion Pick Bass Vibraphone Fretless Bass MPS-150X E-Drum Module...
  • Page 48 Tremolo Strings Tuba Brass Pizzicato Strings Muted Trumpet Trumpet Orchestral Harp French Horn Trombone Timpani Brass Section Tuba Strings Ensemble Synth Brass 1 Muted Trumpet String Ensembles 1 Synth Brass 2 French Horn String Ensembles 2 Brass Section MPS-150X E-Drum Module...
  • Page 49 Lead 6 (voice) FX 4 (atmosphere) Pipe Lead 7 (fifths) FX 5 (brightness) Piccolo Lead 8 (bass + lead) FX 6 (goblins) Flute FX 7 (echoes) Recorder Pad 1 (new age) FX 8 (sci-fi) Pan Flute Pad 2 (warm) MPS-150X E-Drum Module...
  • Page 50 Sound Effects Sitar Tinkle Bell Guitar Fret Noise Banjo Agogo Breath Noise Shamisen Steel Drums Seashore Koto Wood Block Bird Tweet Kalimba Taiko Drum Telephone Ring Bagpipe Melodic Tom Helicopter Fiddle Synth Drum Applause Shanai Reverse Cymbal Gunshot MPS-150X E-Drum Module...

  • Page 51: General Midi Drum Kit List

    Funk Bass Drum 2 Drum Drum 37 – C#2 Side Stick <- <- <- <- 38 – D2 Standard 1 Snare Standard 2 Snare Room Snare Rock Snare Funk Snare 39 – D#2 Hand Clap <- <- <- <- MPS-150X E-Drum Module...
  • Page 52 51 – D#3 Standard 1 Ride Standard 2 Ride Room Ride Rock Ride Funk Ride 52 – E3 Chinese Cymbal 1 <- <- <- <- 53 – F3 Ride Bell <- Room Ride Bell Rock Ride Bell <- MPS-150X E-Drum Module...
  • Page 53 <- <- 66 – F#4 Low Timbale <- <- <- <- 67 – G4 High Agogo <- <- <- <- 68 – G#4 Low Agogo <- <- <- <- 69 – A4 Cabasa <- <- <- <- MPS-150X E-Drum Module...
  • Page 54 <- <- <- 82 – A#5 Shaker <- <- <- <- 83 – B5 Jingle Bell <- <- <- <- 84 – C6 Bell Tree <- <- <- <- 85 – C#6 Castanets <- <- <- <- MPS-150X E-Drum Module...
  • Page 55 808 Bass Drum 1 House Bass Drum 1 Jazz Bass Drum 1 Brush Bass Drum 1 36 – C2 Electronic Bass Drum 808 Bass Drum 2 House Bass Drum 2 Jazz Bass Drum 2 Brush Bass Drum 2 MPS-150X E-Drum Module...
  • Page 56 House Tom 2 Jazz Tom 2 Brush Tom 2 49 – C#3 <- 808 Crash 1 <- <- Brush Crash 1 50 – D3 Electronic Tom 1 808 Tom 1 House Tom 1 Jazz Tom 1 Brush Tom 1 MPS-150X E-Drum Module...
  • Page 57 63 – D#4 <- 808 Open Hi Conga <- <- <- 64 – E4 <- 808 Low Conga <- <- <- 65 – F4 <- <- <- <- <- 66 – F#4 <- <- <- <- <- MPS-150X E-Drum Module...
  • Page 58 <- <- <- <- <- 79 – G5 <- <- <- <- <- 80 – G#5 <- <- <- <- <- 81 – A5 <- <- <- <- <- 82 – A#5 <- <- <- <- <- MPS-150X E-Drum Module...
  • Page 59 <- <- <- <- <- 84 – C6 <- <- <- <- <- 85 – C#6 <- <- <- <- <- 86 – D6 <- <- <- <- <- 87 – D#6 <- <- <- <- <- MPS-150X E-Drum Module...
  • Page 60 Notes MPS-150X E-Drum Module...
  • Page 61 Notes MPS-150X E-Drum Module...
  • Page 62 Notes MPS-150X E-Drum Module...
  • Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
