DesignMax DM8S

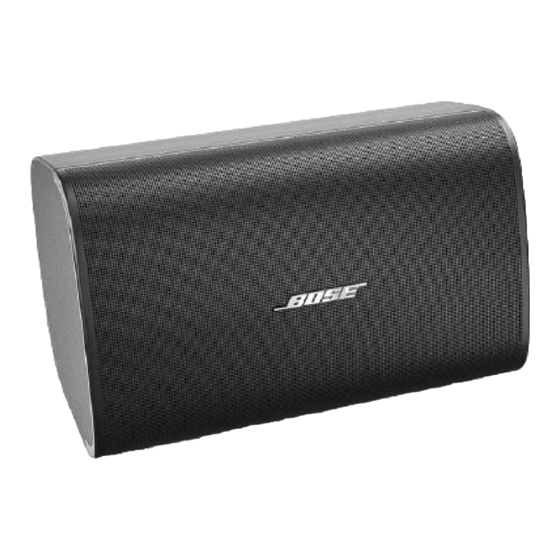

Surface-mount Loudspeaker
Monteringsveiledning . . . . . . . . . . . . . . . . . . 38
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . 44
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
68
دليل التركيب
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bose DesignMax DM8SB
Summary of Contents for Bose DesignMax DM8SB

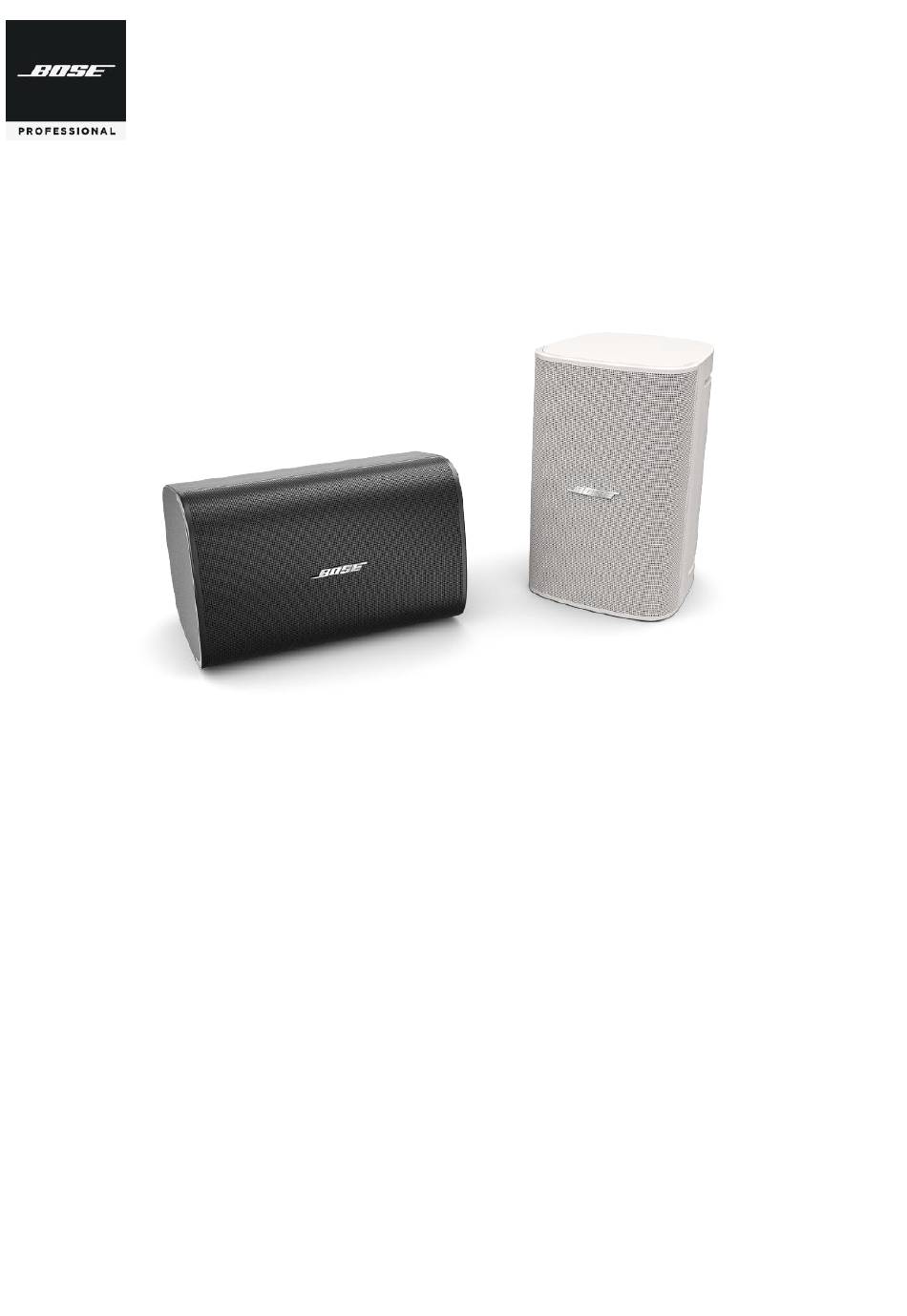

- Page 1 DesignMax DM8S Surface-mount Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
- Page 2 EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands bracket, contact a qualified professional installer. Ensure the bracket is installed Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de according to local building codes.
- Page 3 It is the installer’s responsibility to ensure installation of For additional specifications, see the DesignMax DM8S technical the loudspeakers and mounting system is performed in data sheet at PRO.BOSE.COM. accordance with all applicable codes, including local building codes and regulations. Consult the local authority Physical having jurisdiction before installing this product.
- Page 4 Setup PRO.BOSE.COM Installation Options Installation Options and Accessories Mounting bracket (included) RMUBRKT1 Pan-and-tilt bracket (optional) Wiring the Loudspeaker Wire Gauge The DesignMax DM8S loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only.
- Page 5 Installation PRO.BOSE.COM Using a Safety Cable Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.
- Page 6 Installation PRO.BOSE.COM Important Mounting Information Lock levers: Used to secure the loudspeaker to the mounting bracket. Push the levers toward the lock pins to lock; push the levers away from the lock pins to unlock. Lock pins: Press the pins down to unlock the levers.
- Page 7 The grille secures to the loudspeaker magnetically. Safety and Regulatory Compliance The Bose DesignMax DM8S loudspeaker has passed testing and complies with the following specifications and uses: Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use...
- Page 8 ©2019 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM833983 Rev. 01 June 2019...
