AGP 45
COMBUSTIBLE
GAS LEAK
DETECTOR
OPERATING
INSTRUCTIONS
Crowcon Detection Instruments
172 Brook Drive,
Milton Park,
Abingdon,
Oxfordshire OX14 4SD
Tel: 01235 557780
email: sales@crowcon.com
web: www.antonbycrowcon.com
1. White LED 'search light' for illuminating the source
of the gas leak.
2. Gas sensor open to ambient air but protected by
the instrument enclosure
3. Gas intensity scale, yellow/orange/red indicating
increasing gas intensity.
4. Green power LED indicating the unit is switched on.
This LED flashes when the batteries need
replacing.
5. Gas intensity buzzer. Sounds more frequently with
increasing gas intensity (audible indication).
6. Red LED gas intensity indicator. Flashes in unison
with the buzzer (visual indication).
7. UP Button. Press and hold for 0.5s to turn
instrument on. Press and hold to increase
sensitivity.
8. DOWN Button. Press and hold to decrease
sensitivity. Press and hold both UP and DOWN
buttons for 2 seconds to turn unit off.
SPECIFICATIONS
Power Supply
2 x AA Alkaline Batteries
Battery Life
> 800 x 20 second readings*
Duty Cycle
Continuous.
Auto switch off after 5 mins.
Sensor
Solid State
Sensitivity
30 ppm methane
Warm Up Time
About 30 seconds
Response Time
Immediate
Operating
-10 to +50 °C
Temperature
Weight
120 grams including
batteries
Dimensions
200 x 35 x 25 mm
* Using recommended Industrial batteries

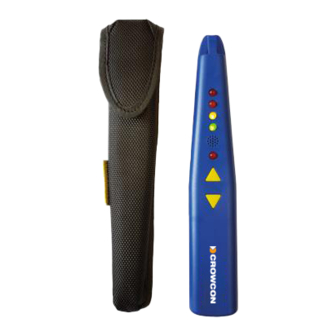

GENERAL DESCRIPTION
The AGP 45 exploits the latest in sensor and
electronics technology to offer a compact and
affordable gas leak detector. Primarily designed to
detect the high methane content of natural gas it is
also sensitive to a wide range of combustible gases.
INSTRUMENT OPERATION
1. Press and hold UP button for 0.5s to turn on.
It is recommended to turn on the unit in
uncontaminated air i.e. away from the area where a
leak is suspected.
2. The green LED will illuminate to indicate the
instrument is powered on. During the instrument
warm-up period of around 30s, the Red LED may
flicker and buzzer may sound. After the warm-up
period the buzzer will sound every few seconds to
indicate the instrument is operational.
3. The sensitivity of the instrument can be tuned by
pressing the UP button to increase the sensitivity or
by pressing the DOWN button to decrease the
sensitivity.
