MikroTik PWR-LINE Series Connecting Manual

PWR-LINE AP
PWR-LINE AP
The PWR-LINE series devices allow Ethernet-like connectivity between supported devices over regular electrical power lines. When plugged into the same
electrical circuit, the PWR devices will establish Ethernet connectivity by using the HomePlug AV standard.

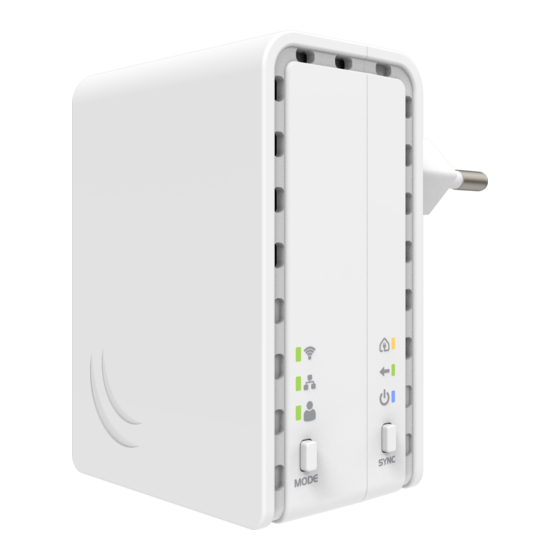

The PWR-LINE AP is a wireless access point with a single Ethernet port, a built-in 802.11b/g/n WiFi Access Point and integrated PWR-LINE support.
Simply plug this device directly into one of the LAN ports of your MikroTik router, and add another one somewhere further in your premises, allowing to
extend wireless network coverage without needing to install any LAN cables. You can install more PWR-LINE devices to further build your network, up to
eight devices are supported.

Connecting

1. Plug one PWR-LINE AP device into a power socket.
2. The main device should be plugged into one of the LAN ports of a router.
3. Other PWR-LINE AP devices can be placed anywhere in any sockets in the same power circuit.
4. Use the Winbox "Neighbors" tab to discover the addresses of the PWR LINE units.
5. Since there is no password by default, you will be logged in automatically. Set up your wifi password and your country, to make sure local
regulations are observed.
6. To add more devices that will connect over the electrical lines, add compatible devices somewhere in the same electrical circuit. See section
Buttons and Jumpers on how to pair individual PWR-LINE devices.
Important note! The device is configured as a bridge, for extending your LAN network. By default, it does not have a password or firewall, and should not
be connected directly to the internet, without configuring it accordingly.
RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to
the possibilities: https://mt.lv/help
In case IP connection is not available, the Winbox tool (
(all access is blocked from the internet port by default). For recovery purposes, it is possible to boot the device from the network, see section
Jumpers .

Powering

The device accepts powering directly from 100-240 V ~50/60Hz wall socket it is plugged into. The power consumption under maximum load can reach 7 W.

Extension Slots and Ports

One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross-over cables
for connecting to other network devices.
Integrated Wireless 2.4 GHz 802.11b/g/n with onboard PIF antennas, max gain 1.5 dBi.

Buttons and Jumpers

The PWR-LINE AP has the following buttons:
Reset button
Hold the button before powering on the device, and at power-up, the button will force load the backup boot loader. Continue holding the button for
the other two functions of this button.
Release the button when the green LED starts flashing, to reset RouterOS configuration. To not load the backup boot loader, you can start
holding the button after power is already applied.
Release the button after LED is no longer flashing (~20 seconds) to cause the device to look for Netinstall servers (required for reinstalling
RouterOS over the network).
Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.
Useful for RouterBOOT debugging and recovery.
https://mt.lv/winbox ) can be used to connect to the MAC address of the device from the LAN side
Buttons and
