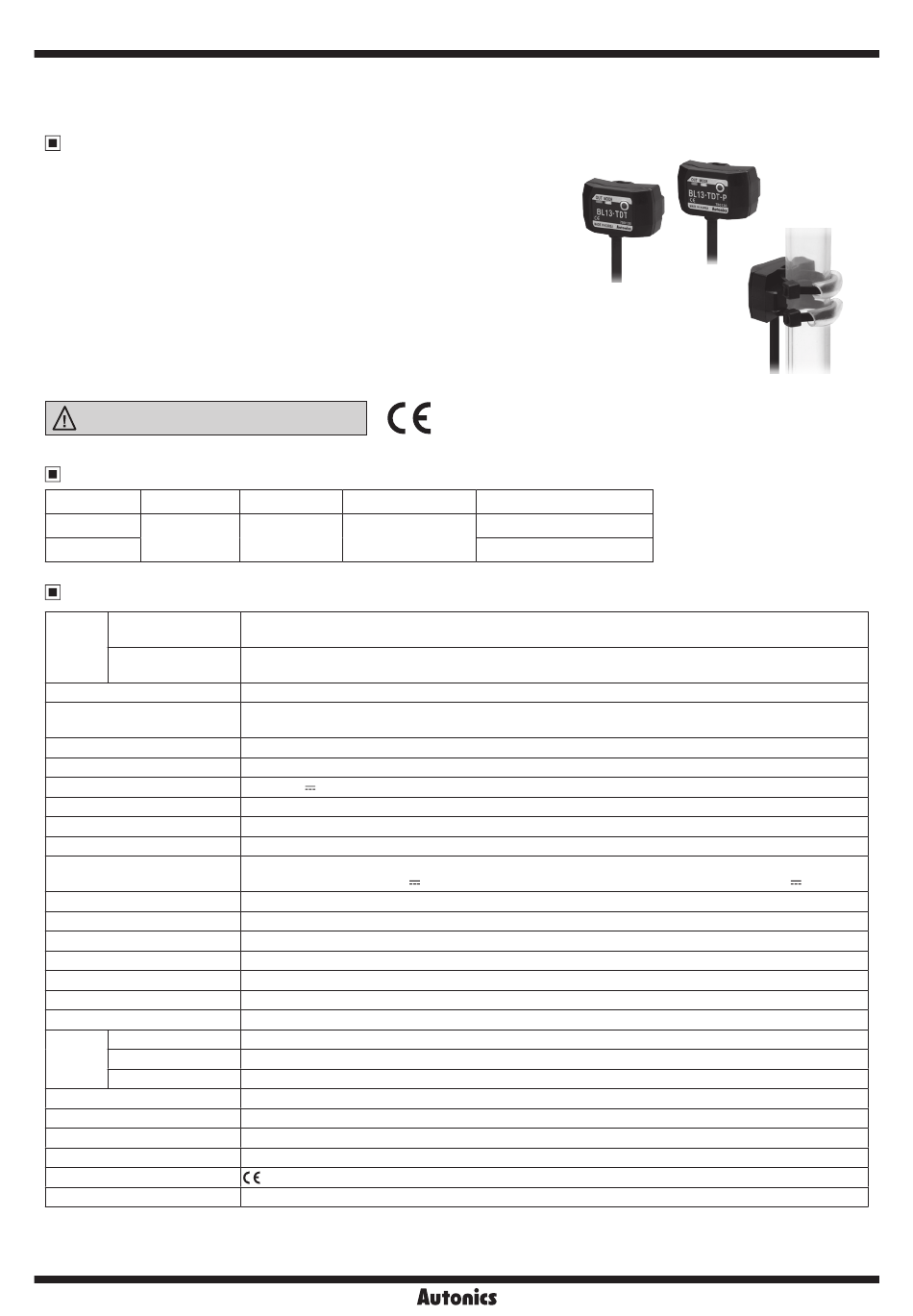

Autonics BL Series Instruction Manual

BL Series
Liquid Level Sensor for Mounting Pipe (Through-Beam)
Features
● Detects liquid in a transparent/semitransparent pipe
diameter Ø6 to 13mm, thickness 1mm
● Compact size: W23×H14×L13mm
● Selectable Light ON/Dark ON operation mode
by operation mode switching button
● Easy to check operation status by operation mode indicator
[green LED (Light ON: on, Dark ON: off)],
operation indicator [red LED]
● Built-in reverse polarity protection circuit and
output short overcurrent protection circuit
● IP64 of protection structure (IEC standards)
Please read "Safety Considerations"
in the instruction manual before using.
Model
Model Pipe diameter
BL13-TDT
Ø6 to 13mm
BL13-TDT-P
Specifications
NPN open collector
output
Model
PNP open collector
output
Sensing type
Applicable pipe
Standard sensing target
Response time
Power supply
Current consumption
Light source
Operation mode
Control output
Protection circuit
Indicator
Insulation resistance
Noise immunity
Dielectric strength
Vibration
Shock
Ambient illumination
Envi-
Ambient temperature 10 to 55℃, storage: -25 to 65℃
ron-ment
Ambient humidity
Protection structure
Material
Cable
Accessory
Approval
※2
Weight
※ 1: This may not detect the liquid with low transparent, with high viscosity, or with floating matters.
※ 2: The weight includes packaging. The weight in parenthesis is for unit only.
※ The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
A-140
Sensing type Power supply
Through-beam 12-24VDC ±10%
BL13-TDT
BL13-TDT-P
Through-beam
●Using binding band: Ø6 to 13mm ●Using protection bracket: Ø12.7mm (1/2 inch)
transparent pipes in 1mm thicknes s (FEP (fluoroplastic) or with equivalent transparency)
※1
Liquid in a pipe
Max. 2ms
12-24VDC ±10% (ripple P-P: max. 10%)
Max. 30mA
Infrared LED (950nm)
Light ON/Dark ON operation mode switch button
NPN or PNP open collector output
●Load voltage: max. 30VDC
Reverse polarity protection circuit, output short overcurrent protection circuit
Operation indicator: red LED, operation mode indicator: green LED
Over 20MΩ (at 500VDC megger)
±240V the square wave noise (pulse width: 1㎲) by the noise simulator
1,000VAC 50/60Hz for 1 minute (between all terminals and case)
1.5mm amplitude or 300m/s 2
500m/s² (approx. 50G) in each X, Y, Z direction for 3 times
Sunlight/incandescent lamp: max. 3,000lx for each (receiver illumination)
35 to 85%RH, storage: 35 to 85%RH
IP64 (IEC standard)
Case: polycarbonate
Ø2.5, 3-wire, 1m (AWG28, core diameter: 0.08mm, number of cores: 19, insulator diameter: Ø0.9)
Binding band: 2, anti-slip tube: 2
Approx. 50g (approx. 13g)
Control output
NPN open collector output
PNP open collector output
●Load current: max. 100mA ●Residual voltage: max. 1VDC
at frequency of 10 to 55Hz in each of X, Y, Z direction for 2 hours
