KX-FP207FX-S/FP218FX-S
15.2.2. Mode Operation
Once a mode is selected, the Drive Motor Gear rotates counterclockwise (CCW) and then the controlling positions of Swing
Gears A, B and C, D, E determine which gears convey their drive power in each mode. See "Sensor Location" in Sensors and
Switches (P.29).
A. Transmit mode (See Fig. A.):
The Swing Gear A engages with the next gear to drive Document Separation Roller and Document Exit Roller.
The Swing Gear C engages with the next gear to drive Paper Exit Roller.
B. Paper-Pickup mode (See Fig. B):
The Swing Gear C engages with the next gear to drive Paper Exit Roller.
The Swing Gear D engages with the next gear to drive Pickup Roller.

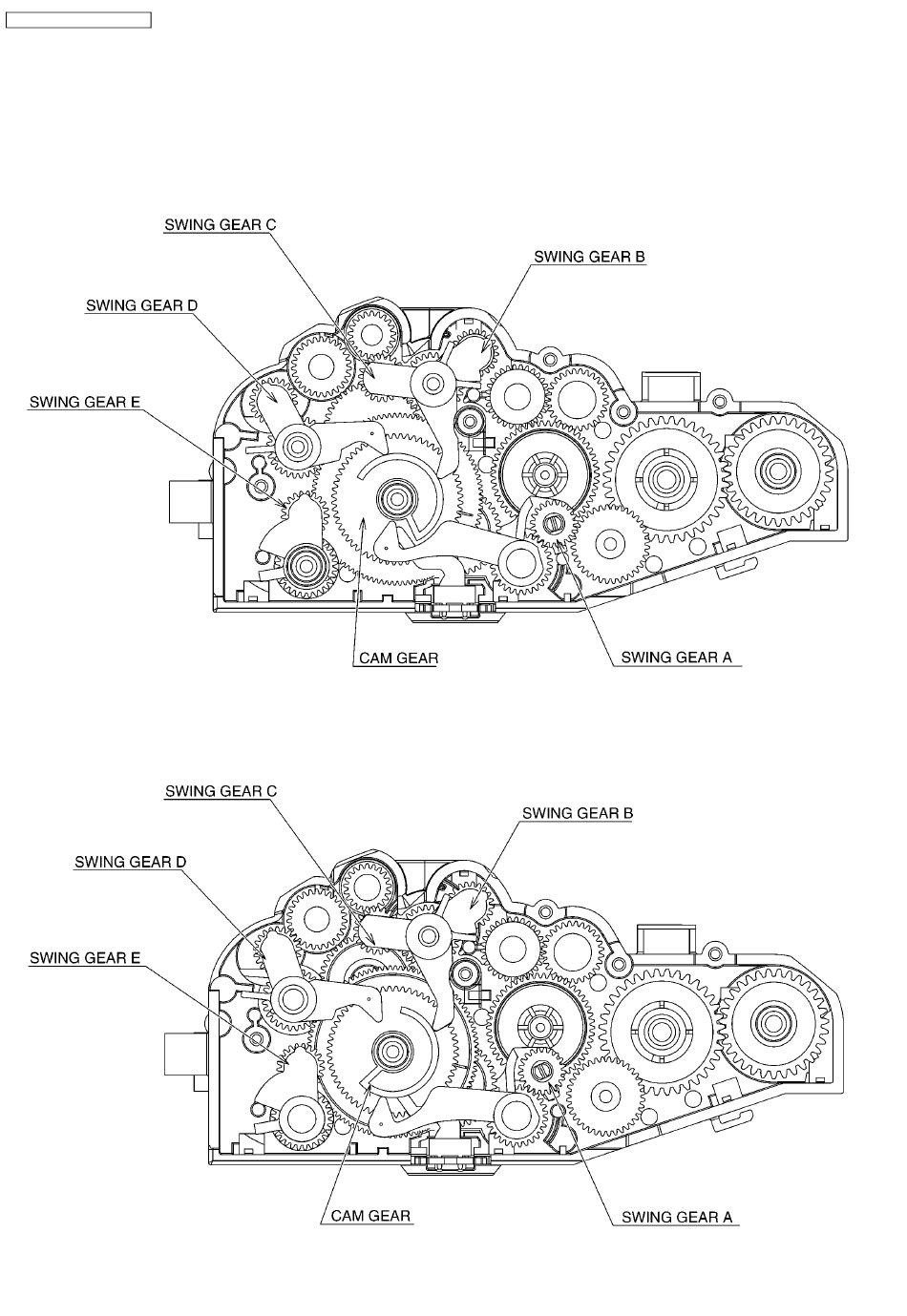

Fig. A: Transmit mode
Fig. B: Paper-Pickup mode
