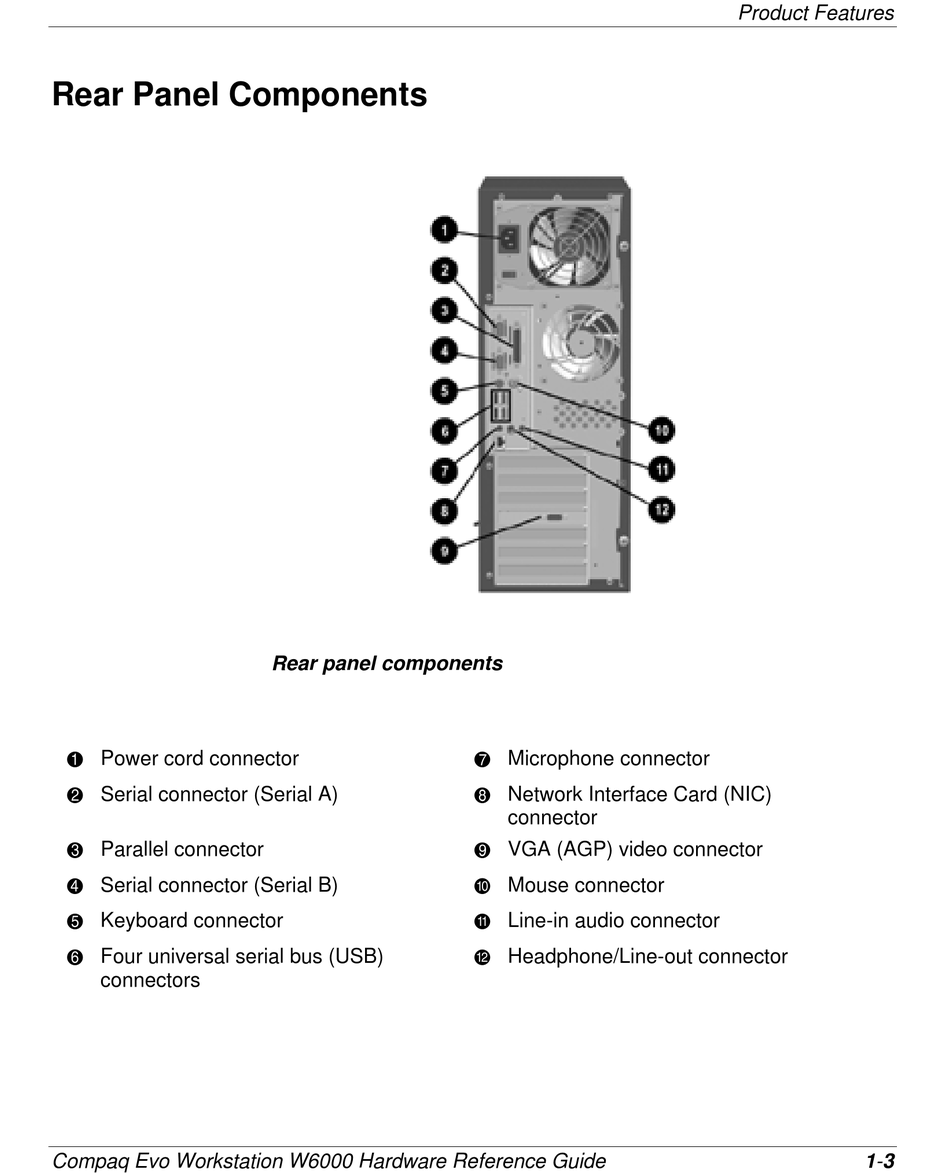

Rear Panel Components
1 Power cord connector
2 Serial connector (Serial A)
3 Parallel connector
4 Serial connector (Serial B)
5 Keyboard connector
6 Four universal serial bus (USB)
connectors
Compaq Evo Workstation W6000 Hardware Reference Guide
Rear panel components
7 Microphone connector
8 Network Interface Card (NIC)
connector
9 VGA (AGP) video connector
- Mouse connector
q Line-in audio connector
w Headphone/Line-out connector
Product Features
1-3
