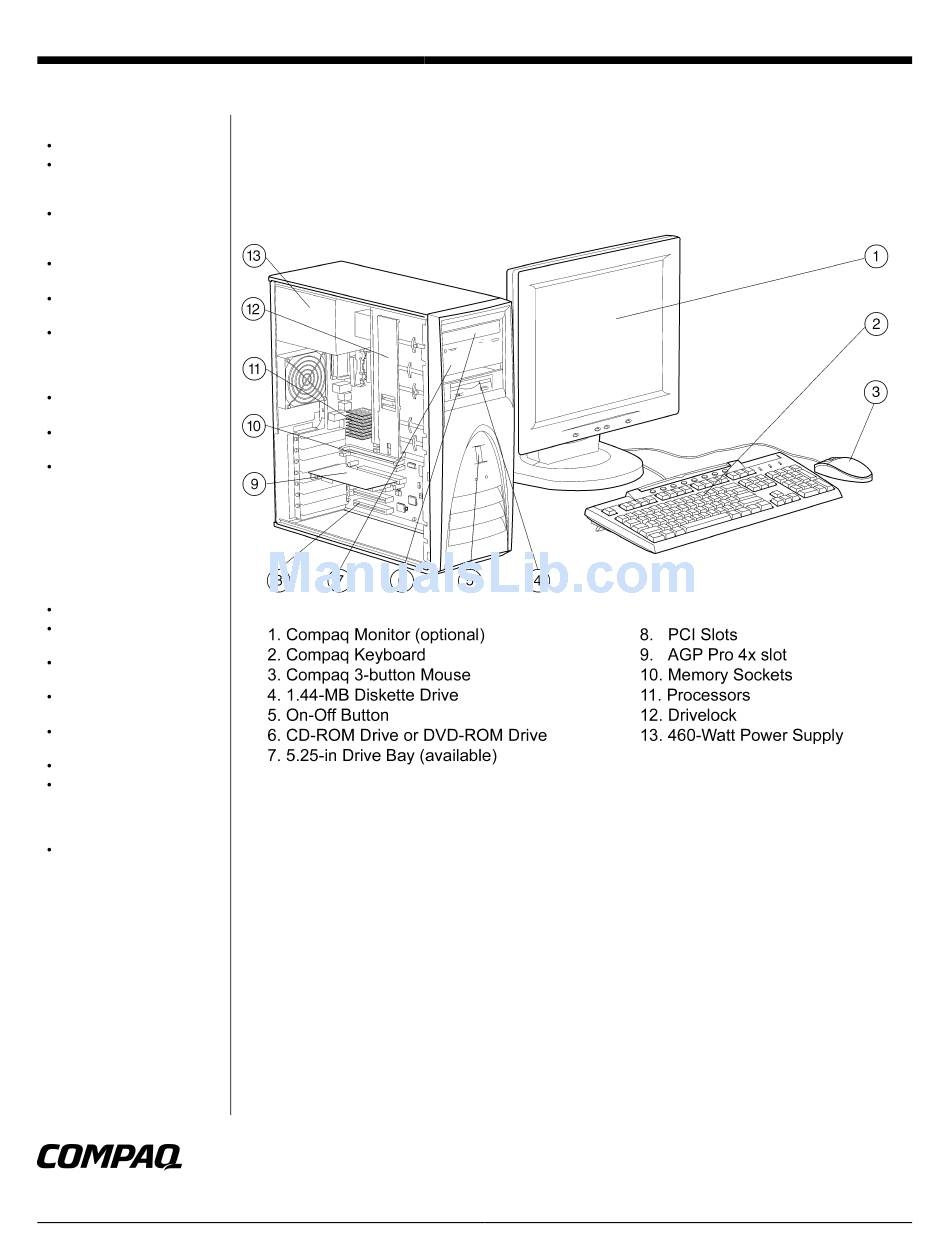

QuickSpecs
Overview
A t A G l a n c e
Convertible minitower form factor
Supports up to two Intel
Xeon
®
®
processors, up to 2.2-GHz (400
MHz Front Side Bus)
Intel 860 chipset with 400-MHz
front side bus and dual memory
channels
512-KB L2 cache integrated on
processor
ECC RDRAM expandable to 2
GB
High-performance Ultra160 SCSI
10,000 rpm or 15,000 rpm hard
drives or UATA/100 7200 rpm
hard drives
Integrated Ultra160 SCSI and
Ultra ATA/100 controllers
Up to 360 GB of high-
performance internal storage
Choice of NVIDIA
Quadro2 EX,
®
NVIDIA Quadro2 MXR, NVIDIA
Quadro2 Pro, Matrox
®
Millennium
G450, Matrox G200
®
Quad Multi-monitor Series,
Matrox Millennium G550, ATI
Fire GL2, ATI Fire GL4, or
3Dlabs Wildcat™ II 5110
Graphics Controller
Multiple display support
Integrated Intel PRO/100+
Management Adapter
Four total slots (three PCI and
one AGP Pro 4X)
Five bays (three external and
two internal)
CD-ROM, DVD-ROM, or CD-RW
drive (depending on model)
SoundBlaster 128 audio
Windows
XP
Professional,
®
®
Windows 2000
Professional and
®
Compaq support software pre-
installed
Protected by Compaq Services,
including a three-year, limited
warranty — certain restrictions
and exclusions apply. Consult the
Compaq Customer Support
Center for details. Three-year
onsite and labor not available in
all countries.
DA-10840
North America — Version 22 — March 18, 2002
Compaq Evo Workstation W6000
1
