Compaq Evo D510 MT Supplementary Manual

Compaq Evo D510
Convertible Minitower

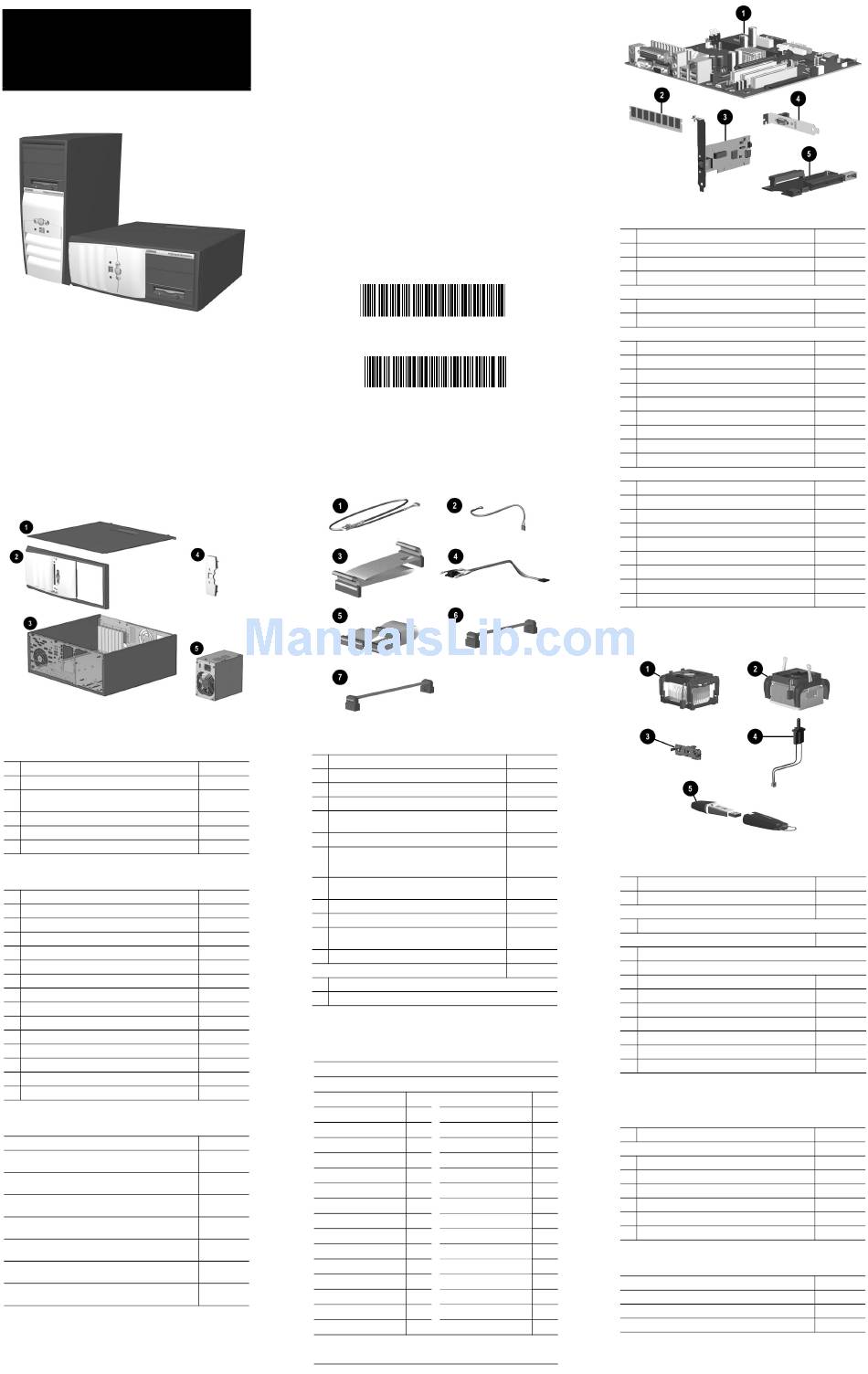

Illustrated Parts Map
b
System Unit
1 Access Panel
2 Front bezel assembly, complete
Front bezel main panel insert, EMEA only (Blue
Angel)
3 Chassis assembly (reference only)
4 Front bezel I/O insert, 2 USB, 2 audio
5 Power supply, PFC, dual voltage
Mass Storage Devices (not illustrated)
20-GB, UATA, 100/7200 Quiet hard drive
20-GB, UATA, 100/5400 Quiet hard drive
20-GB Hard drive, MultiBay
36.2-GB U3 SCSI, 10 K hard drive
40-GB UATA 100/7200 Quiet hard drive
40-GB UATA 100/5400 Quiet hard drive
80-GB UATA, 100/7200 Hard drive
Diskette drive, 3.5-inch, buttonless, carbon
24X CD-ROM drive
48X CD-ROM drive, carbon
16/10/24X CDRW drive
40/12/40X CDRW drive
8X CDRW drive, MultiBay
6/10/40/12X CVD-DVD drive
16X DVD drive
Miscellaneous Screws (not illustrated)
Miscellaneous screw kit, includes:
.197 dia x 17 TPI x 0.5 lg, Plastite flathead, Phillips
(4 ea) (247481-001)
6-19 x 3/8 hi-top, plastite with captive washer
(1 ea.) (114399-069) (not used this product)
6-19 x 1/4 hi-top, plastite with captive washer
(1 ea.) (114399-067)
6-32 x 3/16 hi-top, thread forming with serrations
(4 ea.) (192308-003)
6-32 x 3/16 buttonhead tamper-resistant, taptite with
serrations (1 ea.) (296769-002)
6-32 x 1/4 hi-top, thread forming with serrations
(5 ea.) (192308-001)
M3 x 5mm, hi-top, plastite with serrations (4 ea.)
(247348-001)
