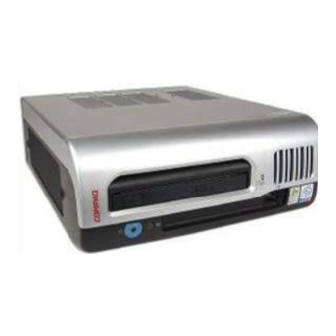

Compaq Evo D510 e-pc Quick User Manual
Compaq personal computer quick user's guide
Hide thumbs
Also See for Evo D510 e-pc:
- Technical reference manual (51 pages) ,
- Upgrade manual (24 pages) ,
- Supplementary manual (2 pages)
Related Manuals for Compaq Evo D510 e-pc
Summary of Contents for Compaq Evo D510 e-pc

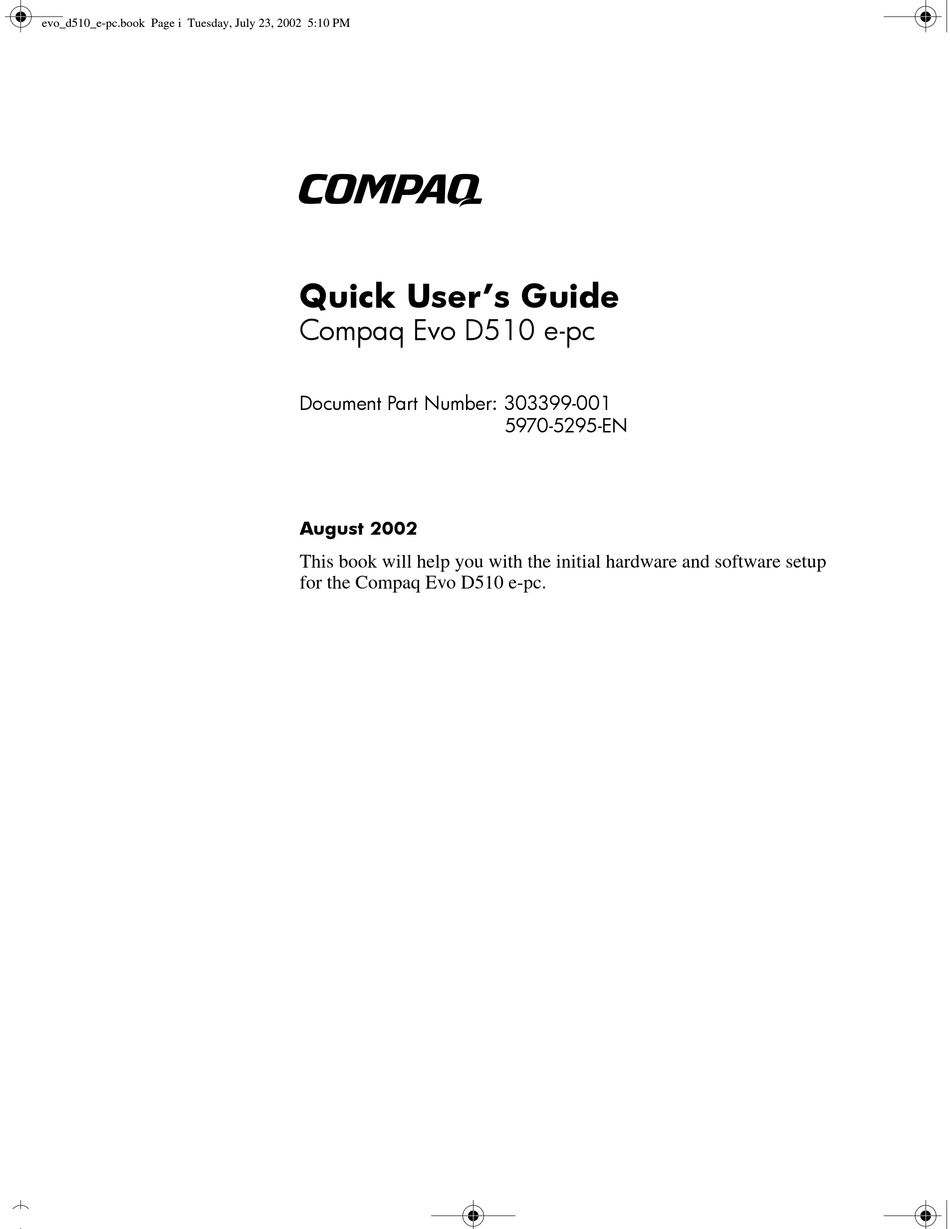

- Page 1 Quick User’s Guide Compaq Evo D510 e-pc Document Part Number: 303399-001 5970-5295-EN August 2002 This book will help you with the initial hardware and software setup for the Compaq Evo D510 e-pc.
- Page 2 The warranties for Compaq products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
-
Page 3: Table Of Contents
Compaq Restore Solution ........ - Page 4 Contents Mouse Compliance Statement ........C–2 Cables .
-
Page 5: Quick Setup
Class B digital device, pursuant to part 15 of the FCC Rules. For more information, refer to Appendix C, “Safety & Regulatory Notices.” To reduce the risk of electrical shock, connect your personal computer only to a grounded (earthed) electrical outlet that is easily accessible at all times. -
Page 6: Connecting Devices
(NIC) connectors. Ä CAUTION: Do not add additional, optional hardware devices to your personal computer until the operating system is successfully installed. Doing so may cause errors and may prevent the operating system from installing properly. -
Page 7: Connecting The Power Cords
Disconnect power from the personal computer by unplugging the power cord from either the electrical outlet or the personal computer. and ensure that the voltage setting is correct for your country. (Refer to Appendix C, in section “Power Cord Set Requirements.”... -
Page 8: Customizing The Monitor Display
Compaq Restore Solution Restore the original operating system and factory-installed software by using the Compaq Restore Plus! CD and any other CDs that came with the computer. Carefully read and follow the instructions for the restore solution that came with the computer the computer. -
Page 9: Turning Off The Pc
Shut Down command, press and hold the power button for five seconds. Accessibility Compaq is committed to designing products, services, and programs with improved usability and accessibility for all customers. Compaq products with Microsoft Windows XP preinstalled, or that are XP Ready, are designed for accessibility. -
Page 11: Troubleshooting
This chapter is intended for basic troubleshooting only. A comprehensive Troubleshooting Guide is available on the Web at http://www.compaq.com/support. If you choose to use an operating system different than what was shipped with your PC, refer to the following support Web site at http://www.compaq.com/support... -
Page 12: Solving Minor Problems
You may be able to easily resolve the minor problems described in this section. If a problem persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact your Compaq authorized dealer or reseller. Solving Minor Problems Problem... - Page 13 Contact Compaq authorized reseller or service provider. For more detailed help refer to the troubleshooting information which is available on the Compaq Web site www.compaq.com/support (search for Evo D510 e-pc). 1. Count the number of beeps after the buzzer.
- Page 14 Troubleshooting Solving Minor Problems (Continued) Problem Cause The unit temperature was exceeded because the computer was functioning with the cover. Computer appears to Network driver is loaded pause periodically. and no network connection is established. Cannot remove Port Control System is computer cover.
- Page 15 PC. Download the latest driver from the Compaq Web site www.compaq.com/support (search for Evo D510 e-pc). Download the latest BIOS from the Compaq Web site www.compaq.com/support (search for Evo D510 e-pc).
- Page 16 Troubleshooting Solving Minor Problems (Continued) Problem Cause The mouse is dirty (does not apply to optical mouse). The mouse itself is defective. Your mouse uses batteries, and the batteries need to be replaced. 2–6 Solution Clean the mouse ball as shown below.
-
Page 17: Solving Hardware Installation Problems
Solving Hardware Installation Problems You may need to reconfigure the computer when you add or remove hardware, such as an additional diskette drive. If you install a plug and play device, Windows 2000 and Windows XP automatically recognize the device and configure the computer. If you install a non–plug and play device, you must reconfigure the computer after completing installation of the new hardware. -
Page 19: Replacing The Battery
Do not attempt to recharge the battery. Do not expose to temperatures higher than 60°C (140ºF). Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water. Replace the battery only with the Compaq spare designated for this product. A–1... - Page 20 In order to forward them to recycling or proper disposal, please use the public collection system or return them to Compaq, their authorized partners, or their agents. Ä CAUTION: Static electricity can damage the electronic components of the computer or optional equipment.
- Page 21 Reset the date and time, your passwords, and any special system setups, using Computer Setup. To access Computer Setup, restart the computer. When the Compaq logo is displayed, press F8. Quick User’s Guide battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery.
-
Page 23: Specifications
Specifications ✎ Operating temperature and humidity ranges may vary depending on the mass storage devices installed. High humidity levels can cause improper operation of disk drives. Low humidity ranges can aggravate static electricity problems and cause excessive wear of the disk surface. - Page 24 ✎ (1) Declared values LwAd = LwA + 0.3B(A). (2) As an ENERGY STAR partner, Compaq has determined that this product meets the ENERGY STAR guidelines for energy efficiency. This value is only achieved when “Suspend to RAM” (S3 mode) is enabled.
-
Page 25: Safety And Regulatory Notices
Regulatory Compliance Identification Numbers For the purpose of regulatory compliance certifications and identification, your product has been assigned a unique Compaq series number. The series number can be found on the product nameplate label, along with all required approval markings and information. -
Page 26: Marked With The Fcc Logo (United States Only)
Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Compaq Computer Corporation may void the user's authority to operate the equipment. Mouse Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. -
Page 27: Canadian Notice
Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Quick User’s Guide Compaq Computer Corporation P. O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000 Safety & Regulatory Notices... -
Page 28: European Union Notice
Safety & Regulatory Notices European Union Notice Products bearing the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC). Compliance with these directives implies conformity to the following European Norms (in parentheses are the equivalent international standards and regulations):... -
Page 29: Energy Star Compliance
Energy Star Compliance Compaq Deskpro Workstations, Compaq Evo™ Desktops, and Compaq Evo Workstations marked with the Energy Star Logo are compliant with the U.S. Environmental Protection Agency (EPA) Energy Star Computers Program. The EPA Energy Star Logo does not imply endorsement by the EPA. As an Energy Star Partner,... -
Page 30: German Ergonomics Notice
Work Places in the Office Sector). The installation guides included with the monitor provide configuration information. Laser Safety All Compaq systems equipped with a laser device comply with safety standards, including International Electrotechnical Commission (IEC) 825. With specific regard to the laser, the equipment complies with laser product performance standards set by government agencies as a Class 1 laser product. -
Page 31: Laser Product Label
Laser Product Label The following label or equivalent is located on the surface of Compaq laser products: Laser Information Quick User’s Guide Laser Type: Semiconductor GaAIAs Wave Length: 780 +/- 35 nm Divergence Angle: 53.5 Degrees +/- 0.5 degrees Output Power: Less than 0.2 mW or 10,869 W·m-2 sr-1 Polarization: Circular 0.25... -
Page 32: Battery Replacement Notice
Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to Compaq, your authorized Compaq partners, or their agents. C–8 Do not attempt to recharge the battery. -
Page 33: Power Cord Set Requirements
6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact your Compaq authorized service provider. A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it.
