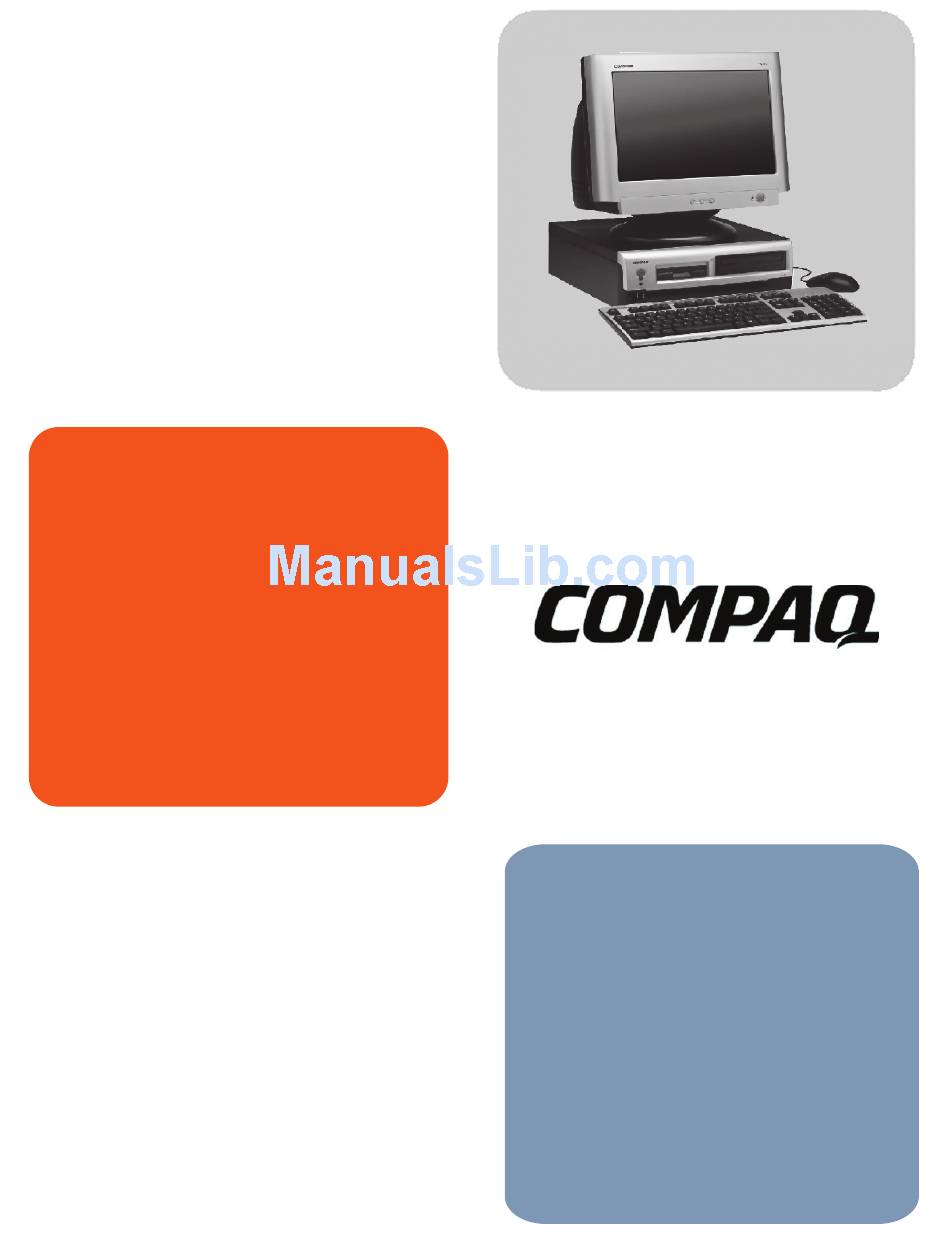

- Page 1 Compaq Evo D310 Micro Desktop technical reference manual www.hp.com/go/support...
-
Page 2: System Overview
Status System Overview This chapter introduces the internal and external features, and lists the specifications of the Compaq Evo D310 Micro Desktop PC. -
Page 3: System Features
CD-RW drive: 40X, 10X, 40X IDE (DLA and MyCD software from Veritas included). Two DDR-SDRAM sockets using: 128MB, 256MB and 512MB 266MHz DDR-SDRAM. Maximum of 1GB. Main memory Input devices Compaq PS/2 keyboard and scrolling mouse. Input Voltage: 100-127V 6A max. Power supply 200-240V 4A max ac (voltage selection switch). -
Page 4: Package Features
Line Out Microphone Keyboard Serial Video 4 USB 2.0 Connector Connector Connectors Front Panel Hard disk drive activity light Disk activity light Power on status light On/Off power 2 USB 2.0 (yellow) (green) button Connectors (amber) Evo D310 Micro Desktop 11... -
Page 5: Inside The Pc
CD-ROM, CD-RW drive, or DVD drive Main Memory Sockets Accessory board slots Hard disk drive Rear View Location of the voltage switch and power connector on the desktop AGP Graphic card (available as an option) 12 Evo D310 Micro Desktop... -
Page 6: Physical Characteristics
System Overview Specifications Physical Characteristics Characteristic Compaq Evo D310 Micro Desktop Weight (configuration with 1 CD-ROM 10.2kg (22.5 pounds) drive, excluding keyboard and display) Dimensions Width: 36cm (14.2in.) Height: 13.5cm (5.3in.) Depth: 41cm (16.2in.) Footprint 0.16m (1.78 sq ft) Environmental Specifications Environmental Specifications (System Processing Unit, with Hard Disk) °... -
Page 7: Power Consumption
To enable Suspend to RAM, enter the PC’s Setup program by pressing F2 during startup and select the Power menu. In normal mode power consumption will be around 50W. Characteristic Compaq Evo D310 Micro Desktop Power Supply Input voltage 100-127V 6A max •...
