Tenda N300 Wi-Fi xPON ONT Quick Installation Manual
Hide thumbs
Also See for N300 Wi-Fi xPON ONT:
- User manual (136 pages) ,
- Easy setup manual (10 pages) ,
- User manual (114 pages)
Table of Contents
Related Manuals for Tenda N300 Wi-Fi xPON ONT
Summary of Contents for Tenda N300 Wi-Fi xPON ONT
- Page 1 Quick Installation Guide N300 Wi-Fi xPON ONT Package contents • xPON ONT x 1 • Power adapter x 1 • Ethernet cable x 1 • User manual x 1 For product or function details, please go to www.tendacn.com to download the user guide.
-
Page 2: Get To Know The Ont

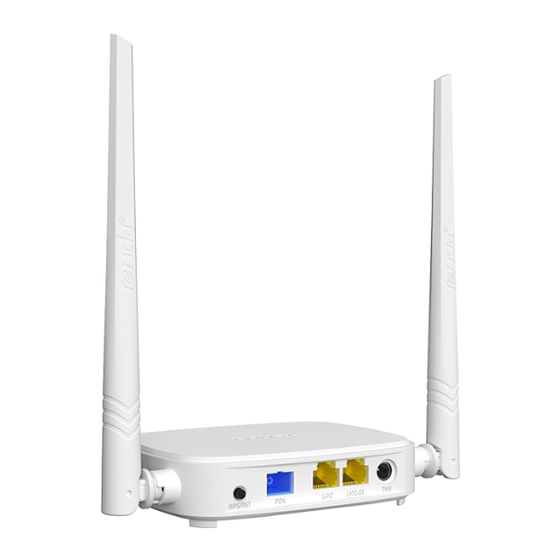

Get to know the ONT LED indicators PWR PON LOS LAN WLAN LED indicator Color Status Description The ONT is powered on properly. Solid on Green The ONT is powered off or not powered on properly. Solid on The ONT is registered successfully. Green Blinking The registration is not completed (unregistered or registering). - Page 3 Ports & Button WPS/RST LAN2 LAN1-GE Port/Button Description WPS/Reset button. • WPS: Wi-Fi-enabled devices can connect to the Wi-Fi networks of the ONT without entering the password through WPS negotiation. Press the button for 1 to 3 seconds to start the WPS negotiation process of the ONT. The WLAN LED indicators blink quickly.
- Page 4 1. Connect and register the ONT Caution, laser DO NOT look directly at the PON port when the device is powered on, as well as the terminal of the indoor fiber cord, to prevent any harm to your eyes. Connect the ONT as shown in the figure. The ONT automatically adapts to the fiber access type. Wait until the PON LED indicator lights solid on, then the ONT is registered successfully.
-
Page 5: Router Mode
2. Configure the internet access Tips: Choose a desired mode to configure your internet access: • Router mode: Choose this mode if your internet access type is PPPoE or DHCP. • Bridge mode (default): Choose this mode if your internet access type is PPPoE. Router mode Option 1 Access internet over PPPoE Step 1: Log in to the web UI... - Page 6 PON WAN This page is used to configure the parameters for PONWAN nas0_0 Enable VLAN: VLAN ID: 802.1p_Mark Multicast Vlan ID: [1-4094] Channel Mode: PPPoE Enable Bridge: Bridge Mode: Bridged Ethernet (Transparent Bridging) Admin Status: Enable Disable Connection Type: INTERNET MTU: 1492 Enable IGMP-Proxy:...
- Page 7 Step 2: Set up a WAN connection Choose WAN > PON WAN. Tick Enable VLAN. Enter the VLAN ID provided by your ISP. Set Channel Mode to IPoE. Set Connection Type to INTERNET. Click Apply Changes. PON WAN This page is used to configure the parameters for PONW nas0_0 Enable VLAN: VLAN ID:...
-
Page 8: Bridge Mode
Bridge mode Tips: When the ONT is set to Bridge mode, please con gure internet settings based on ISP requirements. Access internet over PPPoE Connect a LAN port of the ONT to the WAN port of a router using an Ethernet cable. Connect your computer to a LAN port of the router using an Ethernet cable. - Page 9 Q1: I cannot log in to the web UI by visiting 192.168.1.1. What should I do? A1: Try the following solutions: • Ensure that the ONT is powered on properly (the PWR LED indicator is solid green). • If you use a wireless device, such as a smartphone, to configure the ONT: - Ensure that your smartphone has disabled mobile data and is connected to the Wi-Fi network of the ONT.
-
Page 10: Safety Precautions
© 2022 Shenzhen Tenda Technology Co., Ltd. All rights reserved. Tenda is a registered trademark legally held by Shenzhen Tenda Technology Co., Ltd. Other brand and product names mentioned herein are trademarks or registered trademarks of their respective... - Page 11 This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. Technical Support Shenzhen Tenda Technology Co., Ltd. Floor 6-8, Tower E3, No.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 USA hotline: 1-800-570-5892...
