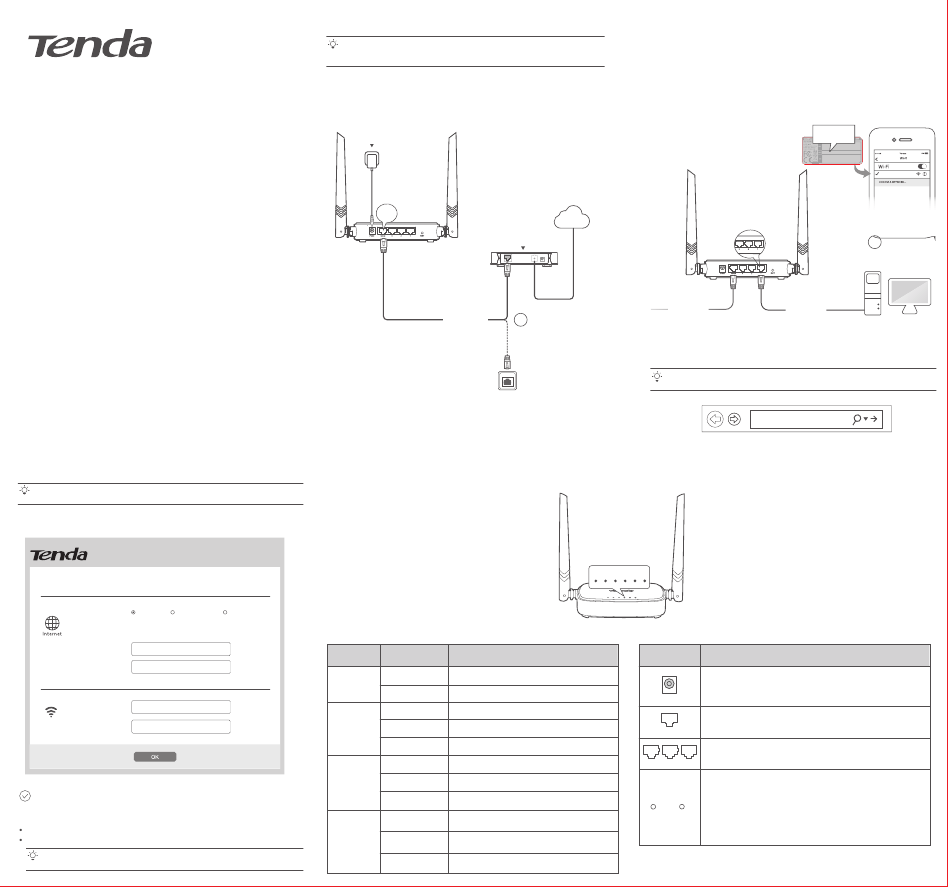

Tenda N301 Quick Installation Manual

Quick Installation Guide
Wireless N300 Easy Setup Router
N301
Package contents
• Wireless router x 1
• Power adapter x 1
• Ethernet cable x 1
• Quick installation guide x 1
3. The router detects your connection type automatically (Example: PPPoE).
Enter the User Name and Password.
Tips
If you forget your PPPoE user name and password, you can obtain the PPPoE user name and password from your ISP.
4. Set WiFi Name and WiFi Password of the router, and click OK.
You can access the internet after completing settings on this page.
As detected, your connection type is: PPPoE
Connection PPPoE Dynamic IP
Type
Select PPPoE if your Internet connection asks
for the user name and password.
User Name User name from ISP
Password Password from ISP
WiFi Name Tenda_ XXXXXX
WiFi Password WiFi Password
Done.
Connect your devices to the internet.
WiFi-enabled devices: Connect to the WiFi network using the WiFi name and password you set.
Wired devices: Connect to a LAN port (for example, 1, 2 or 3) of the router using an Ethernet cable.
Tips
If you cannot access the internet, see Q2 in FAQ.
I Connect the router
Tips
If you use the modem for internet access, please power off the modem first before connecting the WAN port of the
router to the LAN port of your modem and power it on after the connection.
1. Connect the WAN port of the router to the LAN port of your modem or the Ethernet jack using an
Ethernet cable.
2. Power on the router.
Power source
WAN
LED indicators & Buttons/ports/jacks
Static IP
LED indicator Status
Blinking
SYS
Off
Solid on
WLAN Blinking
Off
Solid on
Blinking
1/2/3
Off
Solid on
WAN
Blinking
Off
Internet
Modem (such as optical modem)
LAN
Ethernet cable
Or
Ethernet jack
SYS WLAN 1 2
Description
Router works properly
No power supply
WiFi enabled
Data transmitted wirelessly
WiFi disabled
WiFi enabled
Data transmitted wirelessly
WiFi disabled
WiFi enabled
Data transmitted wirelessly
WiFi disabled
II Connect the router to the internet
1. Connect your devices to the router.
WiFi-enabled devices: Connect to the WiFi network of the router.
- Scenario1: The default WiFi name (SSID) and WiFi password (if any) can be found on the bottom label
of the router.
- Scenario2: The default WiFi name and WiFi password (if any) can be found on the bottom label of the
router. The default WiFi name is Tenda_ XXXXXX XXXXXX
router's MAC address.
Wired devices: Connect to a LAN port (for example, 1, 2 or 3) of the router using an Ethernet cable
WiFi-enabled device
Ethernet cable
Ethernet cable
2. Start a browser on your device and enter tendawifi.com or 192.168.0.1 in the address bar to access the
web UI (Example: computer).
Tips
If you cannot log in to the web UI, see Q1 in FAQ.
tendawifi.com
3 WAN
Button/port/jack Description
Power jack.
Use the included power adapter to connect this jack to a power source for
the power supply.
PWR
Used to connect to a modem or the Ethernet jack using an Ethernet cable for
internet access.
WAN
LAN port. Used to connect to the wired devices such as computers or
switches.
3 2 1
Used to start the WPS negotiation process (available in some versions of the
router), or to reset the router.
- WPS: Hold down the WPS/RST button of the router for 1 to 3 seconds.
Within 2 minutes, enable the WPS function of the other
RST WPS/RST
WPS-supported device to establish a WPS connection.
- Reset: For the reset method, see Q3 in FAQ.
. is the last six characters of the
SSID:
Tenda_XXXXXX
Tenda_XXXXXX
Setting
Ten d a _ XXXXXX
Or
Wired device
