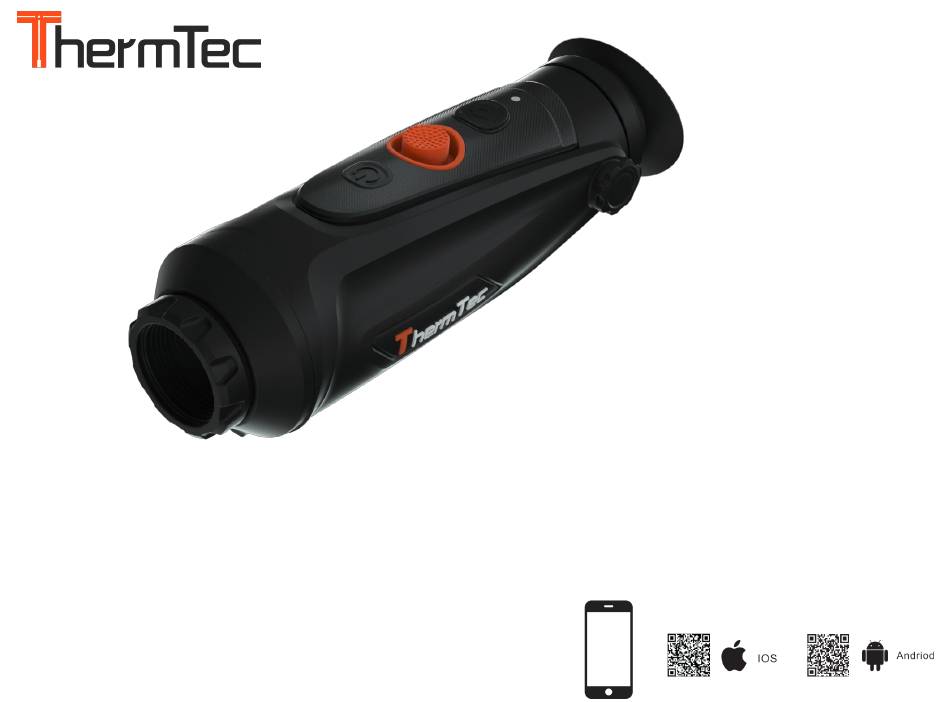

- Page 1 User Manual Thermal Imaging Monocular CYCLOPS SERIES...
-
Page 3: Table Of Contents
Table of Contents 3.3.3.2 Pseudo Color Switch About This Manual 3.3.3.3 AI Ranging Regulatory Information 3.3.4 Capture/Record 1. Introduction 1.1 Device Description 3.4 Settings 1.2 Features 3.4.1 Image Setting 1.3 Detection Range 3.4.2 System Setting 1.4 Application Scenarios 3.4.3 Network Connection 1.5 Cautions 3.4.3.1 App Download 2. -
Page 4: About This Manual
Any and all information, including, among others, wordings, pictures, graphs are the properties of ThermTec Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “ThermTec”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of ThermTec. -
Page 5: Regulatory Information
Regulatory Information This product and, if applicable, the supplied accessories are marked with “CE” and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. -
Page 6: Introduction

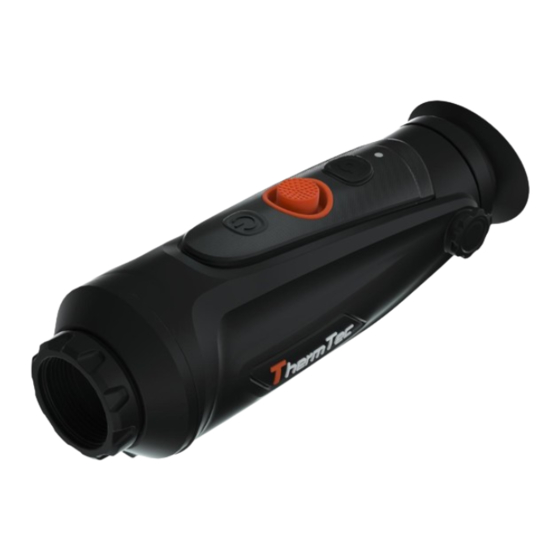

Introduction 1.1 Device Description ThermTec Cyclops Series Thermal Imaging Monocular, the new generation intelligent thermal imaging monocular, is designed with a 12μm uncooled infrared detector and can be equipped with 15mm/25mm/35mm lens and 1024x768 OLED high-definition display. With AI image recognition algorithm, it enables users to get clear views under various lighting conditions, even in complete darkness, providing reliable and high-quality visual images for night activities. -
Page 7: Features
1.2 Features 6. Photo and Video Playback 1. Mechanical Rocker Design Integrated pictures and video recording makes It balances the central of gravity, providing an sharing the thermal action quick and easy, with easier and outstanding handheld experience. the functions of playback and APP sharing. 2. -
Page 8: Detection Range
• Animal Observation 1.3 Detection Range • Outdoor Adventure The illustration below shows the comparative range • Security Law Enforcement performance of the monocular with different lens • Emergency Search and Rescue configurations. The data is based on detecting a man of 1.8m tall, a wild boar of 0.7m tall, a wolf of 0.5m tall, 1.5 Cautions a rabbit of 0.3m tall and a bird of 0.2m tall. -
Page 9: Packing List
Packing List Operation Guide Monocular 3.1 Battery Charging Lanyard USB cable The battery should be fully charged prior to use. Video output cable Note: The battery is not user replaceable. Carry bag User manual Follow the below steps to charge the battery: 1. -
Page 10: Power On/Off
Notes: When the charging indicator on the device becomes red, it means you need to charge the device immediately. The indicator turns to red when it is charging and turns to green when it finishes charging. After it turns to green, stop charging. -
Page 11: Rocker Button Operation
Diopter Adjustment Looking through the eyepiece, adjust the position of diopter level to optimize the image sharpness on the OLED display. 3.3.3 Rocker Button Operation 3.3.3.1 Zoom Objective Lens Focusing Manually adjust the objective lens focus when necessary. 3.3.3.2 Pseudo Color Switch... -
Page 12: Pseudo Color Switch
Use rocker button towards right to switch Color Palettes pseudo color. White Black There are six color palettes by default. You can choose the pseudo color you want by customizing. Unwanted colors can be turned off in the system setting. Green Golden Violet... -
Page 13: Ai Ranging
3.3.3.3 AI Ranging 3.3.4 Capture/Record Use the rocker button towards left to enable Press to take photos. Then the photo icon in or disable AI ranging function (before this the upper left corner will flash once. function is enabled, please make sure the device is in AI ranging mode. -
Page 14: System Setting
3.4.2 System Setting Press to enter the System Setting menu. Select by moving the rocker button, and short-press the rocker button to confirm the selection. Image Setting Mode Object Especially enhance target’s detail. mode It’s recommended to be used in bad weather conditions. -
Page 15: Network Connection
EIS function: Turn on the EIS function to reduce Coordinate The position of the crosshair in the impact of body shaking on the image and the picture can be adjusted keep the image stable when observing distant and separately saved. Reticle Choose the style of the targets. -
Page 16: Connect Via Wi-Fi
Search "Smart Thermal" in APP store, or scan the below QR code to download the APP. 3.4.3.2 ① 3.4.3.2 Connect via Wi-Fi 3.4.3.2 ② ① Open smart device’s personal hotspot. ② Short-press the rocker button to enter the sub-menus of Network Connection, and select WIFI for configuration. -
Page 17: App Push Notification
① Short-press the rocker button to enter the sub- menus of Network Connection, and select WIFI for configuration. ② Access the Hotspot sub-menu, and the monocular will release a hotspot network. Set the hotspot name and password and confirm them through the rocker button. -
Page 18: File Management
(1) Turn on AI and ranging function on the device. (2) Connect the APP with the device (follow Section 3.4.3). Select “Alarm”and “ Open” to turn on the push notification. 3.4.5 File Management Short-press to enter the File Management menu. Select the image and video sub-menus to view the images and videos and play the videos. -
Page 19: External Video & Data Reading
Power on the device before using a type-C to AV video cable to output analog video. When external display is connected, the OLED of the device automatically turns off the display. Power on the device, use a type-C to USB cable to connect with the computer to read the video and image data in the memory. -
Page 20: Technical Data
② Access the Setup menu and select Upgrade. Technical Data ③ The system will prompt that upgrading is in progress. When the upgrade succeeds, the device will restart automatically. 4.1 Dimensions 1. Before you update, make a backup of your photos and videos. 2. -
Page 21: Specifications
4.2 Specifications Function OLED 3 modes Type CP315 CP319 CP325 CP335 CP350 CP635 CP650 Language English Reticle 6+; adjustable coordinates Sensor Parameters Memory Card Detector Type Vox Microbolometer AI Distance Measurement Resolution/ 384 x 288/12μm 640 x 512/12μm Pixel Pitch Photo, Record, Playback NETD...
