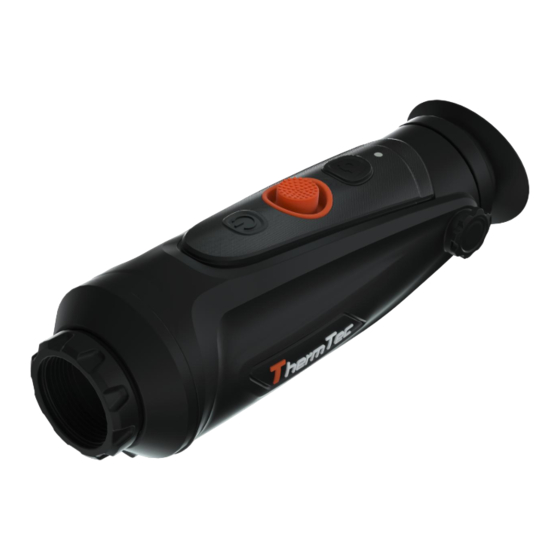

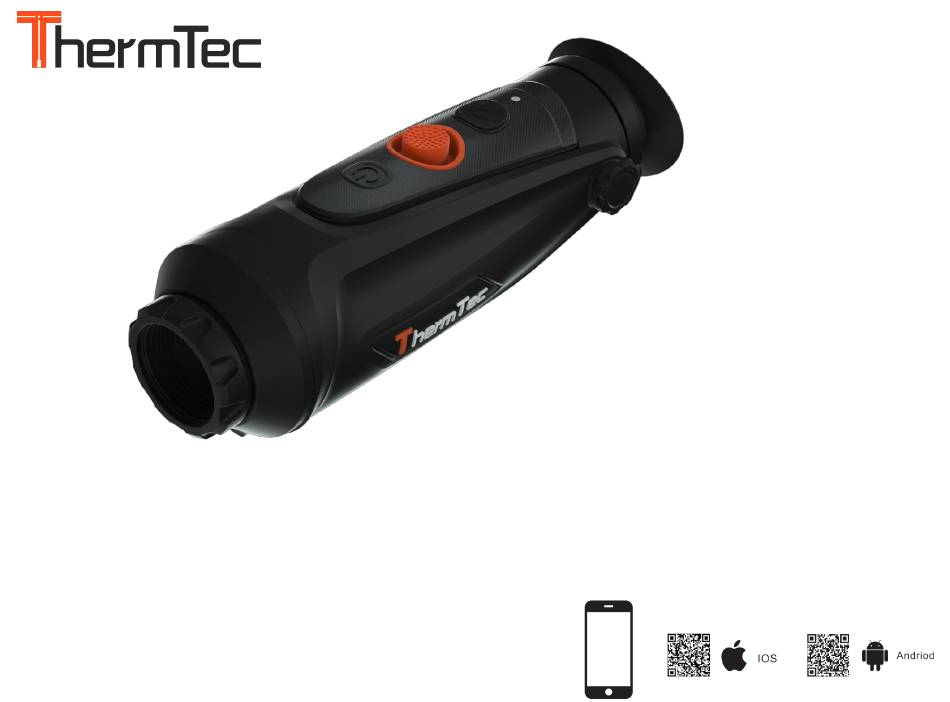

- Page 1 User Manual Thermal Imaging Monocular CYCLOPS SERIES...
-
Page 3: Table Of Contents
Table of Contents 3.3.3.2 Pseudo Color Switch About This Manual 3.3.3.3 AI Ranging Regulatory Information 3.3.4 Capture/Record 1. Introduction 1.1 Device Description 3.4 Settings 1.2 Features 3.4.1 Image Setting 1.3 Detection Range 3.4.2 System Setting 1.4 Application Scenarios 3.4.3 Network Connection 1.5 Cautions 3.4.3.1 App Download 2. -
Page 4: About This Manual
COPYRIGHT © 2022 ThermTec Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of ThermTec Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “ThermTec”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or... -
Page 5: Regulatory Information
Regulatory Information This product and, if applicable, the supplied accessories are marked with “CE” and comply therefore with the applicable harmonized European standards listed under the Radio Equipment Directive 2014/53/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU. This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 6 FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 7: Introduction
Introduction 1.1 Device Description ThermTec Cyclops Series Thermal Imaging Monocular, the new generation intelligent thermal imaging monocular, is designed with a 12μm uncooled infrared detector and can be equipped with 15mm/25mm/35mm lens and 1024x768 OLED high-definition display. With AI image recognition algorithm, it enables users to get clear views... -
Page 8: Features
1.2 Features 6. Photo Playback 1. Mechanical Rocker Design Integrated pictures makes sharing the thermal It balances the central of gravity, providing an easier and outstanding handheld experience. acting quick and easy, with the functions of playback and APP sharing. 2. -
Page 9: Detection Range
1.3 Detection Range CAUTION The illustration below shows the comparative Avoid hard objects. range performance of the monocular with different lens configurations. The data is based on detecting a man 1.8 meters tall*0.5 meters wide. Do not aim the lens directly at the sun or high-temperature light sources. -
Page 10: Packing List
Packing List Operation Guide Monocular 3.1 Battery Charging Lanyard USB cable The battery should be fully charged prior to use. Video output cable Note: The battery is not user replaceable. Carry bag User manual Follow the below steps to charge the battery: 1. -
Page 11: Power On/Off
Notes: When the charging indicator on the device becomes red, it means you need to charge the device immediately. The indicator turns to red when it is charging and turns to green when it finishes charging. After it turns to green, stop charging. 3.2 Power on/off Power on Power off... -
Page 12: Rocker Button Operation
Diopter Adjustment Looking through the eyepiece, adjust the position of diopter level to optimize the image sharpness on the OLED display. 3.3.3 Rocker Button Operation 3.3.3.1 Zoom Objective Lens Focusing Manually adjust the objective lens focus when necessary. 3.3.3.2 Pseudo Color Switch... -
Page 13: Pseudo Color Switch
Use rocker button towards right to switch Color Palettes pseudo color. Black White There are six color palettes by default. You can choose the pseudo color you want by customizing. Unwanted colors can be turned off in the system setting. Green Golden Viole... -
Page 14: Ai Ranging
3.3.3.3 AI Ranging 3.3.4 Capture/Record Use the rocker button towards left to enable Press to take photos. Then the photo or disable AI ranging function (before this icon in the upper left corner will flash once. function is enabled, please make sure the device is in AI ranging mode. -
Page 15: System Setting
3.4.2 System Setting Press to enter the System Setting menu. Select by moving the rocker button, and short-press the rocker button to confirm the selection. Image Setting Mode Object Especially enhance target’s mode detail. It’s recommended to be used in bad weather conditions. Gain both background and mode target’s detail with wide... -
Page 16: Network Connection
EIS function: Turn on the EIS function to Coordinate The position of the crosshair reduce the impact of body shaking on the in the picture can be image and keep the image stable when adjusted and separately saved. Reticle Choose the style of the observing distant targets. -
Page 17: Connect Via Wi-Fi
Search "Smart Thermal" in APP store, or scan the below QR code to download the APP. 3.4.3.2 Connect via Wi-Fi ① Open smart device’s personal hotspot. ② Short-press the rocker button to enter the sub-menus of Network Connection, and select WIFI for configuration. ③... -
Page 18: App Push Notification
① Short-press the rocker button to enter the sub-menus of Network Connection, and select WIFI for configuration. ② Access the Hotspot sub-menu, and the monocular will release a hotspot network. Set the hotspot name and password and confirm them through the rocker button. -
Page 19: File Management
(1) Turn on AI and ranging function on the device. (2) Connect the APP with the device (follow Section 3.4.3). Select “Alarm”and “ Open” to turn on the push notification. 3.4.5 File Management Short-press to enter the File Management menu. Select the image sub-menus to view the images... -
Page 20: System Software Upgrade
3.5 System Software Upgrade ① Connect the device to your computer and drag the upgrade file to the folder. File Setting Image Access the Image sub- menu, and select photo files through the rocker button for management. -
Page 21: Technical Data
② Access the Setup menu and select Upgrade. 4.1 Dimensions ③ The system will prompt that upgrading is in progress. When the upgrade succeeds, the device will restart automatically. Technical Data... -
Page 22: Specifications
4.2 Specifications Function OLED 3 modes Type CP315 CP325 CP335 CP635 CP650 Language English Reticle 6+; adjustable coordinates Sensor Parameters Memory Card Detector Type Vox Microbolometer AI Distance Measurement Resolution/ 384 x 288/12μm 640 x 512/12μm Pixel Pitch Photo, Record, NETD ≤40mk@300k ≤35mk@300k...
