ThermTec CYCLOPS SE Series User Manual

Thermal imaging monocular

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

Series

Thermal Imaging Monocular

CYCLOPS SE

SERIES

User Manual

Need help?

Do you have a question about the CYCLOPS SE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ThermTec CYCLOPS SE Series

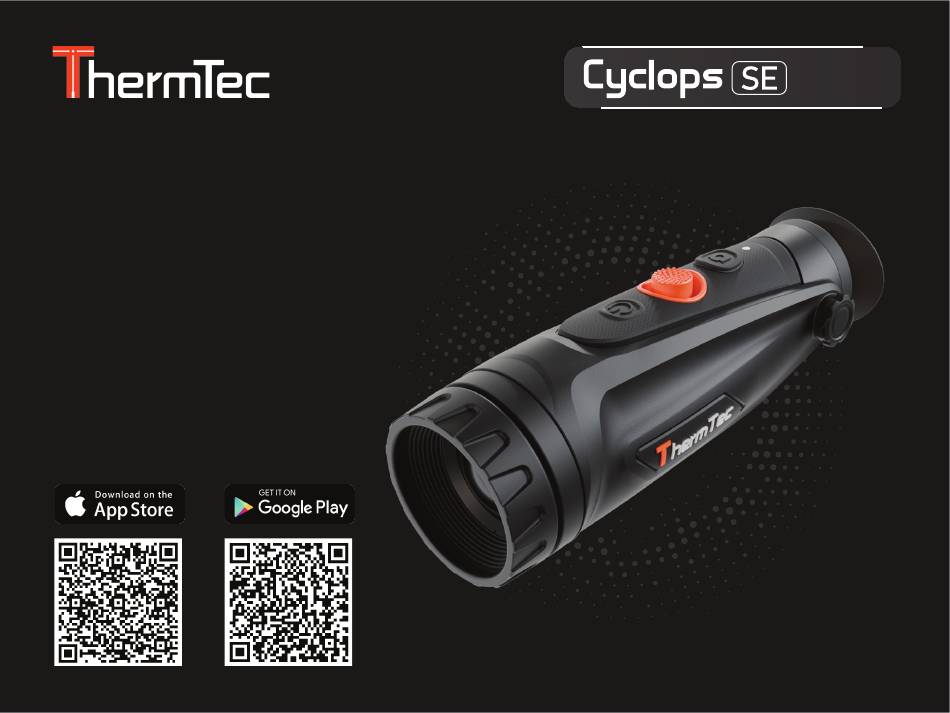

Page 1 Series Thermal Imaging Monocular CYCLOPS SE SERIES User Manual...
Page 3 Content About This Manual 3.3.3 Joystick Operation Regulatory Information 3.3.3.1 Zoom 1. Introduction 3.3.3.2 Pseudo Color Switch 1.1 Device Description 3.3.3.3 Target Outline Function 1.2 Features 3.3.3.4 AI Ranging 1.3 Detection Range 3.3.4 Capture/Record 1.4 Application Scenarios 3.4 Settings 1.5 Cautions 3.4.1 Image Setting 2.
Page 4 Any and all information, including, among others, wording, pictures, graphs are the properties of ThermTec Technol- ogy Co., Ltd. or its subsidiaries (hereinafter referred to as “ ThermTec” ). This user manual (hereinafter referred to be “the Manual” ) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of ThermTec.
Page 5 Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/53/EU(RED), Directive 2014/30/EU(EMC),...
Page 6 Introduction 1.1 Device Description ThermTec Cyclops-SE Series Thermal Imaging Monocular, a next-generation intelligent thermal imaging device, features a 12μm uncooled infrared detector, a 35mm objective lens, and a 1024x768 OLED high-deﬁnition display. With its AI image recognition algorithm, it delivers clear views in various lighting conditions, including complete darkness, ensuring reliable, high-quality visuals for nighttime activities.
Page 7 6. Photo and Video Playback Integrated pictures and video recording makes sharing the thermal action quick and easy, with the functions of playback and APP sharing. 7. Long Battery Life Built-in battery with up to 16H super long standby, recording every and instant moment of your hunting and outdoor experience.
Page 8 1.3 Detection Range 1.4 Application Scenarios The illustration below shows the comparative range Animal Observation performance of the monocular with di erent lens con gura- Outdoor Adventure tions. The data is based on detecting a car of 4m, a man of Security Law Enforcement 1.8m tall, a wild boar of 0.7m tall, a wolf of 0.5m tall, a rabbit Emergency Search and Rescue...
Page 9 Operation Guide Packing List 3.1 Battery Charging The battery should be fully charged prior to use. Note: The battery is not user replaceable. Follow the below steps to charge the battery: Monocular (x1) User manual (x1) 1. Lift the cover from the USB port. 2.
Page 10 Notes: When the charging indicator on the device becomes red, it means you need to charge the Charging Indicator device immediately. The indicator turns to red when Eyepiece it is charging and turns to green when it ﬁnishes Capture charging. After it turns to green, stop charging. Joystick 3.2 Power on/oﬀ...
Page 11 Before entering the main menu Long press Short press Double-Click Power on/oﬀ Standby mode on/oﬀ Take videos Take photos Down Left Right Center Short push Long push Brief press Double press Zoom in Zoom out AI Ranging Peseudo Outline mode Calibration Main menu switch...
Page 12 3.3.2. Lens Adjustment Diopter Adjustment Looking through the eyepiece, adjust the position of diopter level to optimize the image sharpness on the OLED display. 3.3.3 Joystick Operation 3.3.3.1 Zoom Zoom out Zoom in Objective Lens Focusing Manually adjust the objective lens focus when necessary.
Page 13 3.3.3.2 Pseudo Color Switch Color Palettes Use joystick towards right to switch pseudo color. White Black There are six color palettes by default. You can choose the pseudo color you want by customizing. Unwanted colors can be turned oﬀ in the system setting. Green Golden Violet...
Page 14 3.3.3.3 Target Outline Function Use the joystick towards left to enable or disable AI ranging function (before this function is enabled, Long press the joystick towards right to activate the please make sure the device is in AI ranging mode. Target Outline Mode.
Page 15 3.3.3.4.1 Turning on AI Ranging Function Double click the joystick to enter the main menu, and check whether the AI ranging function is enabled (this function is enabled by default). If not, press to enter the System Setting menu, and press Ranging and AI to turn on this function.
Page 16 3.3.4 Capture/Record 3.4.1 Image Setting Press to take photos. Then the photo icon in the Press to enter the Imaging Setting menu. There are ﬁve upper left corner will ﬂash once. sub-menus for image setting, which are “Image Mode” , “Sharpness”...
Page 17 Image Setting System Setting Electronic Image Stabilization. Can Especially enhance target s detail. Object be turned on/oﬀ in the system It s recommended to be used in bad mode setting. weather conditions. AI distance measurement Mode Ranging MIL distance measurement Forest Obtaining both background and In the picture, the image is 2x...
Page 18 EIS function: Turn on the EIS function to reduce the impact of body shaking on the image and keep the image stable when observing distant targets. Notes: The date will be displayed on the screen only when entering the Stand-by Mode. 3.4.3 Date &...
Page 19 3.4.4.1 APP Download Connect mobile client with device s hotspot. Search "ThermTec Outdoor" in APP store, or scan the below QR code to download the APP. 3.4.4.2 Connect via Hotspot After the connection, you could control Turn on device s hotspot.
Page 20 3.4.5 File Management 3.5 External Video & Data Reading Power on the device before using a type-C to AV video Short-press to enter the File Management menu. cable to output analog video. When external display is Select the image and video sub-menus to view the connected, the OLED of the device automatically turns images and videos and play the videos.
Page 21 3.6 System Software Upgrade Cyclops-SE series thermal imaging monocular supports “ThermTec Outdoor” APP, which allows you to transmit the image from the thermal imager to the smartphone or tablet via Hotspot in real time mode. 3.6.1 Upgrading via APP Open ThermTec Outdoor APP.
Page 22 Technical Data 4.1 Dimensions 64.1 ± 196.4 ±...
Page 23 4.2 Dimensions Function Model Cyclops335 SE Photo/video Microbolometer playback Language Multiple-languages Resolution 384x288 Inbuilt Memory 64GB Pixel Pitch 12µm Calibration Auto/Manual NETD 20mK@300k Spectral range 8-14µm AI/MIL Distance Frame rate 50HZ Measurement Detection 1800m Heat Track Range Real-time Optics Notiﬁcation Objective lens 35mm/F1.0 OSD Recording...

This manual is also suitable for:

Cyclops 335 se
