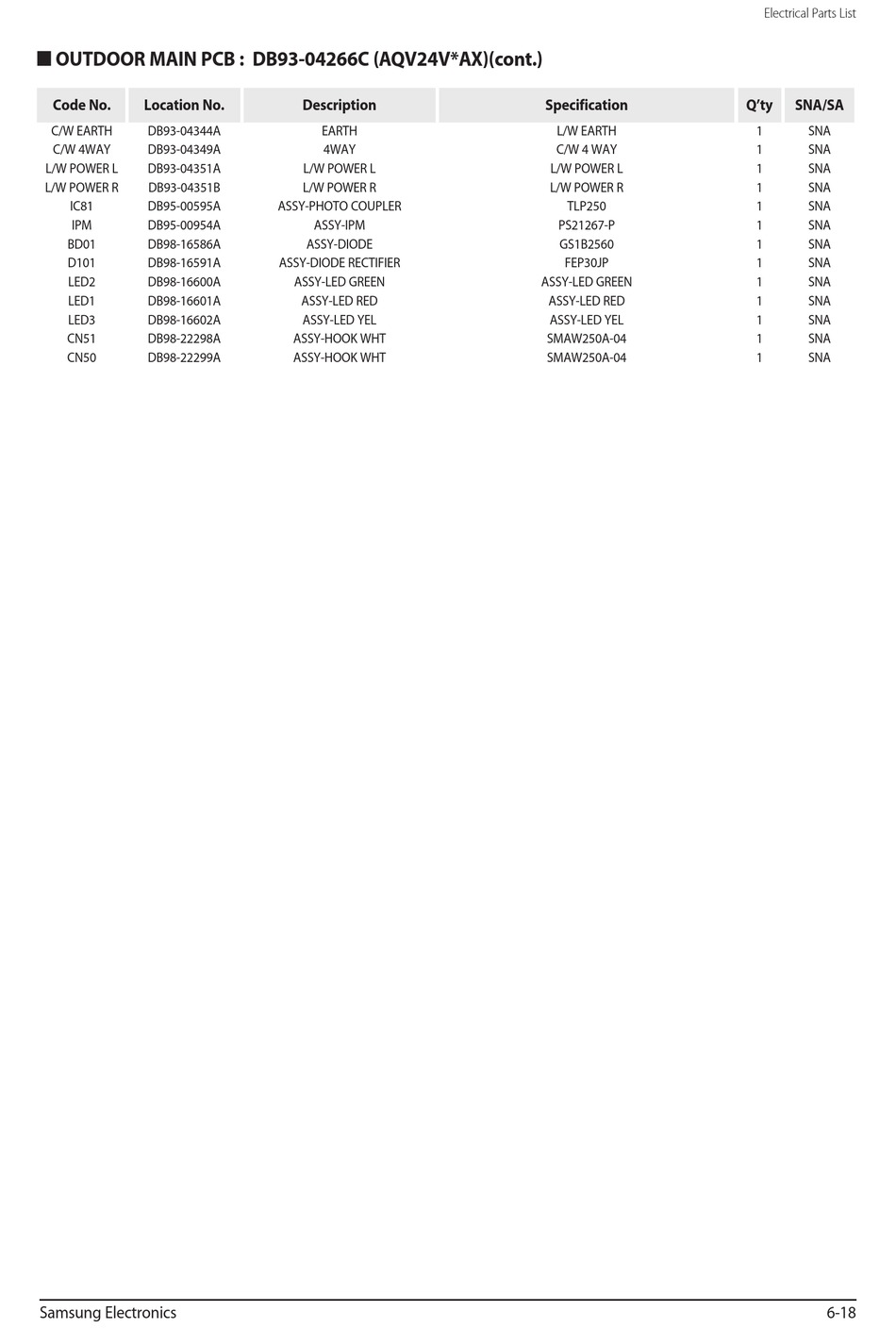

 OUTDOOR MAIN PCB : DB93-04266C (AQV24V*AX)(cont.)
Code No. Location No.
C/W EARTH DB93-04344A
C/W 4WAY DB93-04349A
L/W POWER L DB93-04351A
L/W POWER R DB93-04351B
IC81 DB95-00595A
IPM DB95-00954A
BD01 DB98-16586A
D101 DB98-16591A
LED2 DB98-16600A
LED1 DB98-16601A
LED3 DB98-16602A
CN51 DB98-22298A
CN50 DB98-22299A
Samsung Electronics
Description
EARTH
4WAY
L/W POWER L
L/W POWER R
ASSY-PHOTO COUPLER
ASSY-IPM
ASSY-DIODE
ASSY-DIODE RECTIFIER
ASSY-LED GREEN
ASSY-LED RED
ASSY-LED YEL
ASSY-HOOK WHT
ASSY-HOOK WHT
Specification
L/W EARTH
C/W 4 WAY
L/W POWER L
L/W POWER R
TLP250
PS21267-P
GS1B2560
FEP30JP
ASSY-LED GREEN
ASSY-LED RED
ASSY-LED YEL
SMAW250A-04
SMAW250A-04
Electrical Parts List
Q'ty SNA/SA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
6-18
