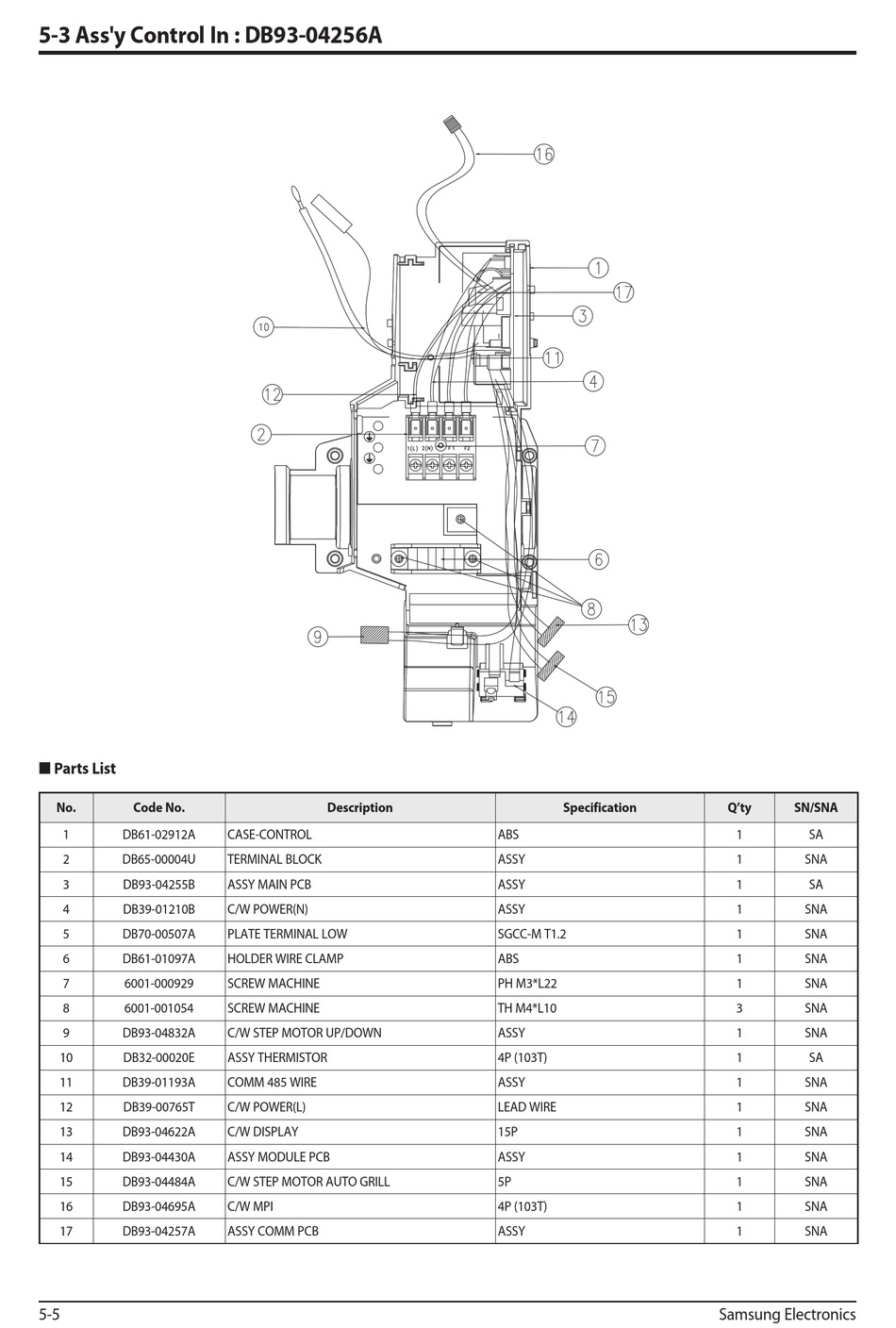

Samsung AQ18VBA Service Manual page 14

5-3 Ass'y Control In : DB93-04256A
 Parts List
No. Code No.
1 DB61-02912A
2 DB65-00004U
3 DB93-04255B
4 DB39-01210B
5 DB70-00507A
6 DB61-01097A
7 6001-000929
8 6001-001054
9 DB93-04832A
10 DB32-00020E
11 DB39-01193A
12 DB39-00765T
13 DB93-04622A
14 DB93-04430A
15 DB93-04484A
16 DB93-04695A
17 DB93-04257A
5-5
Description
CASE-CONTROL
TERMINAL BLOCK
ASSY MAIN PCB
C/W POWER(N)
PLATE TERMINAL LOW
HOLDER WIRE CLAMP
SCREW MACHINE
SCREW MACHINE
C/W STEP MOTOR UP/DOWN
ASSY THERMISTOR
COMM 485 WIRE
C/W POWER(L)
C/W DISPLAY
ASSY MODULE PCB
C/W STEP MOTOR AUTO GRILL
C/W MPI
ASSY COMM PCB
Specification
ABS
ASSY
ASSY
ASSY
SGCC-M T1.2
ABS
PH M3*L22
TH M4*L10
ASSY
4P (103T)
ASSY
LEAD WIRE
15P
ASSY
5P
4P (103T)
ASSY
Q'ty SN/SNA
1 SA
1 SNA
1 SA
1 SNA
1 SNA
1 SNA
1 SNA
3 SNA
1 SNA
1 SA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
