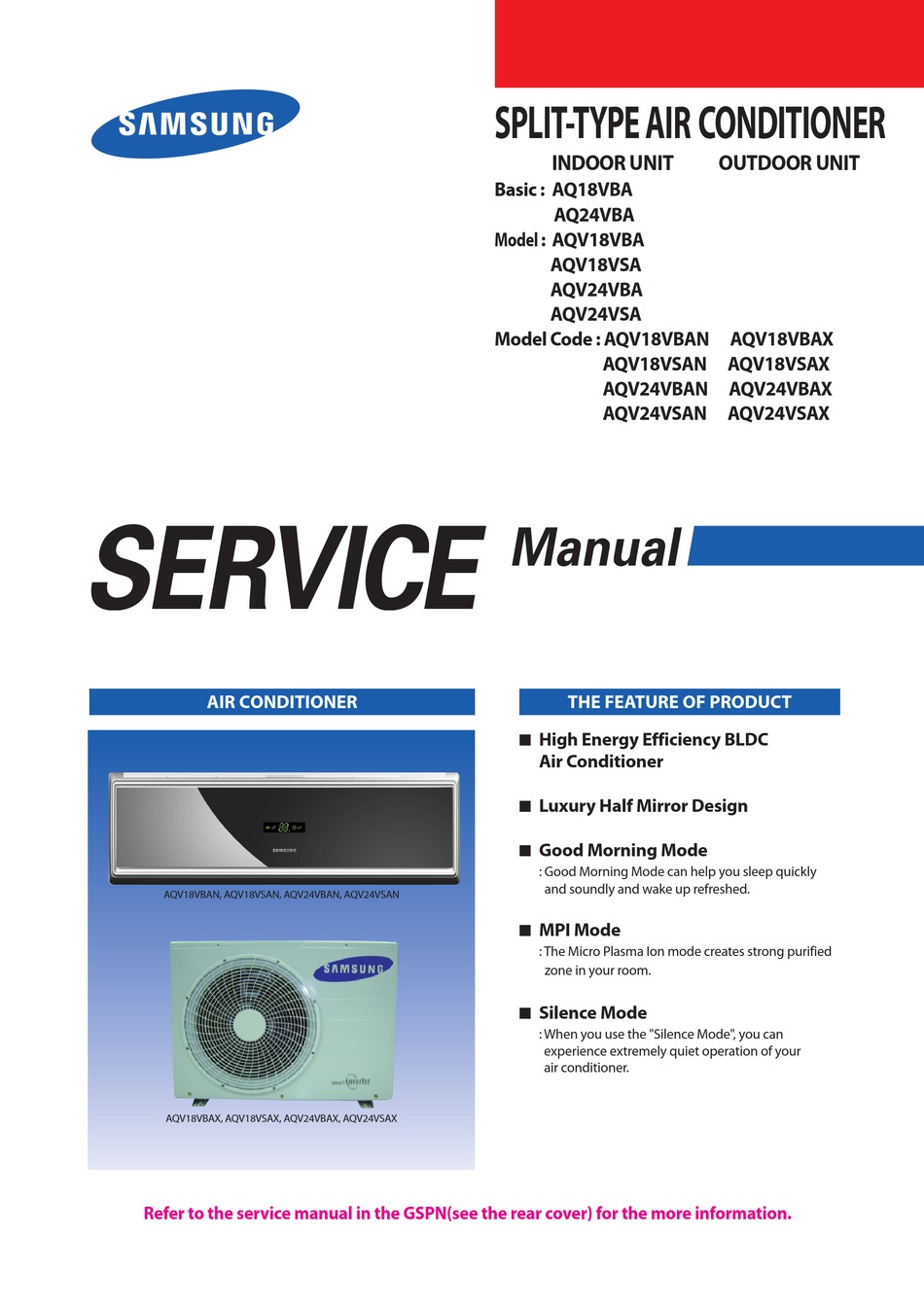

AIR CONDITIONER
AQV18VBAN, AQV18VSAN, AQV24VBAN, AQV24VSAN
AQV18VBAX, AQV18VSAX, AQV24VBAX, AQV24VSAX
Refer to the service manual in the GSPN(see the rear cover) for the more information.
SPLIT-TYPE AIR CONDITIONER
INDOOR UNIT
Basic : AQ18VBA
AQ24VBA
Model : AQV18VBA
AQV18VSA
AQV24VBA
AQV24VSA
Model Code : AQV18VBAN AQV18VBAX
AQV18VSAN AQV18VSAX
AQV24VBAN AQV24VBAX
AQV24VSAN AQV24VSAX
THE FEATURE OF PRODUCT
High Energy Efficiency BLDC
Air Conditioner
Luxury Half Mirror Design
Good Morning Mode
: Good Morning Mode can help you sleep quickly
and soundly and wake up refreshed.
MPI Mode
: The Micro Plasma Ion mode creates strong purified
zone in your room.
Silence Mode
: When you use the "Silence Mode", you can
experience extremely quiet operation of your
air conditioner.
OUTDOOR UNIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQ18VBA and is the answer not in the manual?

Questions and answers

Related Manuals for Samsung AQ18VBA

Summary of Contents for Samsung AQ18VBA

  • Page 1 SPLIT-TYPE AIR CONDITIONER INDOOR UNIT OUTDOOR UNIT Basic : AQ18VBA AQ24VBA Model : AQV18VBA AQV18VSA AQV24VBA AQV24VSA Model Code : AQV18VBAN AQV18VBAX AQV18VSAN AQV18VSAX AQV24VBAN AQV24VBAX AQV24VSAN AQV24VSAX AIR CONDITIONER THE FEATURE OF PRODUCT High Energy Efficiency BLDC  Air Conditioner Luxury Half Mirror Design ...
  • Page 2 5-3 Ass’y Control In ..........................5-4 Ass’y Control Out ..........................16. Electrical Parts List ........................17. Wiring Diagram ..........................7-1 Indoor Unit ............................7-2 Outdoor Unit ............................ 18. Schematic Diagram ........................8-1 Indoor Unit ............................8-2 Outdoor Unit ............................ Samsung Electronics...

  • Page 3: Table Of Contents

    14-2 Low Refrigerant Pressure Distribution 14-2 ..................14-3 Pressure & Capacity mark 14-3 ......................14-4 Q & A for Non-trouble 14-4 ........................14-5 Cleaning/Filter Change 14-7 ......................... 14-6 Installation 14-9 ............................14-7 Installation Diagram of Indoor Unit and Outdoor Unit 14-10 ............Samsung Electronics...
  • Page 4 Good Morning Mode can help you sleep quickly and soundly and wake up refreshed.  MPI Mode The Micro Plasma Ion mode creates strong purified zone in your room.  Silence Mode When you use the “Silence Mode”, you can experience extremely quiet operation of your air conditioner. Samsung Electronics...
  • Page 5 Outdoor Unit : DB7°C WB 6°C indoor 16°C ~ 32°C 16°C ~ 32°C cooling Outdoor -10°C ~ 43°C -10°C ~ 43°C Operation conditon range indoor 27°C or less 27°C or less heating Outdoor -15°C ~ 24°C -15°C ~ 24°C Samsung Electronics...
  • Page 6 Outdoor Unit 58dB↓ 60dB↓ Silver Nano Evaporator Silver Nano Evaporator Filter Anti Allergy Filter Anti Allergy Filter Air Purifying System Deodorizing Fiter Deodorizing Fiter Micro Plasma Ion MPI Mode MPI Mode Indoor Display Digital i Display Digital i Display Samsung Electronics...
  • Page 7 2-4 Accessory and Option Specifications 2-4-1 Accessories Item Descriptions Code-No. Q'TY Remark Ass'y Plate Hanger DB70-00505A Remote Control DB93-04394G Indoor Batteries for Remote Control DB47-90024A Unit User’s Manual DB98-27268A Installation Manual DB98-27270A Samsung Electronics...
  • Page 8 Remark Drain Plug DB67-20011A Outdoor Unit Rubber Leg DB73-20134A Assembly Pipe, ø6.35mm DB96-06553A Assembly Pipe, ø12.70mm DB96-06553E **18** Assembly Pipe, ø15.88mm DB96-06553G **24** Accessory PE T3 Foam Tube Insulation DB72-50165A Vinyl Tape, Width 50mm DB72-00459A Drain Plug DB67-20011A Samsung Electronics...
  • Page 9 Operating Instructions and Installation Accessories(cont.) Item Descriptions Code-No. Q'TY Remark Rubber Leg DB73-20134A Pipe Clamps A DB39-20224A Pipe Clamps B DB39-20224B Accessory Cement Nail M4x16 Tapping Screws 6002-000215 Drain Hose, length 2m DB62-00487A Putty 100g DB98-10568A Samsung Electronics...
  • Page 10 �� � �� �� � � � ��� � �� � ��� � ��� ��� ��� ��� ��� ��� ��� ��� ��� ��� ���� ���� ��� ���� ��� ���� ���� ���� ��� ��� ��� ���� ���� ���� ��� Samsung Electronics...
  • Page 11 Class E DB94-01153B ASSY BODY BACK ASS’Y 13-1 DB61-03029A BODY BACK HIPS 13-2 DB93-04230A ASSY COMPACT MPI ASS’Y 13-3 DB63-01583A COVER MPI HIPS DB61-01981B HOLDER PIPE HIPS DB67-00499C CAP SCREW HIPS DB70-00505A PLATE HANGER SGCC-M DB93-04394G ASSY REMOCON ARH-1346 Samsung Electronics...
  • Page 12 5-2 Outdoor Unit Samsung Electronics...
  • Page 13 VALVE EXPANSION BODY FUJIKOKI 20-3 DB62-02283A VALVE SERVICE R410A, SANHUA, 1/4” DB61-03167A GUIDE SCREEN P.E.H 100% DB93-04268D ASS’Y CONTROL OUT ASS’Y DB93-04268C ASS’Y CONTROL OUT ASS’Y DB32-00176A THERMISTOR OUT/DIS ASS’Y DB32-00175A THERMISTOR COND ASS’Y DB39-01301A CONNECT WIRE COMP ASS’Y Samsung Electronics...
  • Page 14 ASSY THERMISTOR 4P (103T) DB39-01193A COMM 485 WIRE ASSY DB39-00765T C/W POWER(L) LEAD WIRE DB93-04622A C/W DISPLAY DB93-04430A ASSY MODULE PCB ASSY DB93-04484A C/W STEP MOTOR AUTO GRILL DB93-04695A C/W MPI 4P (103T) DB93-04257A ASSY COMM PCB ASSY Samsung Electronics...
  • Page 15 MEMO Samsung Electronics...
  • Page 16 5-4 Ass'y Control Out  A QV18V*AX : DB93-04268D AQV24V*AX : DB93-04268C Samsung Electronics...
  • Page 17 MICA 6002-000630 SCREW-TAPPING PH+,M2,L8 DB91-00306A ASSY-SCREW MACHINE PH+,M3,L16 DB91-00307A ASSY-SCREW MACHINE PH+,M4,L16 6002-000555 SCREW-TAPPING PH+,M4,L25 6001-001054 SCREW-MACHINE TH+,M4,L10 6009-001001 SCREW-SPECIAL TH+,M4,L8 6002-000536 SCREW-TAPPING PH+,M4,L10 DB61-00206B HOLDER-WIRE SGCC_M,T0.5 6002-000231 SCREW-TAPPING PH+,M4,L10 DB65-10088D CABLE-TIE NYLON66 DB95-01040E ASSY NOISE ABSORBER ASSY Samsung Electronics...
  • Page 18 8. Schematic Diagram 8-1 Indoor Unit This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 19 8-2 Outdoor Unit This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 20 4. Disassembly and Reassembly Necessary Tools Item Remark +SCREW DRIVER MONKEY SPANNER Samsung Electronics...
  • Page 21 2) Please open the front grille. 3) Please detach link grilles from main frame. 4) To detach front grille from main frame, please catches finger stop 5) Please loosen clamping screw and detach the terminal cover. 6) Please take out filter to downward. Samsung Electronics...
  • Page 22 2EA at the front of the panel front. 9) Loosen the screw of the ASSY DISPLAY. 10) Please separate Linked connector from the assy display. 11) Unlock 2 hooks between panel front and try drain to seperate panel front. Samsung Electronics...
  • Page 23 12) Unlock 2 hooks between panel front and back body. TRAY DRAIN 1) Please detach stepping motor wire. 2) Please pull tray drain and separate from back body. evap 1) Loosen the ground wire screw. 2) Detach the temperature sensor. 3) Detach the holder pipe. Samsung Electronics...
  • Page 24 5) Loosen 1EA screw, right of holder motor. 6) Detach the heat exchanger from indoor unit. MAIN PCB 1) Loosen 4EA screws of holder. 2) Detach Link wires of indoor, outdoor unit and fan motor. 3) Detach assy control from indoor unit. Samsung Electronics...
  • Page 25 Disassembly and Reassembly Parts Procedure Remark Fan Motor 1) Loosen 2EA screws of holder motor and & Detach the holder. Cross Fan 2) Loosen a screw and detach the cross fan. 3) Detach the holder bearing and motor. Samsung Electronics...
  • Page 26 1) Loosen 1 fixing screw(CCW) of the Cover- Control and detach the Cover Control. 2) Loosen fixing screws(CCW) and detach the Cabinet-Upper. 3) Loosen 1 screw(CCW) fixed to assemble Control Box with Cabinet-Side RH. 4) Loosen 6 fixing screws(CCW) and detach the Cabinet-Side RH. Samsung Electronics...
  • Page 27 Disassembly and Reassembly Parts Procedure Remark 5) Loosen 2 screws(CCW) fixed on the Guide Condenser. 6) Loosen fixing screws(CCW) of the Cabinet Front. Samsung Electronics...
  • Page 28 Motor 2) Detach the Fan Propeller. 3) Loosen 4 fixing screws(CCW) to detach the Motor. 4) Disconnect the wire between Ass’y Control Out and Motor. 5) Loosen 2 fixing screws(CCW) and detach the Bracket Motor. Samsung Electronics...
  • Page 29 Compressor 1) Loosen the fixing nut(CCW) and detach the Compressor Lead Wire. 2) Disassemble the Felt Comp Sound. 3) Loosen the 3 bolts(CCW) at the bottom of Compressor like the picture on the right side. 4-10 Samsung Electronics...
  • Page 30 MEMO Samsung Electronics 4-11...
  • Page 31 The compressor operates in a reverse cycle to remove Indoor fan and outdoor fan stop operation intermittently exterior ice in a HEAT mode, and indoor fan and outdoor in a HEAT mode. fan do not operate intermittently for within 20% of the total heater operation 12-1 Samsung Electronics...
  • Page 32 Replace fuse FUSE(F701) : T3.15[A]/250[V] Check the output of SMPS on the control board. Input power: AC230±15%[V] PCB should be replaced IC02 Input: DC12[V] IC02 output: DC5[V]  Check the setting temperature Samsung Electronics 12-2...
  • Page 33 Is there no error at the insertion of PCB? Exchange the PCB. Exchange the PCB. Are the BLDC FAN Wire Is the +,- of C102 short? 1 and 3 short? Exchange the PCB. Exchange the BLDC FAN. Normal Operation Exit 12-3 Samsung Electronics...
  • Page 34 Voltage at pin #30~#34 of micom (IC04) Micom (IC04) is faulty. change?(Squarewave) Voltage at Driver IC05/06 (ULN2003A) is faulty. pin #2 ~ #5 of CN61(motor connector) change?(Squarewave) Up/Down louver motor is faulty. Samsung Electronics 12-4...
  • Page 35 Pull out the power cord and during the operation?(Square-Wave) execute the following step after 30 seconds. Disassemble the BLDC FAN Wire. Is the short between Exchange the PCB. the BLDC FAN Wires? Exchange the BLDC FAN MOTOR. Exchange the PCB. 12-5 Samsung Electronics...
  • Page 36 Pull out the power cord and exchange the PCB from the case after 30 seconds. Is the assembly of Micom and Exchange the PCB. peripheral circuit part good? Check again after assembly of PCB. Samsung Electronics 12-6...
  • Page 37 4 way valve coil. Dose the voltage of AC 220V Exchange apply to the connector of 4 way the outdoor PCB. valve coil during the operation? Go to the next page 4 way valve main body error 12-7 Samsung Electronics...
  • Page 38 Connect the connector. correctly? Check the resistance value Outdoor fan error of outdoor fan. Dose the voltage of DC300V apply to the connector of outdoor Check the motor wire. fan during the operation of outdoor unit? Outdoor PCB error Samsung Electronics 12-8...
  • Page 39 Exchange the sensor. (Refer to the R/T TABLE) Is the resistance value of sensor connection pull_up 18.2K? Exchange the PCB. Exchange the PCB. Normal operation Exit 400.0 350.0 300.0 250.0 200.0 150.0 100.0 50.0 12-9 Samsung Electronics...
  • Page 40 Exchange the sensor. (Refer to the R/T TABLE) Is the resistance value of sensor connection pull_up 24K? Exchange the PCB. Exchange the PCB. Normal operation Exit 600.0 500.0 400.0 300.0 200.0 100.0 Samsung Electronics 12-10...
  • Page 41 Exchange the sensor. (Refer to the R/T TABLE) Is the resistance value of sensor connection pull_up 18.2K? Exchange the PCB. Exchange the PCB. Normal operation Exit 400.0 350.0 300.0 250.0 200.0 150.0 100.0 50.0 12-11 Samsung Electronics...
  • Page 42 4) Is the resistance value of sensor connection pull_up correct? 2. Troubleshooting procedure Remove the Fan lock. Isn't the Fan locked? Is the connector connected correctly? Connect the connector. Is the color of Fan wire matched correctly? Exchange the Fan. Exchange the PCB. Normal operation Exit Samsung Electronics 12-12...
  • Page 43 1, 2 correct after power supply? Is the capacitor(C101, C102, C103) Connect the connector. for DC-Link assembled in accordance the specification? Are R113, R114, R115 470kohm? Exchange the PCB. Is R116 14.3kohm? Exchange the Fan. Exchange the PCB. Normal operation Exit 12-13 Samsung Electronics...
  • Page 44 Is the position of temperature sensor Correct the sensor position or and the sensing value normal? exchange the sensor. Is the connection cable for Correct the cable connection. the compressor and power terminal normal? Exchange the PCB. Samsung Electronics 12-14...
  • Page 45 Correct the wrong wiring. and communication cable error? Is the connection of Correct the connection of communication cable normal? communication cable. Is it the outdoor Exchange the indoor/outdoor unit PCB. 2 Micom(Inverter + Main) model? Exchange the outdoor unit PCB. 12-15 Samsung Electronics...
  • Page 46 Exchange the compressor. compressor (uv, vw, wu) normal? Is the compressor body and Exchange the compressor. interphase resistance insulated? Is the connection cable for the Correct the cable connection. compressor and power terminal normal? Exchange the PCB. Samsung Electronics 12-16...
  • Page 47 Exchange the compressor. compressor (uv, vw, wu) normal? Is the compressor body and Exchange the compressor. interphase resistance insulated? Is the connection cable for the Correct the cable connection. compressor and power terminal normal? Exchange the PCB. 12-17 Samsung Electronics...
  • Page 48 Is the resistance for the Exchange the PCB. detection of DC Link voltage normal? Is the resistance value of Exchange the PCB. DC Link discharge normal? Is the reactor insulation damaged? Exchange the PCB. Exchange the reactor. Samsung Electronics 12-18...
  • Page 49 12-2-18 The others 1. AC Line Zero Cross Signal OUT – Check the assembly condition of peripheral part of IC21, ZD21, ZD20 and D200 on the PCB. 2. Capacity miss match – Check again the indoor unit option code. 12-19 Samsung Electronics...
  • Page 50 2) The fan motor of the indoor unit doesn’t run. • Fan Motor Connector(CN72) is faulty 3) The power voltage between terminal #3 and #5 • ASS’Y Main PCB is faulty of the connector(CN72) is 0V. • Connection is faulty Samsung Electronics 12-20...
  • Page 51 1) Is CN01 1, 3 over 250V? • Outdoor PCB Error 2) Is CN01 3, 5 within 1V~5V? • BLDC Motor Error 3) Is the voltage of CN01 6 changed? 4) Is the resistance of BLDC Motor 1, 3 opened after power off? 12-21 Samsung Electronics...
  • Page 52 ∞, 0Ω . . . Open or Short Stepping Motor Measure the resistance between the red wire and each terminal wire with a tester. Normal About 300Ω at the normal temperature (20˚C ~ 30˚C) Abnormal ∞, 0Ω . . . Open or Short Samsung Electronics 12-22...
  • Page 53 • Because the Test Mode operate the cool mode by force not related to the set temperature / indoor temperature, check whether each subordinate is operated normally or not after completing installation and must turn off the power of the air conditioner. Samsung Electronics...
  • Page 54 Indoor Fan Motor Abnormal Operation FAN Error Holding for 15 sec. at less than 450rpm 1min. Time out Communication MPI Error All Lamps Blink EEPROM Error All Lamps Blink Option Error Option Not Set up, Option Data Error Samsung Electronics...
  • Page 55 ● ○ GAS Leak error ● ● ◎ AC Line Zero Cross Signal out ● ● ● Power ON reset(1sec) ◎ ○ ○ Capacity miss match ● : LED ON, ○ : LED OFF, ◎ : LED BLINK Samsung Electronics...
  • Page 56  Setting is not required if you must Every time you push the button, the display panel reads   a value which has a default.  . . .        repeatedly. Samsung Electronics...
  • Page 57 If all lamps of indoor unit are flickering, Plug out, plug in power plug again and press ON/OFF key to retry. If the unit is not working properly or all lamps are continuously flickering after setting the option code, see if the correct option code is set up for its model. Samsung Electronics...
  • Page 58 Operating Instructions and Installation Alignment and Adjustments OPTION ITEMS REMOCON SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 MODEL AQV18VBAN AQV18VSAN AQV24VBAN AQV24VSAN Samsung Electronics...
  • Page 59 : BLADE CONTROL SELECT(UP/DOWN) MELODY CONTROL PART SLEEP OPERATION DC5V VOLTAGE REGULATOR ANION SELECT SPEAKER AUTO CLEAN SELECT OPTION ENERGY SAVING SELECT DC12V SMPS POWER BLOCK SOUND ON/OFF SELECT DIGITAL ON/OFF DC5V DC12V AC230V AC INPUT DC25V 13-1 Samsung Electronics...
  • Page 60 Block Diagram INDOOR FAN CONTROL BUZZER CONTROL SMPS AC COMMUNICATION SUB-PCB Samsung Electronics 13-2...
  • Page 61 ����������� ������� ������������������������� ��� � ������������������������ ���������� ������ ����������������������� ������������������ ������������ ������������ ������������������������� �������������������� ��� �� ���������� ������������������ �������������������� �� ��������������������� �� ������������������ �� ����������� �� �������������������� �� ��� �� ������������������ �� ��������������������������� ����������� ���� �������� ����������� 13-3 Samsung Electronics...
  • Page 62 Block Diagram ����������� ���� ��� ����� ��� ����������� ���� Samsung Electronics 13-4...
  • Page 63 10. PCB Diagram 10-1 Indoor PCB The red number connecter is not used. Power Temperature Sensor Motor RPM Feedback Auto Grill Remocon Module HVPS(High voltage Generator) Humidity Sensor BLADE-H Step Motor Anions Display Indoor Fan Motor Samsung Electronics 10-1...
  • Page 64 10-2 Outdoor PCB The red number connecter is not used. Power N COND/OLP Temperature Sensor Power L DIS/OUT Temperature Sensor BLDC FAN EEV Connector AC FAN Comp. Connector Wire Communication 485 Reactor Connector Wire 10-2 Samsung Electronics...
  • Page 65 7. Wiring Diagram 7-1 Indoor Unit This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 66 7-2 Outdoor Unit This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 67 MEMO Samsung Electronics...
  • Page 68 R-CHIP 1Kohm,5%,1/10W,TP,1608 R404 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R409 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R503 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R602 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R604 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R610 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R611 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 R606 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 R909 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 Samsung Electronics...
  • Page 69 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 C508 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 C509 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 C510 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 C102 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C201 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C202 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 C203 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 C204 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 C401 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 Samsung Electronics...
  • Page 70 ST11 DB26-00015A TRANS SWITCHING JT1916-09, FT71 DB27-00017A COIL CHOKE USAV-07153,UU1116,15.0mH CN21 DB39-01194A CONNECT WIRE-15P 26 AWG,-,15,140,WHT DB41-00526A PCB MAIN CEM-3,2,1.0,T 1.6mm,160*140mm F701 DB61-00924A HOLDER-FUSE -,FH-51B,-,-,-,-,SSEC IC04 DB91-00375A ASSY-MICOM INV Vivace2,MB90F823,sop,ROM,128K bytes CN63 3711-000999 HEADER-BOARD TO CABLE SMW250-05 WHT Samsung Electronics...
  • Page 71 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C307 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C316 2203-005249 C-CER,CHIP 100nF,10%,50V,X7R,1608 RY01 3501-001248 RELAY-MINIATURE 12V,-,11.7MA,DPDT,4MS,4MS CN31 3711-000015 HEADER-BOARD TO CABLE BOX,2P,1R,2.5MM,STRAIGHT,SN,WHT CN12 3711-003847 HEADER-BOARD TO CABLE BOX,12P,1R,2mm,ANGLE,SN CN11 3711-006040 HEADER-BOARD TO BOARD NOWALL,10P,2R,2.54mm,ANGLE,AU,BLK DB41-00528A PCB SUB CEM-3,2,1.0,1.6T,50*33,-,9,-,COMM 485 Samsung Electronics...
  • Page 72 R-CHIP 330ohm,5%,1/10W,TP,1608 R508 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R513 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R518 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R519 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R520 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R521 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R522 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R523 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R701 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 Samsung Electronics...
  • Page 73 R-CHIP 3.3Kohm,5%,1/8W,TP,2012 R602 2007-000766 R-CHIP 330ohm,5%,1/8W,TP,2012 R603 2007-000766 R-CHIP 330ohm,5%,1/8W,TP,2012 R408 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R409 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R410 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R424 2007-000868 R-CHIP 4.7Kohm,1%,1/8W,TP,2012 R407 2007-000872 R-CHIP 4.7Kohm,5%,1/8W,TP,2012 R112 2007-000924 R-CHIP 470Kohm,1%,1/4W,TP,3216 R113 2007-000924 R-CHIP 470Kohm,1%,1/4W,TP,3216 Samsung Electronics...
  • Page 74 R-CHIP 150KOHM,1%,1/2W,TP,5025 R418 2007-009114 R-CHIP 110Kohm,1%,1/2W,TP,5025 R419 2007-009114 R-CHIP 110Kohm,1%,1/2W,TP,5025 R432 2007-009114 R-CHIP 110Kohm,1%,1/2W,TP,5025 C307 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C308 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C309 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C310 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C105 2201-000322 C-CERAMIC,DISC 2.2NF,10%,2KV,Y5P,TP,13X5MM,10 C106 2201-000322 C-CERAMIC,DISC 2.2NF,10%,2KV,Y5P,TP,13X5MM,10 Samsung Electronics...
  • Page 75 100nF,+80-20%,50V,Y5V,2012 C502 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C503 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C504 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C517 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C518 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C519 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C520 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C521 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C522 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 Samsung Electronics 6-10...
  • Page 76 RY04 3501-001154 RELAY-MINIATURE 12Vdc,200mW,3000mA,1FormA,10mS,10mS RY05 3501-001154 RELAY-MINIATURE 12Vdc,200mW,3000mA,1FormA,10mS,10mS RY01 3501-001169 RELAY-POWER 12VDC,0.9W,20000MA,SPST,20MS,10MS RY31 3501-001248 RELAY-MINIATURE 12V,-,11.7MA,DPDT,4MS,4MS CN30 3711-001031 HEADER-BOARD TO CABLE BOX,6P,1R,2.5MM,ANGLE,SN,WHT CN61 3711-004484 HEADER-BOARD TO CABLE BOX,5P,1R,2mm,STRAIGHT,SN,NTR PT02 DB26-00075A TRANS SWITCHING PT-50 DB41-00530A PCB MAIN CEM-3,2,1.0,1.6T,180*220 6-11 Samsung Electronics...
  • Page 77 BD01 DB98-16586A ASSY-DIODE GS1B2560 D101 DB98-16591A ASSY-DIODE RECTIFIER FEP30JP LED2 DB98-16600A ASSY-LED GREEN ASSY-LED GREEN LED1 DB98-16601A ASSY-LED RED ASSY-LED RED LED3 DB98-16602A ASSY-LED YEL ASSY-LED YEL CN51 DB98-22298A ASSY-HOOK WHT SMAW250A-04 CN50 DB98-22299A ASSY-HOOK WHT SMAW250A-04 Samsung Electronics 6-12...
  • Page 78 330ohm,5%,1/10W,TP,1608 R513 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R518 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R519 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R520 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R521 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R522 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R523 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R701 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 R702 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 6-13 Samsung Electronics...
  • Page 79 330ohm,5%,1/8W,TP,2012 R408 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R409 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R410 2007-000781 R-CHIP 33ohm,5%,1/8W,TP,2012 R424 2007-000868 R-CHIP 4.7Kohm,1%,1/8W,TP,2012 R407 2007-000872 R-CHIP 4.7Kohm,5%,1/8W,TP,2012 R112 2007-000924 R-CHIP 470Kohm,1%,1/4W,TP,3216 R113 2007-000924 R-CHIP 470Kohm,1%,1/4W,TP,3216 R114 2007-000924 R-CHIP 470Kohm,1%,1/4W,TP,3216 R412 2007-000928 R-CHIP 470ohm,1%,1/8W,TP,2012 Samsung Electronics 6-14...
  • Page 80 110Kohm,1%,1/2W,TP,5025 C307 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C308 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C309 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C310 2201-000154 C-CERAMIC,DISC 10NF,+80-20%,2KV,Y5P,TP,20X5MM,7.5 C105 2201-000322 C-CERAMIC,DISC 2.2NF,10%,2KV,Y5P,TP,13X5MM,10 C106 2201-000322 C-CERAMIC,DISC 2.2NF,10%,2KV,Y5P,TP,13X5MM,10 C411 2203-000126 C-CER,CHIP 1.2nF,10%,50V,X7R,TP,2012 C412 2203-000126 C-CER,CHIP 1.2nF,10%,50V,X7R,TP,2012 C413 2203-000126 C-CER,CHIP 1.2nF,10%,50V,X7R,TP,2012 6-15 Samsung Electronics...
  • Page 81 100nF,+80-20%,50V,Y5V,2012 C519 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C520 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C521 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C522 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C523 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C524 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C706 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C721 2203-000192 C-CER,CHIP 100nF,+80-20%,50V,Y5V,2012 C423 2203-000495 C-CER,CHIP 2.2nF,10%,50V,X7R,2012 Samsung Electronics 6-16...
  • Page 82 IC70 DB91-00381A ASSY-MICOM MB90F823 INV IC50 DB91-00386A ASSY-MICOM MB90F824 MAIN C/W COMM DB93-04333C L/W COMM 485 4TURN C/W REACTOR DB93-04334A C/W REACTOR C/W REACTOR C/W COMP DB93-04335A COMP C/W COMP C/W FAN DB93-04338A FAN -MOTOR YEL,BLU ,RED 6-17 Samsung Electronics...
  • Page 83 BD01 DB98-16586A ASSY-DIODE GS1B2560 D101 DB98-16591A ASSY-DIODE RECTIFIER FEP30JP LED2 DB98-16600A ASSY-LED GREEN ASSY-LED GREEN LED1 DB98-16601A ASSY-LED RED ASSY-LED RED LED3 DB98-16602A ASSY-LED YEL ASSY-LED YEL CN51 DB98-22298A ASSY-HOOK WHT SMAW250A-04 CN50 DB98-22299A ASSY-HOOK WHT SMAW250A-04 Samsung Electronics 6-18...
  • Page 84 250V,20A FUSE CLIP 3602-001038 FUSE-CLIP 250V,30A,10mohm 3712-001139 CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM 3712-001139 CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM 4715-001093 SURGE ABSORBER 3600V,20%,2000A,-,AXIAL FT00 DB27-00040A COIL CHOKE SSC3120030B,3.0mH, FT01 DB27-00040A COIL CHOKE SSC3120030B,3.0mH, DB41-00531A PCB SUB FORTE,CEM-3,2,1.0,1.6T,160*140 C/W POWER DB93-05058A ASSY CONNECTOR WIRE WIRE 6-19 Samsung Electronics...
  • Page 85 250V,30A FUSE CLIP 3602-001038 FUSE-CLIP 250V,30A,10mohm 3712-001139 CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM 3712-001139 CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM 4715-001093 SURGE ABSORBER 3600V,20%,2000A,-,AXIAL FT00 DB27-00040A COIL CHOKE SSC3120030B,3.0mH, FT01 DB27-00040A COIL CHOKE SSC3120030B,3.0mH, DB41-00531A PCB SUB FORTE,CEM-3,2,1.0,1.6T,160*140 C/W POWER DB93-05058A ASSY CONNECTOR WIRE WIRE Samsung Electronics 6-20...
  • Page 86  OUTDOOR DISPLAY PCB : DB93-04329A Location No. Code No. Description Specification Q’ty SNA/SA D901 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,TP LED93 0601-001373 ROUND,RED,3MM`,630NM LED92 0601-001375 ROUND,GRN,3mm,570nm,3.8x5.3mm LED91 0601-001377 ROUND,YEL,3mm,585nm,3.8x5.3mm 3404-001220 SWITCH-TACT 12V,50mA,160gf,6.1x6.1x5.0mm,SPST CN953 3711-004068 HEADER-BOARD TO CABLE BOX,5P,1R,2MM,ANGLE,SN,WHT DB41-00545A PCB MAIN-DISPLAY AQV12JAKCV,FR-1,1,1.0,1.6T,-,Q,30,-,- 6-21 Samsung Electronics...
  • Page 87 9-1-1 Indoor Unit SMPS PART BUZZER PART INDOOR FAN CONTROL SUB PCB CONNECTOR ZERO CROSSING PART DISPLAY PART STEP MOTOR & ION INDOOR TEMPERATURE SENSOR MPI PART HUMID PART This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 88 Circuit Descriptions Circuit Descriptions 9-1-2 Outdoor Unit TEMPERATURE SENSOR & EEV SMPS INVERTER This Document can not be used without Samsung’s authorization. Samsung Electronics...
  • Page 89 9-2 Refrigerating Cycle Diagram Indoor Unit Outdoor Unit 2 way valve Expansion valve Liquid side Heat Exchanger (Evaporator) Heat Exchanger (Condenser) Cross Fan Gas side 4 way valve 3 way valve Cooling Compressor Heating Gas Leak Check Point Samsung Electronics...

  • Page 90: Operating Instructions
