user & installation manual
DB98-32957A(10)
E
A
F
Air Conditioner
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
AS09U Series
AS12U Series
AS13U Series
AS18U Series
AS19U Series
AS24U Series
AS25U Series
AQ09U Series
AQ12U Series
AQ18U Series
AQ24U Series
Advertisement
Table of Contents
Related Manuals for Samsung AS09USeries
Summary of Contents for Samsung AS09USeries
-

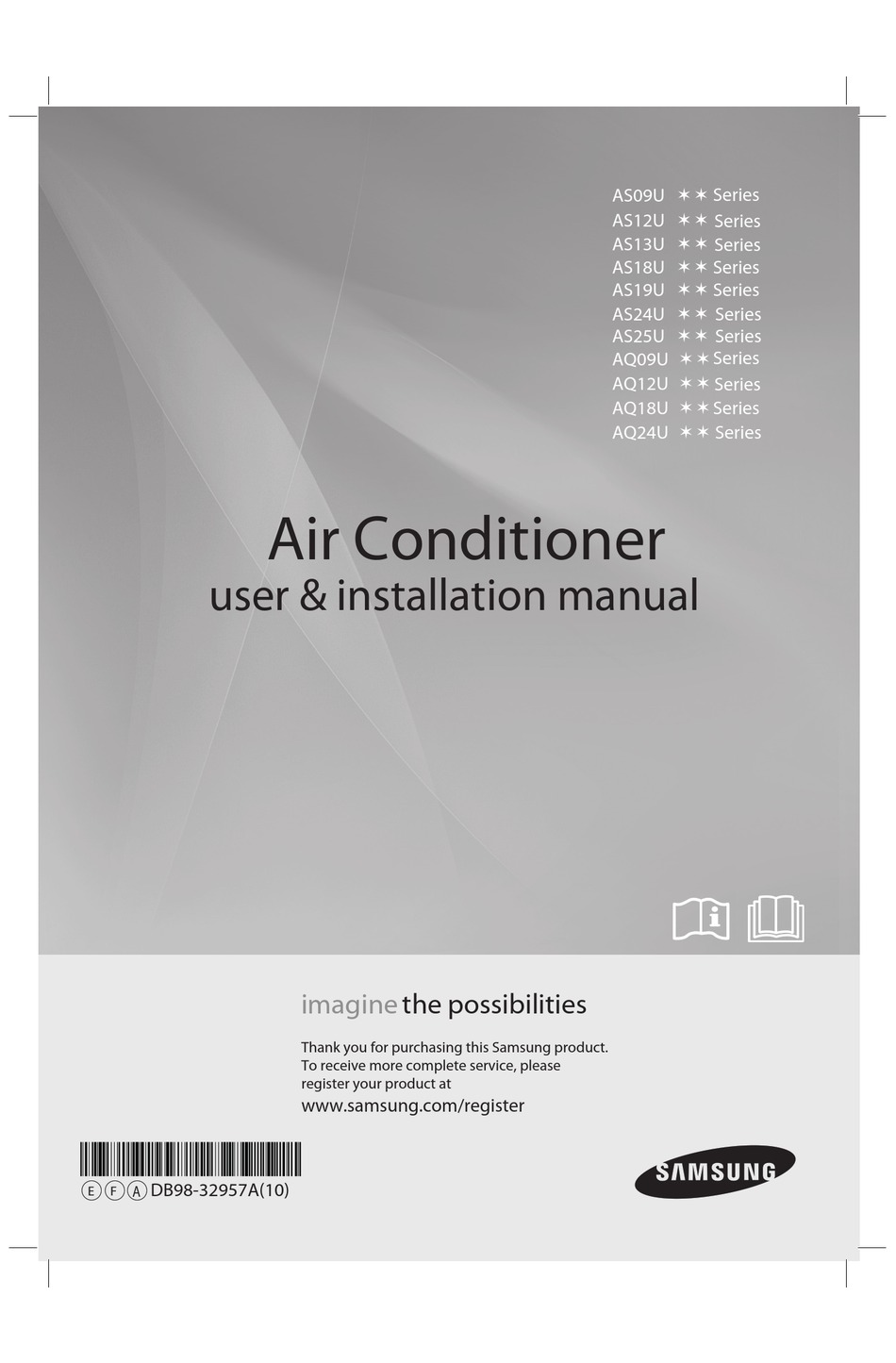

Page 1: Air Conditioner
AQ09U Series AQ12U Series AQ18U Series AQ24U Series Air Conditioner user & installation manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register DB98-32957A(10) -
Page 2: Table Of Contents
Features of your new air conditioner Contents USING PARTS On those hot sweltering summer days and long restless Safety precautions ................. 3 nights, there is no better escape from the heat than the Checking before use ..............6 cool comforts of home. Your new air conditioner brings an Checking the name of the parts .......... -
Page 3: Using Parts
USING PARTS Safety precautions Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to safely and online at www.samsung.com. Important safety symbols and precautions: WARNING Hazards or unsafe practices that may result in severe personal injury or death. - Page 4 Safety precautions FOR POWER SUPPLY WARNING Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. Unplug the power plug and clean it with a dry cloth. ...
- Page 5 FOR USING WARNING Do not place an object near the outdoor unit that allows children to climb onto the machine. This may result in children seriously injuring themselves. Since this may be dangerous due to a lack of oxygen, Open a window at least once an hour. ...
-
Page 6: Checking Before Use
Checking before use Operation ranges The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the Mode Indoor temperature Outdoor temperature Indoor humidity Cooling 15˚C~52˚C Relative humidity 80% or less 16˚C~32˚C 15˚C~52˚C 18˚C~32˚C Heating 27˚C or less... -
Page 7: Checking The Name Of The Parts
Checking the name of the parts below Main parts Room temperature sensor Air intake (up and down) Display Timer/Auto Clean indicator... -
Page 8: Checking The Remote Controller
Checking the remote controller • Point the remote controller towards the remote controller receiver of the indoor unit. • When you properly press the button on the remote controller, you will hear beep sound from the indoor unit and a transmit indicator( ) appears on the remote controller display. - Page 9 Remote controller display Operation mode indicator Turbo indicator Low battery indicator Quiet indicator Transmit indicator Smart Saver indicator Air swing indicator Fan speed indicator Auto (Turbo) On Timer indicator Medium indicator High Battery changing time When the battery is exhausted, ( ) will be displayed in the remote controller display.
-
Page 10: Basic Function
Basic function Basic operation is an operation mode that can be selected by pressing the Mode button. Auto In Auto mode, the air conditioner will automatically set the temperature and fan speed depending on the room temperature detected by the room temperature. Cool In Cool mode, the air conditioner will cool your room. - Page 11 Press the button to turn on the air conditioner. Press the button to set the operating mode. • Each time you press the Mode button, the mode will change in order of Auto, Cool, Dry and Fan Press the button to set the desired fan speed. Auto (Auto) Cool...
-
Page 12: Using The Turbo Function
Adjusting the air fl ow direction Press the Air swin g button on the remote controller. circulate the air. Press the Air swing direction in a constant position. position you prefer. Blade pin lever • Be extremely careful with your while adjusting the Horizontal There is a potential risk of personal injury when the unit is mishandled. -
Page 13: Mode
mode For a comfortable sleep, the air conditioner will operate it Fall asleep Sound sleep Wake up from mode. When the air conditioner is on and in cool/heat mode 1. Press the button on the remote controller. controller display. - Page 14 1. Press the On Timer/O Timer button. Setting On timer 2. Press the Time Up or Time Down button to set the time. You can set the time in half hourly unit from 30 minutes ~ 3 hours and hour unit from ...
-
Page 15: Using The Smart Saver Function
If the air conditioner is on - The air conditioner will turn on after 3 hours from the - The air conditioner will operate On timer after 3 hours moment you have set the timer. from the moment you have set the timer. Your air conditioner will remain on for 2 hours and then Your air conditioner will remain on for 2 hours and then 1 hour from the moment you have set the timer. -
Page 16: Using The Auto Clean Function
Using the Auto Clean function Auto clean function will prevent from growing mold by eliminating the moisture inside of the indoor unit. Your indoor unit evaporates the moisture inside of the unit. Activate this function to provide you with more clean and healthier air. Press the Auto Clean button. -
Page 17: Cleaning The Air Conditioner
Cleaning the air conditioner • the wall socket when cleaning the air conditioner. Cleaning the indoor unit Wipe the surface of the unit with a slightly wet or dry cloth when needed. • Contact the service center when you clean the indoor unit heat exchanger because it needs to be disassembled. - Page 18 Cleaning the air conditioner and slide it down. Open the panel and put the A ter out. Clean the A ter with a vacuum cleaner or soft brush. If dust is too heavy, rinse it with running water. Insert the Ai lter back in its original position Dry the Ai lter in a ventilated area.
-
Page 19: Maintaining The Air Conditioner
Maintaining the air conditioner If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. 1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. There may be internal damage if moisture is left in components. -
Page 20: Troubleshooting
Troubleshooting Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses. PROBLEM SOLUTION The air conditioner does • Check power status and then operate the air conditioner again. not work at all. •... - Page 21 PROBLEM SOLUTION Error is indicated. • When an indoor unit indicator blinks, contact the nearest service center. Noise is generated. • Depending on the status of the air conditioner usage, noise can be heard when refrigerant Smoke is generated from •...
-
Page 22: Installation Parts
SAMSUNG’s technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy. Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly. These operations ... -
Page 23: Choosing The Installation Location
Installing the unit IMPORTANT: Always disassemble the electric lines before the refrigerant tubes. Upon receipt, inspect the product to verify that it has not been damaged during transport. If the product appears damaged, DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the installer or the authorized technician has collected the material from the retailer.) After completing the installation, always carry out a functional test and provide the instructions on how to operate the air ... -
Page 24: Outdoor Unit
Choosing the installation location Outdoor Unit Where it is not exposed to strong wind Well ventilated and dustless places Out of the direct sunlight and rain Where neighbors are not annoyed by operation sound or hot air ... - Page 25 Space Requirements for Outdoor Unit When installing 1 outdoor unit Space Requirements for Outdoor Unit When installing 1 outdoor unit Unit : mm When the air outlet is opposite the wall When the air outlet is towards the wall ...
- Page 26 When installing more than 1 outdoor unit Unit : mm � When 3 sides of the outdoor unit are blocked by the wall � When the air outlet is towards the wall 300 or more 600 or more 600 or more 600 or more �...
-
Page 27: Accessories
Accessories The following accessories are supplied with the air conditioner: • The number of each accessory is indicated in parentheses. Accessories in the Indoor Unit Case Remote Control (1) Remote Control Batteries for Assy-Instruction Installation Plate (1) Installation Plate (1) Installation Plate (1) Holder (1) Remote Control (2) -
Page 28: Fixing The Installation Plate
Fixing the installation plate You can select the direction of the drain hose depending on where you want to install the indoor unit. Therefore before xing the installation plate to a wall or a Direction of pipe window frame, you must determine the position of the 65mm hole through which the cable, pipe and hose pass to connect the indoor unit to the outdoor unit. -
Page 29: Installing And Connecting The Assembly Pipe Of The Indoor Unit
Installing and connecting the assembly pipe of the indoor unit • The smaller one is for the liquid refrigerant • The larger one is for the gas refrigerant need to extend the pipe using the assembly pipe (optional). The connection procedure for the refrigerant pipe varies according to the exit position of the pipe when facing the wall: •... -
Page 30: Cutting Or Extending The Pipe
Cutting or extending the pipe A 5-meter pipe is supplied with the air conditioner (optional). The length of the pipe can be: • Extended up to : See table page 24 • Shortened up to : See table page 24 If you need a pipe longer than 5 meters: •... -
Page 31: Installing And Connecting The Drain Hose Of The Indoor Unit
Installing and connecting the drain hose of the indoor unit When installing the drain hose for the indoor unit, check if condensation draining is adequate. When passing the drain hose through the 65-mm hole drilled in the wall, check the followings: Wall Indoor unit Drain hose... -
Page 32: Changing Direction Of The Drain Hose
Changing direction of the drain hose Change the direction only when it is necessary. Screw hole 1. Detach the rubber cap with the plier. Screw 2. Detach the drain hose by pulling it and turning to the left. Drain hose hose and the outlet of the drain pan. -
Page 33: Connecting The Assembly Cable
Connecting the assembly cable Model Power cable Interconnection cable AS09** 3G, 1.0mm 3G, 1.0mm 3G, 1.5mm AS12** 3G, 1.0mm AS13** 3G, 1.5mm 3G, 1.5mm AS18** 3G, 1.5mm 3G, 2.5mm 3G, 2.5mm AS19/24/25** 3G, 2.5mm ,H05VV - F ,H07R N - F AQ09** , AQ12UWQ 3G, 1.0mm 5G, 1.0mm... - Page 34 Connect the cables to the terminals as seen in the picture. • Each wire is labeled with the corresponding terminal number. Indoor unit AS09/12/13/18/19** AQ09/12** Indoor unit Indoor unit Ground wire (Green/Yellow) Ground wire Outdoor unit (Green/Yellow) Outdoor unit Outdoor unit AQ18** AQ 24**...
-
Page 35: Purging The Connected Pipes
Purging the connected pipes The outdoor unit is loade erant for a 5-meter pipe You should purge the air in the indoor unit and in the pipe. If air remains in the refrigerant pipes, it ects the compressor. It may cause reduction of cooling capacity and malfunction. -
Page 36: Performing The Gas Leak Tests
Performing the Gas Leak Tests Make sure to check for gas leaks before completing the installation process (connecting the assembly pipe and hose between indoor unit and outdoor unit, insulating the cables, hose and pipe, and xing the indoor unit to the installation plate) To check for gas leaks on the... -
Page 37: Fixing The Outdoor Unit In Place
Fixing the Ourdoor Unit in Place Install the outdoor unit to a stable base to avoid the generation of noise and 'X' mm vibration, especially when installing the unit close to a neighbor. If you install the outdoor unit in a place exposed to strong winds or at a height, to an appropriate support (wall or ground). -
Page 38: Providing Information For User
Providing Information for User After nishing the installation of the air conditioner, explain the following to the user: How to start and stop the air conditioner How to select the modes and functions How to adjust the temperature and fan speed How to adjust the air ow direction How to set the timers How to clean and replace the lters... -
Page 39: How To Connect Your Extended Power Cables
How to connect your extended power cables e t I s to prepare (compressor and insulation tape should be prepared by an installation technician.) Tools Crimping plier Connection sleeve (mm) Insulation tape Contraction tube (mm) Spec MH-14 20xØ7.0(HxOD) Width 18mm 50xØ8.0(LxOD) Shape (Unit: mm) - Page 40 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT IRAN 021-8255 www.samsung.com www.samsung.com/ae SAUDI ARABIA 9200-21230 www.samsung.com/ae_ar U.A.E 800-SAMSUNG (726-7864) www.samsung.com www.techno-blue.com QATAR 4450 4533 www.samsung.com/ae BAHRAIN 8000-4726 www.samsung.com/ae_ar www.samsung.com/ae OMAN 800-SAMSUNG (726-7864) www.samsung.com/ae_ar 800-22273 JORDAN www.samsung.com 065777444 EGYPT 08000-726786 www.samsung.com...
