ATTACHING/REMOVING THE
SIDE-DISCHARGE CHUTE

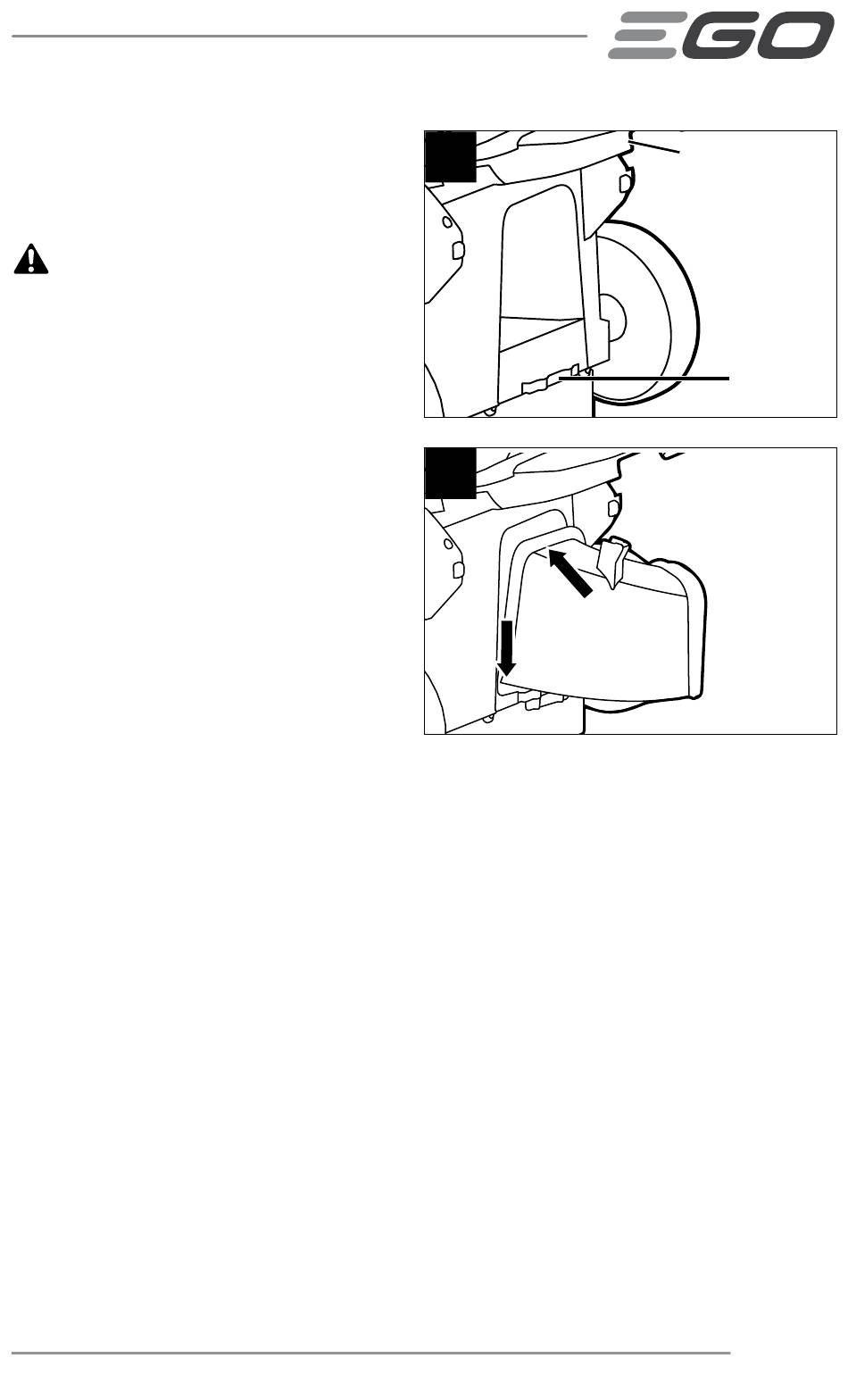

(Fig. 22 & 23)
WARNING:
make any adjustment to the lawn mower
without first stopping the motor, removing
the battery pack and waiting until the
blade has stopped rotating.
1. Remove the battery.
2. Lift the rear-discharge door.
3. Align the lower edge of the side-
discharge chute with the groove
of the doorsill and insert it into the
slot.
4. Push the top of the side-discharge
chute and insert it into the mower.
Check to see that it is securely
seated in the deck.
5. To remove the side-discharge chute, lift the rear-discharge door, grasp the side-
discharge chute and pull it out.
6. Release the discharge door and make sure that it rests firmly against the
discharge chute.
