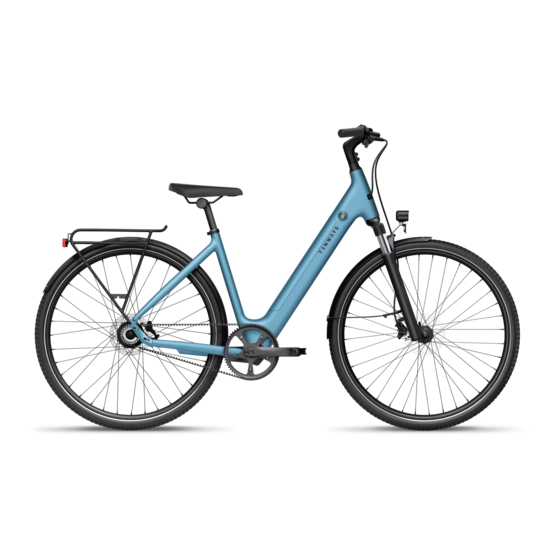

- Page 1 Installation Manual CGO800S...
-
Page 2: Battery Pack
Tool Box check list. Unwrap your TENWAYS E-bike. (1) Take your bike, tool box, and battery pack out of the box. (2) Remove and recycle all wrapping materials. Phillips Head Hex Key Hex Key Hex Key Screwdriver Charger Adapter Cycling... -
Page 3: Remove The Front Wheel
Rotate the head of the handlebar. Remove the front wheel. Twist the head of the handlebar so that it faces forward. Remove the front wheel and the plastic protective covers on both sides of the wheel. Hold your e-bike with the kickstand down to facilitate the next installation steps. - Page 4 Remove quick release f rom the f ront Install the front wheel mudguard. fork. Pre-install it on the front wheel. Loosen the nut and remove the quick release lever. Secure the nut behind the head light with the 10mm Wrench, and then loosen the screw with the 5mm Hex Key.
-
Page 5: Install The Front Wheel
Install the front wheel. This step is extremely important, so please read carefully. This step is extremely important, so please read carefully. Adjust the quick release lever to the open position. Install the front Turn the front wheel by hand and check if there are any signs wheel;... -
Page 6: Install The Pedals
Install the pedals. Install the battery. Separate the left and right pedals. Tilt and clip the lower end of the battery into the battery slot, The right and left pedals are marked by an R and an L respectively. and then press the upper end. The right pedal is used for the side with the crankset, while the left one is used for the other side. - Page 7 Install the reflectors. Adjust the height of the saddle cushion. Open the seat post clamp, adjust the saddle cushion to a suitable Distinguish between the front reflector and the rear one. The height, and then lock the clamp. rear reflector is red, while the front one is white. The height of the seat post cannot exceed the marked safety line.
-
Page 8: Panel Operations
Panel operations How to turn on the panel. Panel display interface You can press and hold the On/Off button to turn on the panel. The panel displays the real-time speed by default after it is turned on. The default passcode is 0000. The PAS level is shown at the lower right corner of the panel You can press the M button 5 times to enter the operation interface. - Page 9 How to switch between the main interfaces. Adjust the assistance. (1) You can long press the M button to switch from the TRIP and ODO You can use the Up and Down buttons to select f rom 5 interface to the AVG and MAX interface. assistance modes.
- Page 10 How to use the head light and the tail light. Assisted pushing. (1) Short press the RIGHT/LEFT turn indicator button to turn on the rear The e-bike will enter Assisted Pushing if you press and hold the turn signal on the RIGHT/LEFT side. DOWN button for 2 seconds.
- Page 11 How to change the passcode. How to modify display units. You can use the UP/DOWN buttons to set/cancel the passcode after The parameters can be set to show in metric or imperial units selecting the passcode setting interface. after you select the display unit interface. You can also use these buttons to change the passcode.
-
Page 12: How To Reset The Trip Distance
(2) The trip time will also be reset if you reset the distance. You need to contact TENWAYS customer service immediately and provide the error code information. We will help you solve the problem as soon as possible. - Page 13 How to connect to the TENWAYS App. Fill in the color of your e-bike and give your e-bike a name. Turn on the Bluetooth feature of your phone. Open the TENWAYS App. Turn on the panel of your e-bike, and then enter the passcode.
-
Page 14: Before Your First Ride
Charge the bike indoors and keep it away from direct sunlight, rain or snow. Screws between the handlebar and the front fork stem. ii. Do not charge the bike with non-TENWAYS chargers. ii. Screws between the brake lever and the handlebar. - Page 15 Routine maintenance Routine maintenance How to maintain the battery Professional store maintenance Operating and storage temperatures of the battery It is recommended to go to a professional store for maintenance 2-3 times a quarter, or after every 1,000 km of riding. The following items should be checked during such Working temperature of the lithium battery is 0°C to 30°C.
-
Page 16: Warranty
All original components are covered by warranty for a period of two years from the consultations. date of delivery. Claims under this warranty must be made directly to TENWAYS and proof of purchase is required. The warranty applies to original owners and is transferable to further owners. - Page 17 What should I do if any parts are damaged or any abnormality occurs during use? Your bike must comply with legal regulations for riding on public roads in all Please contact TENWAYS customer service immediately, or turn to relevant conditions, including inclement weather, at night, early morning, or dusk. It is your professionals for inspection and maintenance.
- Page 18 This manual cannot cover the installation and maintenance methods for each e-bike part, and the technical details shown in texts and illustrations in the manual may also change, so please contact TENWAYS if you cannot find answers to your technical problems.
- Page 19 EPAC according to EN15194 tenways.com...
