Operation Manual

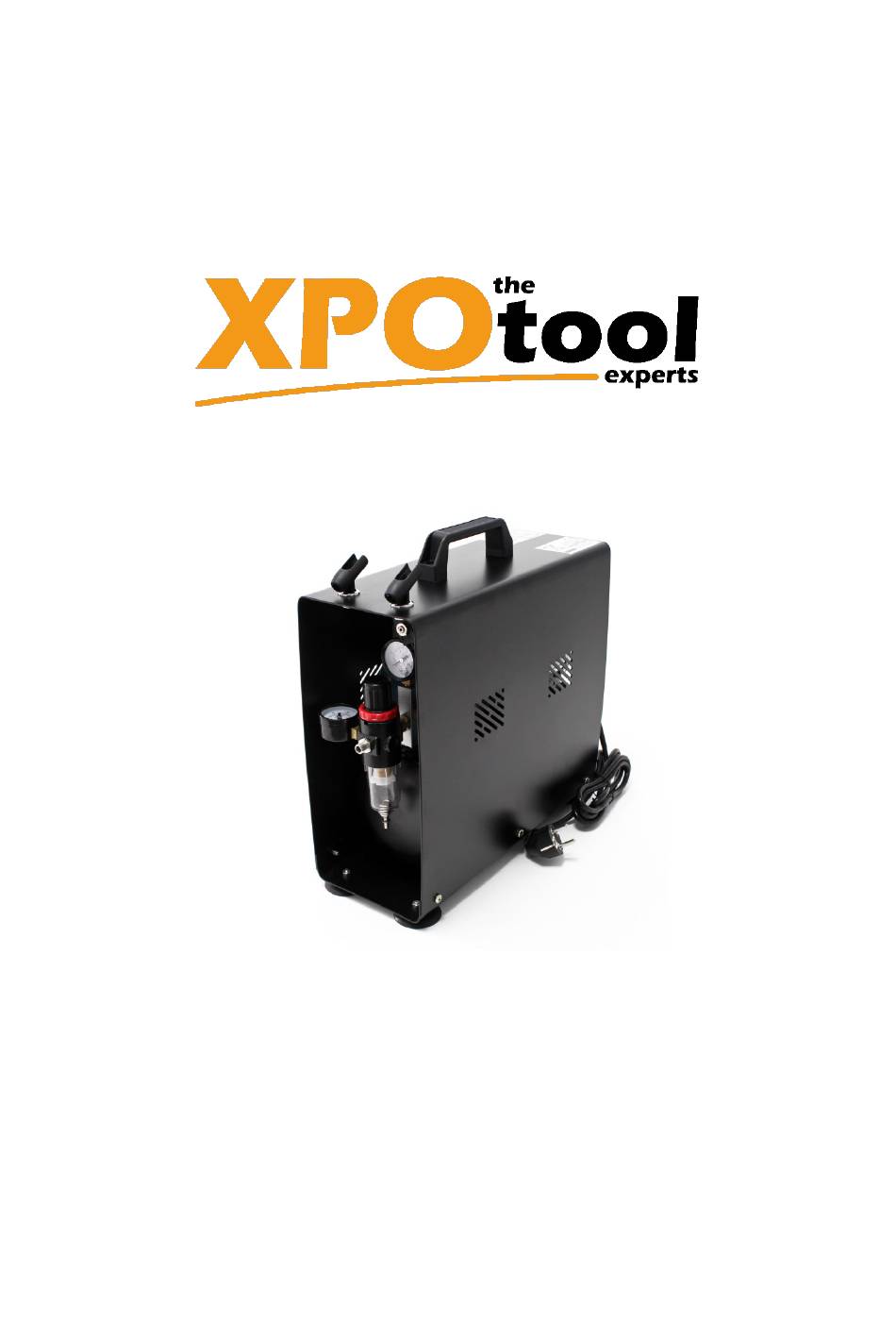

Airbrush Compressor AS196AW
34246
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for WilTec XPOtool AS196AW
Summary of Contents for WilTec XPOtool AS196AW
- Page 1 Operation Manual Airbrush Compressor AS196AW 34246 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly. Updating the documentation If you have suggestions for improvement or have found any irregularities, please contact us.
- Page 2 All rights re- served. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 Introduction Thank you for purchasing this quality product. To minimise the risk of injury we urge that our clients take some basic safety precautions when using this device. Please read the operation instruc- tions carefully and make sure you have understood its content. Keep these operation instructions safe.
- Page 4 power cable away from hot objects, oil, and sharp edges. Protect it against breakage. Do not pull the power cable to unplug it from the power socket. • If the compressor is used outdoors, only approved extensions may be used. Every wire of the extension cable must have at least 1,5 mm²...
- Page 5 Technical specifications Type Twin air compressor with tank and casing Power (W) 190 (¼ PS) Rotation speed ( ⁄ 1450–1700 Noise level (dB (A)) approx. 47 Stanrad volume ( ⁄ 35–40 ℓ switch: auto-start at 2 bar, auto-stop at 4 bar Double switch switch: max.
-
Page 6: Operation
Operation of the pressure relief station with filter Letter Name Pressure regulator Pressure gauge Water drain plug Product name: Pressure regulator with filter and pressure gauge Type: AFR-2000 Features: The AFR-2000 is an in-line low pressure regulator with 9 bar (100 psi) manometer and water drain plug. This regulator allows you to control the pressure and helps generating clean, dry, pressure-stable air. - Page 7 Main components Letter Name Handle Airbrush gun holder Pressure regulator Pressure gauge Air outlet Water drain plug Mains plug Exploded view and parts list (block) https://www.XPOtool.com Item 34246 Page 7 The Tool Experts 04 2022-1...
- Page 8 № Name Qty. № Name Qty. Screw 29 Filter valve Rear cover 30 Handle Block Pressure switch Rear body 32 Water drain valve Screw 33 Condenser Stationary motor 34 Power switch Bearing 35 Wire Rotary motor 36 Rubber pad Front body 37 Hexagon nut 10 Counterweight 38 Connector...
- Page 9 This logo indicates that this electric equipment must not be disposed with the domestic waste. The company WilTec Technik GmbH has been registered in the German registry EAR under the WEEE- registration number DE45283704. Disposal of used electrical and electronic appliances...
